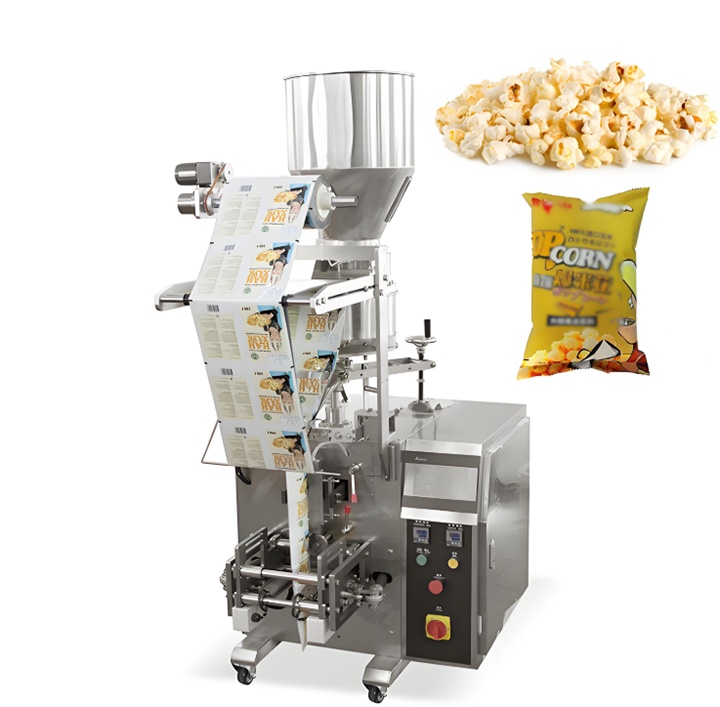

Vertical Packaging Machine for Popcorn

What is Vertical Packaging Machine for Popcorn?

Vertical Packaging Machine for Popcorn utilizes a vertical form-fill-seal process. Its core structure includes a film feed system, a forming machine, a longitudinal sealing mechanism, a transverse sealing and cutting mechanism, a metering and filling system, and a control system. The machine can handle a variety of popcorn ingredients, including caramel, cream, chocolate coatings, and other products with varying viscosities and particle sizes.

Given the large, lightweight, and fragile nature of popcorn, the machine is equipped with a multi-head weighing system to ensure accuracy and protect the product. The packaging capacity typically ranges from 50 to 1000 grams, with a packaging speed of 30-60 bags per minute. Standard bag formats include back-seal or three-side-seal stand-up pouches, but custom designs such as four-side-seal and stand-up pouches are also available. Prices range from US$5,000 to US$20,000, depending on the configuration.

Vertical Packaging Machine for Popcorn working video display

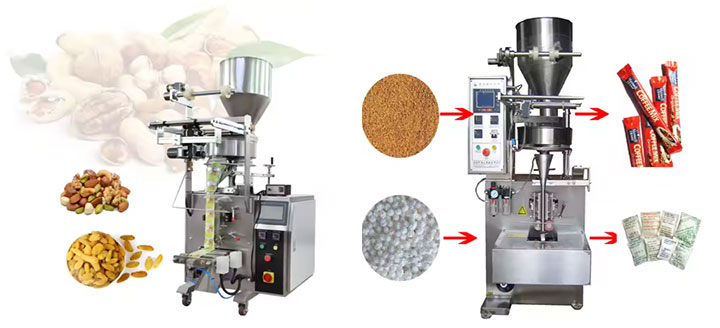

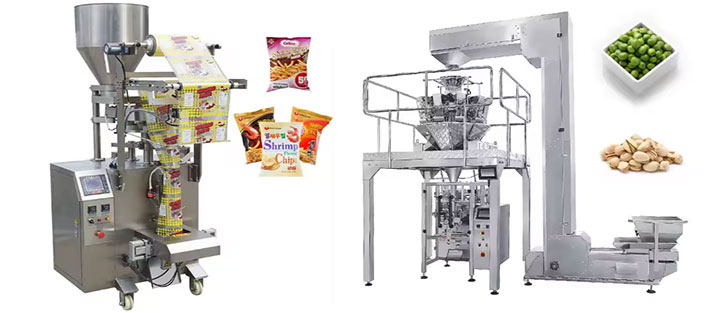

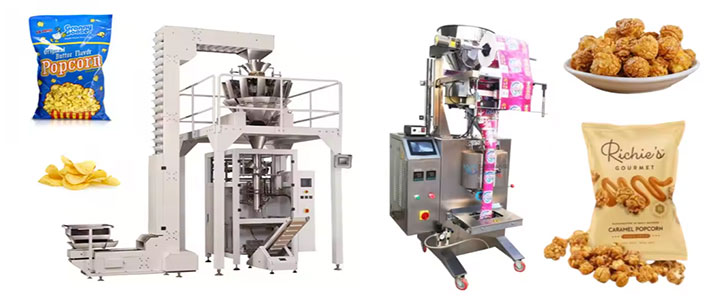

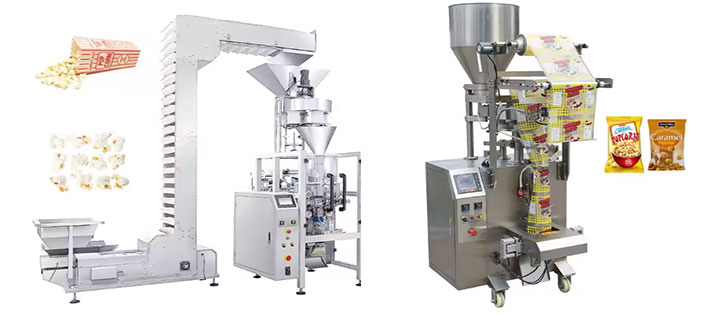

What are the types of Vertical Packaging Machine for Popcorn?

Vertical Packaging Machine for Popcorn can be categorized into three main types based on production scale and functional configuration: vertical bag-forming and packaging machines, bag-feeding vertical packaging machines, and high-speed weighing and packaging machines. Weighing systems are further categorized into single-head and multi-head weighing systems.

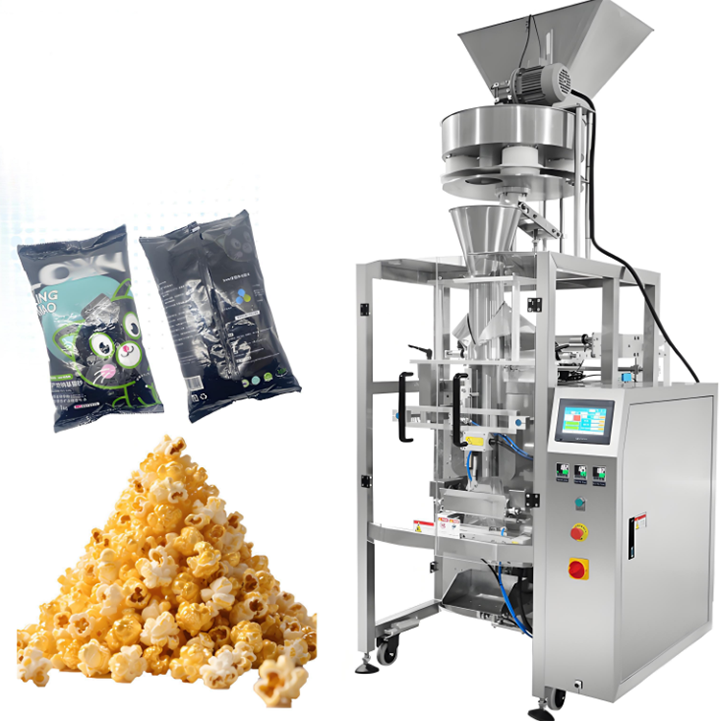

Vertical bag-forming, filling, and packaging machines automatically form roll film into bags, integrating metering, filling, and sealing. This equipment includes a film frame, forming machine, sealing cutter, and weighing system. It can be equipped with a measuring cup, spiral scale, single-head weigher, or multi-head weigher. Suitable for small bags, this machine can produce 60-120 bags per minute, making it an ideal choice for small and medium-sized businesses.

Pre-made bag vertical packaging machines: Use complex bag shapes such as stand-up pouches and zipper bags. A robotic arm automatically sucks the bags and completes the bag opening, filling, and sealing processes. They include a bag bin, bag opening mechanism, turntable, and sealing module. Suitable for high-end products, they offer a sleek appearance, with speeds of 30-80 bags/minute. They are often equipped with a single-head scale or spiral feeder, making them suitable for medium-sized production volumes.

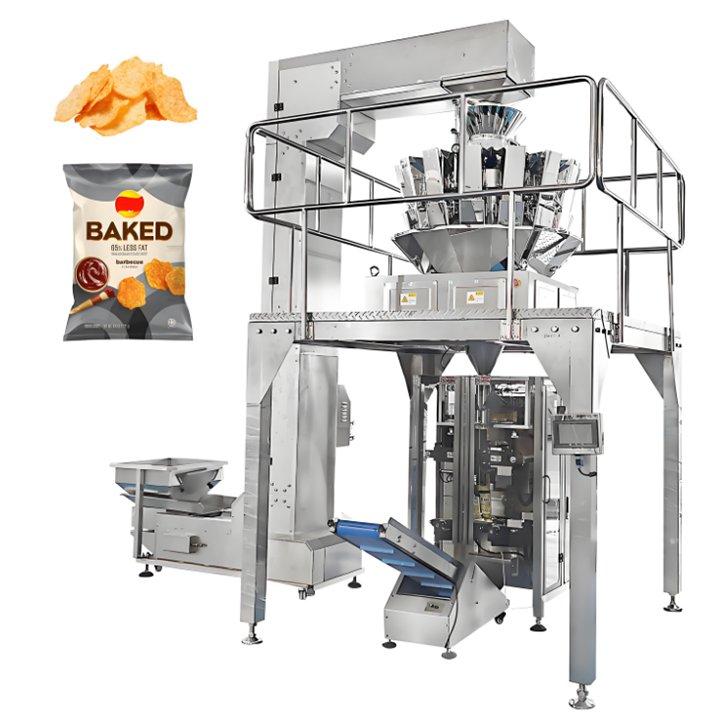

High-speed weighing and packaging machines: These machines utilize a multi-head weighing system (e.g., four-head, eight-head, or fourteen-head) that simultaneously weighs multiple weighing units. The system automatically combines the data sets closest to the target weight for unloading. With an accuracy of ±1g and speeds up to 180 bags/minute, they are suitable for large-scale, high-speed automated production. A single-head weighing system is also available for lower cost and suited for lower-volume production.

Vertical Packaging Machine for Popcorn Parameters

What are the Advantages of Vertical Packaging Machine for Popcorn?

Vertical Packaging Machine for Popcorn has many advantages. The specially designed vibrating plate feeding system can prevent the brittle popcorn from breaking; the servo drive system is used, and the packaging accuracy can reach ±1g, effectively reducing material waste; the machine is made of stainless steel, meets food hygiene standards, and is easy to clean and maintain; the modular design supports fast mold replacement, and it only takes 15 minutes to change the bag type; in addition, the vertical structure occupies a small area and is suitable for a variety of production environments. The intelligent control system and touch screen operation interface make the equipment easier to use, and support parameter saving and fast switching of production specifications, which improves production flexibility.

Price of Vertical Packaging Machine for Popcorn

The price of vertical popcorn packaging machine is $5,000-$20,000, which is divided into basic type (20-40 bags/minute), medium type (40-60 bags/minute) and high-end type (80-100 bags/minute, including nitrogen filling and remote monitoring) to meet different production capacity and automation requirements.

Basic model ($5,000-$10,000): suitable for start-ups or small batch production, with basic weighing, bag making and sealing functions, production capacity of about 20-40 bags/minute, suitable for single bag type and conventional packaging needs.

Medium-sized model ($10,000-$15,000): upgraded automatic control system, supports multi-specification bag switching (such as self-supporting bags, back-sealed bags), optional simple coding or labeling functions, and increased production capacity to 40-60 bags/minute, suitable for medium-sized production lines.

High-end intelligent model ($15,000-$20,000): integrated multi-head weighing (accuracy ±0.5g), nitrogen fresh-keeping filling, high-speed sealing (80-100 bags/minute), touch screen PLC control and IoT remote monitoring, adapted to composite film materials, suitable for high hygiene standards or large-scale continuous production scenarios.

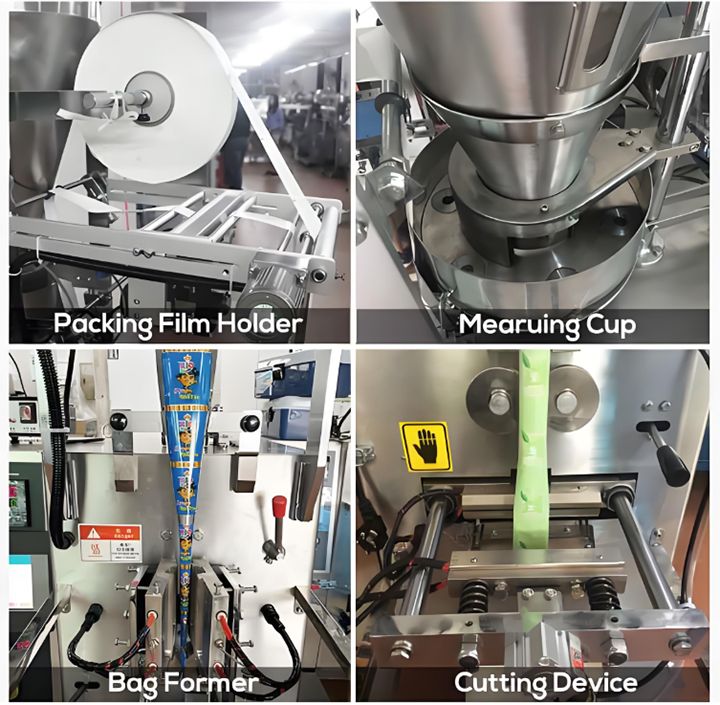

Main components of Vertical Packaging Machine for Popcorn

The core components of the packaging machine include vertical spiral feeder, bag former, sealing and cutting mechanism, traction system and control system. The feeder uses 304 stainless steel Teflon-coated spiral blades, and the spiral parameters are adapted to the popcorn particle size to ensure smooth feeding. The bag former forms the film roll into a vertical cylinder and cooperates with the heat sealing mechanism to form a packaging bag. The longitudinal and transverse sealing mechanisms seal the longitudinal seams and bag openings of the film respectively to ensure the integrity of the packaging.

The traction system driven by the servo motor accurately controls the film conveying and positioning. The filling tube guides the material into the bag to reduce spillage. The cutting device provides sawtooth/hot cutter options to achieve continuous slitting. The PLC/touch screen control system can adjust parameters such as temperature control and speed to support automated production. The film roll holder is equipped with a tension device to ensure smooth unwinding of the film.

Application scenarios of Vertical Packaging Machine for Popcorn

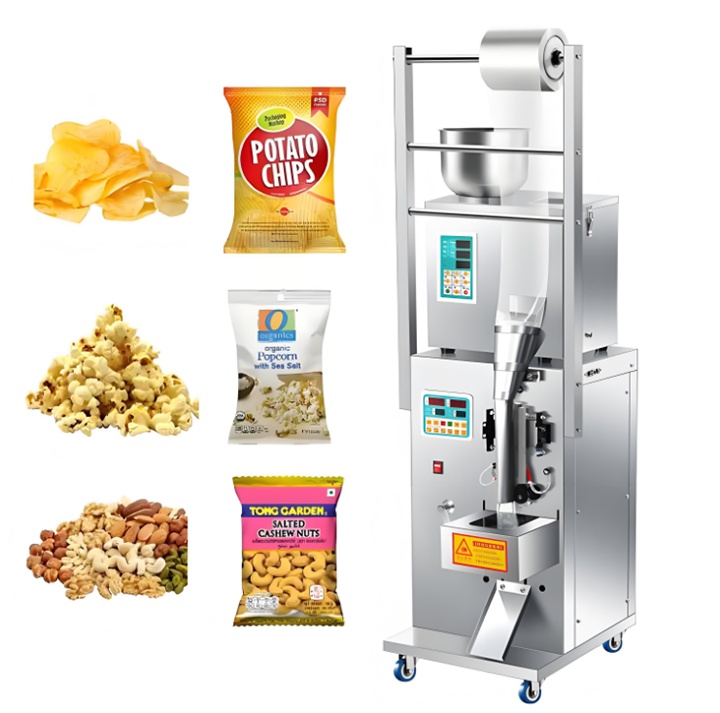

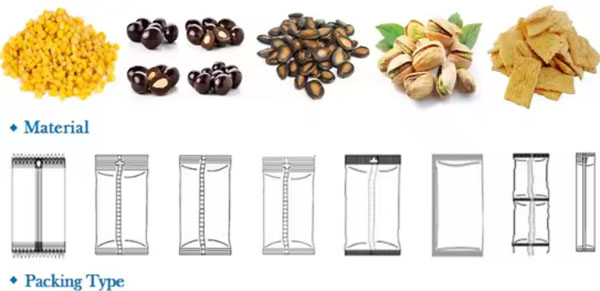

Vertical Packaging Machine for Popcorn is widely used in food processing companies, snack food factories, chain popcorn brands, cinema popcorn supply chains, and OEM factories. In addition to popcorn, the equipment is also suitable for the packaging of other puffed foods such as potato chips, rice crackers, corn cobs, etc., with strong adaptability and versatility. Some models can also be used for the packaging of lightweight granular materials such as nuts, candies, and leisure bean products.

Vertical Packaging Machine for Popcorn Supplier

Leveraging years of industry experience and accumulated technical expertise, our factory boasts an advantage in the field of Vertical Packaging Machines for Popcorn. We utilize a high-precision weighing system and intelligent PLC control to ensure accurate packaging weights and rapid speeds. We also offer customized designs to meet the needs of various bag types and specifications. Constructed from high-quality stainless steel, the equipment boasts a sturdy and durable structure, suitable for continuous production and significantly reducing maintenance costs. With stable performance, flexible configuration, and an automated operating interface, our factory is committed to providing customers with reliable popcorn packaging solutions.

Vertical Packaging Machine for Popcorn Packaging Case

A snack food brand has introduced a Vertical Packaging Machine for Popcorn for its popcorn product line. This machine adapts to the fluffy nature of popcorn, achieves stable and high-speed packaging through servo system control, and integrates a nitrogen preservation function to effectively ensure the crispy taste of the product and extend its shelf life. This helps the brand increase production capacity while significantly reducing packaging loss.
