Chickpea Flour Vertical Packaging Machine
Wednesday January-07 2026 17:09:11

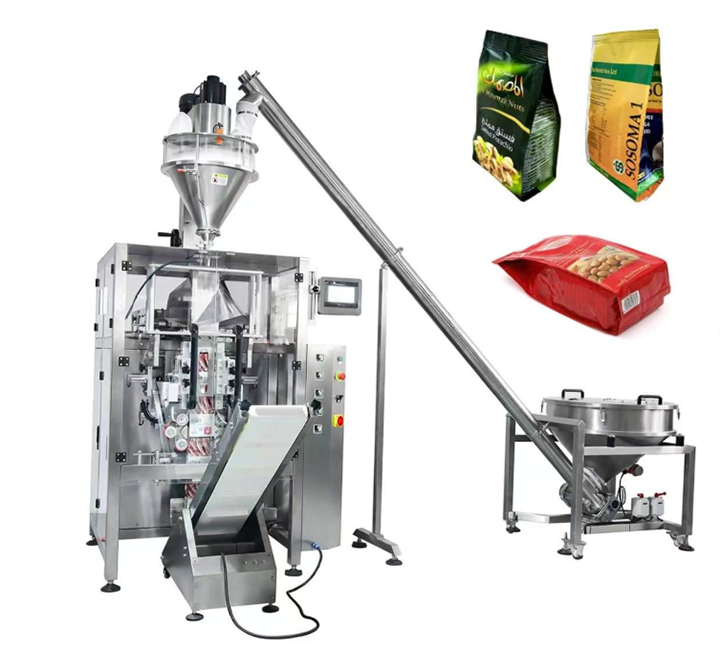

Chickpea Flour Vertical Packaging Machine features a vertical structure, integrating bag making, weighing, filling, sealing, and cutting processes from top to bottom for packaging chickpea flour. The machine boasts a packaging speed of 40-80 bags/minute and a weighing range from 100g to 5000g, handling both small retail packages and large catering packages. It is compatible with high-barrier materials such as AL aluminum foil composite film and PET/PE, providing protection for the easily oxidized and hygroscopic chickpea flour. Bag sizes are adjustable within the range of 60-200mm × 80-160mm. The control system combines a PLC with a color touchscreen, enabling parameter control, fault diagnosis, and production data statistics, making operation very simple.

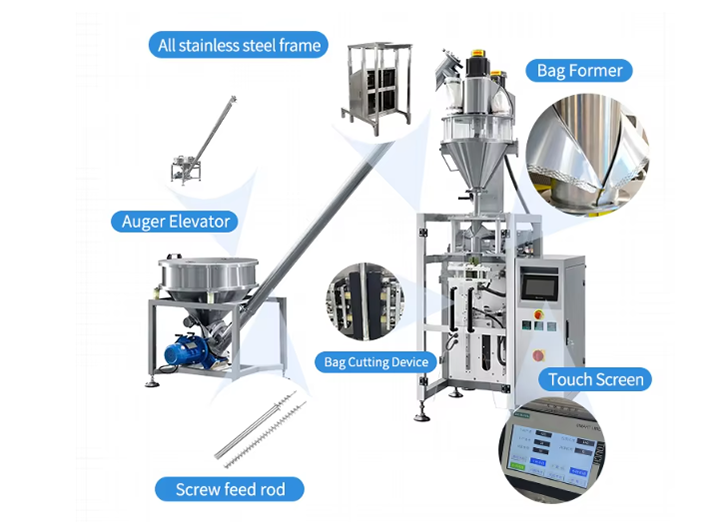

Chickpea Flour Vertical Packaging Machine Components
The Chickpea Flour Vertical Packaging Machine consists of multiple components, each with its own function, working together to provide a smooth operating system for chickpea flour packaging.
The feeding and metering system is equipped with a hopper featuring a stirring device. This continuous stirring prevents bridging and arching, addressing the poor flowability of chickpea flour. The metering section utilizes a servo motor-driven double-helix metering device, solving the problem of inaccurate powder weighing.
The bag forming system precisely shapes the rolled film into vertical bags using a film traction mechanism and a forming device. This system is optimized for powdery environments, reducing film friction and electrostatic adsorption, resulting in flat bags.
The dust control system integrates a dust extraction interface and a sealing design to collect airborne chickpea flour dust at the filling station. This not only maintains workshop cleanliness but also prevents powder contamination of the sealing area, ensuring a clean seal.
The heat sealing and cutting system uses reinforced heat sealing strips, achieving uniform and secure sealing even in powdery environments. This results in neat, aesthetically pleasing bags without rough edges.
The electrical control system, centered on a PLC and in conjunction with various sensors, monitors parameters such as temperature, speed, and position in real time. The human-machine interface intuitively displays the operating status and can store dozens of product formulas for rapid switching.
Chickpea Flour Vertical Packaging Machine Specifications
| Packing Speed | 15–60 bags/min (depending on product type & bag size) |
| Filling Range | 10–1000 g (adjustable) |
| Bag Width | 60–200 mm |
| Bag Length | 80–300 mm |
| Bag Type | Pillow bag / Gusset bag / Stand-up pouch |
| Filling System | Servo-driven auger filler with dust-proof sealing |
| Film Material | OPP/CPP, PET/PE, PET/AL/PE, Paper/PE, Kraft/PE |
| Film Width | Max. 420 mm |
| Sealing Type | Heat sealing (airtight and leak-proof) |
| Air Consumption | 0.65 MPa, 0.3 m³/min |
| Power Supply | 220V / 50Hz / 2.5 kW |
| Machine Dimensions | 1200 × 900 × 2100 mm |
| Machine Weight | Approx. 420 kg |
| Material Contact Parts | SUS304 stainless steel (food-grade, corrosion-resistant) |
| Control System | PLC + Touch screen (multi-language interface) |
| Optional Devices | Nitrogen flushing, dust collector, screw feeder, date printer, check weigher |
| Model | LT-420G Gram Flour Packaging Machine |
|---|
Benefits of the Chickpea Flour Vertical Packaging Machine
The Chickpea Flour Vertical Packaging Machine is compatible with high-performance aluminum foil composite films, providing excellent oxygen and light protection for the high-fat, easily oxidized and rancid characteristics of chickpea flour, extending its shelf life by 30-50%. An optional nitrogen filling device further replaces oxygen within the packaging, meeting the packaging requirements of premium chickpea flour. The machine can accommodate bags ranging from 250g retail pouches to 5kg catering bags, and can complete size changes within 15 minutes through quick component changes and recalling pre-stored parameters, meeting diverse market demands. The machine boasts a high degree of automation from feeding to packaging, reducing manual operation time and improving packaging quality.
Applications of the Chickpea Flour Vertical Packaging Machine

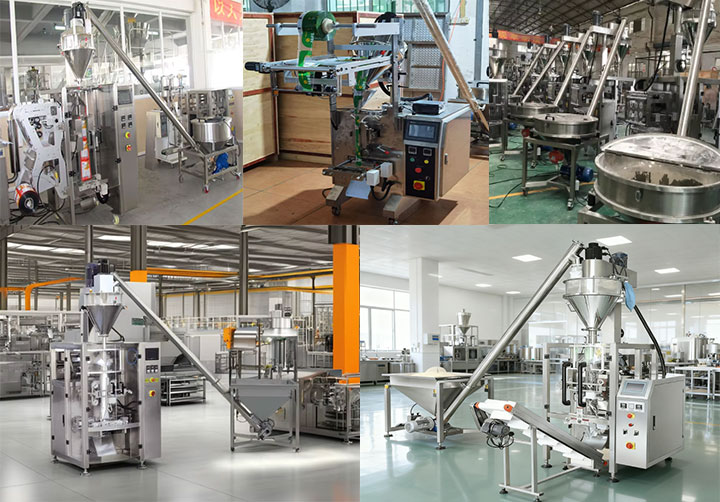

The Chickpea Flour Vertical Packaging Machine is suitable for food processing plants, flour mills, or small food businesses, as well as for upgrading chickpea flour packaging lines.
For large food processing plants, the Chickpea Flour Vertical Packaging Machine can quickly automate the packaging of powdered foods, processing hundreds to thousands of bags per hour, increasing production efficiency while reducing manual operation and labor intensity. For flour mills or chickpea flour processing companies, this equipment can seamlessly connect the crushing, conveying, and packaging processes to form a complete automated production line, achieving continuous production from raw material crushing to finished product packaging. Small food businesses can adjust bag sizes and weighing ranges to simultaneously produce multiple specifications of products to meet the needs of retail and wholesale markets.
The Chickpea Flour Vertical Packaging Machine solves multiple challenges in chickpea flour packaging, including poor flowability, dust generation, easy oxidation and rancidity, and clumping. When selecting a machine, you can choose a smaller Chickpea Flour Vertical Packaging Machine or provide your requirements for output and machine size to Machrise, and the supplier will recommend suitable models and quotes to meet your chickpea flour packaging needs.
