Vertical Packaging Machine for Chemical Powder

What is Vertical Packaging Machine for Chemical Powder?

Vertical Packaging Machine for Chemical Powder is suitable for fine powder, dust-prone, moisture-absorbent and other chemical materials. The machine adopts a vertical structure, which consists of a feeding system, a weighing system, a bag making and sealing device, a control system and other parts. It has high space utilization and is easy to operate, suitable for placement in a variety of production environments. Depending on the model, the packaging speed can reach 15-120 bags/minute, the measuring accuracy is ±0.1%, and it supports three-side sealing, four-side sealing and other sealing forms.

The chemical powder materials suitable for Vertical Packaging Machine for Chemical Powder include washing powder, industrial sodium carbonate, ammonium chloride, lime powder, pesticide powder, pigment powder, auxiliary powder, etc. The equipment is designed with full consideration of the powder characteristics, and has built-in dust prevention, static electricity removal and other functions to ensure that the materials are not polluted and the production line is not blocked during the packaging process.

What are the advantages of Vertical Packaging Machine for Chemical Powder?

Compared with traditional horizontal packaging machines or manual packaging methods, Vertical Packaging Machine for Chemical Powder is more outstanding in terms of efficiency, sealing, and safety. First, the vertical design allows the material to fall naturally by gravity, and with the spiral or vibration feeding system, it reduces the flying of powder and improves the filling accuracy; secondly, the sealing system uses heat sealing or ultrasonic sealing technology to make the bag mouth firm and leak-proof, which is suitable for the high-demand chemical industry. Chemical powder has the characteristics of fine particles and easy moisture absorption, and the equipment is equipped with moisture protection and sealing control system to ensure the stability and shelf life of the packaging materials. In addition, its modular design facilitates cleaning and maintenance, and can quickly change packaging specifications and bag types, such as three-side seals, back seals, and corner bags, greatly improving production flexibility.

Vertical Packaging Machine for Chemical Powder Technical Parameters

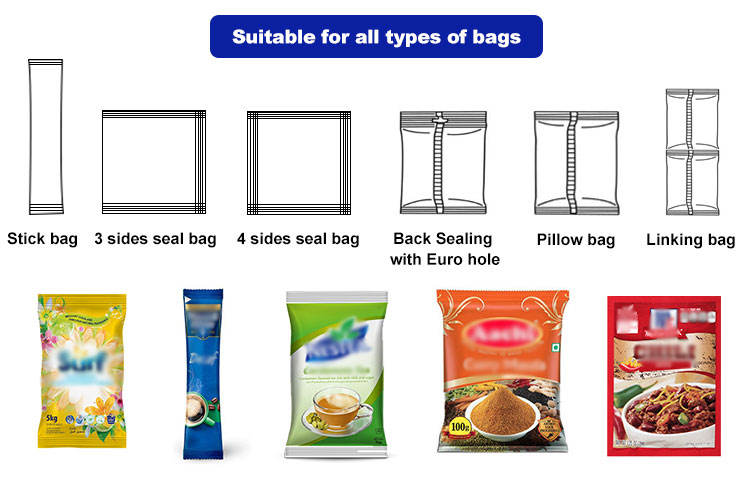

Vertical Packaging Machine for Chemical Powder has a packaging speed of 120 bags/minute, a metering range of 5-1000 grams, an accuracy of ±0.5% or ±0.2%, and provides a variety of size options. It supports a variety of composite films, and the sealing forms include three-side seals (standard), four-side seals, back seals, etc., and can be customized with special-shaped seals. The detailed parameters are as follows:

What is the packaging process of Vertical Packaging Machine for Chemical Powder?

The packaging process of Vertical Packaging Machine for Chemical Powder adopts a fully automated design: film unwinding-bag making-powder filling-sealing and cutting-finished product output.

Automatic film unwinding: servo motor drives film unwinding, photoelectric detection positioning, and tension control ensures smooth film delivery.

Bag making and forming: the film is folded into a tube, and vertically sealed at 150-200℃. Some models have cooling and reinforcement edge sealing.

Filling and unloading: high-precision screw filling, ±1% metering error, dust-proof hopper and dust suction device to control dust.

Sealing and cutting: adjustable temperature heat sealing knife 0.5-2 seconds sealing, rotary cutter cooperation, up to 60 bags/minute.

Finished product output: conveyor belt to the inspection station, optional weight check (±0.5g) and metal detection, automatic boxing to complete packaging.

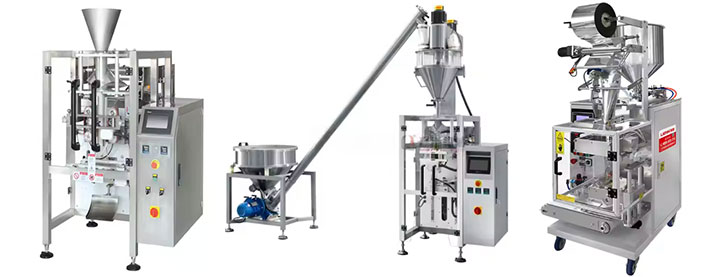

What are the types of Vertical Packaging Machine for Chemical Powder?

According to different functions and packaging requirements, Vertical Packaging Machine for Chemical Powder can be mainly divided into several types such as spiral metering, weighing, vacuum packaging and explosion-proof:

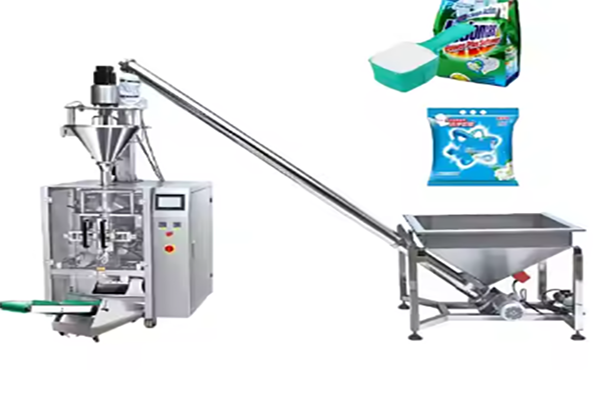

Spiral metering vertical packaging machine: suitable for chemical powders with poor fluidity, such as calcium carbonate, talcum powder, etc., the packaging volume is accurately controlled by spiral feeding, and the output of a single machine can reach 10-30 bags/minute, which is suitable for small and medium-sized production needs.

Weighing vertical packaging machine: It realizes high-precision measurement through the electronic weighing system, is suitable for a variety of powders, has a wide range of applications, and has a high output, usually up to 20-50 packs/minute, meeting the requirements of medium and large-scale production.

Vacuum packaging vertical machine: It is used to vacuum seal chemical powders that are easy to absorb moisture and oxidize, and extend the shelf life of the product. The output is relatively low, about 8-15 packs/minute, and is suitable for the packaging of high value-added products.

Explosion-proof vertical packaging machine: It is used for the packaging of flammable and explosive powders (such as aluminum powder, magnesium powder, etc.). It has an explosion-proof design to ensure safety. The output is generally 10-20 packs/minute due to safety restrictions, which is suitable for the safety packaging needs of special industries.

Vertical Packaging Machine for Chemical Powder Applicable Material Types

This packaging machine is widely applicable to various types of chemical powders and fine granular materials, including but not limited to the following categories: inorganic chemical raw materials such as calcium carbonate, zinc oxide, barium sulfate, silica gel powder, etc.; fine chemicals such as dye powder, pigment powder, flavor powder, additives, etc.; agricultural products such as pesticide powder, fertilizer powder, feed additives; detergents such as washing powder, decontamination powder, industrial cleaning powder; pharmaceutical and food additives such as glucose powder, food additive powder (under non-contact packaging conditions).

These materials generally have the characteristics of easy flying, easy agglomeration, easy moisture absorption, etc. The Vertical Packaging Machine is equipped with a special dust prevention device, anti-adhesion conveying system and multi-level metering control to ensure a smooth, clean and accurate packaging process to meet the diversified production needs of multiple industries.
