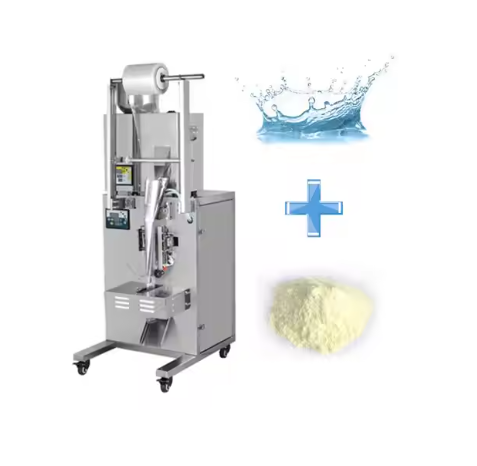

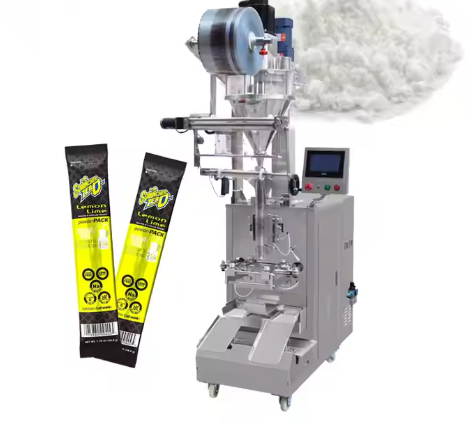

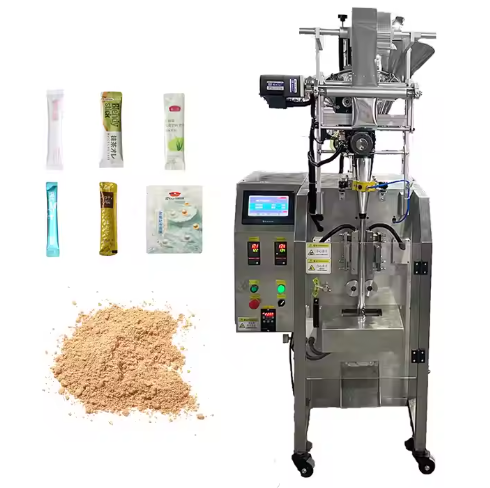

Vertical Form Fill Seal Powder Packaging Machine

Production capacity: 30-60 bags/minute

Seal width: 5-12 mm

Applicable bag types: three-dimensional bags, three-side seals

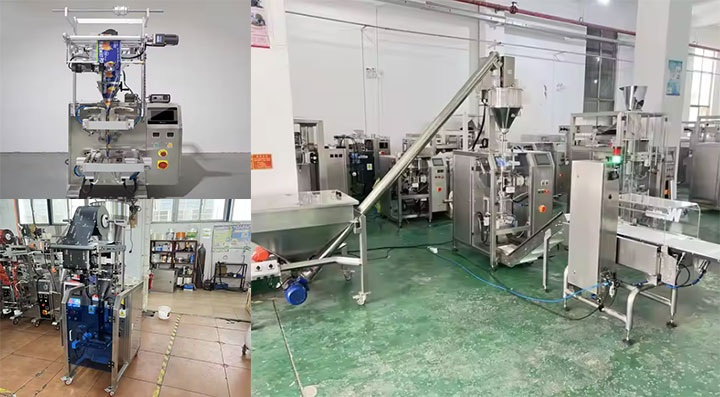

What is Vertical Form Fill Seal Powder Packaging Machine?

Vertical Form Fill Seal Powder Packaging Machine is an automated equipment designed specifically for powders. It integrates bag making, metering, filling, sealing and cutting functions. It achieves efficient and accurate packaging through precision screw metering and intelligent control technology. The equipment supports an adjustable speed of 30-60 bags/minute, with a single-shift capacity of up to 20,000 bags (8 hours, 80% utilization rate), and is suitable for a variety of specifications such as 320, 420, and 520 to meet the diverse powder packaging needs.

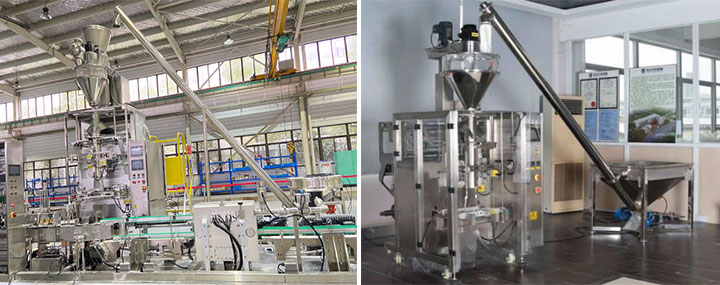

Workflow of Vertical Form Fill Seal Powder Packaging Machine

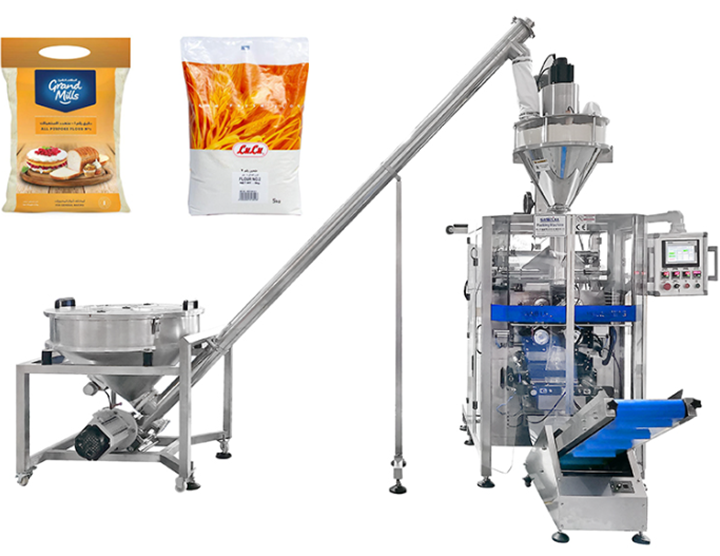

Vertical Form Fill Seal Powder Packaging Machine achieves efficient packaging of powder materials through an automated process. First, the packaging film is fed into the bag maker through the film placement system and formed into a specified bag type (such as three-side seals or back seals). Subsequently, the spiral metering device accurately feeds the powder material into the packaging bag, and the servo motor ensures stable metering and reduces powder waste. The sealing system completes the heat sealing of the bag mouth through constant temperature control to ensure that the powder is sealed and preserved. Finally, the cutter system cuts the packaging bag to form an independent package. The whole process runs continuously, and the packaging speed reaches 30-60 bags/minute, depending on the powder characteristics and bag type requirements.

Vertical Form Fill Seal Powder Packaging Machine Selection Guide

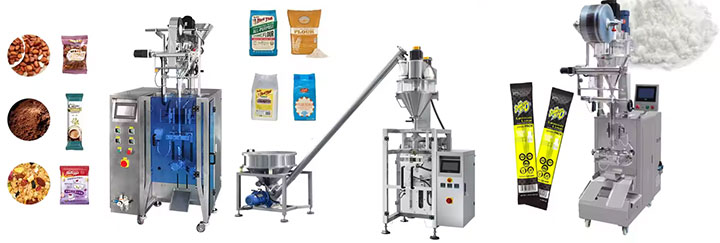

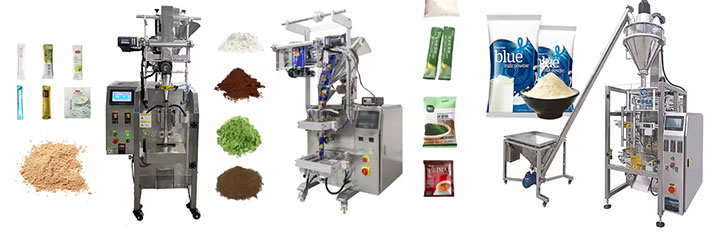

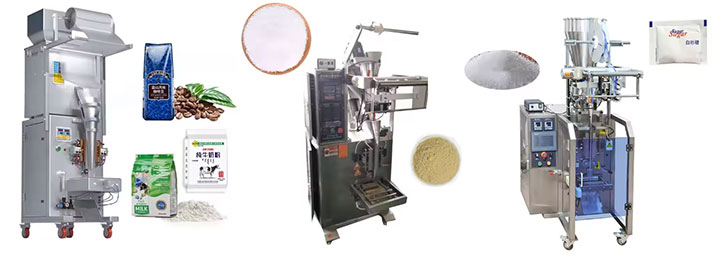

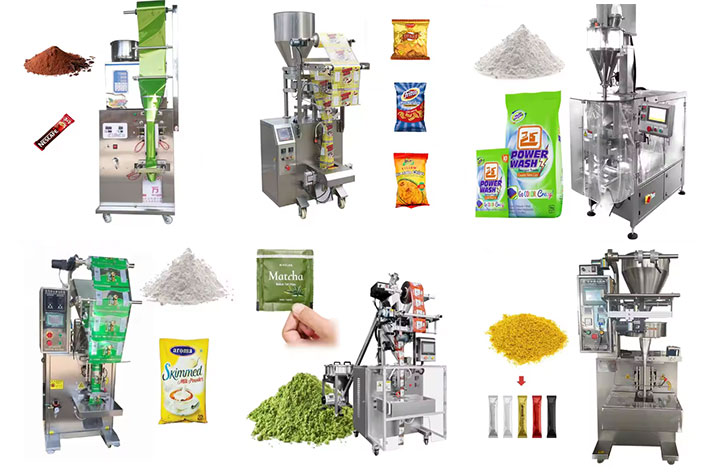

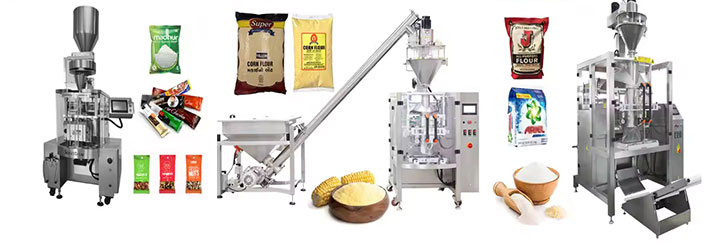

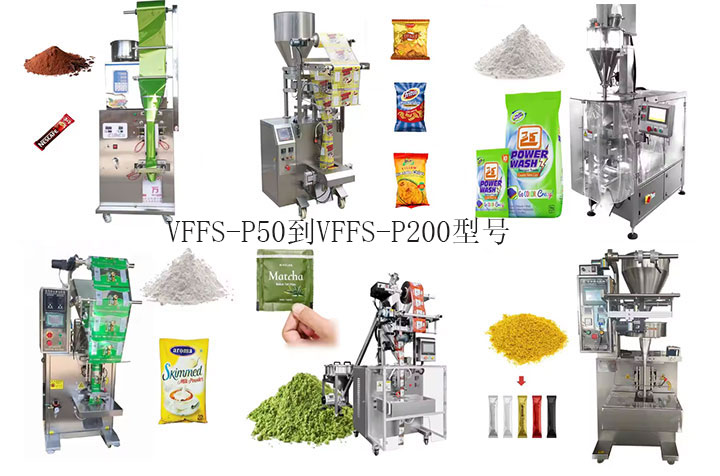

Common models of Vertical Form Fill Seal Powder Packaging Machine include: 320, 420, and 520, which should be accurately matched according to the packaging bag width and production capacity requirements:

320 type: suitable for bag width 4080mm, maximum speed 60 bags/minute, suitable for small-size packaging (such as seasonings, coffee powder). Calculated at 8 hours/shift and 80% equipment utilization, the single-shift production capacity can reach 15,000 to 20,000 bags. The reference price of the equipment is about US$8,000~10,000, which is economical and practical with high cost performance.

Model 420: Suitable for bag widths of 80~120mm, running speed of about 50 bags/minute, suitable for medium specifications (such as milk powder, flour), single-shift capacity of about 19,000 bags. The price of the whole machine is roughly between US$10,000 and US$13,000. It takes into account both capacity and flexibility and is the main model for medium-sized factories.

Model 520: Suitable for bag widths of 120~150mm, running speed of about 40 bags/minute, designed for large-size packaging (such as feed additives), single-shift capacity of about 15,000 bags. The reference price is about US$13,000~16,000, suitable for large-volume material packaging scenarios.

Selection suggestions: Determine the model based on the bag width first, and then adjust the sealing system, metering components and other configurations based on daily production requirements to achieve the most cost-effective investment plan.

Technical parameters of Vertical Form Fill Seal Powder Packaging Machine

The technical parameters of Vertical Form Fill Seal Powder Packaging Machine are optimized for the characteristics of powder materials to ensure efficient and stable operation:

Packing speed: 30-60 bags/minute, affected by powder fluidity, bag type and metering accuracy.

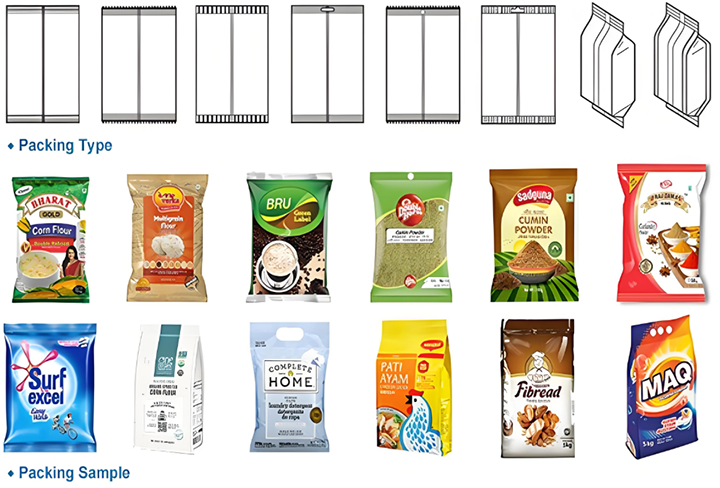

Bag type and size: Supports three-dimensional bags, three-side sealing, etc., bag width 40-150mm, bag length 60-200mm, adjustable.

Measuring system: spiral metering, servo motor drive, suitable for a variety of powder materials.

Seal width: 5-12mm, heat sealing technology ensures that the powder is firmly packaged.

Power supply: 220V/380V, 50Hz, the voltage can be customized to adapt to the powder production environment.

Material: Powder contact parts are 304 stainless steel, corrosion-resistant and easy to clean.

Control system: 7-inch color touch screen + PLC control, support Chinese and English operations, convenient for powder packaging parameter adjustment.

Air source: 0.6-0.8MPa clean compressed air to ensure reliable sealing and cutting actions.

Optional functions: dust removal device, anti-drip device, nitrogen filling system, coding machine, conveyor belt to meet the diverse needs of powder packaging.
