Vertical Automatic Packaging Machine

What is  Vertical Automatic Packaging Machine?

Vertical Automatic Packaging Machine can package granules, powders, liquids, and sheet materials weighing 5g to 5kg. It supports a variety of bag types, including three-side seal, back seal, and four-side seal. Bag length is adjustable from 50 to 300mm, and bag width is adaptable to sizes from 50 to 400mm. The machine is compatible with a variety of materials, including PET/AL/PE composite films, OPP/CPP single-layer films, and kraft paper composite bags. Its vertical bag-making process automates the entire process from film roll to finished product packaging, meeting the customized packaging weight, volume, shape, and material requirements of various industries. Depending on the model, output ranges from 30 to 80 bags per minute, with some high-speed models reaching up to 100 bags per minute. The price ranges from $3,000 to $15,000.

The Vertical Automatic Packaging Machine operates as follows: the material is fed from a feeding device to a metering mechanism for metering, then dropped into pre-formed bags. The bag maker simultaneously forms the bags, while a heat-sealing device heat-seals the bags horizontally and vertically. Finally, a cutting device separates the packaged products and delivers the finished product.

Structural Components of the Vertical Automatic Packaging Machine

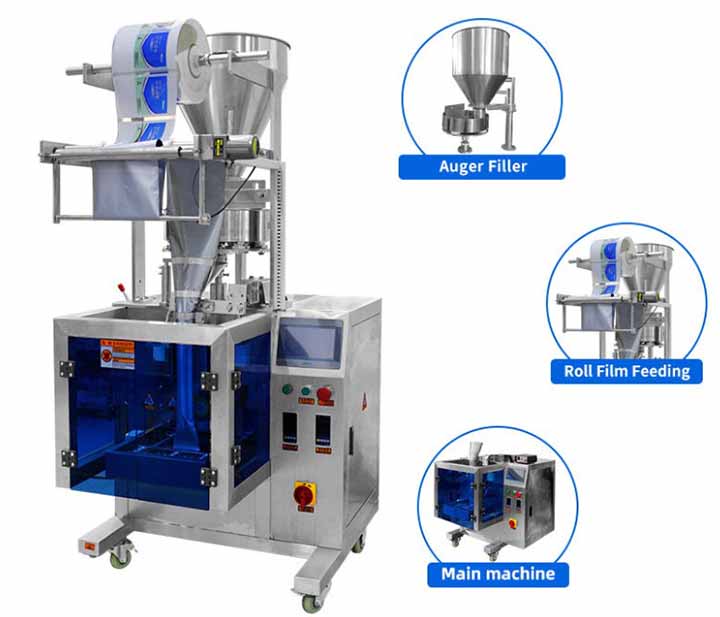

The frame of the Vertical Automatic Packaging Machine is constructed of high-strength steel, supporting the entire machine. The film conveying system includes a film roll holder, tension control device, and guide rollers to ensure smooth conveying of the packaging material. The bag former forms the flat film into the desired bag shape, with various designs available, such as triangular plate and lapel styles. The longitudinal and transverse sealing devices primarily use heat sealing, consisting of heating elements, silicone belts, and a pressure mechanism. The metering and filling system can be configured with screw metering, volumetric cup metering, or weight metering, depending on the material characteristics. The transmission system is driven by a servo motor, ensuring high-precision positioning. The control system is based on a PLC and integrates various sensors for automated operation. The finished product output device uses a conveyor belt or chute design. The close coordination of these components ensures a stable packaging process.

Vertical Automatic Packaging Machine Parameters

Price Ranges for Different Types of Vertical Automatic Packaging Machine

Vertical Automatic Packaging Machine vary in structure and configuration depending on the material type, leading to varying prices:

Vertical Packaging Machine for Nuts: Suitable for high-speed packaging of granular products such as nuts, peanuts, and cashews. Its multi-head weighing system enables high-precision and efficient metering, making it suitable for large-scale production. The price range is $7,000–$9,000.

Vertical Packaging Machine for Flour: Designed for powdered products such as flour and starch, its screw metering mechanism reduces dust and maintains metering accuracy. Its airtight structure effectively prevents powder leakage and contamination. The price range is approximately $5,000–$10,000.

Vertical Packaging Machine for Liquid Sauce: Suitable for liquid or semi-fluid products such as soy sauce, chili sauce, and ketchup. Its integrated heating and insulation system ensures material flow and stability, preventing clogging, and its seal is tight and leak-proof. The price range is $9,000–$13,000.

Vertical Packaging Machines for Detergent Powder: Suitable for packaging powders such as laundry detergent and detergent. Equipped with a dust control system and sealing structure, these machines effectively reduce dust and improve production cleanliness. They support a variety of bag types. Prices range from $7,000 to $13,000.

Vertical Form Fill Seal Packaging Machines: Suitable for packaging a variety of solid, liquid, and powder products. They offer automatic bag forming, metering, filling, and sealing functions. Their adaptability and wide range of applications make them ideal for a wide range of industries. Prices range from $5,000 to $15,000.

Vertical Packaging Machines for Pet Food: Suitable for packaging granular or mixed pet foods such as dog and cat food. They support a variety of bag types and large-volume packaging. Their robust structure, corrosion-resistant design, and easy-to-clean design make them suitable for long-term continuous operation. Prices range from $9,000 to $13,000.

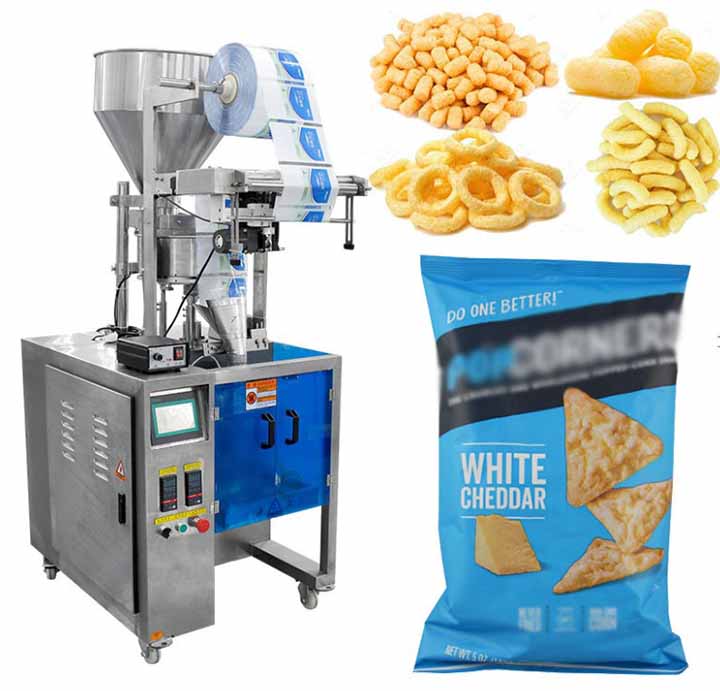

Vertical Packaging Machine for Popcorn: Designed for puffed foods, it features an anti-stick structure to prevent clumping and clogging during packaging. It offers fast packaging, beautiful bags, and excellent freshness preservation. Prices range from $7,000 to $12,000.

Vertical Packaging Machine for Seeds: Suitable for rice, corn, melon seeds, and other seed products. It utilizes a high-precision electronic weighing system to ensure consistent weight per bag, and its dust- and moisture-proof structure protects seed quality. Prices range from $8,000 to $15,000.

Other Types of Vertical Automatic Packaging Machines

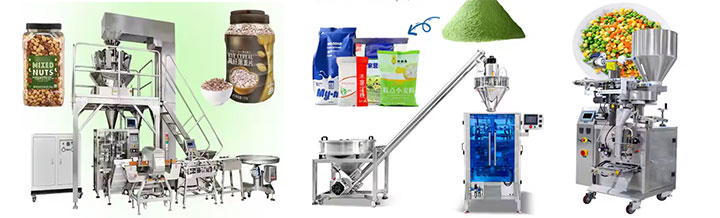

Vertical Automatic Packaging Machines can be equipped with various components, such as spiral metering devices and multi-head weighers, to create various configurations.

VFFS Powder Packaging Machine with Spiral Metering: Suitable for powder products such as milk powder, flour, and coffee powder. This machine utilizes vacuum loading and spiral containment conveying technology to effectively reduce dust generation and achieves a filling speed of up to 80 bags per minute. Multi-head weighing VFFS food packaging machines are suitable for irregularly shaped or fragile products, such as potato chips and frozen vegetables. They are also widely used for granular products such as nuts, candy, and puffed foods. These machines offer high speed and high accuracy, with weighing errors controlled within ±0.1g.

Vacuum/Modified Atmosphere Vertical Packaging Machines: Equipped with vacuum or gas displacement functions, they effectively extend the shelf life of food. They are suitable for industries with specialized needs, such as high-end food and pharmaceutical packaging.

Applications of Vertical Automatic Packaging Machines

Vertical Automatic Packaging Machines are used in nearly all areas where small-bag packaging is required. In the food industry, they are used to package snacks, candy, dried fruits, seasonings, tea, coffee, and other products, ensuring product freshness and portability. In the daily chemical industry, they are primarily used to package laundry detergent, shampoo samples, and bath salts. In the pharmaceutical industry, they are used for sterilization packaging of tablets, granules, and medical dressings. In agriculture, they are suitable for small-dose packaging of seeds and fertilizers. They are also used in industrial applications such as anti-static packaging of electronic components and hardware parts. With the growth of e-commerce, vertical packaging machines are playing an increasingly important role in meeting the demand for small-quantity, single-use packaging. Their flexibility and high efficiency make them an indispensable core piece of equipment in modern packaging production lines, helping manufacturers enhance product image, extend shelf life, and reduce packaging costs.

Optional Auxiliary Equipment for Vertical Automatic Packaging Machines

Vertical Automatic Packaging Machines can be integrated with auxiliary equipment such as finished product conveyors, metal detectors, and checkweighers to enhance production efficiency.

The finished product conveyor utilizes a modular belt conveyor system with 90° turns and multi-level connections. Its conveyor speed is adjustable from 0 to 30 m/min, adapting to the automated sorting needs of various package sizes. It transports packaged products to the next process, such as boxing and inspection, enhancing automation. Available types include belt and chain.

Metal Detectors: Used to detect metal impurities that may have entered packaged products, ensuring food safety. Suitable for foreign body detection in the food and pharmaceutical industries.

Checkweigher: With a weighing speed of up to 100 times/minute and an accuracy of ±0.2g, it can automatically detect the weight of packaging bags and automatically reject overweight or underweight products, effectively improving product quality consistency.
