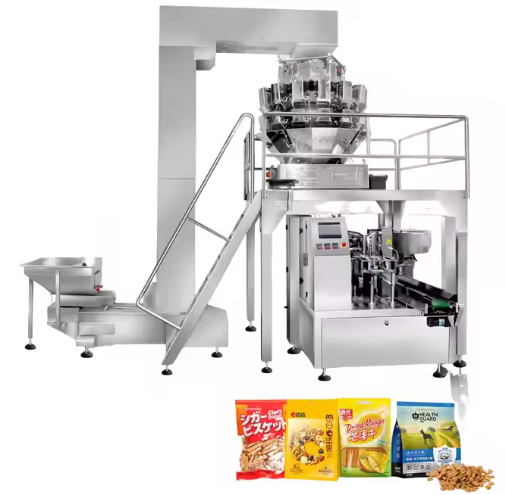

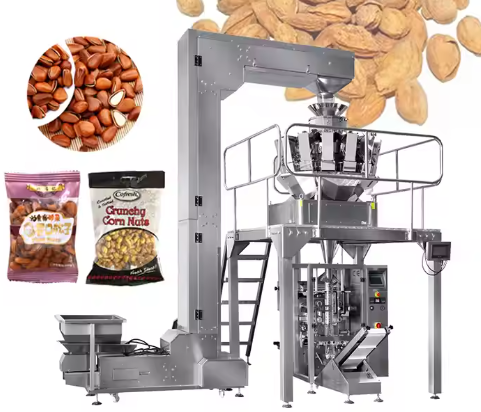

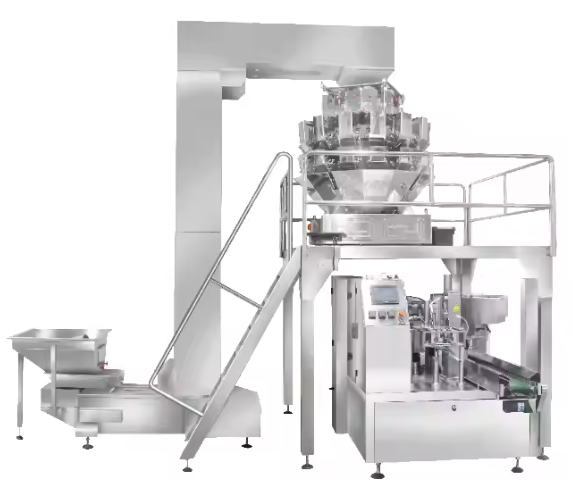

Combined Weighing And Packaging Machine With Z Conveyor

Combined Weighing and Packaging Machine with Z Conveyor uses a Z-type elevator to transport materials from low to high positions, The packaging speed is 20-50 bags/minute, reaching 300-600 bags per hour,The price of the whole system is about US$15,000 to US$35,000.

Weighing range: 10g-5000g

Error range: ±0.1%

Packaging bag type: three-side seal/four-side seal

Applicable materials: granules/flakes

What is Combined Weighing and Packaging Machine with Z Conveyor?

Combined Weighing And Packaging Machine With Z Conveyor uses a Z-type elevator to transport materials from low to high positions, seamlessly connecting with the combined weighing and packaging system to achieve an efficient, one-stop operation process. The packaging speed is 20-50 bags/minute, and the output is stable, reaching 300-600 bags per hour, effectively reducing manual feeding and improving production efficiency. The price of the whole system is about US$15,000 to US$35,000, which is cost-effective and suitable for medium and high production needs.

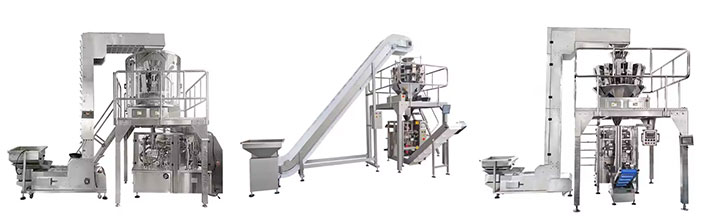

Type selection of Combined Weighing And Packaging Machine With Z Conveyor

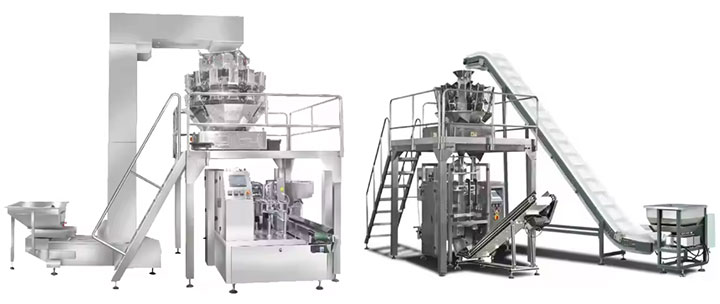

Combined Weighing And Packaging Machine With Z Conveyor has multiple types of options for conveying materials, including Z-type bucket conveyor and Z-type belt conveyor.

The bottom of the Z-type bucket conveyor can be lengthened according to actual needs to realize horizontal conveying of materials. There are multiple discharge ports to choose from during the conveying process to facilitate the addition or distribution of materials according to process requirements. The equipment can achieve rapid vertical conveying and smoothly connect the subsequent packaging process by lifting the materials through the hopper. Its closed structure can effectively prevent the materials from being contaminated during the conveying process and is suitable for conveying powdered materials.

The Z-type belt conveyor adopts durable and hygienic PVC belt, which has good wear resistance and corrosion resistance, and also meets hygiene requirements. It is particularly suitable for conveying granular materials such as nuts. The Z-type belt conveyor has an adjustable inclination angle of 0-90°, which can be flexibly adjusted according to the height of the packaging machine to realize the mobile conveying of materials. The equipment has the characteristics of mobility, which is convenient for rapid switching between different production lines and improves the flexibility of use. Its price is relatively economical and can meet the material conveying needs of various production scenarios.

Advantages of Combined Weighing and Packaging Machine with Z Conveyor

Combined Weighing and Packaging Machine with Z Conveyor has the advantages of flexible material transportation, adjustable height, matching a variety of equipment, supporting timed operation, controllable rhythm, compact structure, and space saving.

Material transportation is more flexible:

The Z-type conveyor structure supports two conveying modes: horizontal and inclined. It can be flexibly adjusted according to on-site needs to adapt to feeding environments of different heights and angles, and improve the adaptability of the production line.

Adjustable height, matching a variety of equipment:

The conveying height can be adjusted according to the position of the feeding port of the packaging machine or other equipment to ensure accurate docking of materials, avoid material spillage or blocking, and improve operating efficiency and cleanliness.

Support timing operation and controllable rhythm:

The conveying system has a timing control function, which can be accurately linked with the weighing and packaging system to achieve on-demand feeding and intermittent conveying, which is convenient for the refined management of production rhythm.

Compact structure and space saving:

The Z-type structure makes full use of vertical space and reduces ground occupation. It is especially suitable for production workshops with limited space, helping enterprises optimize the layout of the factory.

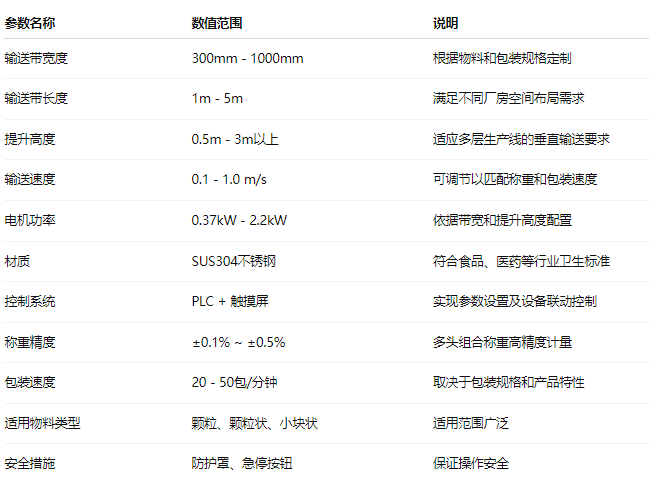

What are the parameters of Combined Weighing And Packaging Machine With Z Conveyor?

Combined Weighing And Packaging Machine With Z Conveyor has a conveyor belt width of 300mm-1000mm, a conveyor belt length of 1m-5m, and a lifting height of 0.5m-3m or more. Its specific parameters are as follows:

Parameter Name	Value Range	Description
Conveyor Belt Width	300mm - 1000mm	Customized according to material and packaging specifications
Conveyor Belt Length	1m - 5m	Meet the layout requirements of different factory spaces
Lifting Height	0.5m - 3m or above	Suitable for vertical conveying requirements of multi-layer production lines
Conveying Speed	0.1 - 1.0 m/s	Adjustable to match weighing and packaging speeds
Motor Power	0.37kW - 2.2kW	Configured based on belt width and lifting height
Material	SUS304 Stainless Steel	Comply with hygiene standards in food, pharmaceutical and other industries
Control System	PLC + Touch Screen	Enable parameter setting and equipment linkage control
Weighing Accuracy	±0.1% ~ ±0.5%	High-precision weighing with multi-head combination
Packaging Speed	20 - 50 packs/minute	Depends on packaging specifications and product characteristics
Applicable Material Types	Granules, Granular, Small Lumps	Wide range of applications
Safety Measures	Protective Cover, Emergency Stop Button	Ensure operational safety

Selection suggestions for Combined Weighing and Packaging Machine with Z Conveyor

When choosing a combined weighing and packaging machine equipped with a Z-type conveyor, you should choose it reasonably according to specific needs. The following are selection suggestions:

Small business selection suggestions:

Production requirements: The packaging volume is about 100-300 packages per hour, suitable for low production requirements.

Recommended models: CW-100, CW-150 series, compact equipment, easy to operate.

Price range: about 15,000-30,000 US dollars, low investment cost, suitable for enterprises with limited budgets.

Advantages: Space saving, low maintenance cost, suitable for multi-variety small batch production.

Medium-sized enterprise selection suggestions:

Production requirements: The packaging volume is about 400-800 packages per hour, which meets medium-scale production.

Recommended models: CW-300, CW-400 series, equipped with high-precision weighing system and Z-type conveyor.

Price range: about 40,000-70,000 US dollars, high cost performance, suitable for scale expansion period.

Advantages: High level of automation, improved production efficiency, and reduced labor costs.

Selection suggestions for large enterprises:

Production requirements: Packing volume of more than 1,000 packages per hour, suitable for high-volume continuous production.

Recommended models: CW-500 and above, supporting multi-channel combined weighing and high-speed Z-type lifting and conveying.

Price range: more than US$80,000, short investment return cycle, suitable for the pursuit of efficient and intelligent production.

Advantages: High-speed and stable operation, intelligent data management, meeting the high-standard requirements of large factories.

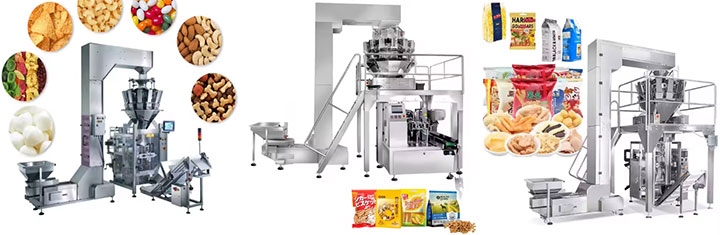

Common cases of Combined Weighing and Packaging Machine with Z Conveyor

Combined Weighing and Packaging Machine with Z Conveyor is widely used in food, agriculture, daily chemical and other industries. Typical cases include automatic weighing and packaging of nuts, puffed foods, frozen dumplings, feed pellets, etc. The Z-type elevator is responsible for stably conveying materials to the multi-head combination weigher to ensure high-speed and accurate measurement, and then completes automatic packaging, sealing and other processes, significantly improving production efficiency. It is suitable for large-scale continuous operations of granular, block or irregular materials, helping enterprises to achieve intelligent and standardized production.
