Plastic Granule Vacuum Loader Model

Thursday May-28 2026  11:42:08

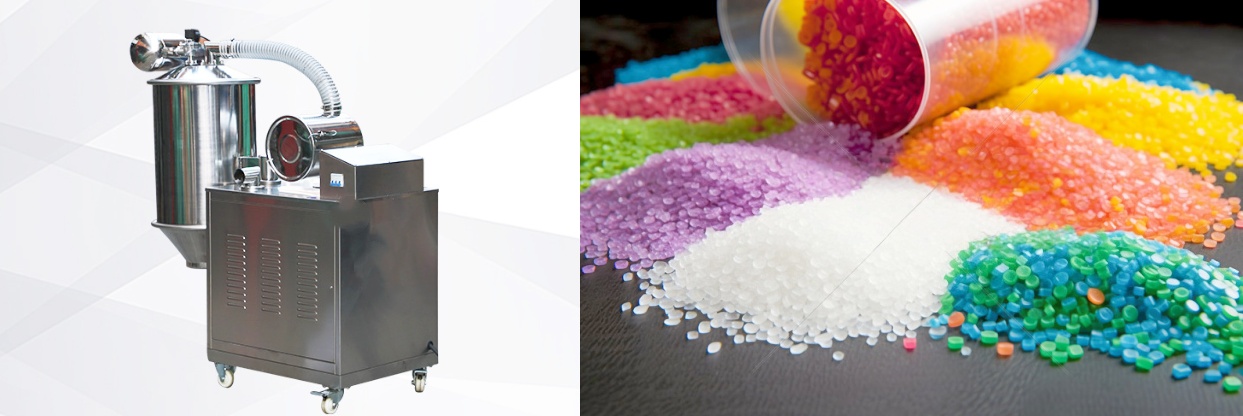

Plastic Granule Vacuum Loader are commonly used material conveying equipment in the plastics processing industry. They are mainly used to transport plastic granules from containers such as silos and bags to the hoppers of processing equipment such as injection molding machines and extruders. Utilizing the principle of vacuum adsorption, they achieve automated material conveying. They have a compact structure, are easy to operate, and effectively reduce material loss during the conveying process. They are adaptable to plastic granules of different specifications and materials, meeting the needs of various production conditions. To meet the different usage scenarios and material characteristics of our customers, we offer different Plastic Granule Vacuum Loader Model for your use.

Plastic Granule Vacuum Loader Models by Power Source

Plastic granule vacuum loaders can be divided into electric and pneumatic types. Electric vacuum loaders rely on electric vacuum pumps to provide suction, while pneumatic vacuum loaders use compressed air to create a vacuum. These two types cater to different workshop power conditions and usage requirements.

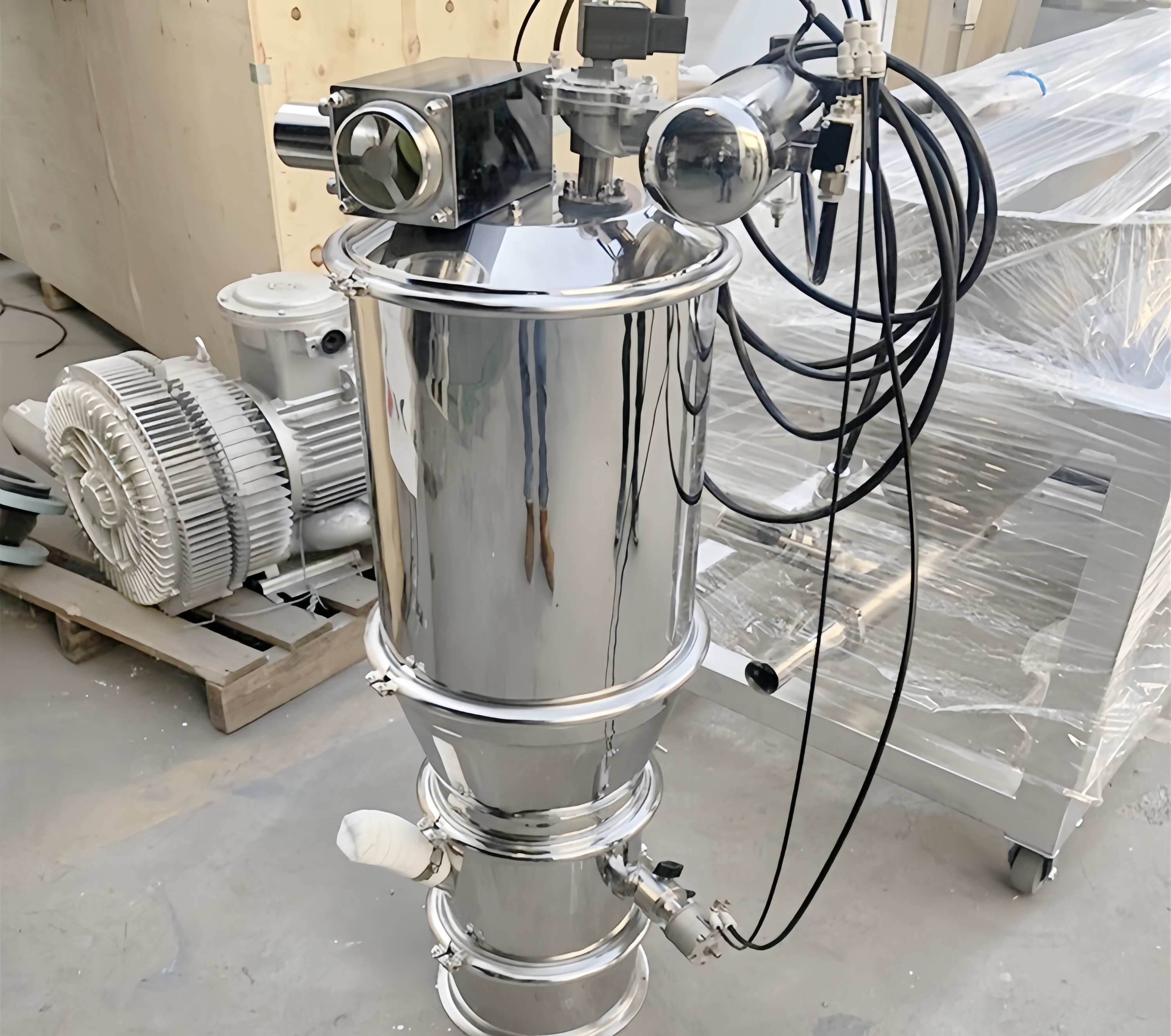

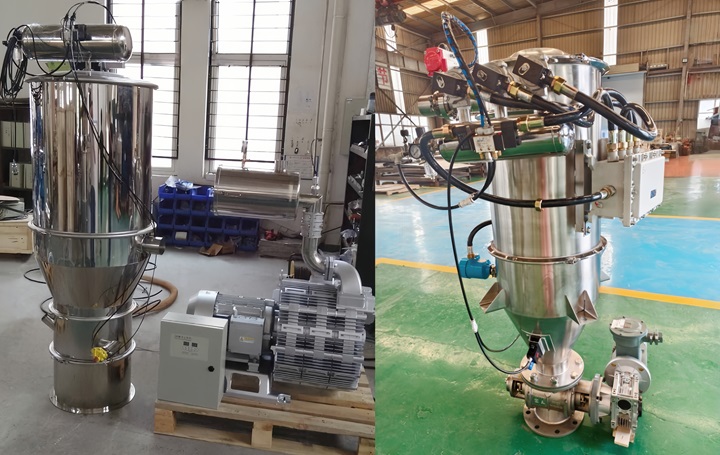

Electric Plastic Granule Vacuum Loader: Uses an electric vacuum pump as its core power component. A motor drives the pump to generate vacuum suction, thereby achieving the adsorption and conveying of plastic granules. It is suitable for short-to-medium distance, medium-to-high lift material conveying scenarios and can meet the daily production needs of most plastic processing enterprises.

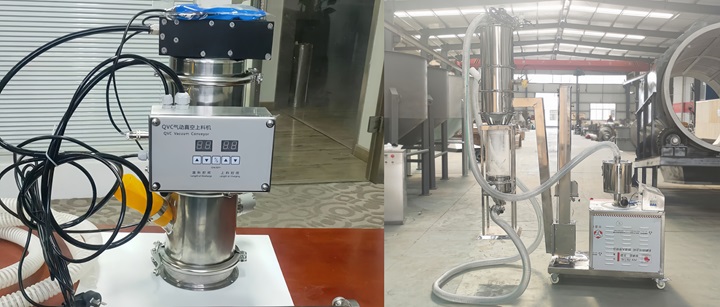

Pneumatic Plastic Granule Vacuum Loader: Utilizes compressed air to drive a venturi tube to create a vacuum. It requires no motor drive, has a simple overall structure, is oil-free and pollution-free, and is suitable for production scenarios with special requirements for equipment operating environment. It is suitable for small processing stations or production workshops with limited space.

Plastic Granule Vacuum Loader Model Parameters

Plastic Granule Vacuum Loader Model Classification by Operation Method

Based on the operation control method, it can be divided into automatic and manual models. The automatic model can be linked with the main unit for coordinated operation, while the manual model relies on manual control of start/stop and the conveying process, suitable for production stations with different levels of automation.

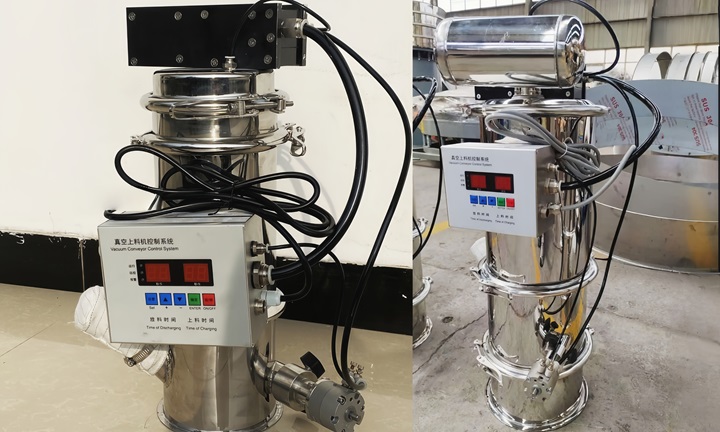

Automatic Plastic Granule Vacuum Loader: Equipped with an intelligent control system, this machine achieves fully automated operation, completing the entire process of material adsorption, conveying, and unloading without manual intervention. This type of equipment can be linked with the main processing unit, automatically starting and stopping based on the remaining material in the main unit's hopper, reducing manual labor intensity.

Manual Plastic Granule Vacuum Loader: This machine requires manual operation to control the start/stop, material intake, and unloading processes. It has a relatively simple structure and lower cost, making it suitable for small processing enterprises or small-batch production scenarios. Operators can manually control the conveying time and volume according to production needs.

Plastic Granule Vacuum Loader Model Classification by Installation Method

Plastic granule vacuum loaders are divided into fixed and mobile types. Fixed loaders are installed in a designated location, while mobile loaders are equipped with casters for flexible adjustment of the workstation to meet the needs of different workshop layouts and multiple machine sharing.

Fixed Plastic Granule Vacuum Loader: This type uses a fixed installation method, typically installed directly above the hopper of the main processing unit or at the hopper outlet, and is fixedly connected to the production line to achieve continuous material conveying, suitable for long-term, continuous production scenarios.

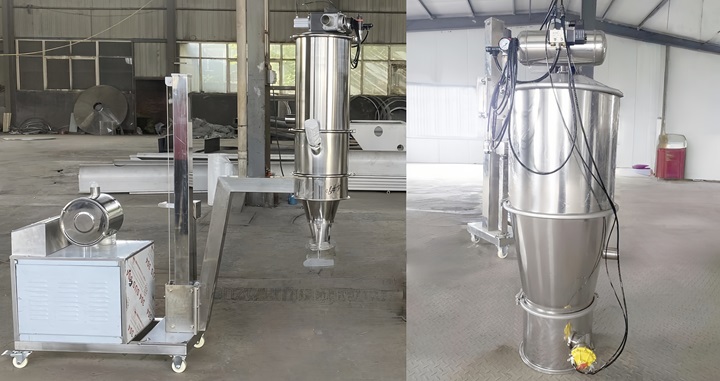

Mobile Plastic Granule Vacuum Loader: Equipped with movable casters, it can be flexibly moved to different workstations according to production needs, enabling material replacement between multiple processing machines and adapting to multi-station, small-batch production scenarios.

Plastic Granule Vacuum Loader Model Classification by Working Mode

Based on the working mode, it can be divided into intermittent and continuous types. Intermittent types use a cyclic suction and unloading mode, while continuous types can achieve uninterrupted feeding, suitable for high-flow, high-capacity production processes and central feeding systems.

Intermittent Plastic Granule Vacuum Loader: Employs a suction-separation-unloading cyclic working mode, completing one cycle before starting the next. This is currently the most widely used type, and the cycle period can be adjusted according to production needs, adapting to the conveying requirements of most plastic granules.

Continuous Plastic Granule Vacuum Loader: Achieves uninterrupted material conveying, completing the entire process of suction, conveying, and unloading without interruption. Suitable for high-capacity, high-flow production scenarios, it can be linked with large-scale processing lines to meet the material supply needs of large-scale production.

Applicable Materials for Plastic Granule Vacuum Loader Model

Plastic granule vacuum loading machines are mainly used for conveying plastic granules with a particle size of 3-8mm, good flowability, low moisture absorption, and low static electricity. They can also be adapted to some recycled materials and engineering plastics.

General-purpose plastic granules: Includes six categories: PE, PP, ABS, PVC, PS, and PET. These materials generally have good flowability and are easy to convey, so standard models can be used. Some categories have specific requirements: PVC requires temperature control and anti-sticking; PS is prone to static electricity, so anti-static pipes are recommended; PET must be pre-dried, and food-grade applications require 316L stainless steel equipment.

Engineering plastic granules: PA, PC, POM, PMMA, TPU/TPE, etc., have different properties and generally require specific adaptations such as anti-static and drying. Nylon is moisture-absorbing and has significant static electricity, requiring drying equipment and anti-static devices; PC emphasizes anti-static and anti-sticking; POM and PMMA have special textures, requiring low vacuum, large diameter pipes, or flexible pipes to reduce wear and breakage.

Recycled Materials and Special Granules: Recycled crushed materials, color masterbatches, wood-plastic composites, and calcium carbonate filler granules are considered special materials. Recycled materials contain fine powder, requiring pulse backflushing filter cartridges to prevent pipeline blockage; standard masterbatches are suitable for standard models, while high-concentration carbon black masterbatches require anti-static measures; wood-plastic composites and calcium carbonate filler granules have high density and weak flowability, requiring large-diameter equipment and increased vacuum levels to ensure conveying efficiency.

The Plastic Granule Vacuum Loader Model is adapted to different production scenarios, operational requirements, and installation conditions. Users can choose the appropriate type of equipment based on their actual production scale, workstation layout, material characteristics, and other factors.

FAQ

How do I choose the right vacuum loader model for my injection molding machine?

First, determine the conveying capacity based on the injection molding machine's production capacity. Then, select the configuration based on the type of plastic: use the standard model for general-purpose granules, and add anti-static, drying, or anti-clogging components for engineering plastics and recycled materials. Also, consider the on-site installation space and conveying distance to match the appropriate pipe diameter and power model.

What is the maximum conveying distance of a standard plastic granule loader?

A standard vacuum loader can convey horizontally up to approximately 20 meters and vertically up to 8-10 meters. Long-distance conveying requires upgrading the fan power and increasing the pipe diameter.

Can a plastic granule vacuum loader be directly connected to a mixer?

Yes, the two are highly compatible. Simply match the discharge interface to the mixer's inlet size and ensure proper pipe sealing.
