Chili Powder Vacuum Feeding Machine

Thursday April-02 2026  14:41:58

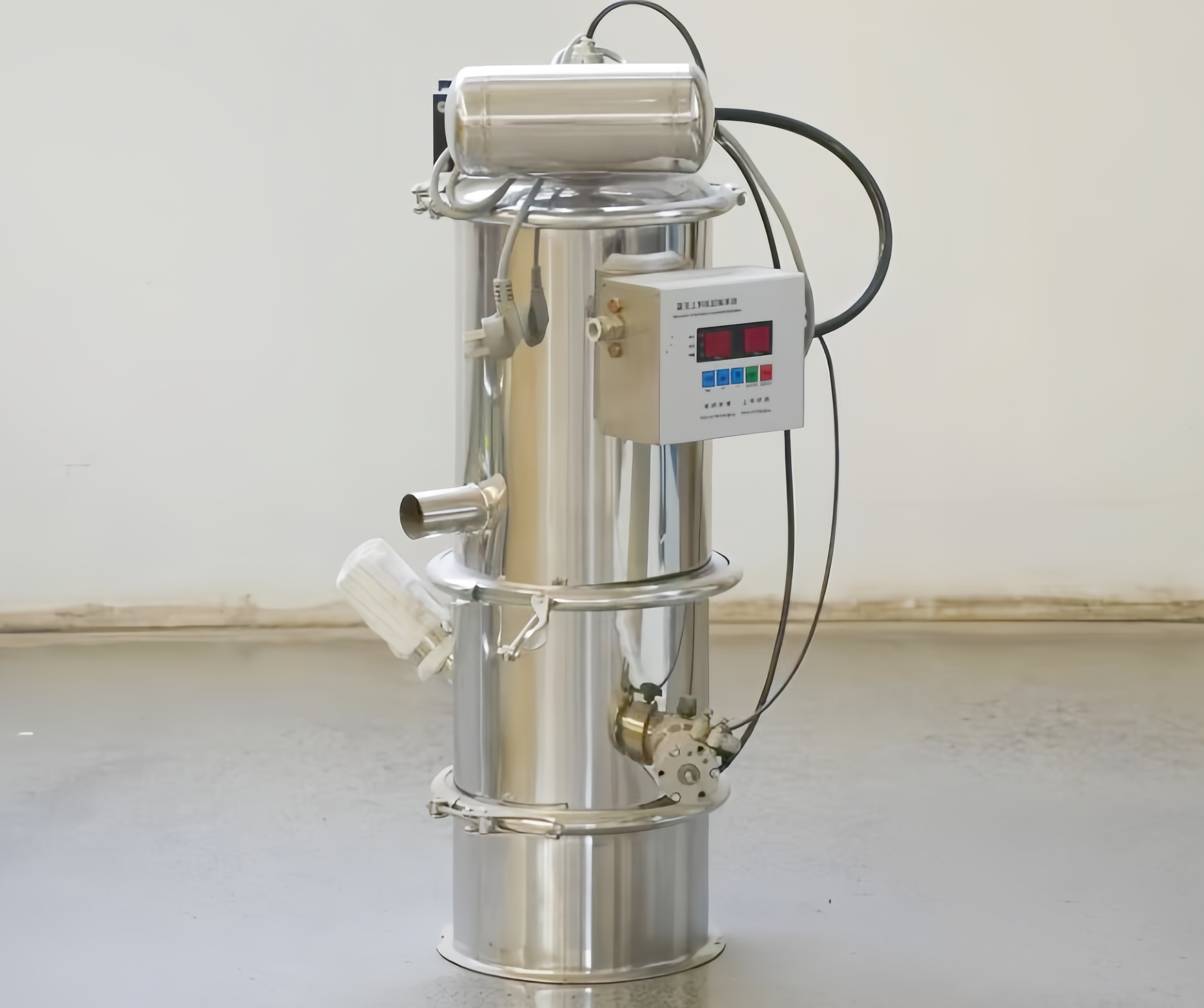

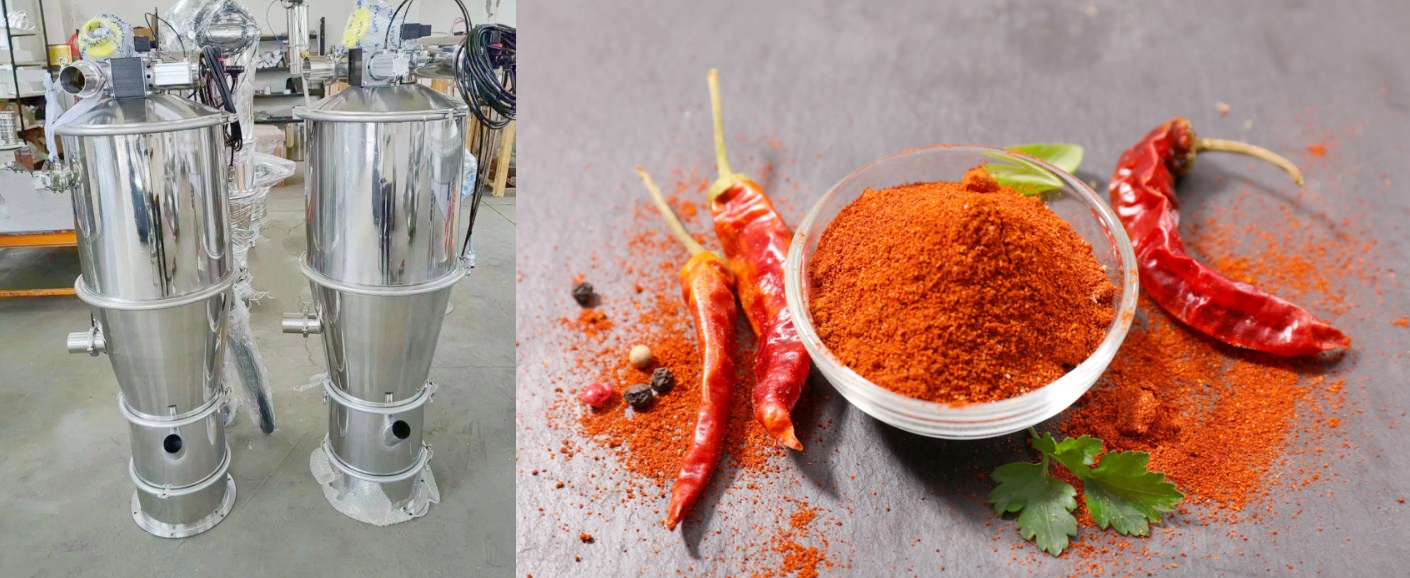

Chili Powder Vacuum Feeding Machine utilizes vacuum negative pressure technology to achieve a closed-loop transport of chili powder from the storage container to the processing equipment. Unlike traditional manual or mechanical conveying methods, it specifically solves the problems of transporting fine, easily scattered, and easily clumped chili powder. It can be directly integrated with various processing equipment such as mixers, packaging machines, and vibrating screens, completing the feeding process without manual intervention. Adaptable to chili powder of varying fineness, from coarse to ultrafine, the Chili Powder Vacuum Feeding Machine offers stable feeding. Constructed from 304 and 316 stainless steel, it meets hygiene standards. Customization is available to integrate with your upstream and downstream equipment, supporting 24/7 operation and adaptable to various production workflows.

What are the features of the Chili Powder Vacuum Feeding Machine?

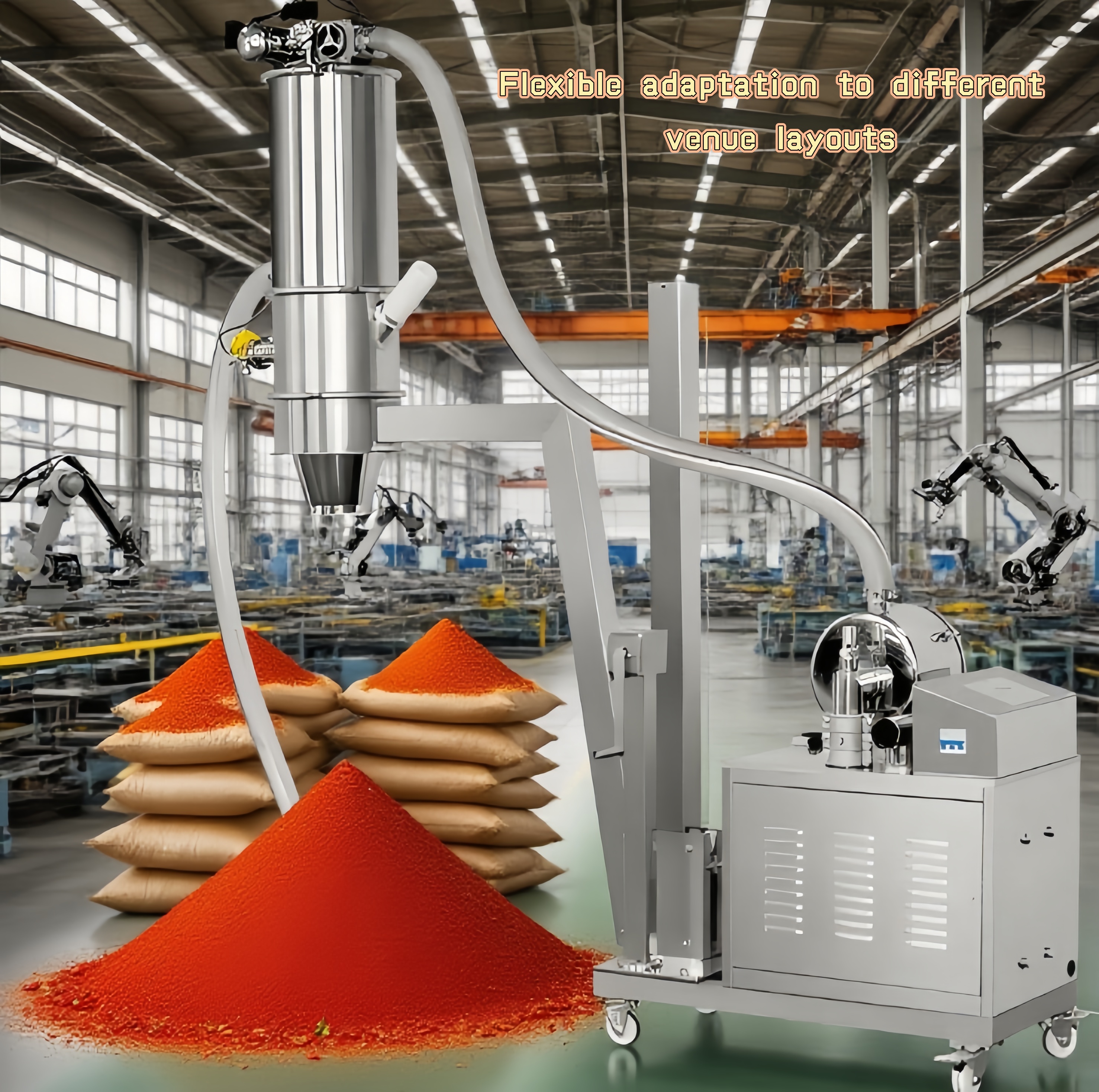

The core features of the Chili Powder Vacuum Feeding Machine are its strong adaptability and stable operation. It accurately matches the physical properties of chili powder, preventing issues like pipe blockage and wall adhesion during feeding. The modular design facilitates easy installation without requiring large-scale modifications to existing production lines, allowing for flexible adaptation to different site layouts. Simple operation with one-button start/stop enables automated continuous operation, reducing manual intervention and material loss. Its highly airtight design effectively prevents chili powder from scattering or leaking during feeding, minimizing material waste and ensuring the orderly operation of the production line. It is suitable for processing various specifications of chili powder.

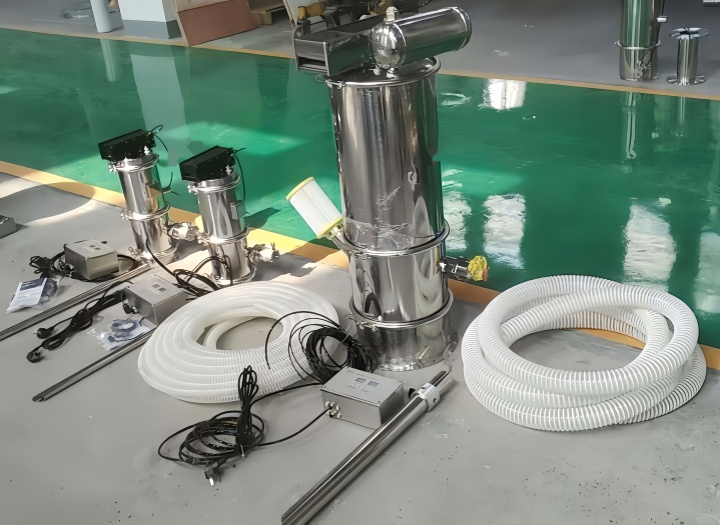

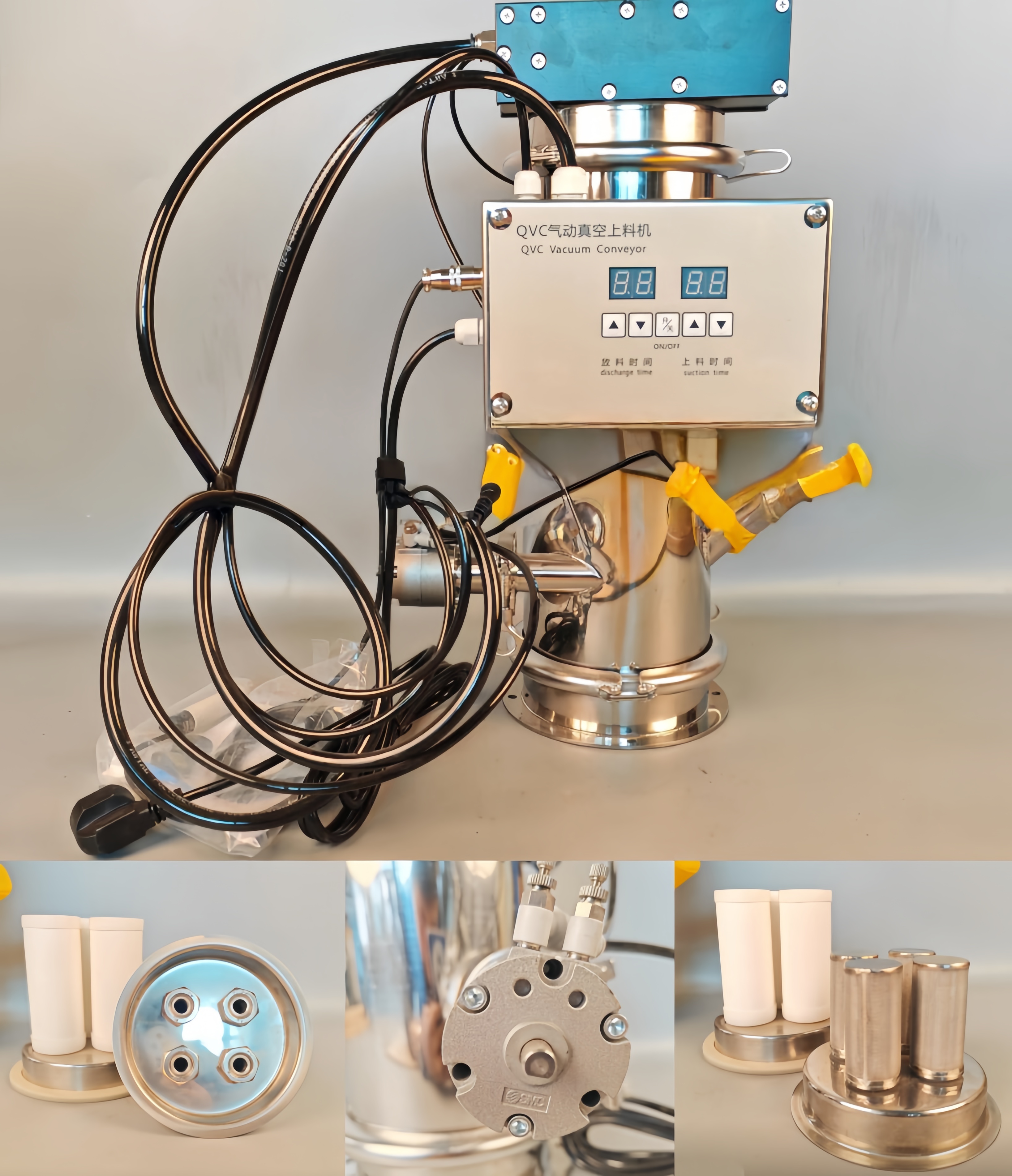

Chili Powder Vacuum Feeding Machine Structure

The Chili Powder Vacuum Feeding Machine mainly consists of a core power unit, conveying unit, separation unit, and control unit. These components work together to ensure a smooth feeding process. The core components include a vacuum pump, filter, hopper, conveying pipes, discharge valve, and intelligent control system. All components are connected using quick-release clamps and sealing rings, ensuring strong sealing and easy disassembly for convenient daily inspection and maintenance. The hopper is made of a material suitable for chili powder with a smooth inner wall to prevent material adhesion. The filter effectively separates chili powder from air, preventing material from entering the vacuum pump and affecting equipment operation. The conveying pipes can be flexibly arranged according to the production site, supporting both horizontal and vertical conveying.

How does the Chili Powder Vacuum Feeding Machine work?

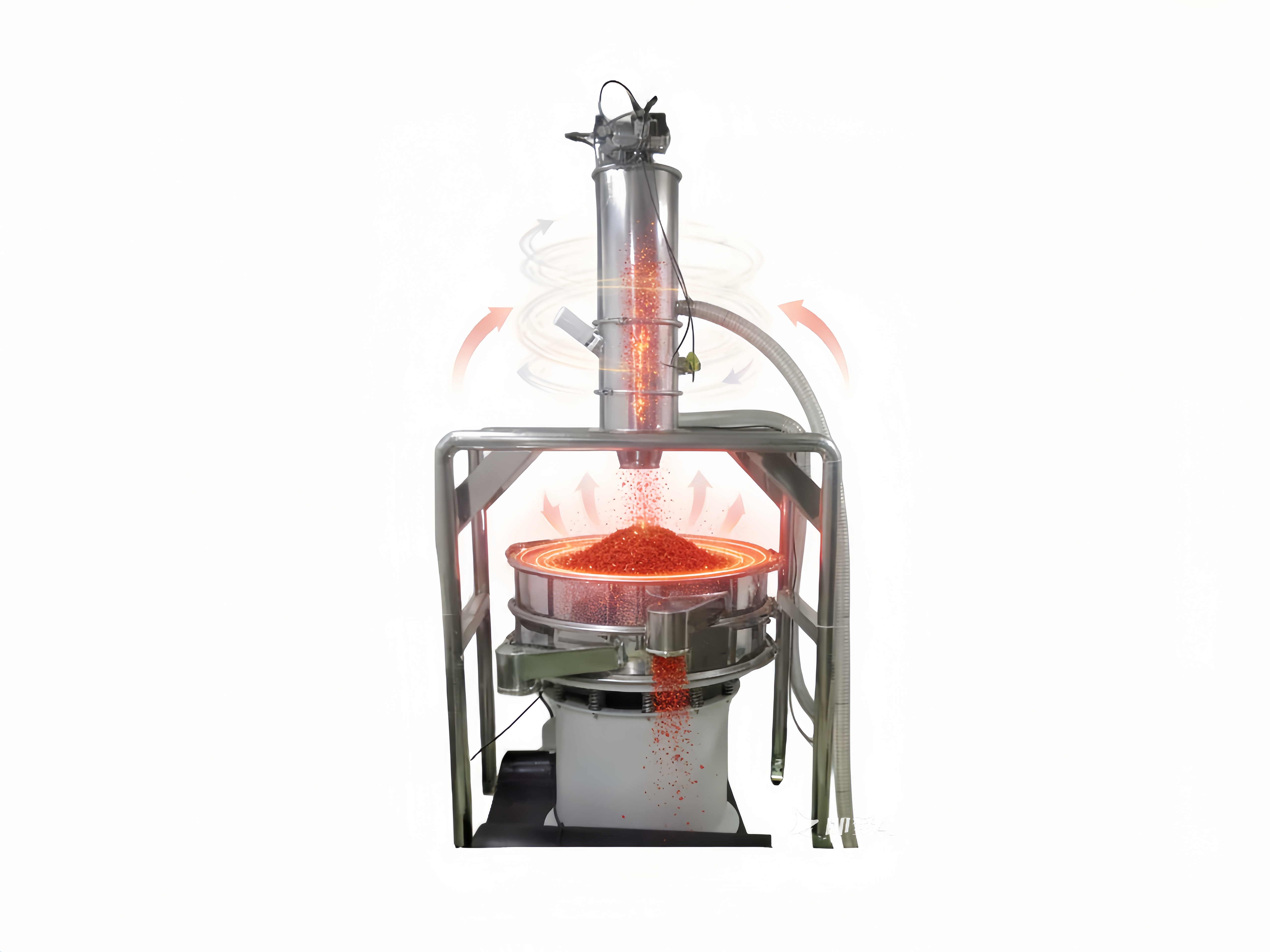

The Chili Powder Vacuum Feeding Machine operates based on the interaction of vacuum negative pressure and air pressure difference. The core mechanism involves using a vacuum pump to draw air, creating a negative pressure state throughout the conveying system and generating the driving force for gas flow within the pipes. After the equipment starts, the vacuum pump begins operation, creating a stable negative pressure between the suction nozzle and the hopper. Under the influence of this pressure difference, chili powder is drawn into the conveying pipe through the suction pipe and then into the hopper with the airflow. Once inside the hopper, a filtration device separates the air and material. The chili powder remains in the hopper under gravity, while the clean air is filtered and discharged from the system.

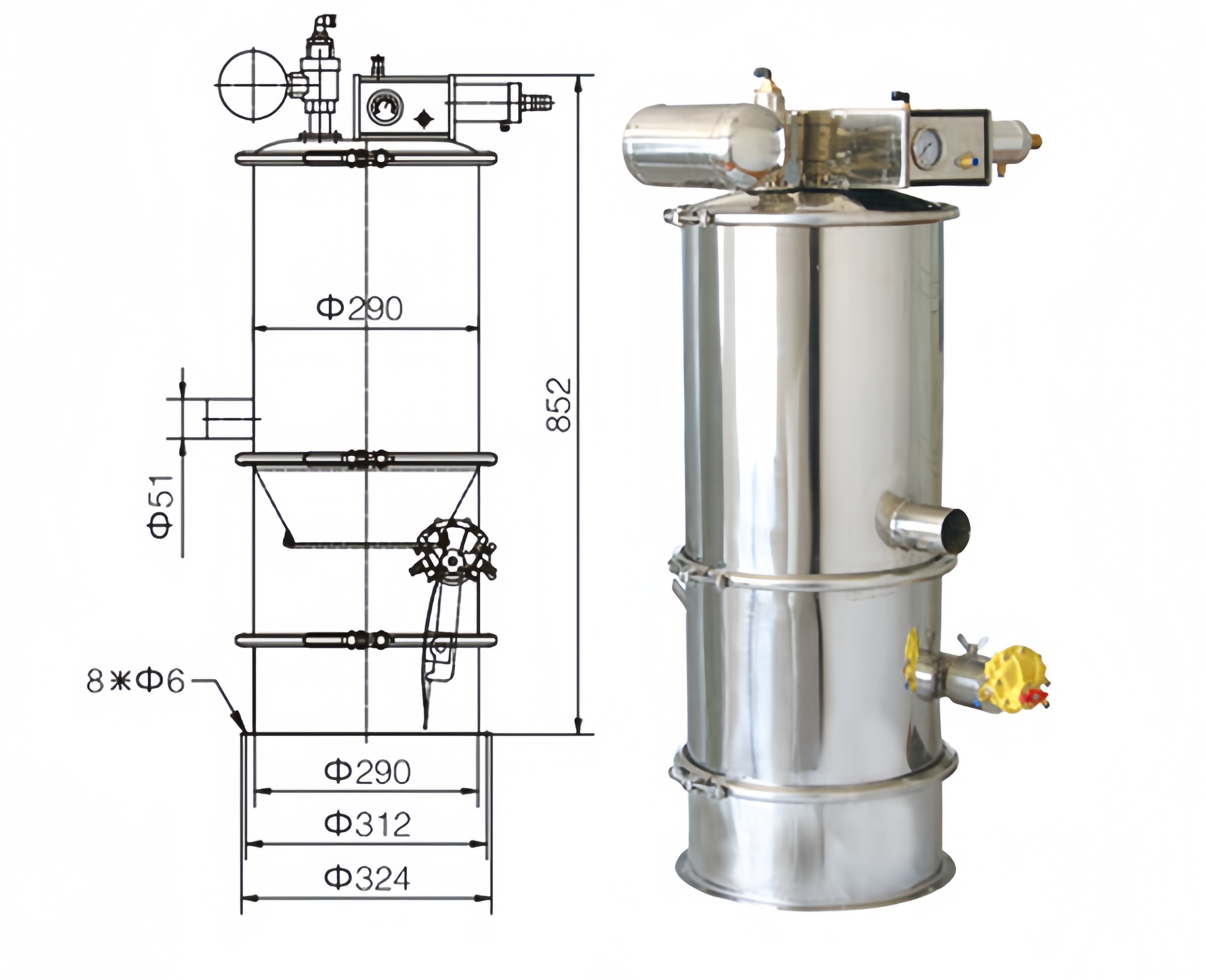

Chili Powder Vacuum Feeding Machine Technical Parameters

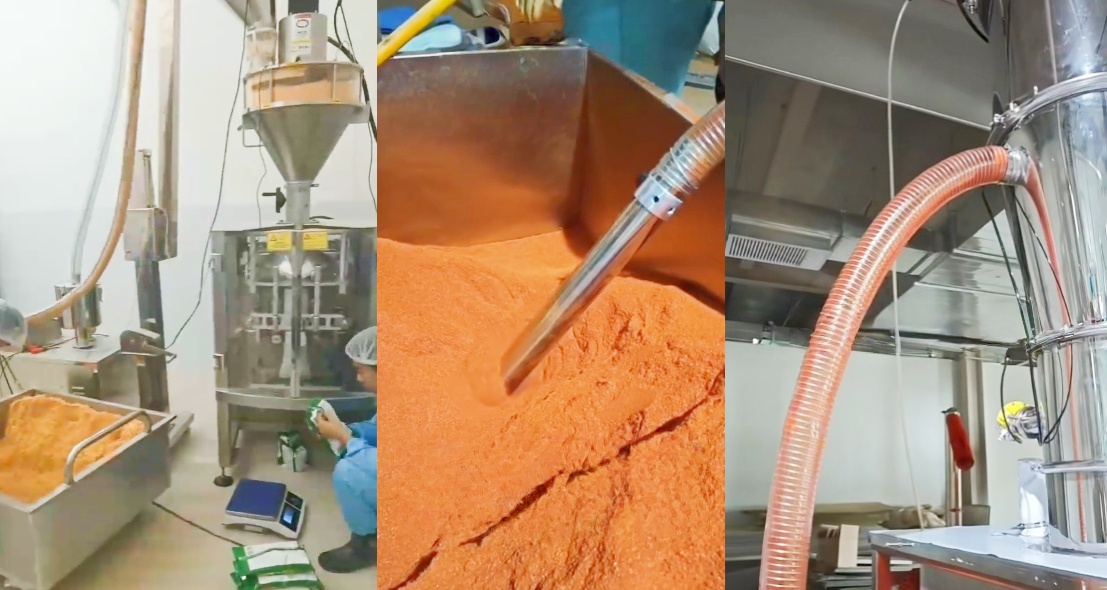

Chili Powder Vacuum Feeding Machine Customer Case

A large condiment manufacturer, primarily producing various chili condiments, processes an average of 5 tons of chili powder daily. Their original feeding method suffered from significant material waste and cumbersome operation. They subsequently chose our chili powder vacuum feeding machine. The vacuum pump has a power of 7.5KW, a conveying pipe diameter of 80mm, a horizontal conveying distance of 12 meters, a vertical lifting height of 3.5 meters, a single feeding capacity of 800kg, and an adjustable feeding speed. It is suitable for chili powder with a fineness of 80-120 mesh. After the equipment is put into use, it completely replaces manual feeding and achieves seamless integration with the company's existing mixers and packaging machines.

How much can the Chili Powder Vacuum Feeding Machine feed at one time?

The feeding capacity of the Chili Powder Vacuum Feeding Machine depends primarily on the equipment model, pipe specifications, and the fineness of the chili powder. Different models have different feeding capacities to meet the needs of companies with varying production capacities. Standard small-sized machines can feed 200-500 kg at a time, suitable for small-batch production scenarios such as small processing plants and laboratories; medium-sized machines feed 500-1000 kg at a time, suitable for the daily production of medium-sized condiment companies; large-sized machines can feed 1000-2000 kg at a time, suitable for large-scale chili processing bases and large-scale food production companies for continuous, high-volume production. The feeding capacity can be flexibly adjusted through the control system according to production needs, ensuring matching with the capacity of subsequent processing equipment and avoiding overfeeding or underfeeding.

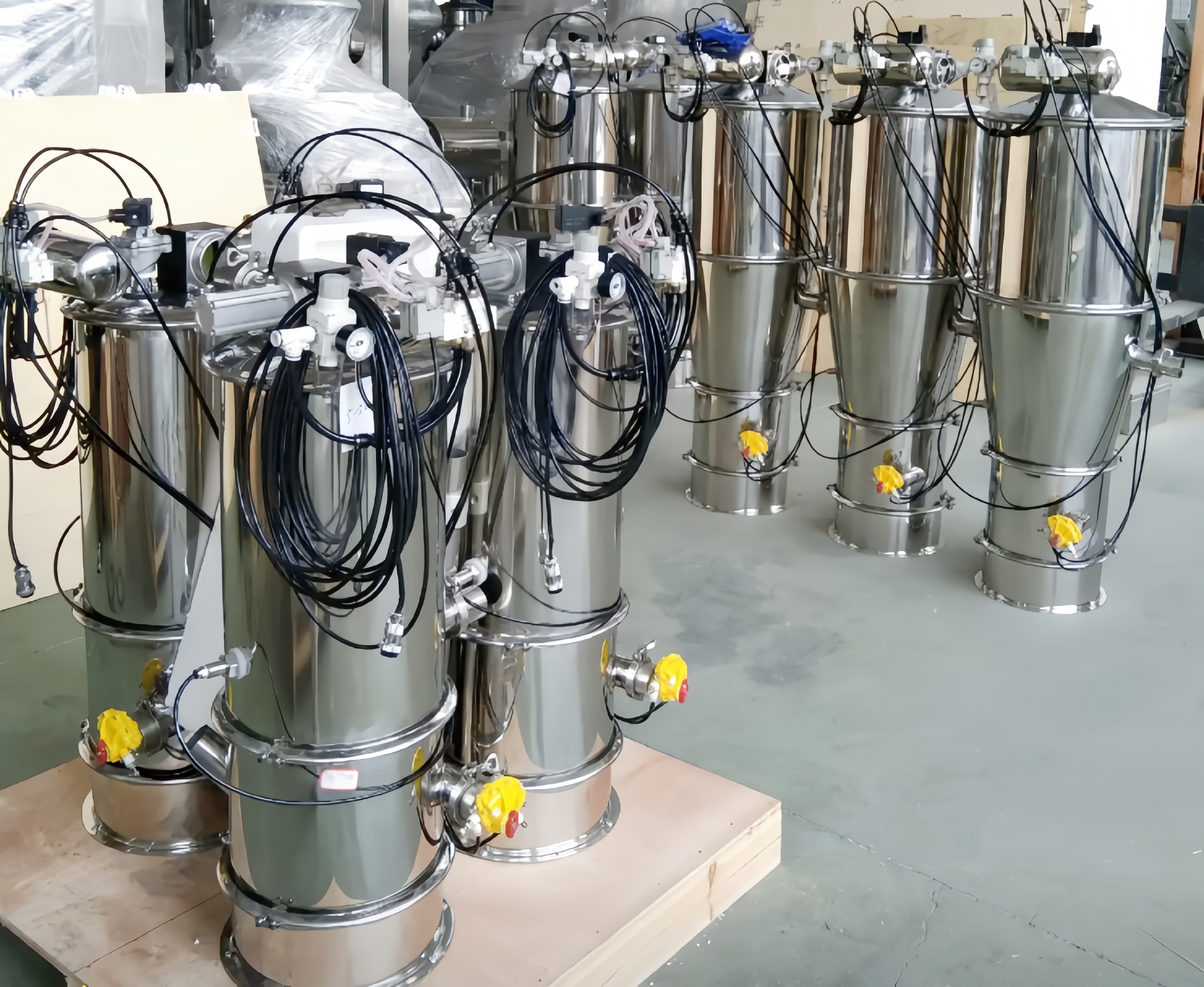

Chili Powder Vacuum Feeding Machine Manufacturer

We possess full-chain production capabilities including laser cutting, welding, and powder coating. We can customize equipment according to customers' production capacity, site layout, and other needs. Our products feature smooth welds, strong airtightness, and are suitable for conveying chili powder of various specifications. We have a comprehensive after-sales system, providing pre-sales selection and customization, factory trial operation and debugging, and after-sales maintenance services. We can customize production lines and support global shipping. Our machines are suitable for all sizes of chili processing and condiment production enterprises.

The Chili Powder Vacuum Feeding Machine is a core auxiliary equipment in the modern chili processing industry. With its stable operating performance and flexible adaptability, it solves many pain points of traditional feeding methods.
