Quartz Powder Iifting Vacuum Feeder

Saturday May-30 2026  15:50:24

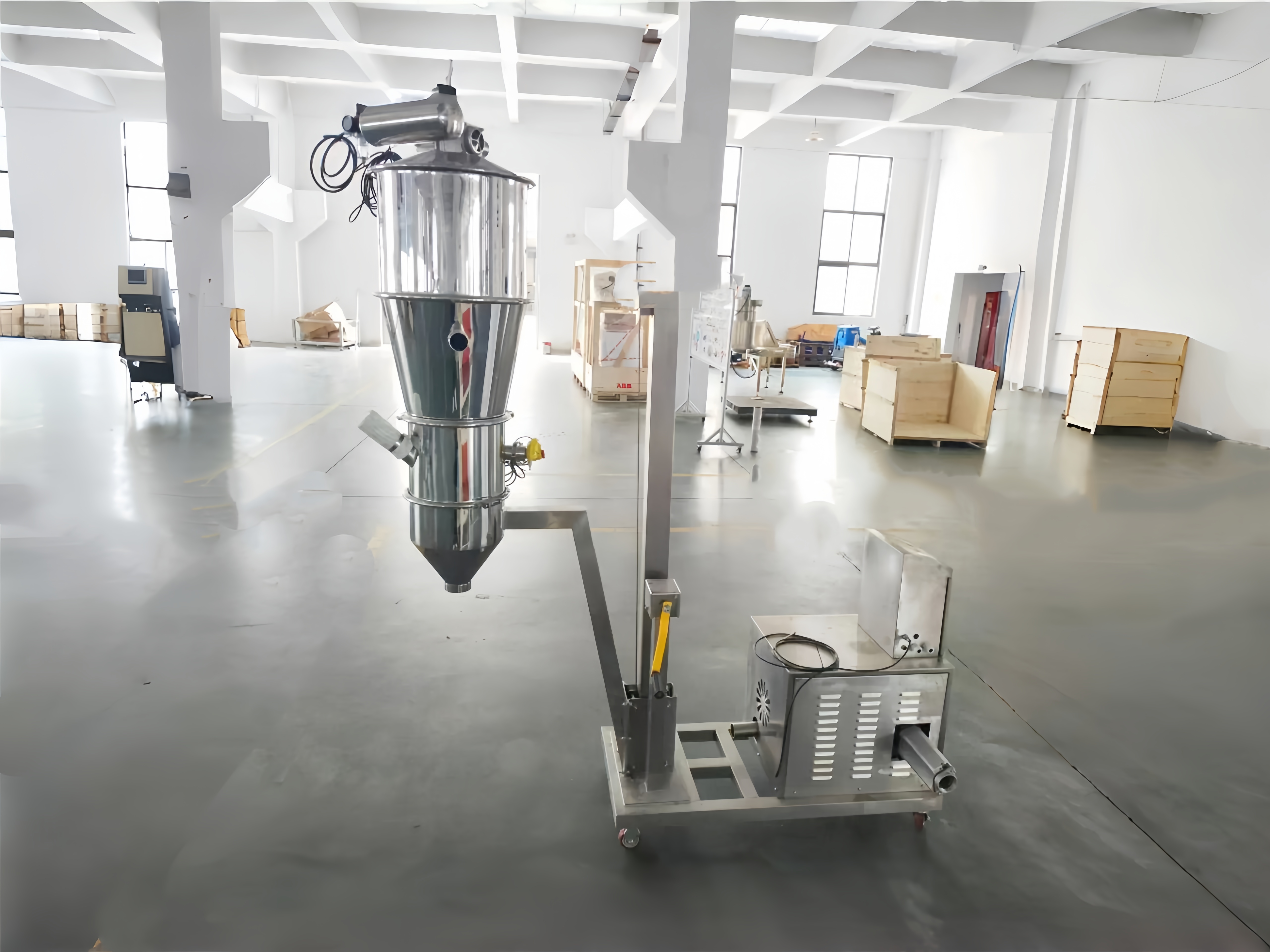

Quartz Powder Iifting Vacuum Feeder is a closed-loop automated conveying system for transporting fine powder materials such as quartz powder and quartz sand. Based on the principle of negative pressure vacuum conveying, and equipped with an adjustable frame, it overcomes the drawbacks of traditional feeding equipment with fixed height and poor adaptability. The machine height can be flexibly adjusted to suit the feeding height of different equipment such as reactors, mixers, and screening machines. The fully enclosed conveying system effectively solves industry pain points such as dust, material loss, low efficiency of manual feeding, and dust pollution in the workshop environment during quartz powder conveying. It is suitable for continuous conveying of quartz powder materials of different particle sizes. The product can be equipped with casters at the bottom to move the product position at any time, adapting to the conveying and feeding of different materials.

What are the advantages of the Quartz Powder Iifting Vacuum Feeder?

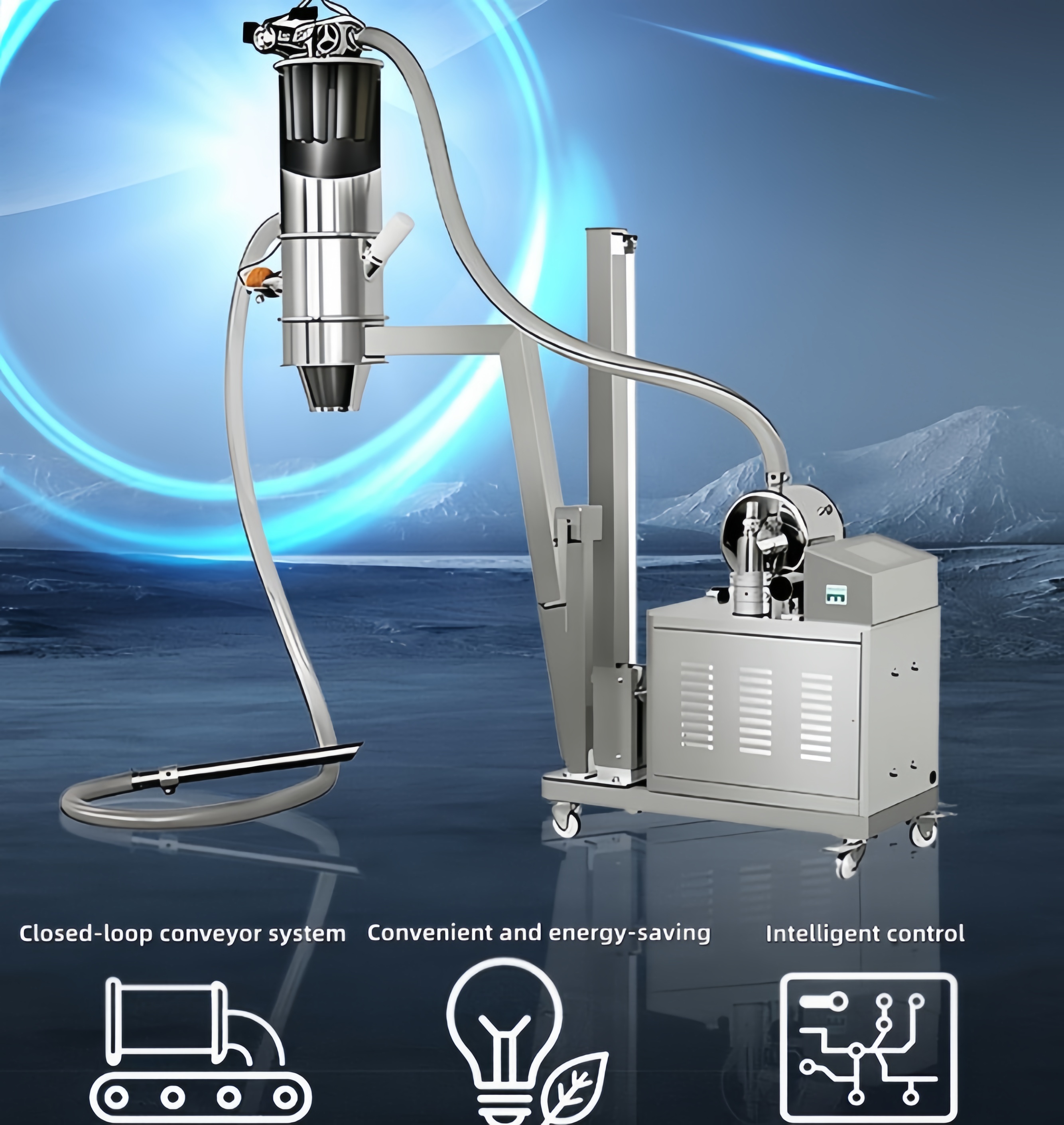

The Quartz Powder Iifting Vacuum Feeder features a lifting structure to adapt to various production equipment. The fully enclosed conveying system effectively suppresses dust diffusion. The machine is easy to move and clean and maintain, improving the workshop working environment and reducing labor input.

Highly Adaptable Lifting System:Equipped with an electric lifting and adjustment system, the feeding height of the equipment can be adjusted to adapt to various specifications of production equipment in the workshop, without requiring production line modifications.

Dust-Free and Closed-Loop Conveying: The entire process involves closed-loop negative pressure feeding, eliminating material spillage and dust emissions, thus preventing quartz powder dust pollution.

Automated Operation:Equipped with an intelligent control system, it can achieve automatic material suction, automatic material-air separation, pulse automatic dust cleaning, and automatic unloading and circulation operations, requiring no manual supervision.

Anti-Clogging, Anti-Stickiness, and Durable: The structure is optimized for the high hardness and easy accumulation characteristics of quartz powder. The filter element uses high-precision wear-resistant material, and combined with the pulse dust cleaning device, it can effectively prevent filter element clogging.

Flexible, Convenient, and Easy to Maintain:The compact body structure allows for flexible movement and positioning, easy disassembly and cleaning, and no dead corners in the conveying process, avoiding quartz powder residue and clumping.

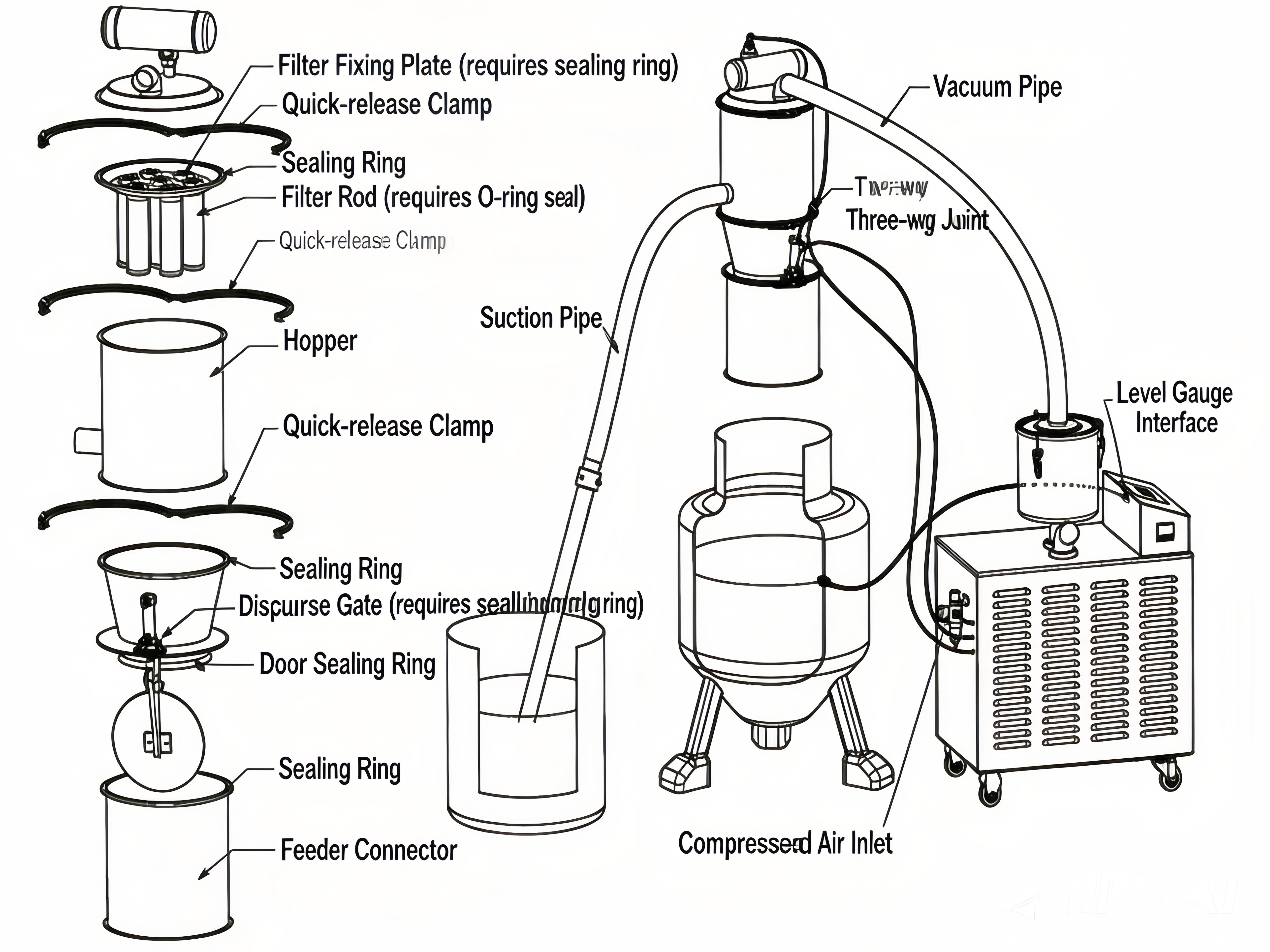

Quartz Powder Iifting Vacuum Feeder Components

The Quartz Powder Iifting Vacuum Feeder adopts a modular integrated structure design. The overall structure is simple and stable, and easy to disassemble and assemble. It consists of seven core components. The system comprises an intelligent lifting frame, a negative pressure power system, a sealed material storage silo, a filter assembly, a pulse cleaning device, an automatic unloading mechanism, and an intelligent electrical control system. The lifting frame serves as the main support structure, constructed of thickened carbon steel or stainless steel, ensuring strong load-bearing capacity and smooth lifting. The negative pressure power system uses a vortex blower or vacuum pump to provide a stable negative pressure air source. The sealed material silo features a polished, dead-angle-free design, suitable for conveying quartz powder materials and minimizing residue. The filter element intercepts fine quartz dust, achieving material-air separation. The pulse cleaning device periodically cleans the filter element, ensuring long-term stable operation. The automatic unloading valve controls the uniform material discharge, preventing material jamming. The electrical control system integrates one-button start/stop, timed material suction, and overload protection functions, ensuring safe and convenient operation.

How does the Quartz Powder Iifting Vacuum Feeder work?

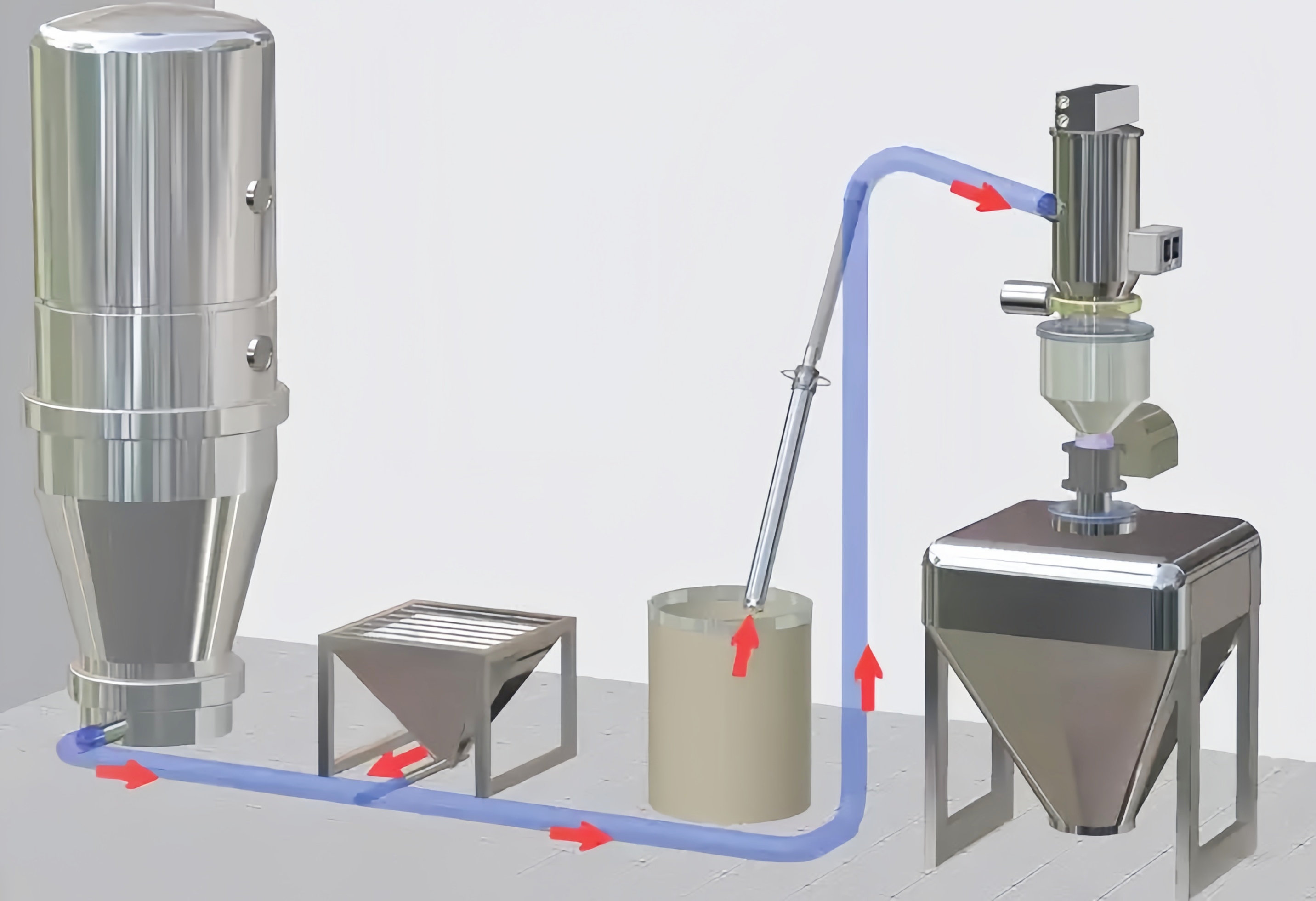

The Quartz Powder Iifting Vacuum Feeder utilizes the principle of negative pressure differential to achieve fully automatic cyclic conveying operations, with a continuous and stable overall operation process. After the equipment starts, the negative pressure power system quickly extracts air from the hopper and conveying pipeline, creating a stable negative pressure vacuum environment. Under the pressure difference between the inside and outside, the outside air carries the quartz powder material through the suction hose and nozzle into the hopper at a uniform speed. The material entering the hopper settles and accumulates under gravity, while fine dust is intercepted by the high-precision filter at the top, completing the material-air separation. Clean air passes through the filter and is discharged.

Quartz Powder Iifting Vacuum Feeder Technical Parameters

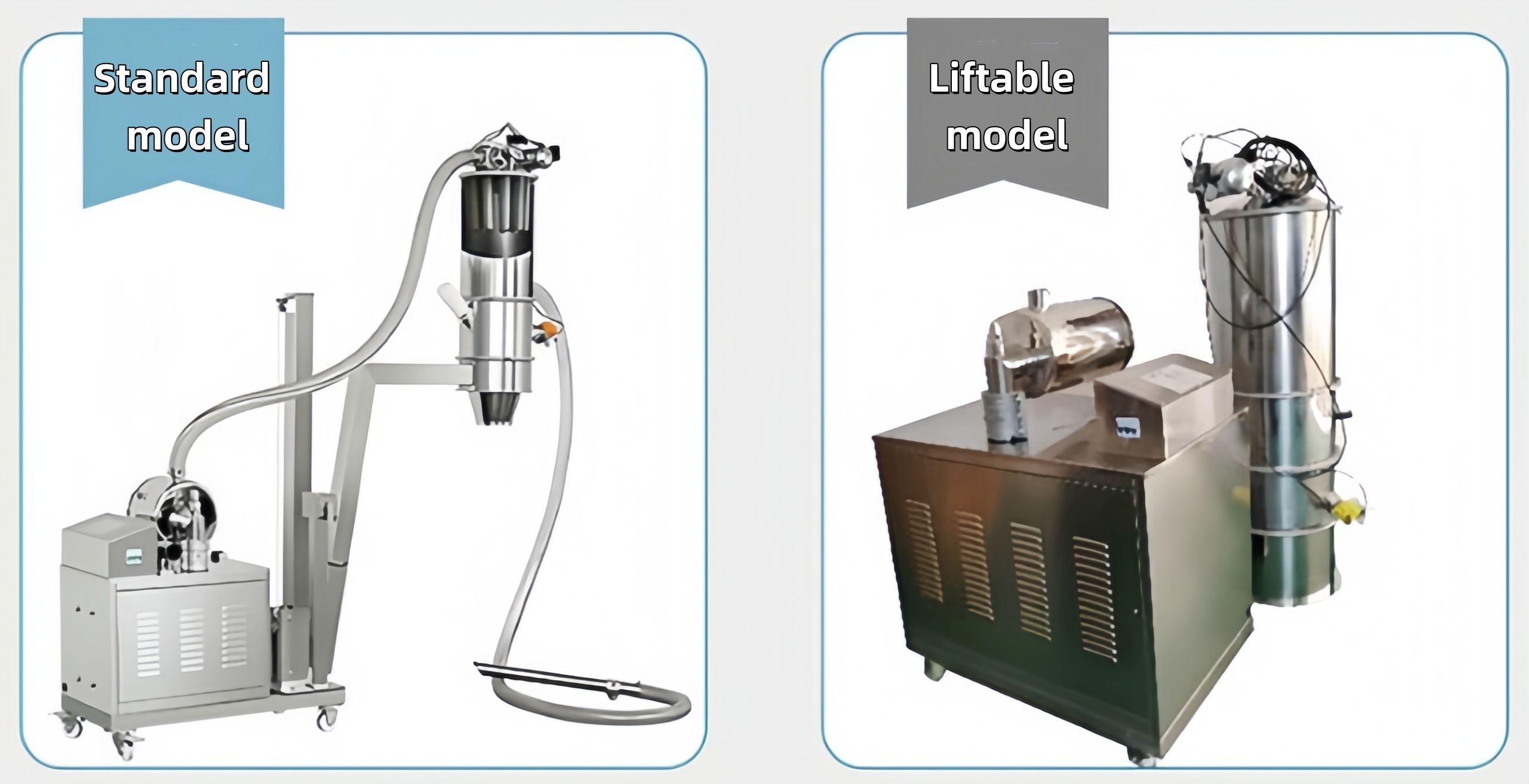

Mobile Version vs. Standard Version

Standard fixed vacuum feeders have a fixed height and position, only suitable for production equipment of a single height and fixed position. Their applicability is limited, and they cannot adapt to multiple equipment or multiple workstations operating in rotation. When upgrading workshop equipment or modifying production lines, compatibility issues are easily encountered, and relocation is extremely inconvenient. The quartz powder lifting and movable vacuum feeder is an upgrade from the standard model, featuring an electric lifting system and silent casters. It allows for free adjustment of the feeding height, adapting to various equipment at different heights in the workshop, and can be easily moved to flexibly switch between different workstations. Both models offer the core advantages of dust-free, sealed conveying and automated operation, but the movable lifting model offers greater flexibility and versatility, eliminating the need for multiple machines to be used in rotation, significantly reducing equipment procurement costs.

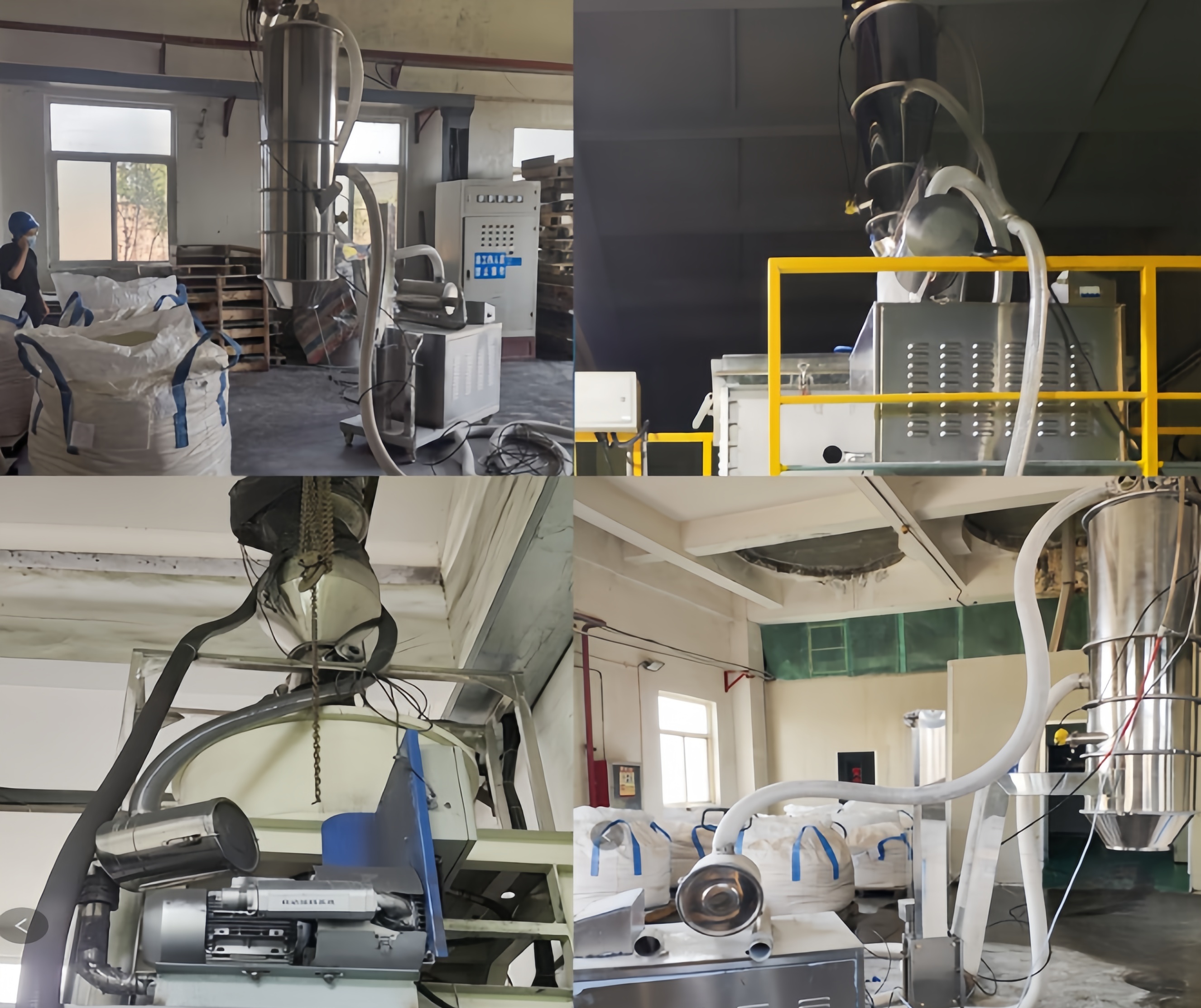

Quartz Powder Lifting Vacuum Feeder Customer Case

A quartz new material production company, specializing in the grinding and processing of high-purity quartz powder, had existing ordinary feeding equipment that suffered from severe dust generation, low feeding efficiency, and poor equipment adaptability, failing to meet the rotating feeding needs of multiple mixers and screening machines in the workshop. Our company customized a lifting and movable vacuum feeder for them. The specific parameters and configuration of the equipment are as follows: overall horizontal conveying length 8 meters, vertical conveying height 6 meters, stable output up to 800 kg/h, perfectly suited for the company's batch conveying operations of high-purity quartz powder. The equipment comes standard with an electric lifting and adjusting device, a 304 stainless steel dust-free hopper, an explosion-proof electrical control system, a high-precision PTFE membrane filter element, and an automatic pulse cleaning system, and is also equipped with silent casters. After the equipment is put into use, it completely solves the problem of dust pollution in the workshop, achieving standardized dust-free production.

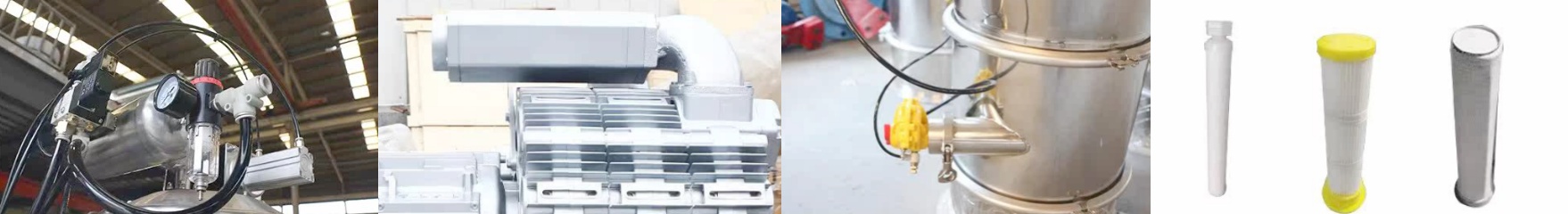

Quartz Powder Lifting Vacuum Feeder Optional Configurations

To adapt to different customers' production conditions, material characteristics, and environmental standards, our lifting vacuum feeder supports a variety of personalized optional configurations, fully meeting customers' customized production needs.

Power Configuration: Options include vortex blowers, Roots blowers, and vacuum pumps, adapting to different conveying distances and output requirements. Material Configuration: The machine body and hopper can be made of carbon steel with paint, 304 stainless steel, or 316L stainless steel, suitable for high-purity, corrosion-resistant, and dust-free production environments.

Functional Configuration: Optional explosion-proof electrical control system, variable frequency speed control system, and automatic weighing and batching system, suitable for explosion-proof workshops and batching production needs.

Auxiliary Configurations: Optional silent casters, extended wear-resistant conveying hoses, quick-connect couplings, and a material collection and buffer hopper.

Filtration Configurations: Optional stainless steel sintered filter elements, PTFE membrane filter elements, and anti-static filter elements, suitable for quartz powder materials of different fineness.

Quartz Powder Iifting Vacuum Feeder Manufacturer

We are a professional manufacturer of quartz powder vacuum feeders, integrating equipment R&D, design, production, sales, and after-sales service. With no middlemen or agents adding markups, our products offer significant cost-effectiveness. We possess mature production processes and a comprehensive quality inspection system. All equipment undergoes rigorous testing through multiple processes, ensuring stable quality and reliable performance. We support full-condition non-standard customization services. Based on the customer's workshop space, conveying distance, material fineness, output requirements, equipment docking specifications, and other actual working conditions, we can tailor-make exclusive conveying solutions one-on-one, optimizing equipment parameters and structural configurations to match the customer's personalized production needs. We also provide free solution design, trial operation, and supply of vulnerable parts—a one-stop service.

The Quartz Powder Iifting Vacuum Feeder is a dust-free conveying equipment suitable for the quartz powder processing industry. It has multiple advantages such as adjustable lifting, flexible movement, sealed dust-free environment, and fully automatic operation, effectively solving the problems of dust, inefficiency, and poor adaptability of traditional feeding equipment.
