Automatic Vacuum Feeding Machine For Protein Powder

Thursday April-09 2026  13:31:03

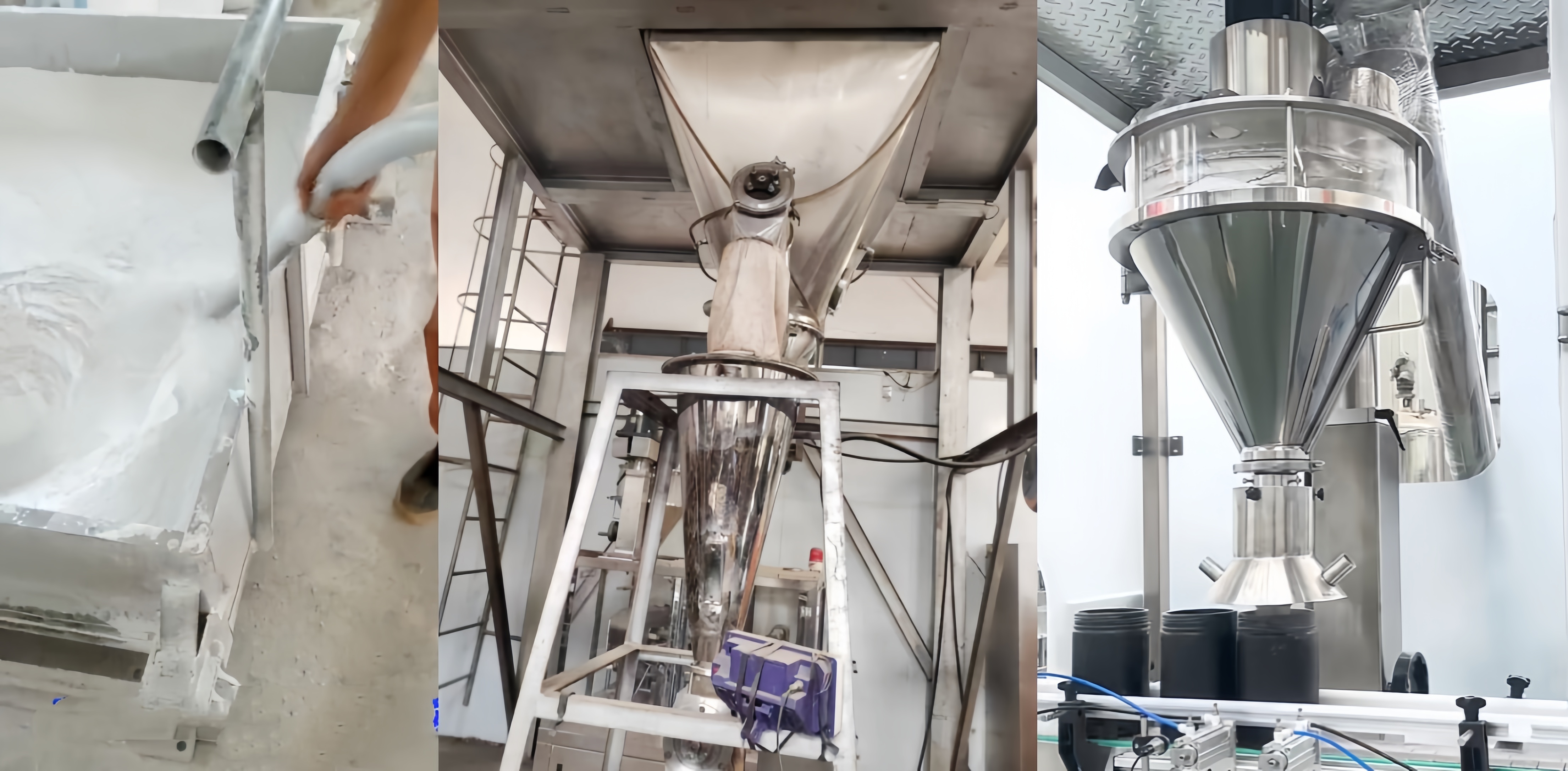

Automatic Vacuum Feeding Machine For Protein Powder uses negative pressure adsorption to transfer protein powder from the raw material silo, processing equipment, to the finished product silo, with no human contact and no dust leakage throughout the process. It is suitable for the entire process of protein powder processing, from raw material handling and mixing to packaging. It can independently complete single-point conveying or be integrated with mixers, screening machines, packaging machines, and other equipment to form an automated production line. Addressing the characteristics of protein powder—its susceptibility to moisture absorption, dust generation, and contamination—this machine utilizes fully enclosed piping and food-grade contact materials to effectively prevent material clumping due to moisture, dust spillage, and external contamination. It supports horizontal, vertical, and multi-section bend layouts, enabling long-distance, high-drop material transfer. Customization is available to accommodate different equipment heights and production volumes from upstream and downstream suppliers.

What are the features of the Automatic Vacuum Feeding Machine for Protein Powder?

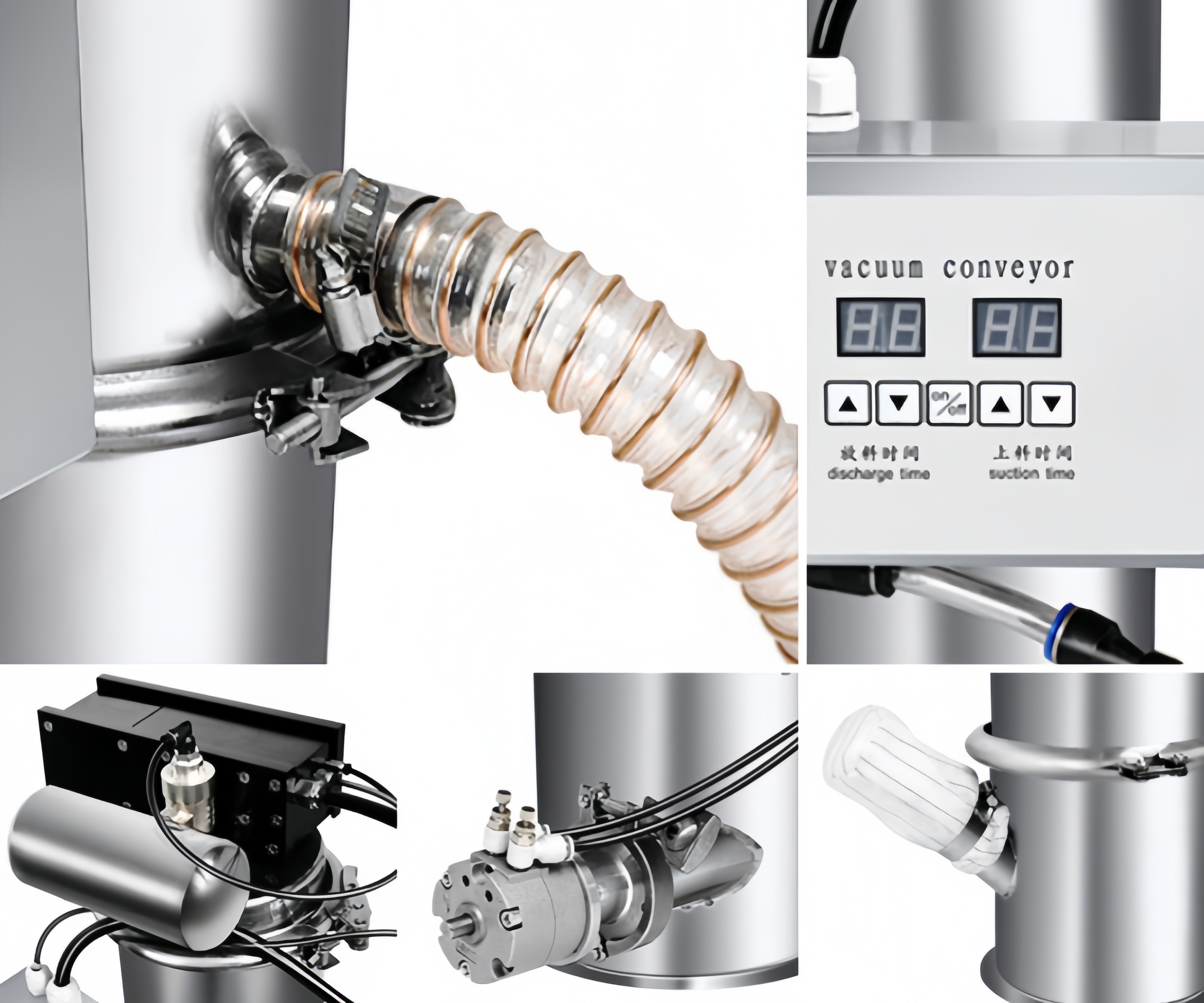

The Automatic Vacuum Feeding Machine for Protein Powder features a closed-loop conveying system as its core characteristic. Its compact and modular design is a key feature. Modules connect via quick-release connectors, facilitating easy disassembly and assembly, and adapting to various workshop layouts and process routes. The contact parts are constructed from food-grade 304 or 316L stainless steel with a finely polished surface, leaving no residue and allowing for easy cleaning, meeting the cleanliness requirements of food processing. Non-contact parts are made of durable materials, balancing structural strength with cost control. The control system, equipped with a PLC and material level sensors, enables automatic start/stop, vacuum monitoring, and fault alarms. It supports one-button operation and remote control, making it suitable for 24-hour continuous production.

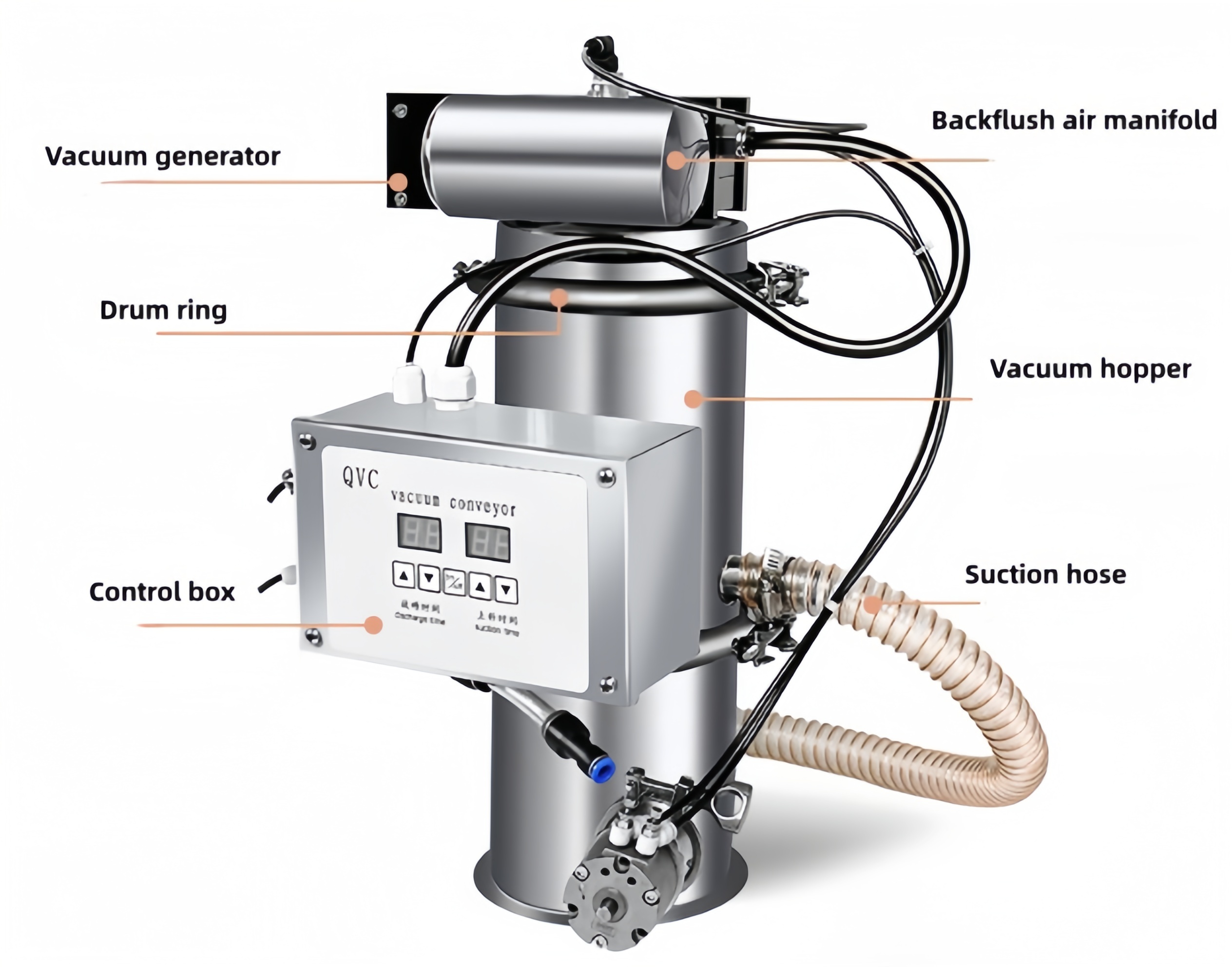

Automatic Vacuum Feeding Machine for Protein Powder Structure

The Automatic Vacuum Feeding Machine for Protein Powder is designed around the core requirements of closed-loop conveying and automated control. Its core components include a vacuum generator, suction assembly, conveying pipeline, separation and filtration unit, hopper, and control system. The vacuum generator, typically a vacuum pump or vacuum generator, is the power source, responsible for generating stable negative pressure to provide the power for material conveying. The suction assembly includes a suction nozzle and a suction hose. The nozzle adapts to different hopper structures, reaching deep into the material for adsorption, while the hose flexibly adjusts the adsorption position to meet various feeding needs. The conveying pipeline is made of food-grade stainless steel, with the pipe diameter customized according to the conveying volume and material characteristics. The separation and filtration unit consists of a high-precision filter element and a backflushing device, achieving separation of material and airflow. Backflushing also keeps the filter element clear, preventing dust blockage. The silo features a sealed design and is equipped with a level sensor to achieve material storage and automatic unloading. The control system integrates a PLC, touchscreen, and sensors to achieve fully automated control and ensure stable operation.

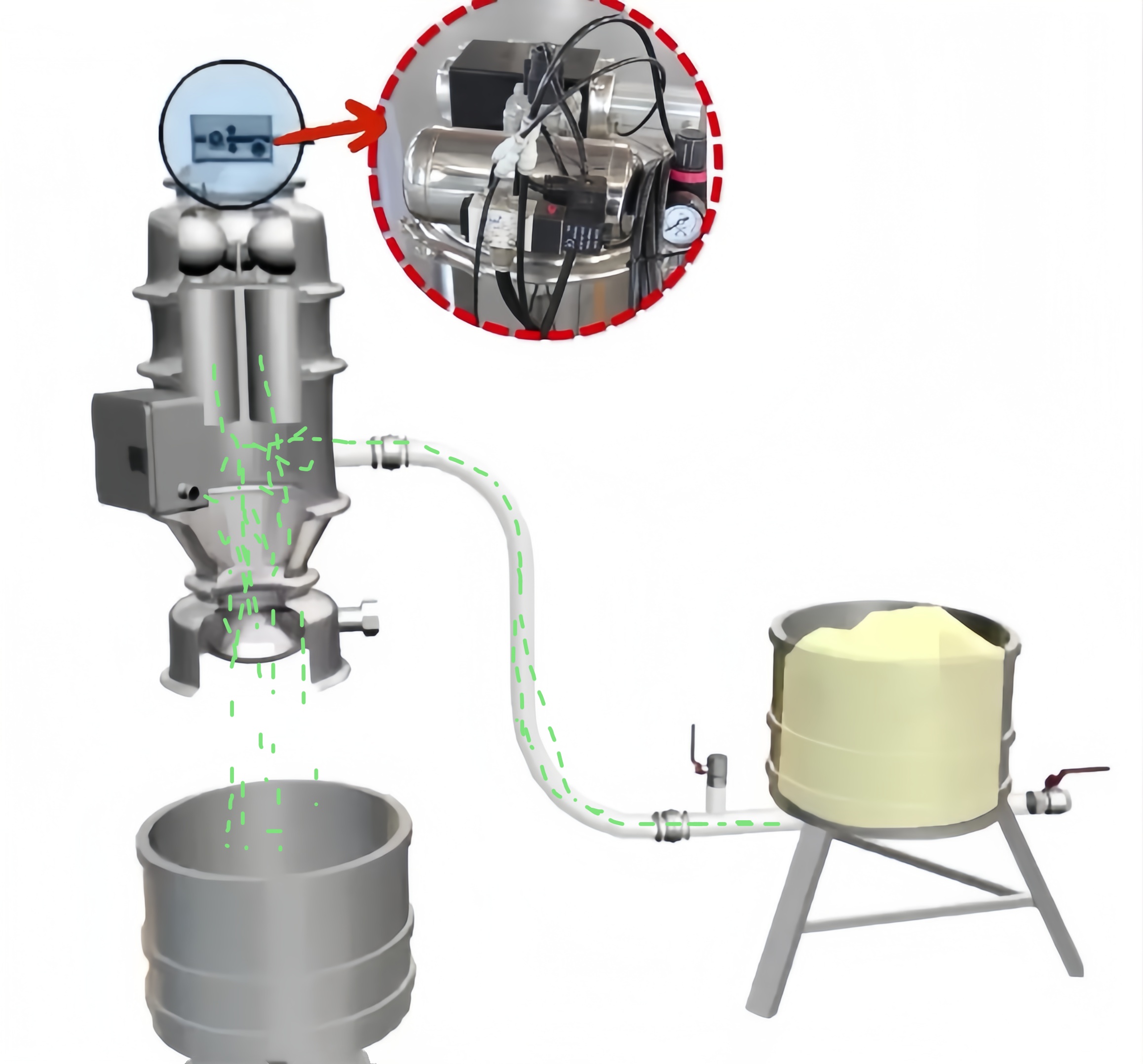

How does the Automatic Vacuum Feeding Machine for Protein Powder work?

The Automatic Vacuum Feeding Machine for Protein Powder operates based on the principle of negative pressure differential adsorption. Its core process consists of a four-stage cycle: suction, separation, unloading, and dust removal. Upon startup, the vacuum generator activates, creating a stable negative pressure within the sealed system. The negative pressure value is adjusted to a suitable range according to the material characteristics. At this time, the pneumatic valve of the suction component opens, and the external atmosphere pushes the protein powder material from the suction nozzle into the conveying pipeline. This material-airflow forms a gas-air mixture that moves along the pipeline towards the silo. The mixture of protein powder and airflow enters the top of the silo and is filtered by the separation and filtration unit. The protein powder particles are trapped by the filter element and settle to the bottom of the silo, while the clean airflow passes through the filter element and enters the vacuum generator, completing the gas-material separation.

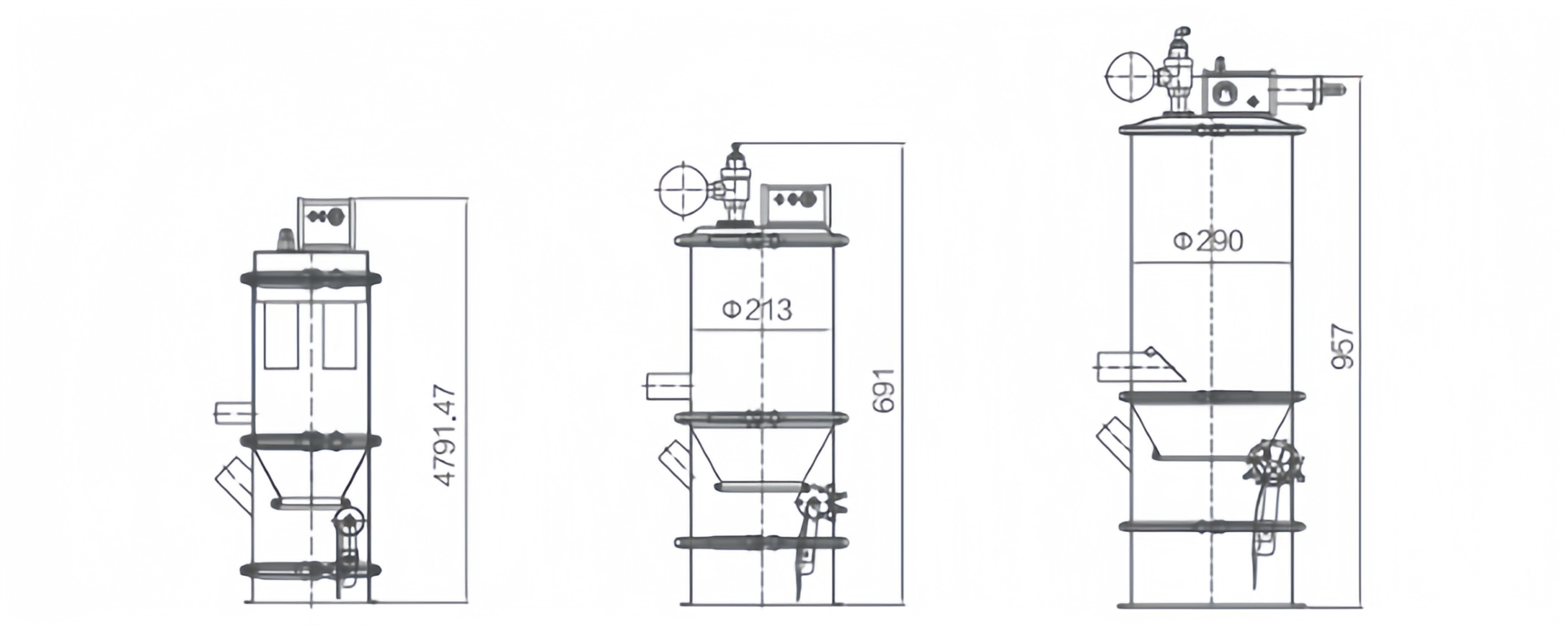

Automatic Vacuum Feeding Machine for Protein Powder Models and Specifications

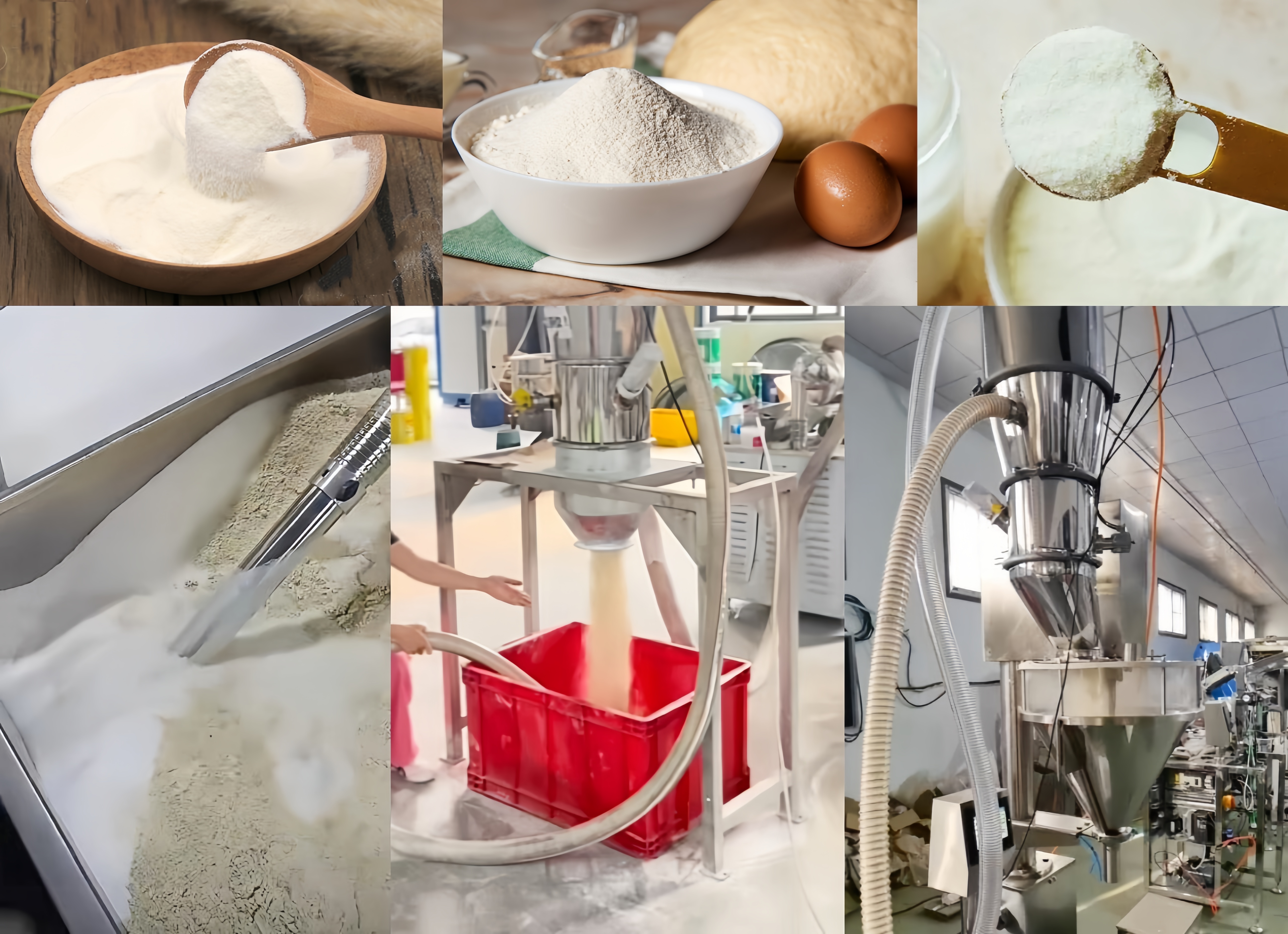

What types of protein powder can the Automatic Vacuum Feeding Machine for Protein Powder deliver?

The Automatic Vacuum Feeding Machine for Protein Powder can deliver various types of protein powder, covering all categories of animal-derived, plant-derived, and compound protein powders. The equipment can flexibly adjust the vacuum level, conveying flow rate, and filtration precision to suit the physical characteristics of different protein powders, accommodating protein powders of different particle sizes, including fine and micro-powders.

Animal-derived protein powders: whey protein, casein, egg protein, etc., suitable for conveying dairy protein powders with different absorption rates and application scenarios.

Plant-derived protein powders: including soy protein, pea protein, brown rice protein, rice protein, etc., meeting the needs of vegetarians and lactose-intolerant individuals.

Compound protein powder delivery: mixed animal and plant protein powders, multi-category plant protein compound powders, suitable for the production process requirements of compound nutritional protein powders.

Customization Options for Automatic Vacuum Feeding Machine for Protein Powder

The Automatic Vacuum Feeding Machine for Protein Powder supports multi-dimensional customization to meet different production scenarios and material requirements. Regarding material customization, contact parts can be made of 304 stainless steel or 316L stainless steel to suit different cleanliness levels and corrosion requirements; non-contact parts can be made of carbon steel or aluminum alloy to reduce equipment costs. Customizable conveying parameters cover conveying distance, vertical height, and throughput. Horizontal conveying distances can be adapted from 5 to 50 meters, vertical heights up to 30 meters, and throughput can be adjusted according to needs, adapting to small-batch pilot lines to large-scale production lines. Filtration system customization allows for selection of different precision filter cartridges based on protein powder particle size, from standard 5μm polyester filter cartridges to high-precision 0.1μm sintered stainless steel filter cartridges. Anti-static and explosion-proof filter cartridge configurations are also supported to adapt to special material characteristics. Customized structure includes suction components, piping layout, and hopper specifications. The suction nozzle is compatible with various hopper types, such as flat-bottom and conical-bottom hoppers. The control system can be enhanced with explosion-proof and inert gas protection functions, making it suitable for flammable and explosive dust environments.

Automatic Vacuum Feeding Machine for Protein Powder Supplier

We possess extensive experience and customization capabilities in food-grade material handling. We have our own R&D team and a complete production system. Our products are certified by authoritative bodies such as ISO and CE, meeting the stringent regulations of the food processing industry. Our core advantages lie in our customization capabilities and delivery services. We can provide a full-process service from solution design and equipment manufacturing to installation and commissioning, based on the company's workshop layout, material characteristics, and production capacity requirements. We support non-standard customization to meet the personalized production needs of protein powder processing companies. The supplier has a comprehensive after-sales system, providing quality assurance services, regular follow-ups and record keeping, as well as technical training and operational guidance to ensure stable equipment operation.

The Automatic Vacuum Feeding Machine for Protein Powder is the core conveying equipment in the entire protein powder processing process. With closed negative pressure conveying as its core, it perfectly solves the industry pain points of protein powder being prone to dust, contamination, and damage due to human contact, and realizes fully automated and dust-free transfer from raw materials to finished products.
