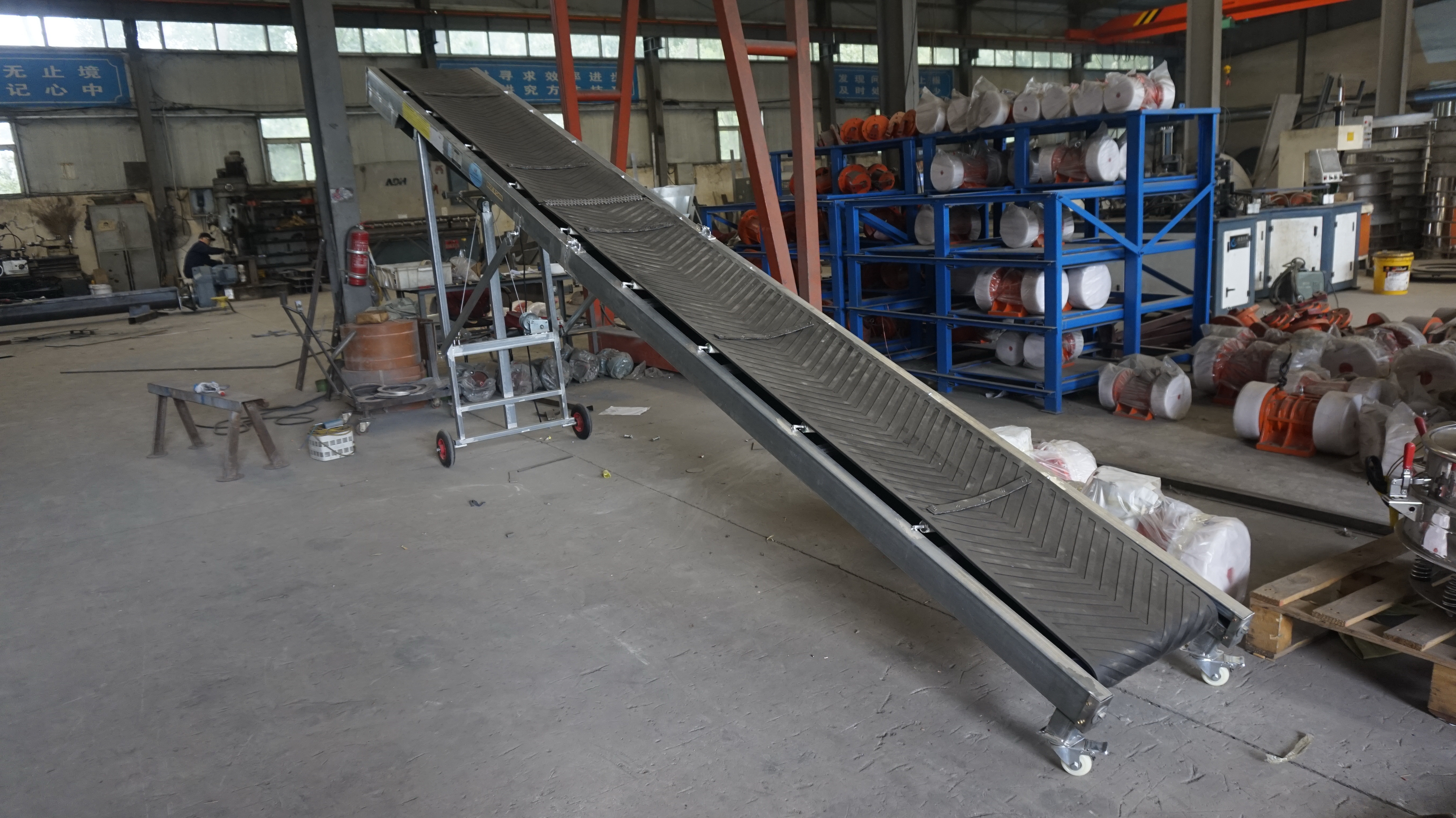

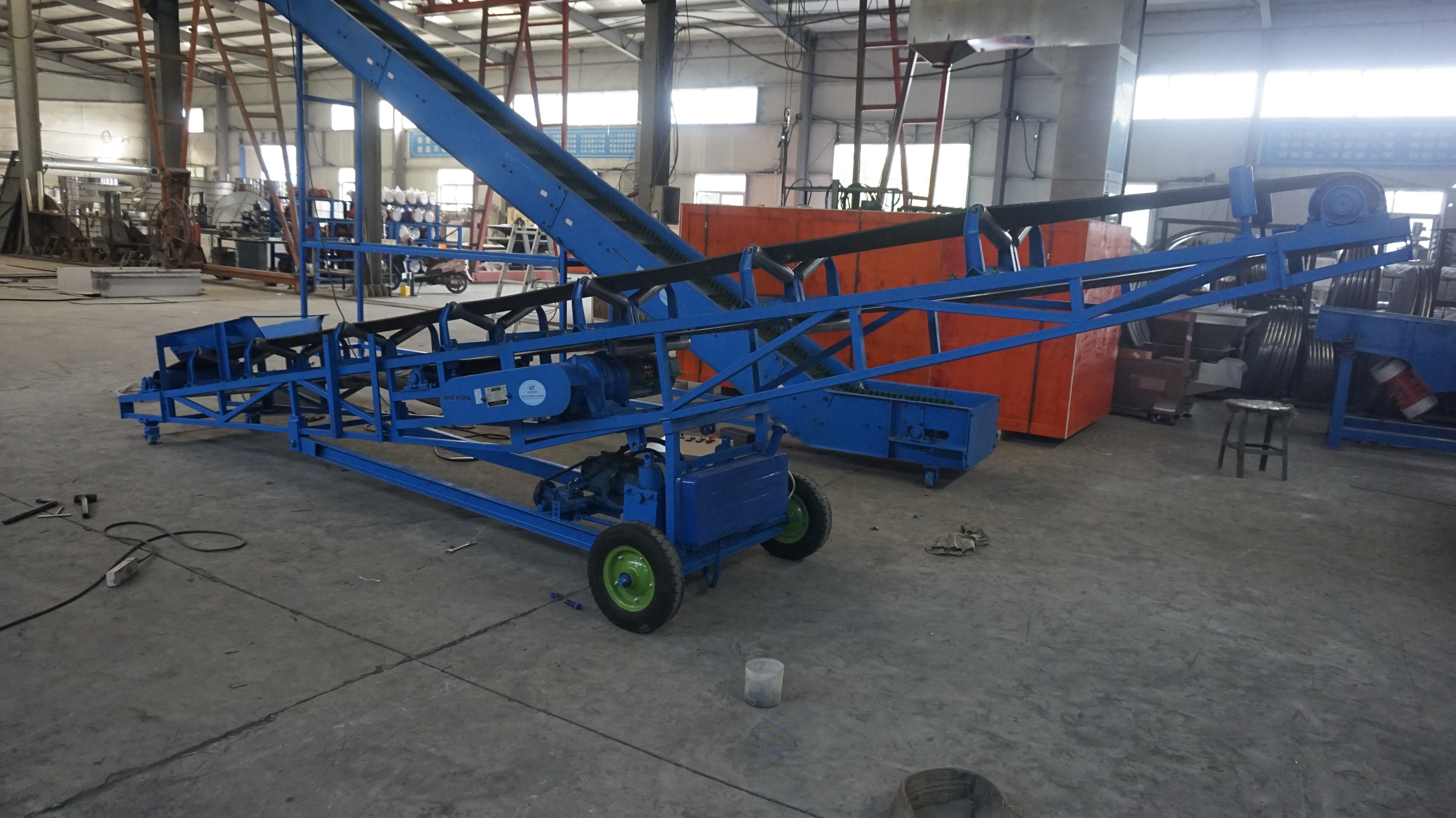

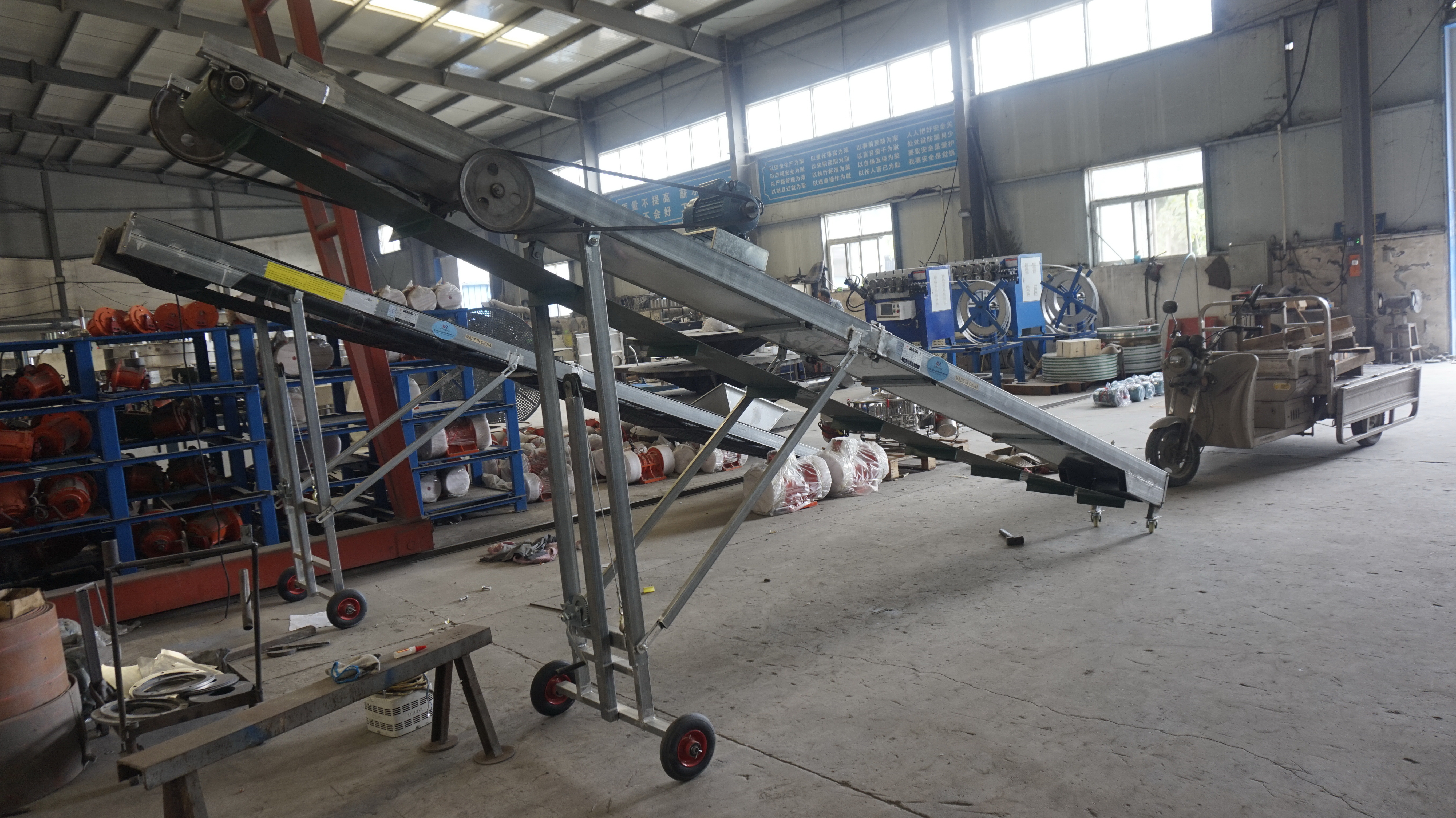

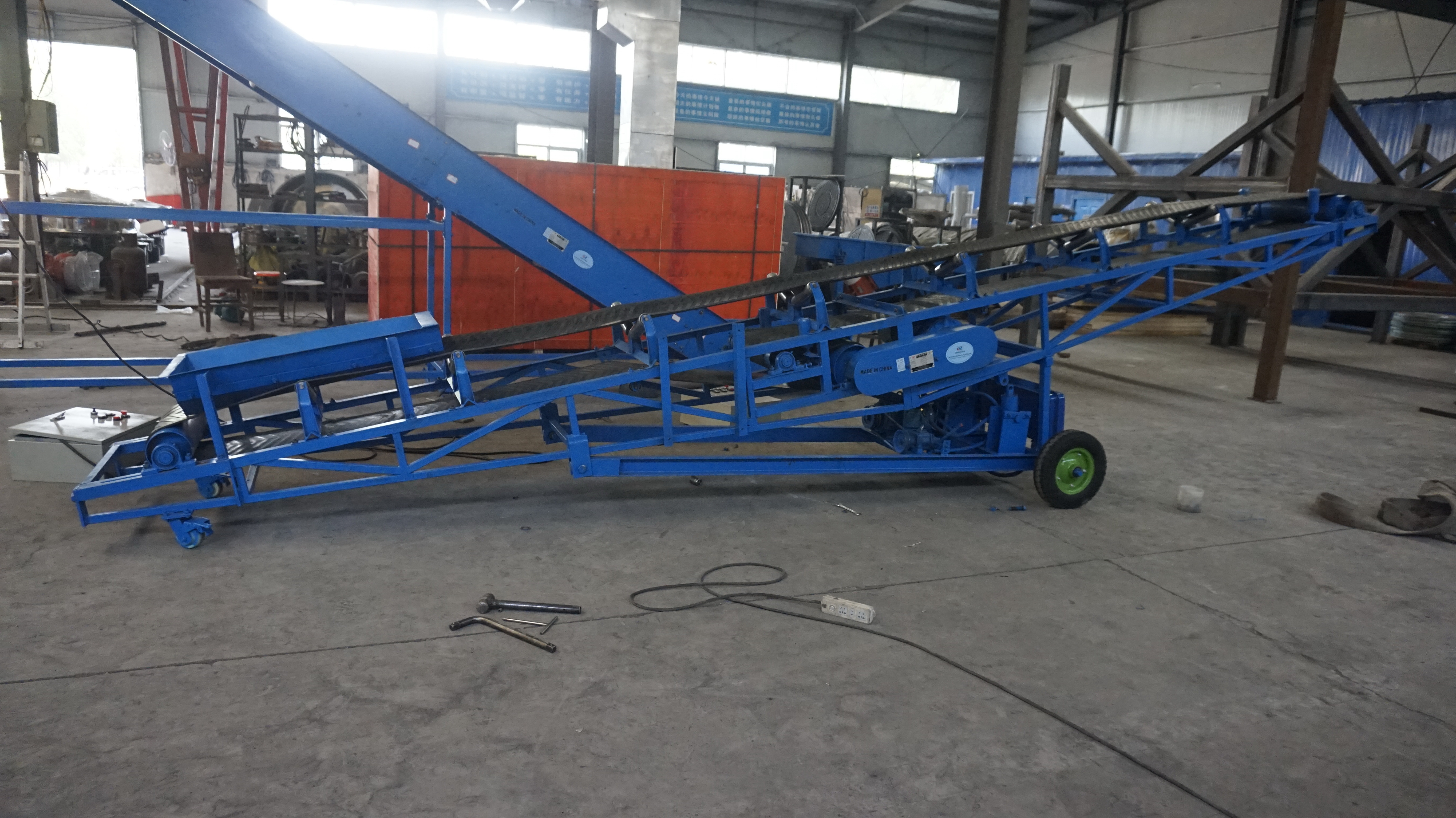

Liftable Mobile Belt Conveyor
What are the types of Liftable Mobile Belt Conveyors?
Liftable Mobile Belt Conveyors can be classified according to their structural characteristics, uses and types of conveyed materials. Although the core functions are "lifting" and "moving", there are many variations in the realization of these functions and in combination with belt conveying.Telescopic Lifting Mobile Belt Conveyor: While having the ability to lift and move, the main part of the conveyor can also be telescopic to change the conveying length, which greatly improves the flexibility and coverage of the equipment in loading and unloading operations.
Flat belt lifting mobile conveyor: This type uses a flat conveyor belt, which is supported by a slide plate or roller at the bottom. It is mainly used to convey finished items such as bags and cartons, and can also convey bulk materials with good fluidity within a limited inclination angle.
Grooved belt lifting mobile conveyor: Its conveyor belt forms a U-shaped groove through a specific groove roller, which can effectively prevent the leakage of bulk materials during transportation. It is suitable for bulk materials such as coal, sand, grain, etc., and can carry a large conveying volume.
Skirt/baffle belt lifting mobile conveyor: The erected skirts or horizontal baffles are installed on both sides of the conveyor belt, so that this type of conveyor can stably convey granular, powdered or block materials at a large inclination angle, which is particularly suitable for high-angle lifting and conveying in occasions with limited space.
Basic parameters of Liftable Mobile Belt Conveyor
| Model | Belt Width (mm) | Lenth(m) | Belt Speed (m/s) | Lifting Height | Slope Angle | Capacity (m³/h) |
| DY-500 | 500 | Max.20 | 0.8-2.0 | adjustable | 0-30 | 50-140 |
| DY-650 | 650 | Max.20 | 0.8-2.0 | adjustable | 0-30 | 100-250 |
| DY-800 | 800 | Max.25 | 0.8-2.0 | adjustable | 0-30 | 170-350 |
| DY-1000 | 1000 | Max.25 | 0.8-2.0 | adjustable | 0-30 | 270-550 |
What are the advantages of Liftable Mobile Belt Conveyor?
Liftable Mobile Belt Conveyor combines the continuity of traditional belt conveying with the flexible adjustability of height and position, so that it has unique advantages in a variety of material conveying scenarios.Highly flexible and adjustable to meet diverse needs: It can freely adjust the inclination angle and discharge port height of the conveyor according to the specific needs of the job site. For example, when loading and unloading goods, the height can be adjusted to meet the needs of vehicles (trucks, containers) or stacking of different heights; on the production line, it can be matched with the inlet and outlet of equipment of different heights. This flexibility enables one device to adapt to a variety of working conditions and reduces the dependence on fixed conveyors.
Convenient movement and multi-point operation: The wheeled or self-propelled mobile device equipped at the bottom enables the equipment to be easily moved and deployed in the job site. This allows one conveyor to serve multiple loading and unloading points or stacking areas, avoiding blind spots that cannot be covered by fixed equipment, thereby improving the utilization rate of the equipment.
High conveying efficiency and strong continuity: As a type of belt conveyor, it inherits the inherent advantage of belt conveyor-continuous material conveying capacity. The continuous operation of the conveyor belt can achieve rapid and uninterrupted transportation of large quantities of materials, whether it is bulk materials (such as grain, sand and gravel, coal) or piece items (such as packages, boxes), they can be smoothly transferred.
What are the applications of Liftable Mobile Belt Conveyor?
Liftable Mobile Belt Conveyor is mainly used in material transfer scenarios that require flexible adjustment of conveying height and position. This type of equipment is responsible for loading and unloading of bulk materials or finished items and short-distance transportation in various logistics, warehousing and production links.Vehicle loading and unloading and transfer: When materials need to be loaded from the ground to vehicles (such as trucks and vans) or unloaded from vehicles to the ground, the Liftable Mobile Belt Conveyor can adjust the conveying angle and the position of the discharge port according to the height of the vehicle's body.
Material stacking and sorting inside the warehouse: In a warehouse environment, the equipment can be used to stack materials to cargo locations at different heights, or unload materials from high cargo locations. At the same time, when sorting materials and transferring them to different areas, its mobility enables the equipment to be flexibly deployed to different operating areas to meet temporary transportation needs.
Accumulation and scattering of bulk materials: For bulk materials such as grain, sand, coal, fertilizer, etc., the Liftable Mobile Belt Conveyor can transport materials from one point to another, and can achieve uniform accumulation or scattering of materials by adjusting the conveying height and moving position, forming a pile or filling the storage area.
Temporary or multi-point operation support: In cases where it is not suitable to install fixed conveying equipment or the operation site needs to be changed frequently, the Liftable Mobile Belt Conveyor provides a flexible solution. It can move between multiple locations to serve different feeding or discharging points, avoiding repeated investment and site transformation.
