Gold and silver refining equipment
Impurities are removed through smelting, electrolysis or hydroprocessing to improve the purity of precious metals, ensuring a gold recovery rate of 99.96% and silver recovery rate of 99.9%.
Price: $800-$50,000
Recovery rate: Gold (99.96%), Silver (99.9%)
Power supply: 220V/380V
Capacity: 5-100KG
Smelting time: 3-5 minutes
What is Gold and Silver Refining Equipment?
Gold and Silver Refining Equipment is used to purify gold mud, gold-containing heavy sand or waste materials to high-purity gold and silver and other precious metals to meet quality standards (gold ≥ 99.99%, silver ≥ 99.9%); it uses hydrometallurgy (chemical dissolution, electrolysis) or pyrometallurgy (high-temperature smelting, vacuum distillation) technology, and is equipped with waste gas and wastewater treatment systems to purify crude materials containing impurities (such as waste jewelry, industrial waste, etc.) to a purity of more than 99.9%.
Why Choose Our Gold and silver refining equipment?
Gold and silver refining equipment has high recovery rate and purity, low cost and short cycle for gold and silver refining. It is a fully customizable system with a processing capacity of 100kg/day under standard configuration. It is suitable for small refineries to industrial operations. Its core advantages include:
High recovery rate and purity: Using chemical method or smelting process, the gold recovery rate can reach 99.96% and silver can reach 99.9%; the product purity meets international standards (gold ≥ 99.99%, silver ≥ 99.9%), reducing the loss of precious metals.
Low cost and short cycle: The cost of gold refining operation is only 0.13 yuan/gram, and the production cycle is shortened to 36 hours (gold) and 20 hours (silver), increasing efficiency by 50%.
Fully automated and pollution-free: The PLC system controls the process parameters throughout the process to realize the mechanization of liquid transportation; negative pressure operation + gas purification technology ensures that waste gas and wastewater meet the discharge standards (silver content in sewage <0.5mg/L), and there is no process waste residue.
What are the technologies for gold and silver refining equipment?
Gold and silver refining equipment uses a variety of refining methods such as electrolysis, chemical and smelting to process different input materials:
Electrolytic Refining Systems: Automated silver electrolysis unit with purity up to 99.99% and gold electrolysis cell with proprietary electrolyte formulation, running continuously with minimal operator intervention
Chemical Refining Solutions: Precision precipitation device with selective reducing agent, acid-based dissolution system with advanced flue gas control, integrated filtration and cleaning station

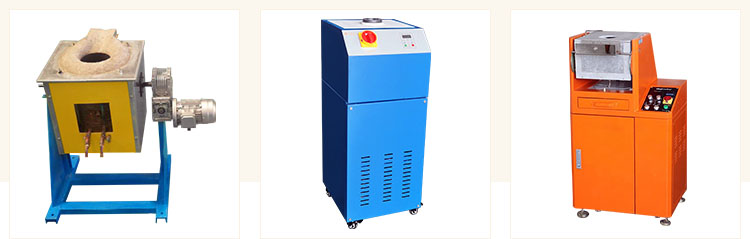

Thermal Processing Units: High temperature induction furnace with graphite crucible, advanced flux formula for optimal slag separation, temperature controlled environment to ensure consistent results
Gold and silver refining equipment parameters
| Model | Power | Voltage | Melting time | Furnace size (mm) | Packing size (mm) | GW |
| 1 kg | 3 kW | 1*220V | 3 Mins | 650*350*350 | 720*420*410 | 20 kg |
| 2 kg | 5 kW | 1*220V | 3 Mins | 650*350*350 | 720*420*410 | 26 kg |
| 3 kg | 7 kW | 3*380V | 3 Mins | 870*355*400 | 940*425*470 | 32 kg |
| 5 kg | 10 kW | 3*380V | 4 Mins | 870*355*400 | 940*425*470 | 38 kg |
| 8 kg | 15KW | 3*380V | 4 Mins | 850*807*345 | 920*877*415 | 48KG |
| 10KG | 20KW | 3*380V | 5 Mins | 850*807*345 | 920*877*415 | 58KG |
What are the components of Gold and silver refining equipment?
Gold and silver refining equipment includes pretreatment module, dissolution station, filtration system, precipitation system, smelting and casting, pollution control, etc. The details are as follows:
Pre-treatment Modules: Crushing, grinding, and classification equipment
Dissolution Stations: Acid-resistant reactors with agitation systems
Filtration Systems: Pressure filters and vacuum filtration units
Precipitation Units: Automated chemical dosing stations

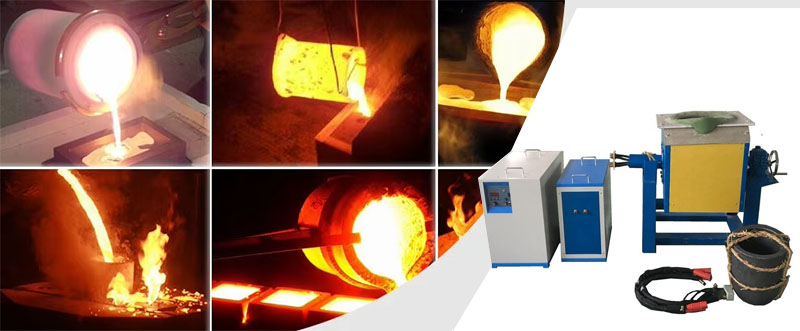

Melting & Casting: Induction furnaces and bar/tile casting molds
Pollution Control: Scrubbers, neutralization tanks, and emission controls
What are the applications of Gold and silver refining equipment?
Our refining equipment processes:
Jewelry scrap and bench sweeps
Electronic waste (PCBs, connectors)
Dental and medical waste
Mining concentrates and doré bars
Industrial catalysts and plating solutions
Numismatic and bullion recycling
