Double-feed vertical packaging system

Friday May-30 2025  17:46:49

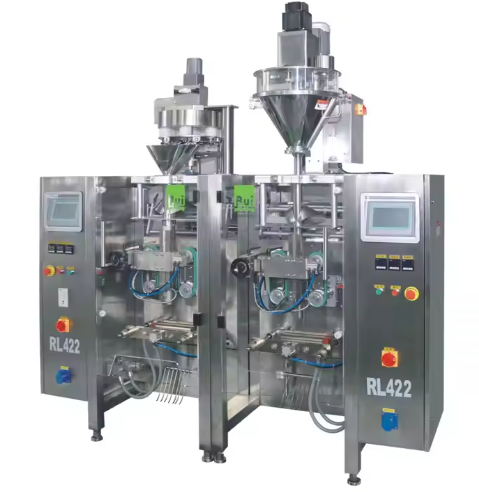

Double-feed vertical packaging system is an automated equipment for packaging fluid materials such as powders, granules, and liquids. It combines a precise feeding system with an efficient vertical packaging machine to achieve accurate metering and packaging of materials. The system is uniquely designed with two independent feeding channels, which can handle two materials at the same time or achieve different packaging requirements by switching. It is widely used in food, medicine, chemical and other industries, especially in high-volume and high-efficiency production environments, and has become one of the important equipment for automated production lines. 1. Working principle
The system introduces the material into the packaging machine through two independent feeding devices. After precise metering, the material is packaged into a preset packaging bag through the sealing device of the vertical packaging machine. The dual-feed device can be selectively enabled or switched according to production needs, which is suitable for diversified packaging requirements. The system control panel sets different working modes to make the packaging process more efficient. 2. Technical parameters of the dual-feed vertical packaging system
In terms of technical parameters, the dual-feed vertical packaging system has a series of advanced designs to meet the packaging needs of different materials. The main technical parameters are as follows:
(1) Packaging speed: usually 30-100 bags/minute, depending on the material characteristics, bag size and machine adjustment. In high-speed mode, production efficiency is significantly improved to meet large-volume needs.
(2) Material adaptability: It can handle a variety of materials such as powders, granules, liquids, etc., with strong adaptability. The special feeding design can handle two different materials at the same time to meet diverse production needs.
(3) Accuracy and stability: Equipped with a high-precision electronic scale, the weight error is controlled within ±1-2g, and high-precision measurement is maintained for a long time.
(4) Applicable bag size: width 100mm-400mm, length 100mm-600mm, which can be adjusted and customized according to needs.
(5) Power supply requirements: AC 380V, 50Hz, maximum power 5-10kW to ensure efficient operation of the equipment. The electronic control system has high integration, supports PLC control, has a friendly interface and is easy to operate.
(6) Automation: Equipped with a fully automatic control system to achieve full automation of metering, packaging, sealing, printing, bag cutting, etc., reduce manual intervention and improve efficiency.
(7) Adaptability to the environment: The design is compact and suitable for high temperature, humidity, dusty and clean environments, and the equipment operates stably.
(8) Material conveying method: Usually equipped with vibration feeder, spiral feeder or flow meter and other devices to ensure that the materials are reasonably conveyed to the packaging machine. 3. Advantages of dual-feed vertical packaging system
(1) Improve production efficiency: The dual-feed vertical packaging system can handle two materials at the same time, avoiding multiple switching of traditional packaging, and significantly improving production efficiency.
(2) High-precision metering: Through precise sensors and electronic scales, ensure that the weight of each bag is consistent, reduce human errors, and improve product quality stability.
(3) Flexible customization: It can be adjusted according to production needs, support a variety of material packaging, and meet the needs of food, chemical, pharmaceutical and other industries.
(4) Save labor costs: The fully automatic design reduces manual dependence, reduces labor costs, and improves production safety and stability.
(5) Environmental protection and energy saving: Adopt high-efficiency motors and low-energy consumption control to reduce energy consumption and production costs.
With the continuous improvement of modern production needs, the dual-feed vertical packaging system has gradually become the preferred equipment for many companies due to its high efficiency, precision and flexibility. Whether it is to meet the diversified packaging requirements in the food industry or the strict requirements for high-precision measurement in the pharmaceutical and chemical industries, the dual-feed vertical packaging system can provide a reliable solution. In terms of improving production efficiency, reducing costs and improving product quality, the dual-feed vertical packaging system is undoubtedly an important driving force for the development of the industry.
