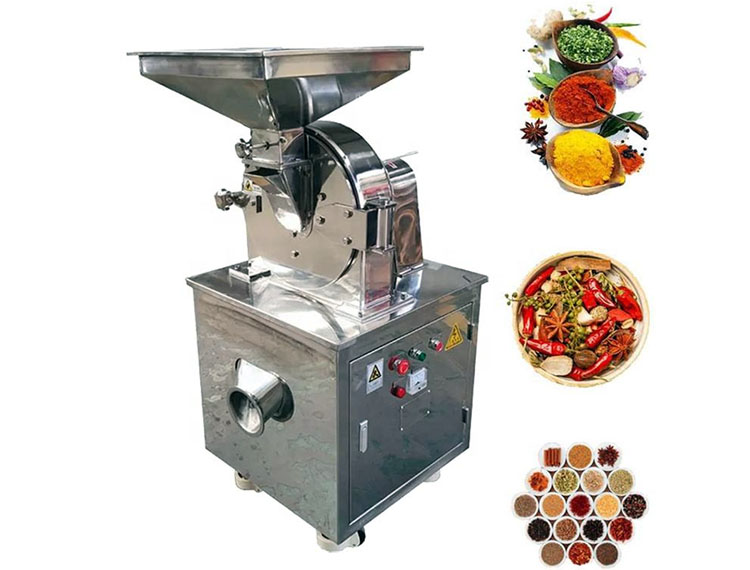

Spice Universal Crusher

What is a Spice Universal Crusher?

A Spice Universal Crusher is a fine pulverizer for dried spices. It uses a high-speed blade to generate impact, shearing, and friction, rapidly turning blocky or granular spices into a uniform fine powder of 20-120 mesh. The pulverizing chamber features a low-temperature design to effectively suppress temperature rise and maximize the retention of volatile aromatic components. The entire machine is made of 304 stainless steel, meeting food-grade hygiene standards. It is easy to clean, leaves no residue, and offers high pulverizing efficiency, adjustable fineness, continuous production capability, and convenient maintenance. It is particularly suitable for processing scenarios with high requirements for powder fineness and aroma retention. The equipment has a wide processing capacity range, from laboratory-level 10-50 kg/h to high-capacity 2000 kg/h, depending on the material and fineness.

Spice Universal Crusher offers optional configurations based on the particle size, hardness, viscosity, and oil content of spices. It can be equipped with a cooling jacket or air-cooling system to control the temperature of oily materials; variable frequency speed control for flexible speed adjustment; optional dust collector for dust-free discharge; multiple mesh screens for quick fineness switching; upgraded wear-resistant blades for extended life; automatic feeding screws for continuous feeding; and custom-made explosion-proof motors to precisely meet the processing needs of different spices.

Why Choose Spice Universal Crusher?

With the rapid development of the global condiment market, more and more food companies are demanding higher quality spice powders. Compared to traditional crushing equipment, Spice Universal Crusher is made entirely of 304 or 316L stainless steel, meeting food processing hygiene standards and featuring corrosion resistance, easy cleaning, and a long service life.

Powerful Crushing Capacity: Utilizing a high-speed rotor structure, it enables continuous production, significantly improving production efficiency. Depending on the model, the hourly processing capacity can reach 20kg-2000kg, meeting the needs of small processing plants to large industrial production lines.

Adjustable Grinding Fineness: By changing different screen sizes, grinding fineness of 20-120 mesh or even higher can be achieved, meeting the needs of various fragrance powder products.

Preservation of Natural Fragrance Flavor: The optimized grinding system reduces heat generated during grinding, minimizes the loss of volatile oils in the fragrance, and ensures a rich aroma in the product.

Equipped Dust Removal System: Pulse dust collectors and cyclone separators can be configured according to customer needs, effectively reducing dust pollution and improving the production environment.

How Does the Spice Universal Crusher Work?

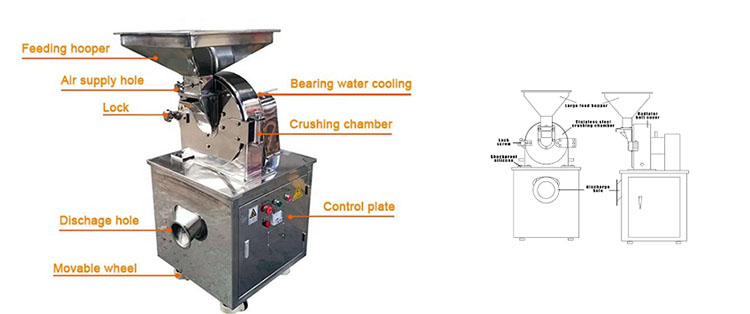

The Spice Universal Crusher mainly consists of a feeding device, grinding chamber, movable toothed disc, fixed toothed disc, screen, discharge system, and motor. During operation, the fragrance enters the grinding chamber through the feed inlet, where it is subjected to strong impact force by the high-speed rotating movable toothed disc. The fragrance is simultaneously subjected to multiple forces such as shearing, collision, friction, and compression, and is rapidly pulverized into fine particles. Powder that meets the required particle size is discharged through the screen, while particles that do not meet the required particle size continue to be ground in the grinding chamber until the required fineness is achieved and then discharged.

Spice Universal Crusher Technical Specifications

What are the applications of the Spice Universal Crusher?

The Spice Universal Crusher is commonly used in food processing, seasoning processing, traditional Chinese medicine and plant extraction, and spice manufacturing industries to grind and process various dried spices and seasonings. Spices that can be ground include chili peppers, black pepper, ginger powder, cinnamon, star anise, fennel, curry powder, etc., enabling standardized and continuous spice production.

Recommended Grinding Fineness Reference for Different Spices

Spice Universal Crusher Customer Case Study

In a Vietnamese chili powder processing project, the client needed to process dried chilies into 60-mesh chili powder, with a required output of 300 kg/hour. Machrise configured a WF-30B Spice Universal Crusher for the client, paired with a cyclone separator and pulse dust collection system. After the machine was put into operation, the actual output reached 320 kg/h, with uniformly fine chili powder, good color and aroma retention, and a reduction in labor costs of over 40%.

Spice Universal Crusher FAQs

Q: Can the Spice Universal Crusher process spices with high oil content, such as nutmeg and sesame?

A: Yes. For high-oil materials, we can add a cooling system and configure a special screen to effectively prevent clogging and sticking.

Q: How is the fineness adjusted?

A: Simply open the grinding chamber and replace the built-in stainless steel screen. With skilled operation, the fineness switch can be completed within 5 minutes.

Q: How to prevent cross-contamination of flavors between different spices? Is cleaning easy?

A: The grinding chamber can be fully opened, and the smooth stainless steel surface inside can be rinsed directly with water or wiped with a cloth. It is not easy to leave residue and the risk of cross-contamination is extremely low.
