Pin Grinding Crusher for Graphite Powder

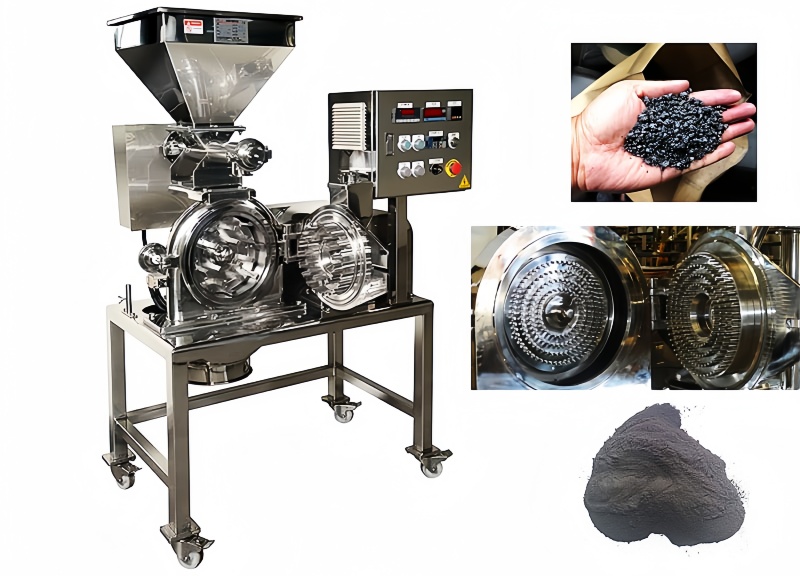

What is a Pin Grinding Crusher for Graphite Powder?

While graphite boasts excellent electrical and thermal conductivity and is easily cleaved, its flake structure is easily damaged in traditional grinding processes. The Pin Grinding Crusher for Graphite Powder utilizes the impact shear force generated by high-speed moving and stationary needles to precisely pulverize graphite along its cleavage planes, preserving its flake morphology to the greatest extent possible, producing high-quality powder with a narrow particle size distribution and low contamination. Its output fineness can be controlled within D50 = 10–45 μm, with a processing capacity covering 100–2000 kg/h. For graphite with different properties such as high purity, easy oxidation, or oil content, it supports optional ceramic linings with metal contamination below 5 ppm, inert gas protection, water-cooled jackets, and variable frequency classification systems, flexibly adapting to different needs such as anode materials and spherical graphite.

Why Use Pin Grinding Crusher for Graphite Powder?

The Pin Grinding Crusher for Graphite Powder features a built-in classifying structure that allows qualified fine powder to be discharged immediately, preventing over-grinding. It boasts a narrow particle size distribution, with a D10/D90 ratio controllable to within 1:4, making it ideal for anode materials requiring high uniformity. Simultaneously, the impact cleavage method along the bedding planes maintains the excellent flake morphology of graphite, resulting in superior tap density and conductivity compared to spherical particles produced by ball mills. High-speed airflow removes heat, resulting in low temperature rise. Combined with ceramic liners and pin bars, it controls metallic contamination to below 5 ppm, meeting the clean production requirements for high-purity graphite. Compared to air jet mills achieving the same fineness, it reduces unit energy consumption by 40%–60%, eliminates the need for a large compressed air system, and simplifies maintenance. The equipment has a simple structure, produces minimal residue, and allows for batch changeover cleaning in less than 30 minutes, flexibly adapting to the production of multiple grades of graphite powder.

How does the Pin Grinding Crusher for Graphite Powder work?

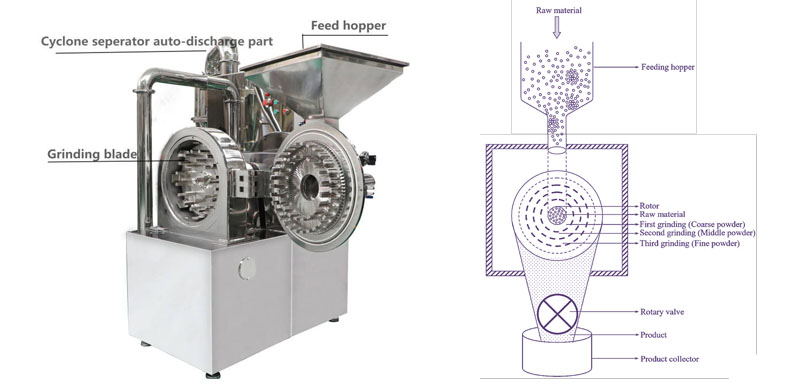

During operation, the Pin Grinding Crusher for Graphite Powder feeds graphite particles from the center. Under centrifugal force, these particles pass outward through the annular crushing zone between the pins, where they are repeatedly impacted, sheared, and pulverized. Unlike equipment that relies on extrusion or grinding media, the pin mill's strong impact force cleaves the graphite layers, achieving rapid refining while preserving the aspect ratio of the flake graphite to a great extent. The speed control system and classifying wheel work together to precisely control the output particle size. The crushing process has a low temperature rise, and a water-cooling jacket can be added, making it suitable for temperature-sensitive graphite powders. If an inert atmosphere is required, nitrogen circulation protection can be configured to prevent oxidation and dust risks.

Pin Grinding Crusher for Graphite Powder Parameters

What are the applications of pin grinding crusher for graphite powder?

Pin grinding crusher for graphite powder has a wide range of applications in graphite powder processing. In the field of lithium-ion battery anode materials, it can pre-crush needle coke or natural graphite and then finely grind it to D50 = 15–20 μm, before mixing it with coating agents such as pitch for granulation, thereby improving the initial coulombic efficiency and cycle life of the anode. In spherical graphite shaping, pin mills are used for primary crushing and trimming, rounding the edges of graphite micropowder. Combined with a classifier, it can produce spherical graphite with concentrated particle size and high tap density. For special carbon and graphene precursors, it can perform ultrafine grinding of expanded graphite or high-purity graphite to prepare precursor powders for high-end carbon materials such as conductive pastes and thermally conductive films. In addition, in the fields of powder metallurgy and lubricants, pin mills combined with classification systems can customize particle size distribution to produce graphite powder for high-temperature lubricants and release agents with intact flakes and a purity higher than 99.9%.

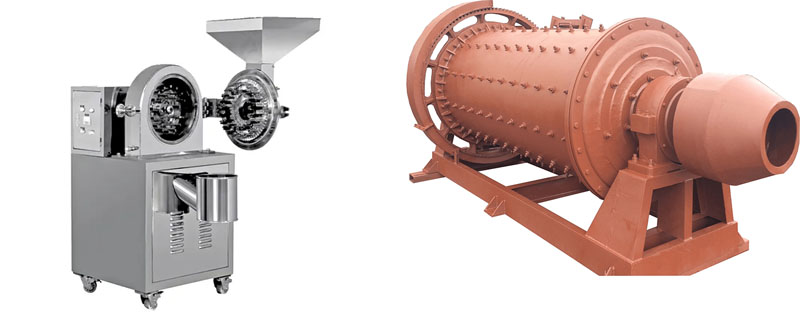

What are the differences between pin grinding crushers and ball mills in graphite processing?

Pin grinding crushers for graphite powder are suitable for lithium-ion battery anodes and specialty graphite applications that require flake-like graphite morphology, medium fineness, and low-cost large-scale production; while ball mills are suitable for coarse crushing and pretreatment stages, but they also result in significant over-grinding.

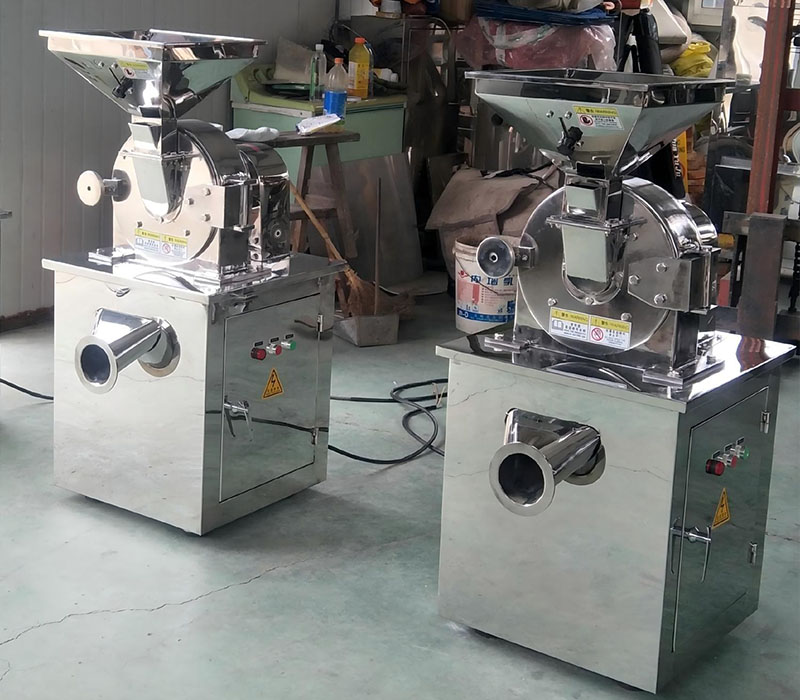

Pin Grinding Crusher for Graphite Powder Case

A large anode material factory upgraded its grinding section by selecting Machrise's MR-PM800 Pin Grinding Crusher for Graphite Powder, equipped with a water-cooled jacket and a dynamic classifier at 3,800 rpm. This system processes natural flake graphite with 99.5% fixed carbon and a particle size of 6–10 mm, aiming for a D50 of 18 ± 3 μm, maintaining flake integrity, and a production capacity of ≥800 kg/h. Actual continuous production data shows stable output D50=17.5 μm, D10=8.2 μm, and D90=32.1 μm, with an average output of 920 kg/h and a metal impurity increase of less than 3 ppm. This is attributed to the use of ceramic wear-resistant protection; the equipment only required one pin replacement after 3,000 hours of continuous operation, reducing maintenance costs by 60%. Customer feedback indicates that replacing the original ball mill and classification system improved the conductivity of the graphite powder by one level and reduced energy consumption by more than half.

Pin Grinding Crusher for Graphite Powder FAQ

Q1: How to prevent oxidation when grinding graphite powder with Pin Grinding Crusher for Graphite Powder?

A: Machrise Pin Grinding Crusher for Graphite Powder can be designed as an airtight system, purged with nitrogen or inert gas circulation, allowing grinding to take place in a slightly positive pressure, oxygen-free environment, with the discharge temperature controllable below 50℃.

Q2: What is the lifespan of the wear parts? How much does it affect graphite purity?

A: Pin Grinding Crusher for Graphite Powder uses high-wear-resistant alloy or zirconia ceramic pins, achieving a lifespan of 2,000–4,000 hours under graphite grinding conditions. The ceramic configuration ensures an increase in metallic impurities of <5 ppm, meeting the requirement of 99.99% high-purity graphite.

Q3: How to precisely adjust the discharge particle size? A: This is mainly achieved by adjusting the speed of the classifying wheel; the higher the speed, the finer the output. Combined with fine-tuning of the main shaft speed, the D50 particle size can be locked within a fluctuation range of ±1.5 μm. A speed-particle size curve is provided upon equipment delivery.

Q4: Can the machine process graphite filter cake containing moisture or oil?

A: The Pin Grinding Crusher for Graphite Powder is primarily for dry powder grinding. If the material moisture content is >2%, it is recommended to dry it first. For oily graphite, a special lining and sealing structure are available as options; please contact our engineers for details.
