High efficiency crusher

What is High efficiency crusher?

A high efficiency crusher is a high-output crusher that improves material crushing efficiency. It uses high-speed rotating blades or hammers to shear, impact, and crush materials quickly to break blocky and granular raw materials into smaller, acceptable sizes, providing raw materials for subsequent material processing and batching. The crushing efficiency is more than 80% higher than traditional equipment. Its feed size is typically 50-500mm, and the output particle size can be within 0.1-50mm. The crushing capacity per hour can reach 1-500 tons. It can be used from laboratories to large production lines and can be used to crush hard ores such as granite and limestone, construction waste such as cement and tiles, recycled materials such as plastics and rubber, and soft materials such as coal and straw.

High efficiency crusher video

What types of high-efficiency crushers are there?

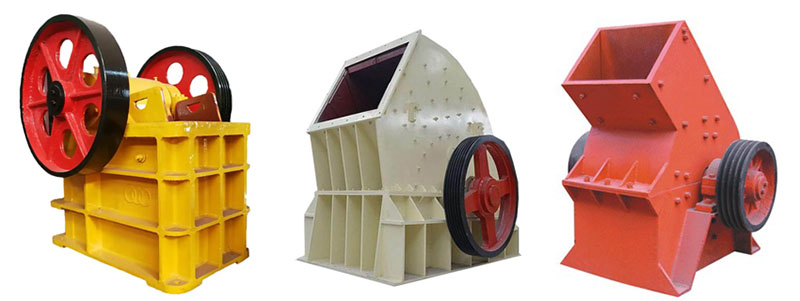

High-efficiency crushers mainly come in three types: jaw crushers, hammer crushers, and impact crushers. The type chosen depends on the properties of the material being crushed and the required output. The appropriate type should be selected based on the specific needs.

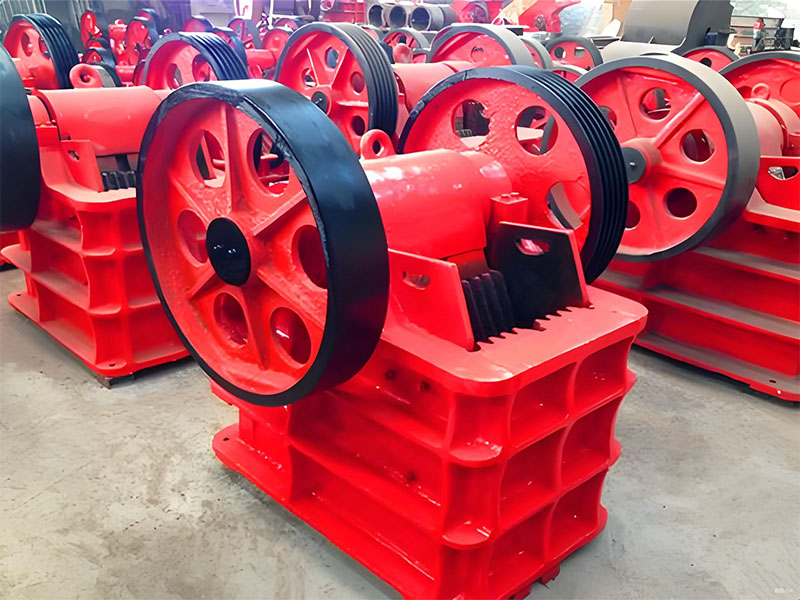

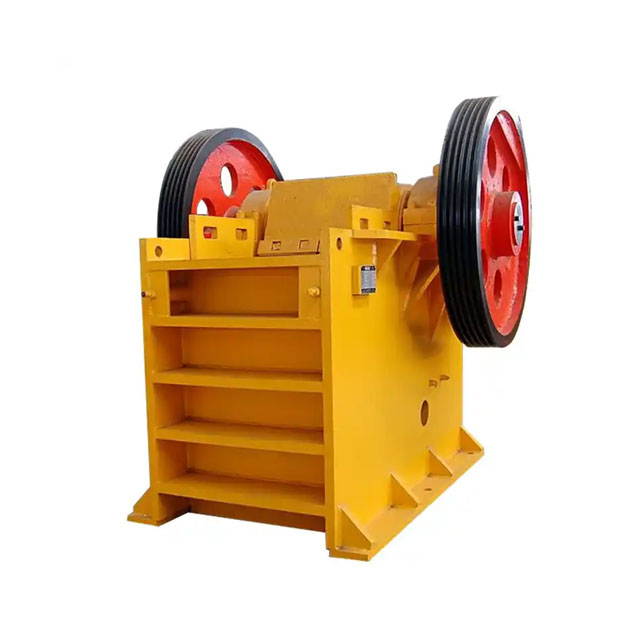

Jaw High efficiency crusher: Robust and highly resistant to pressure, it can withstand the impact of high-hardness materials. The output particle size is typically 10-300mm, and it is commonly used for coarse crushing. Crushing capacities range from 10-50 tons/hour for small-scale models to 500 tons/hour for large industrial-scale models. It can be used for crushing hard rocks with a Mohs hardness of 6 or higher, such as granite, iron ore, and basalt, and can also handle the primary crushing of materials such as construction waste and limestone.

Hammer High efficiency crusher: This type of crusher uses high-speed hammer impact to efficiently crush materials. The output particle size is 15-50mm, and the crushing capacity is 2.5-200 tons/hour. It can be used for crushing medium-hard and brittle materials such as limestone, coal gangue, and slag. For crushing easily clogging materials such as wet coal gangue and frozen materials, a screenless design can be selected.

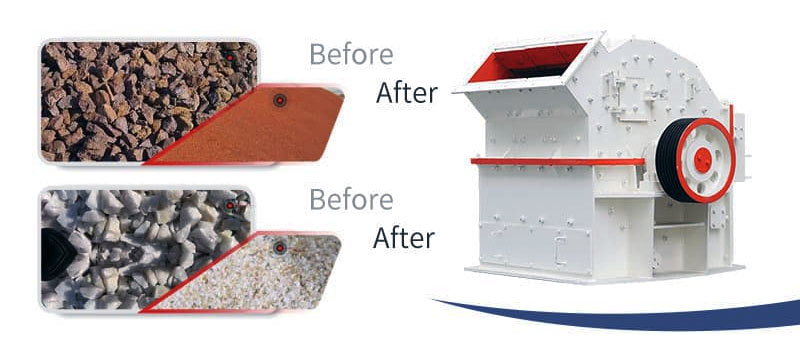

Impact High efficiency crusher are mainly used for medium and fine crushing, with output typically ranging from 30-70mm in size and exhibiting good particle shape. Sand making models can be adjusted to 0.25-5mm, meeting aggregate batching standards; crushing capacity ranges from 35-550 tons/hour. They can be used for crushing hard rocks such as granite and river pebbles, as well as for processing recycled aggregates for concrete and producing manufactured sand.

Why choose High efficiency crusher?

This high efficiency crusher boasts superior working efficiency and material crushing capacity. Its crushing chamber combines a moving cone and a fixed cone design with a powerful drive system, resulting in concentrated crushing force and a large crushing ratio. It can complete deep crushing of materials in a single pass, producing uniform particle size and a high pass rate. The crushing speed is over 50% faster than traditional equipment, with a crushing capacity of up to 500 tons per hour. It also allows for precise control of the output size, adjustable from 12-100mm. For materials with different properties, including soft, hard, brittle, and tough materials, different types can be processed by changing the cutting tools. Furthermore, the feed inlet size, crushing chamber structure, screen size, and other parameters can be customized according to the material size.

How does the High Efficiency Crusher work?

When the High Efficiency Crusher is working, the material enters the crushing chamber evenly through the feed port. Gravity feeding or spiral feeding is used to ensure stable feeding. The motor drives the main shaft to rotate at high speed (up to 4400rpm) through a belt or coupling. The blade fixed on the main shaft shears and hits the material to break it. The crushed material is filtered through the screen. The particles that meet the requirements are discharged through the screen. The oversized particles continue to remain in the chamber for crushing. The qualified powder is discharged through the discharge port. Gravity discharge, air flow conveying or spiral discharge can be used.

High Efficiency Crusher Parameters

GF series high efficiency pulverizer main parameters:

Main parameters of ultrafine grinder

What are the applications of High efficiency crusher?

This high efficiency crusher can be used in mining, construction, building materials production, environmental recycling, grain processing, and pharmaceutical industries to crush various types of materials. It can crush granite, limestone, natural sand and gravel, construction waste, coal gangue, tailings, stone, grains, seasonings, chemical raw materials, medicinal herbs, feed, straw, plastics, and other materials with a particle size within 1000mm.

High efficiency crusher manufacturer

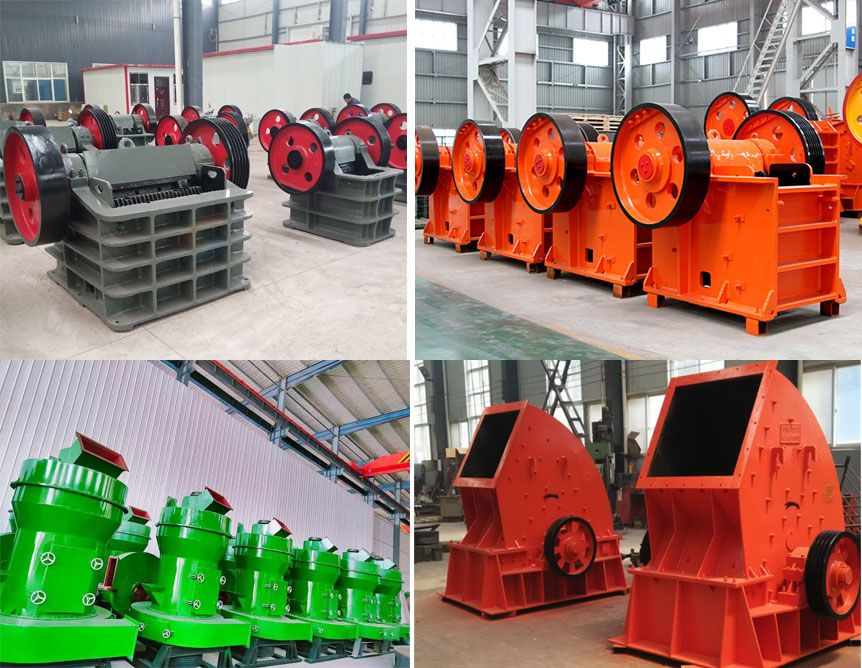

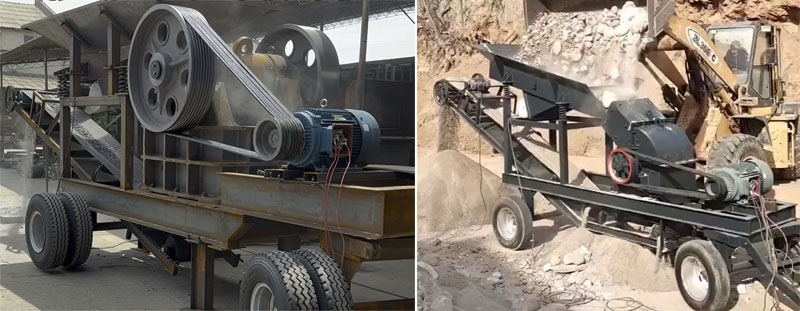

MACHRISE High Efficiency Crusher offers a variety of crushing products, including small laboratory crushers, jaw crushers, cone crushers, hammer crushers, impact crushers, and rotary crushers. These crushers boast high crushing efficiency and large crushing capacity, suitable for applications ranging from small laboratories to large mining production lines, with processing capacities from 0.5 to 1 to 500 tons per hour. Customization options are available to suit different materials and application scenarios, including explosion-proof models, mobile models, models equipped with dust removal devices, and models with cooling systems. Custom designs based on provided drawings are supported, and a one-year warranty is offered.
