How to Choose a Vertical Packaging Machine for Spices?
Thursday May-14 2026 17:17:16
Vertical Packaging Machine for Spices are used in continuous packaging lines for powdered spices such as pepper, cumin, chili powder, and cinnamon. They handle the continuous processes of metering, bagging, sealing, and cutting. Common packaging sizes range from 5g to 1kg, with smaller bags often used in meal kits and larger bags more common in wholesale or central kitchen repackaging. Choosing the wrong machine can lead to spice leakage or inaccurate metering, affecting packaging efficiency. Therefore, this guide outlines the steps for selecting a vertical packaging machine for spices and provides relevant solutions to help you choose the right model.
Vertical Packaging Machine for Spices Selection Guide
When selecting a vertical packaging machine for spices, the flow characteristics of the spices themselves directly influence the machine's structural design. For example, nutmeg powder, with its coarse particles and fibrous inclusions, is best suited for screw metering devices, where a servo motor drives the screw to control the output. Fine powders like chili powder, on the other hand, are more commonly used in cup metering or vibratory feeding structures to reduce drift caused by air entrainment. In terms of technical configuration, the diameter of the forming device and the film thickness need to be matched. If the film is too soft, wrinkles will appear during longitudinal sealing; if it is too thick, stress marks will appear at the folded edges. The control unit typically uses a PLC with a touchscreen interface, allowing switching of formula parameters, such as different feeding times and sealing temperature ranges for different spices. During on-site debugging, operators adjust the vibration frequency based on the material's settling speed in the hopper to maintain a stable feeding state for the powder within a short period. This adjustment often occurs after changing supply batches because the particle density of spices from different origins varies.
Vertical Packaging Machine for Spices Solution
In a cumin powder packaging workshop in the Middle East, a semi-automatic weighing method was previously used, resulting in significant errors per bag and noticeable dust dispersion during manual filling. After switching to a Vertical Packaging Machine for Spices, using a screw metering + longitudinal forming structure, the packaging speed increased to approximately 40 bags per minute. Operators pour 25kg of raw material into the feeding hopper, and the powder is conveyed to the storage silo via a screw conveyor before entering the metering screw area. On-site records show that when changing different batches of cumin powder, only adjusting the screw speed parameters and sealing temperature curve is needed to narrow the bag weight deviation range to a more stable range. Another small factory producing chili powder uses three-side seal bags for e-commerce small packaging. The film is automatically coded with the date after horizontal sealing, and the bags go directly to the packing station at the end of the conveyor belt, reducing manual contact and allowing for a more compact logistics channel in the workshop.
Vertical Packaging Machine for Spices Parameter Table
Below is a parameter table showing the common configuration ranges for vertical packaging machines for spice powders. This table can be used as a reference when making a selection to help better align with purchasing decisions and facilitate comparison of different equipment prices or solutions.
| Parameter Category | Common Range / Configuration | On-site Description |
|---|---|---|
| Packing Weight Range | 5g – 1000g | Covers small seasoning packets to commercial bulk packaging bags |
| Packing Speed | 20 – 70 bags/min | Related to material fluidity, bag type, and metering method |
| Bag Type | Back-sealed bag / 3-side sealed bag / Pillow bag | 3-side sealed bags are mostly used for seasoning packets; back-sealed bags are common for wholesale use |
| Metering Method | Screw metering / Volumetric cup / Combined weighing | Screw metering is mostly used for chili powder; volumetric cups are preferred for granular spices |
| Film Width | 80 – 320 mm | Determines bag width and packaging capacity |
| Film Material | PE / PET composite film / Aluminum-plastic composite film | Affects sealing temperature and bag forming rigidity |
| Sealing Temperature Range | 120°C – 200°C | The heat-sealing temperature window varies greatly for different films |
| Control System | PLC + Touch Screen | Can store parameters for different spice formulas |
| Hopper Structure | Anti-bridging hopper / Vibrating hopper | Prevents material blockage and feeding stoppage caused by chili powder agglomeration |
| Contact Material | 304 Stainless Steel | Low powder residue, easy to clean and change materials |
| Longitudinal Sealing Structure | Straight line / Mesh pattern heat-sealing wheel | Affects sealing pattern and sealing stability |

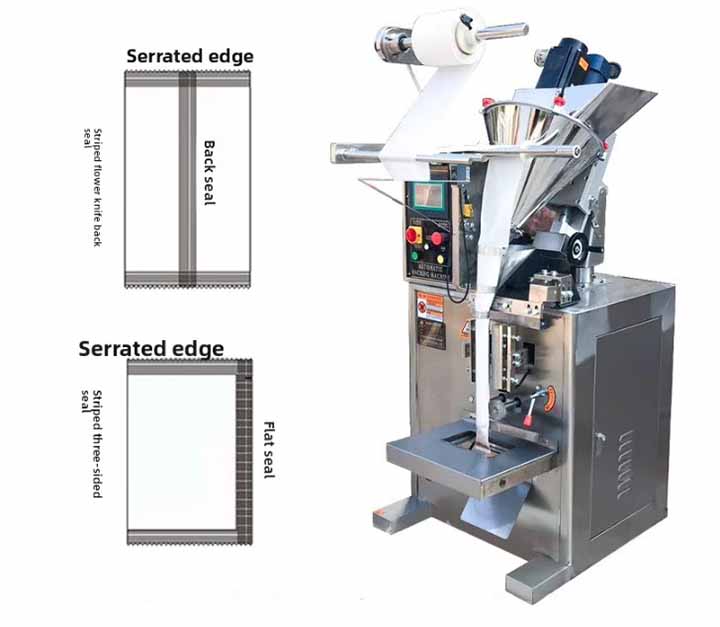

| Transverse Cutting Form | Flat cut / Serrated cut | Affects cut edge smoothness and tearing direction |
| Feeding System | Screw elevator / Manual feeding | Factory scale determines the degree of automation |
| Power Requirements | 220V / 380V, 50–60Hz | Different configurations for small equipment and factory production lines |
| Air Source Requirements | 0.4–0.6 MPa (some models) | Used for pneumatic cutting or film blowing assistance |
Spice Packaging FAQ
Q1: How to solve the air leakage problem caused by spice powder accumulation at the sealing point?
You can try using a negative pressure dust removal interface at the horizontal sealing point of the packaging machine. This will remove any residual powder floating at the bag opening just before the film closes, ensuring a clean and sealed heat-sealed area.
Q2: How should the screw metering device be adjusted to maintain stable weight for spices with significant density differences?
When switching from lightweight cinnamon powder to heavier black pepper powder, the servo motor speed and pause angle need to be fine-tuned via the PLC interface, and the screw rotation number needs to be compensated in real time based on hopper pressure feedback.
Q3: Why does the material fall intermittently when packaging five-spice powder containing natural oils?
Because oily powders are prone to adhesion and bridging, a coating can be added to the inner wall of the hopper, combined with continuous agitation by a variable frequency vibration motor to break the cohesion between powders, allowing the spices to enter the forming unit.
Selecting a Vertical Packaging Machine for Spices is not just about packaging speed, but also about matching the metering method and forming system to the spice particle shape, oil content variations, and target bag structure. After the equipment is deployed, the workshop will gradually establish fixed parameter record sheets, such as screw speeds for different batches of cumin powder and sealing temperature ranges for different moisture contents of chili powder. This on-site data will, in turn, affect the stability of subsequent production rhythm and the frequency of manual intervention.
