Fully automatic chemical packaging machine production line
Tuesday October-14 2025 14:36:11

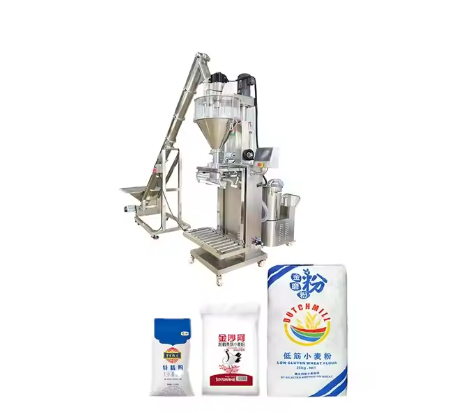

Fully automatic chemical packaging machine production line is used in modern industrial production for automatic weighing and packaging of liquid, powder, granular, crystalline, mixed, and agricultural chemical materials. The product type can be selected from a hoist to transport the material to the packaging machine, where the packaging is performed, and a belt conveyor to transport the packaged bags to the designated location.
Calculated by daily output, a single device can reach an average of more than 4.8 tons/day, and high-speed equipment can reach 6-10 tons/day. Depending on the degree of automation, packaging accuracy and supporting functions, the market price is usually between US$5,000 and US$30,000. The main manufacturers of this type of equipment are concentrated in China, India, Germany and other places. Among them, Xinxiang, Shanghai, Guangzhou and other places in China have gathered a large number of professional manufacturers with strong production capacity and technical advantages.
Fully automatic chemical packaging machine production line selection

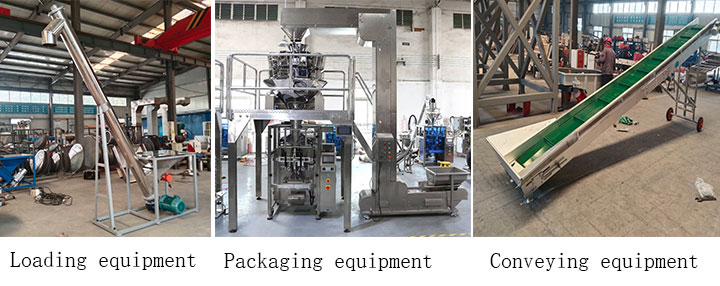

In terms of product selection, the fully automatic chemical packaging machine production line is compatible with equipment such as screw loaders and bucket elevators for loading, and vertical packaging machines and liquid packaging machines for packaging. After packaging, belt conveyors and chain conveyors are required to transport the packaged liquid or powder chemicals to the warehouse or palletizing area.

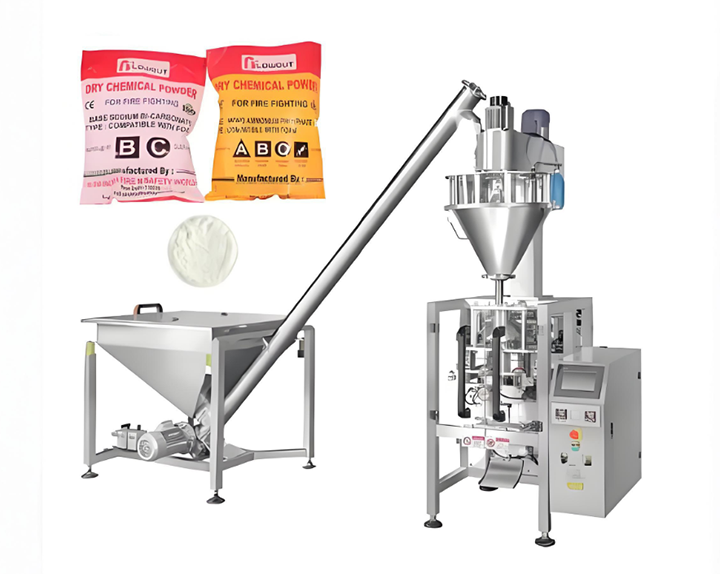

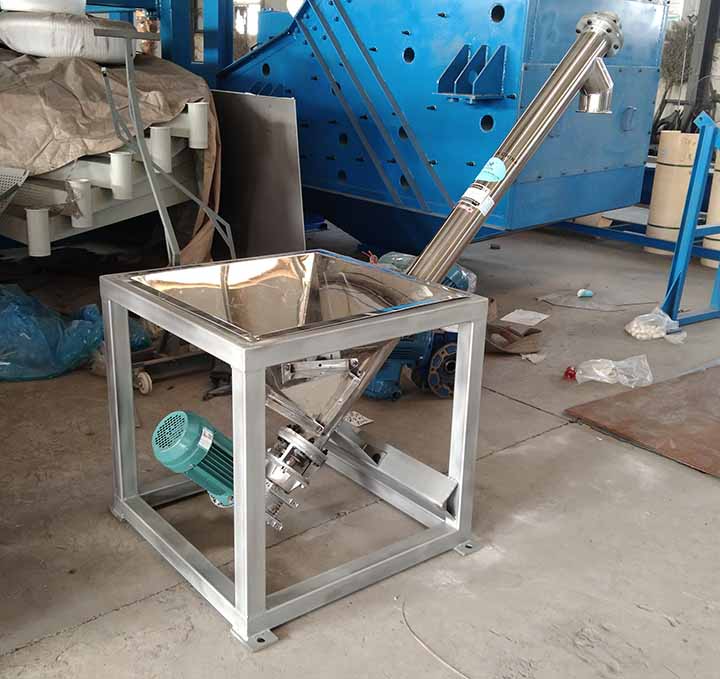

For loading, for highly corrosive powders or granular chemicals, the main trough and spiral blades of the screw loader are often made of 304 or 316 stainless steel for enhanced corrosion resistance. Its horizontal conveying distance typically ranges from 5 to 30 meters, allowing for flexible adjustment based on the production layout. For materials that require vertical or steep-angle conveying, a bucket elevator is a preferred option. Its hopper and casing can also be made of carbon steel or stainless steel, with a lifting height of up to 40 meters or more. It can efficiently and airtightly transport materials to the designated feeding point.

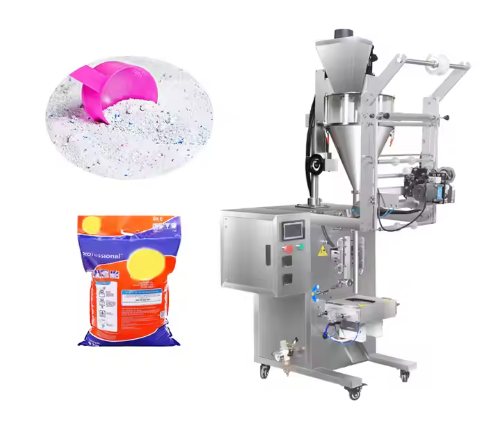

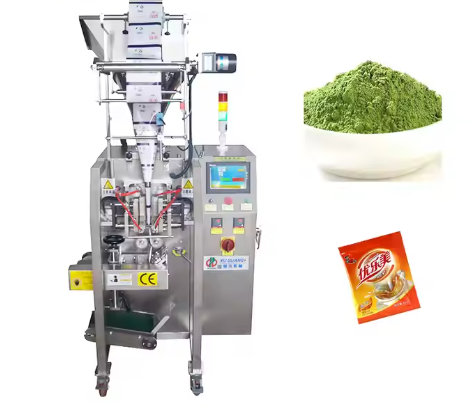

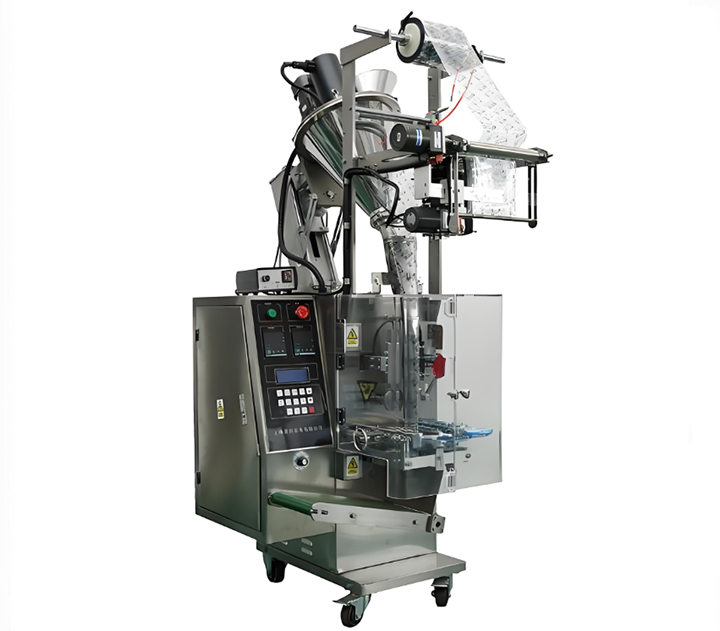

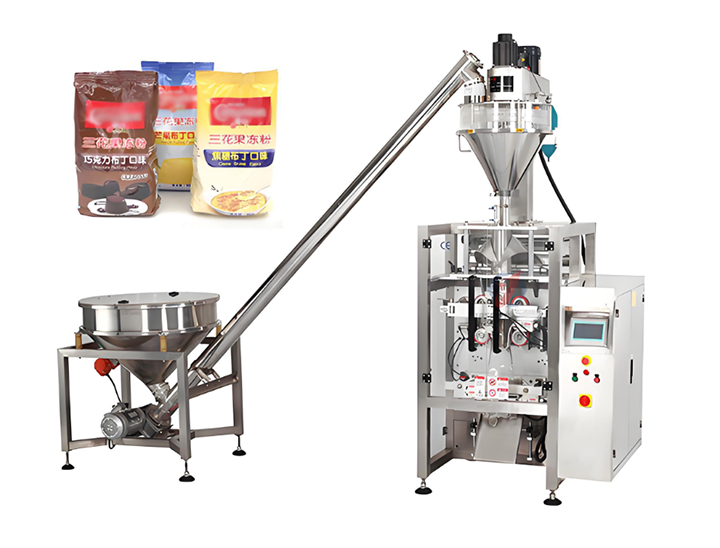

For packaging, vertical packaging machines are suitable for bagging dry chemicals such as powders and granules. They can achieve a packaging speed of up to 60 bags per minute, with high precision and effective reduction of material loss. Liquid packaging machines are designed specifically for various liquid chemicals, such as corrosive liquids and solvents. Depending on the packaging volume, packaging speeds typically range from 20 to 40 bottles per minute. They are equipped with corrosion-resistant liquid pumps and valves to ensure a sealed and safe packaging process.

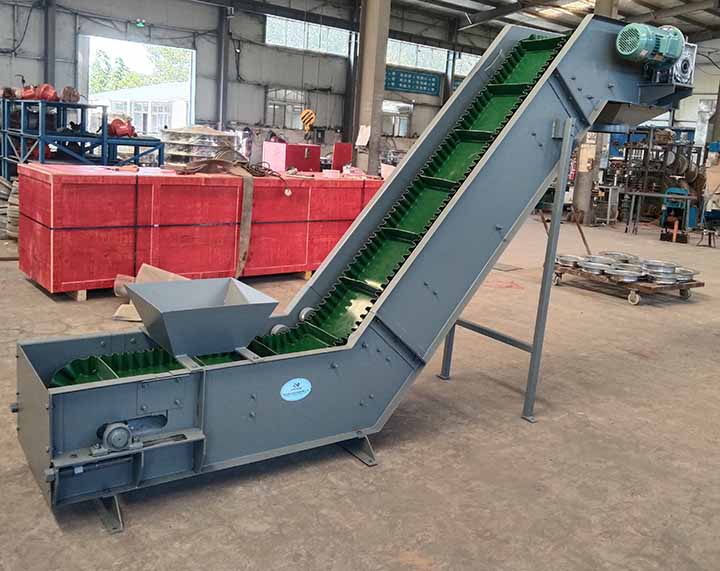

For finished product conveying, belt conveyors are an economical choice for lightweight powdered chemicals packaged in cartons or bags. These belts can be made of anti-static PVC or food-grade PU, and conveying speeds are infinitely adjustable between 0.5 and 1.5 m/s. For heavier barreled liquid chemicals or those requiring a more stable load, chain conveyors are more reliable. Their chains are typically made of high-strength stainless steel or engineering plastics, offering a sturdy, corrosion-resistant, and wear-resistant structure. They maintain a stable conveying speed of 0.2 to 0.8 m/s and can withstand harsh environments with humidity and corrosive gases.

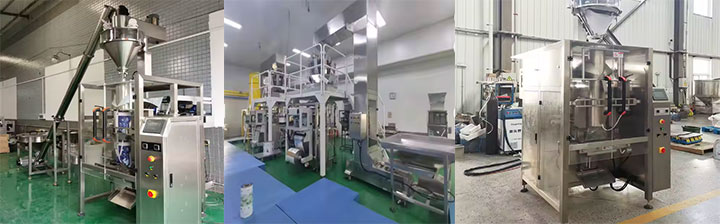

Fully automatic chemical packaging machine production line display

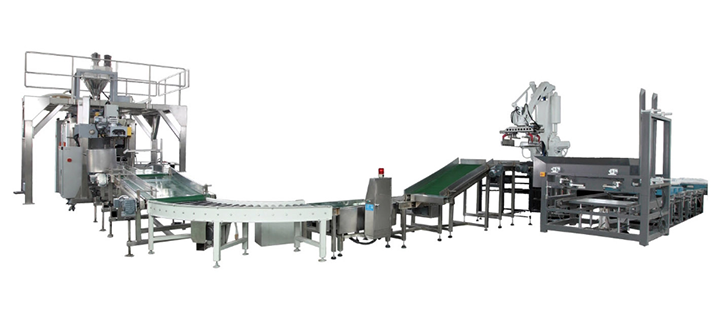

The fully automatic chemical packaging machine production line process is as follows: automatic loading equipment such as screw conveyors or vacuum loaders delivers chemical raw materials such as powders, granules, and liquids; packaging machines then perform metering, filling, and sealing; finished product inspection equipment screens out unqualified products; conveying and sorting equipment such as belt conveyors and rejectors separate qualified and unqualified products. Some production lines are also equipped with automatic palletizing equipment to stack finished products.
Fully automatic chemical packaging machine production line manufacturers
Some suppliers can complete the customized requirements of fully automatic chemical packaging machine production line, while some manufacturers cannot meet the equipment required to manufacture product lines. As the source manufacturer of fully automatic chemical packaging machines, our factory has the ability to customize fully automatic chemical packaging machine production lines. The main production advantages are as follows:
Technical experience extension: Relying on 15 years of experience in screening equipment manufacturing, the company has successfully extended precision screening technology to the field of chemical packaging machines, realizing cross-border integration of technology.
High-precision metering control: The developed chemical packaging machine adopts high-precision load sensing technology, and the metering error is controlled within the range of 0.5-1%, accurately meeting the strict standards of the chemical industry for powder and granule packaging.
Durable and reliable core components: Wear-resistant industrial-grade butterfly valves and anti-corrosion structural steel are selected as core components, and more than 20 processes are strictly inspected to ensure stable operation of the equipment in harsh environments such as strong acids and alkalis.
Global one-stop service: The company provides one-stop service from selection guidance to lifelong maintenance. It can be tested with materials, and promises free return and replacement within 30 days for quality problems. The whole machine is guaranteed for 1 year. The service network covers more than 80 countries around the world.
Fully automatic chemical packaging machine includes automatic feeding, weighing and metering, forming packaging, sealing and coding modules, with a high degree of integration. Its advantages are high packaging accuracy, wide compatibility with materials, stable operation, and daily output of more than 4.8 tons, which effectively improves production efficiency. Our factory is experienced in equipment manufacturing, has strong non-standard customization capabilities and automation system integration technology, and can tailor a complete set of efficient Fully automatic chemical packaging machine production line according to the characteristics of different materials to help customers improve quality and efficiency.
