Plastic Coarse Crusher for PVC Pipe Recycling

What is a Plastic Coarse Crusher for PVC Pipe Recycling?

The Plastic Coarse Crusher for PVC Pipe Recycling is a high-efficiency coarse crusher for recycling waste PVC pipes, PVC profiles, and rigid plastics. Equipped with a long, inclined feed hopper, it is particularly suitable for processing long, thin pipes and profiles. No pre-cutting is required; materials can be fed directly into the machine. It can quickly process large-size PVC pipes into granules suitable for subsequent cleaning, conveying, or granulation processes, improving plastic recycling efficiency and reducing labor costs. The output particle size is 20–100mm, adjustable as needed, with a processing capacity of up to 2500kg per hour.

Why Choose a Plastic Coarse Crusher for PVC Pipe Recycling?

Due to the characteristics of PVC pipes—long length, thick walls, and high toughness—traditional crushing equipment often suffers from problems such as pipe entanglement, high impact, frequent blockages, sharp drops in efficiency, and rapid blade wear. The Plastic Coarse Crusher for PVC Pipe Recycling effectively addresses pain points such as material blockage and wear through a reinforced rotor structure and a special wear-resistant blade design, ensuring long-term continuous and stable operation of the equipment. It features a large-diameter feed inlet, eliminating the need for pre-cutting and allowing direct feeding of long PVC pipes, significantly reducing pre-processing steps and increasing production line throughput. The output particle size can be flexibly adjusted within the range of 20-100mm, precisely adapting to the different recycling process requirements such as downstream washing, sorting, or granulation. Equipped with high-hardness alloy blades, its wear-resistant life is extended, reducing the frequency of downtime for blade replacement; the fully automated operation mode reduces manual intervention and lowers maintenance costs. It can seamlessly connect to washing lines and granulation lines to form a closed-loop recycling system, facilitating the efficient and high-quality production of recycled PVC materials.

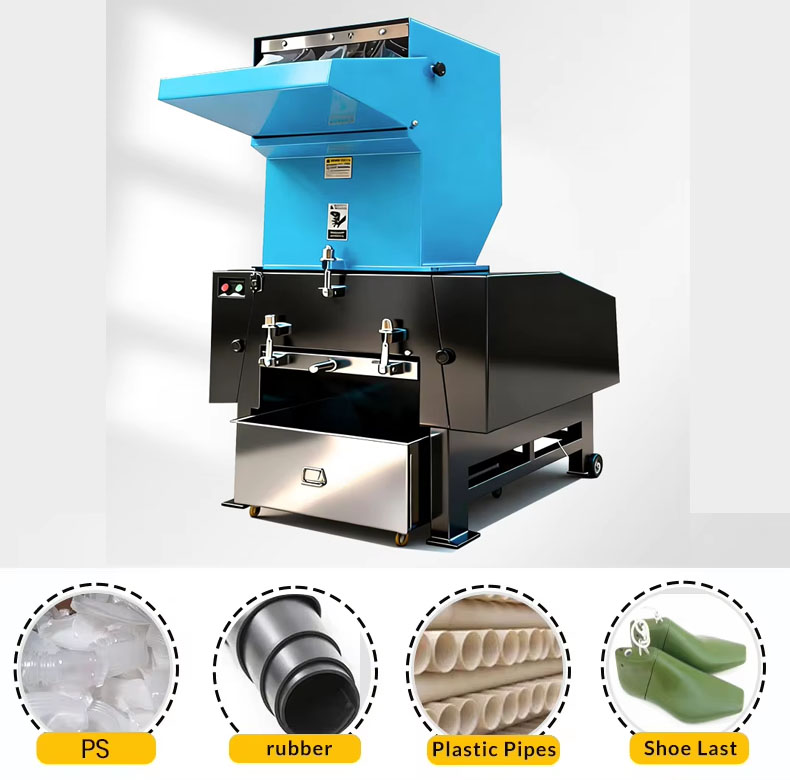

What are the application scenarios for the Plastic Coarse Crusher for PVC Pipe Recycling?

Plastic Coarse Crusher for PVC Pipe Recycling is used for recycling PVC water supply pipes, drainage pipes, electrical conduits, PVC scraps, and plastic production waste. It is widely used in plastic recycling plants, plastic product factories, and renewable resource processing centers. Utilizing strong shearing torque, an adjustable crushing chamber, and a wide feed diameter, it can efficiently convert rigid pipes, profiles, thick plates, and flexible packaging waste into uniformly sized recycled fragments in a single pass.

PVC Pipe Recycling: Specially designed for processing various types of waste PVC pipes, including water supply pipes, drainage pipes, and electrical conduits, crushing them into uniform particles for reuse.

PE/PP/HDPE Pipe Processing: Suitable for crushing and recycling various plastic pipes such as polyethylene and polypropylene; the pipe diameter processing range is flexibly adjustable.

Plastic Profile and Sheet Processing: Crushes plastic door and window profiles, wide door panels, and sheets, processing them into uniform sheet materials for secondary manufacturing.

Industrial Plastic Waste Processing: Processes production waste, defective parts, and extrusion scraps, reducing industrial waste.

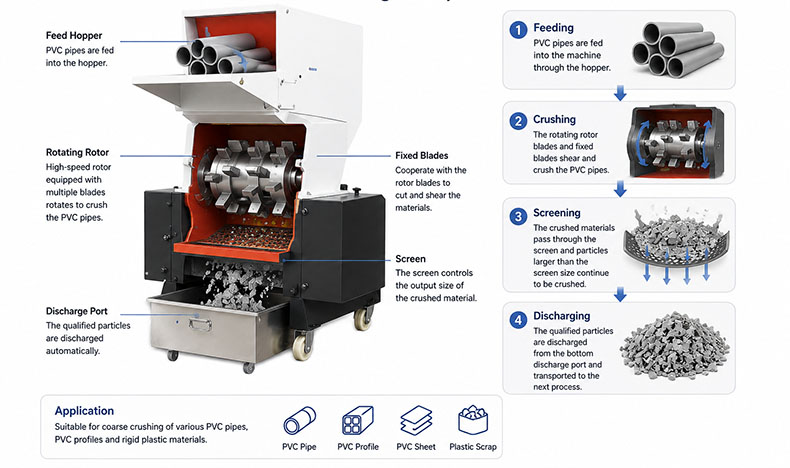

How does the Plastic Coarse Crusher for PVC Pipe Recycling work?

When the Plastic Coarse Crusher for PVC Pipe Recycling is running, the PVC pipe enters the feed hopper and is fed into the crushing chamber with the assistance of the pressing mechanism or gravity. Continuous and stable feeding is achieved via a conveyor or manual operation. A high-speed rotor drives the moving and stationary blades to create a powerful shearing action, coarsely crushing the pipe. The crushed material is then precisely controlled in terms of output size through a screen. Qualified particles are automatically discharged and enter the next process. The machine is easy to disassemble and assemble, making daily maintenance and blade replacement quicker, effectively reducing downtime and ensuring long-term efficient operation of the production line.

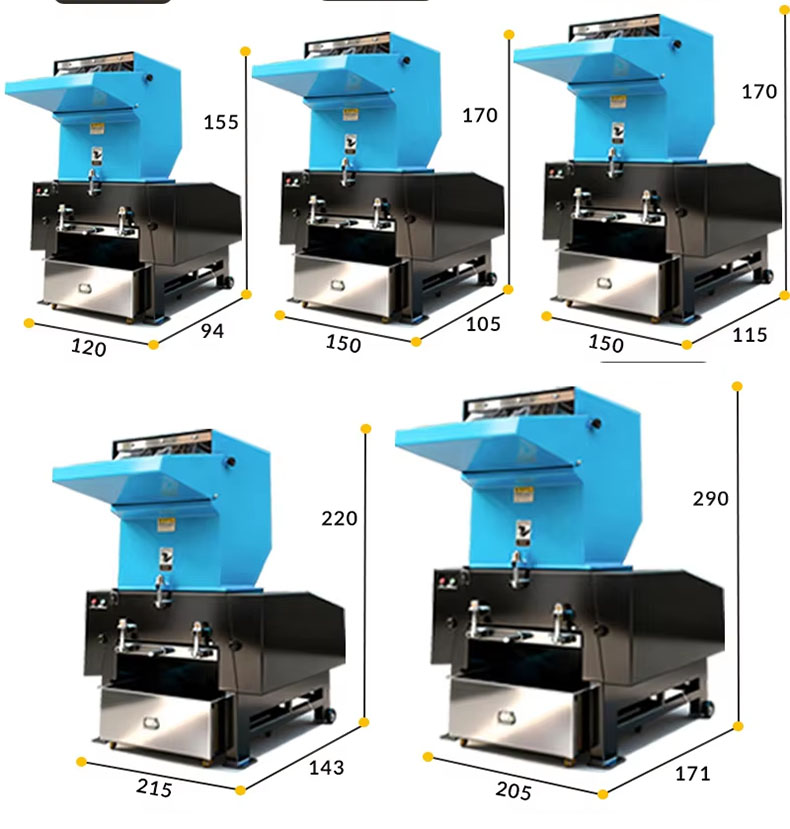

Plastic Coarse Crusher for PVC Pipe Recycling Parameters

Plastic Coarse Crusher for PVC Pipe Recycling Case

A plastic pipe manufacturer has installed a combined recycling line for waste PVC drainage pipes and trimmings with diameters ranging from 160 to 315 mm. This line consists of a PC-800 Plastic Coarse Crusher for PVC Pipe Recycling, a conveying system, a secondary crusher, and washing and dewatering equipment. The line operates continuously and stably, with a high degree of automation, minimizing manual intervention. The Plastic Coarse Crusher uses a large-diameter inlet, allowing direct feeding of long pipes without pre-cutting. The material is conveyed to the secondary crushing stage for further refinement, followed by washing and dewatering to obtain clean fragments. The entire line has a stable processing capacity of 800 kg/h, with an output particle size of approximately 50 mm, meeting granulation requirements. The blades, made of wear-resistant alloy, have a lifespan approximately 30% longer than traditional blades, reducing blade replacement frequency and significantly improving downstream granulation efficiency.

Plastic Coarse Crusher for PVC Pipe Recycling FAQ

Q: What diameter of PVC pipe is the Plastic Coarse Crusher for PVC Pipe Recycling suitable for crushing?

A: The standard model can handle pipes with diameters of 16–450 mm. For larger diameter pipes, we offer customized solutions that can handle pipes up to 1200 mm in diameter.

Q: What is the output particle size?

A: The output particle size can be adjusted by changing the screen mesh size, generally within the range of 3–8 mm. The crushed particles can be directly used in a plastic pelletizer for further processing.

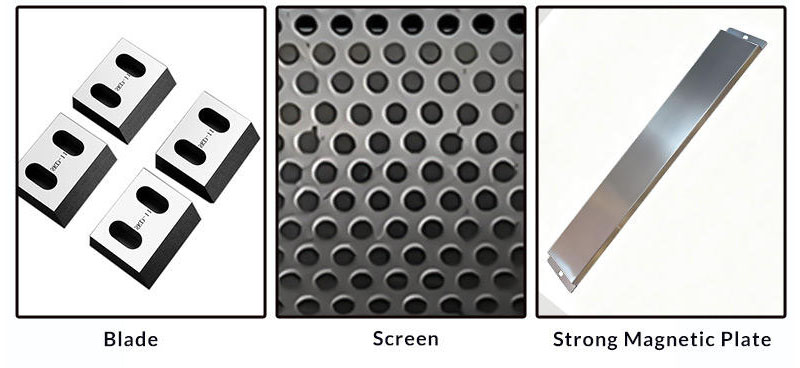

Q: How often do the blades need to be replaced?

A: The blade life depends on the type and volume of material being processed. DC53 material blades have excellent wear resistance and toughness, resulting in a much longer lifespan than ordinary blades. The blades can be sharpened and reused multiple times, reducing operating costs.
