Pin Grinding Crusher for Calcium Carbonate

What is the Pin Grinding Crusher for Calcium Carbonate?

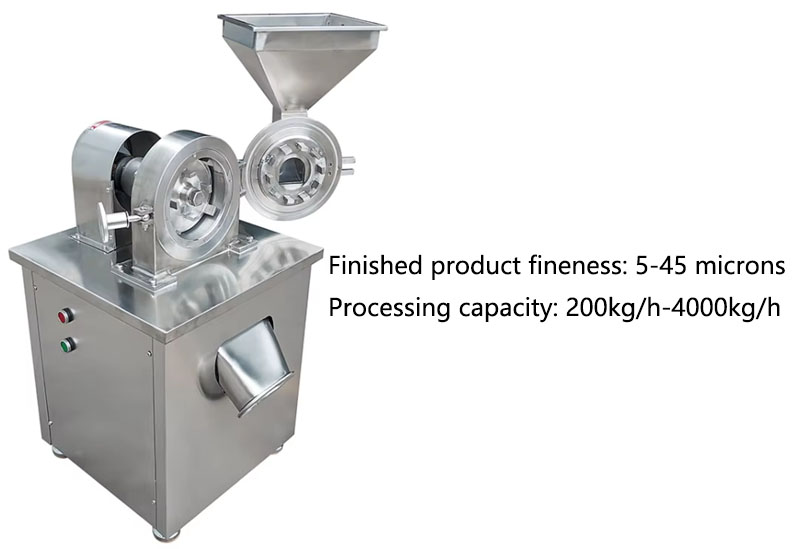

The Pin Grinding Crusher for Calcium Carbonate is an ultrafine grinding solution tailored to the material characteristics of calcium carbonate. Calcium carbonate comes in heavy calcium carbonate and light calcium carbonate, with a Mohs hardness of approximately 3. Although brittle, its whiteness is highly susceptible to iron contamination from the equipment, and downstream high-end applications require a narrow particle size distribution (D97 = 10~45 microns) and excellent dispersibility. The Pin Grinding Crusher utilizes the strong impact, shearing, and vortex of a high-speed rotating needle disc to instantly pulverize the material. Combined with a built-in classifier for precise top-cutting control, the finished product fineness can be controlled between 5 and 45 microns, with angular particles and excellent dispersibility. To completely solve the iron contamination problem and ensure high whiteness, it uses a full ceramic needle disc and lining. Processing capacities range from 200 kg/hour for small-scale production to 4000 kg/hour for large-scale production, and can be customized with dual-classification, water-cooling, and automated production lines to fully meet the clean and efficient grinding needs of heavy calcium carbonate, light calcium carbonate, and ultrafine calcium carbonate.

What are the advantages of the Pin Grinding Crusher for Calcium Carbonate?

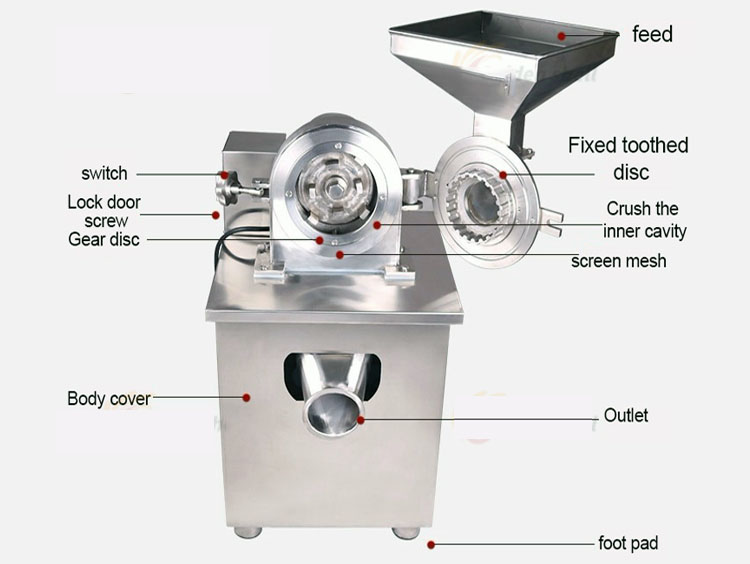

The Pin Grinding Crusher for Calcium Carbonate allows for precise control of calcium carbonate particle size. With an internal or external classifier, it can accurately control the upper limit of particle size to D97 10-45μm, or even finer. The classifier's speed is adjustable, achieving a concentrated particle size and eliminating large particle contamination in a single grinding operation. The needle disc and lining are made of wear-resistant alloys and ceramics to prevent iron from shedding. The custom-made full ceramic coating inside the grinding chamber ensures that the whiteness of the calcium carbonate does not decrease, meeting the high requirements of food and pharmaceutical industries. The hydraulically or manually operated side-opening flip-top design allows for quick cleaning and replacement of the needle disc. Cleaning is convenient when switching between calcium carbonate and other materials.

How does the Pin Grinding Crusher for Calcium Carbonate work?

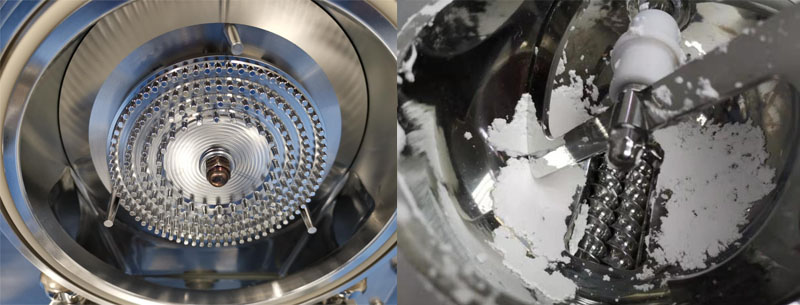

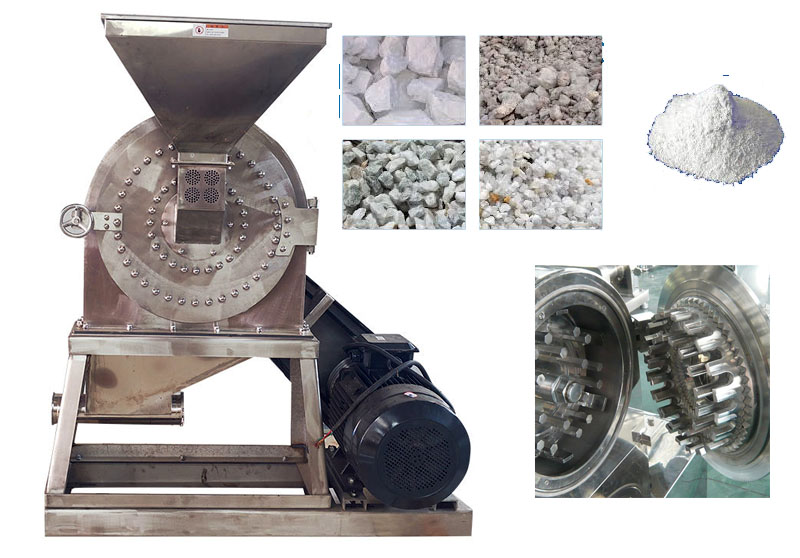

When the Pin Grinding Crusher for Calcium Carbonate is working, calcium carbonate particles are fed into the center of the machine and dispersed outwards under centrifugal force. As particles pass through the interlocking pins between two discs, they undergo countless violent impacts, shearing, and friction, much like being repeatedly hammered in a "needle array." Because there is no screen, the fine powder is rapidly discharged from the edges, resulting in extremely short material residence time and minimizing overheating. This makes it ideal for processing temperature-sensitive calcium carbonate or modified calcium carbonate. The discharged powder is then carried by airflow into the classification and dust collection system, ultimately yielding a fine and uniform product.

Fineness and particle size control are achieved by adjusting the combination of the classifying wheel speed and the main mill speed. The Pin Grinding Crusher can stably achieve the following fineness parameters: Standard filler grade: D97 = 20-45μm, suitable for general plastic masterbatches, primers, and rubber; Ultrafine grade: D97 = 10-15μm, used for high-grade coatings, adhesives, and microporous membranes; Micron grade: Combined with a secondary classification system, D97 can be as low as 5-8μm, meeting the requirements for ultrafine calcium carbonate.

Pin Grinding Crusher for Calcium Carbonate Parameters

What are the applications of Pin Grinding Crusher for Calcium Carbonate?

In calcium carbonate processing, the ultrafine grinding capability of Pin Grinding Crusher for Calcium Carbonate precisely meets the stringent requirements of downstream industries for whiteness, narrow particle size distribution, and dispersibility. In the plastics industry, narrow-particle-size calcium carbonate is used in filler masterbatches, breathable membranes, and pipes to improve product rigidity, dimensional stability, and surface gloss. In coatings and inks, high-whiteness pin-milled calcium carbonate can replace some titanium dioxide, providing excellent hiding power and suspension properties. In the paper industry, narrowly distributed angular particles improve paper whiteness, smoothness, and ink absorption. In rubber products, it reinforces fillers in tires, hoses, and sealing strips, improving tensile strength and abrasion resistance. In adhesives and sealants, ultrafine calcium carbonate enhances thixotropy and reinforcing properties while reducing costs. In building materials and artificial stone, it is used in artificial marble and grout to meet requirements for high filling rates and clean colors.

Pin Grinding Crusher for Calcium Carbonate Case

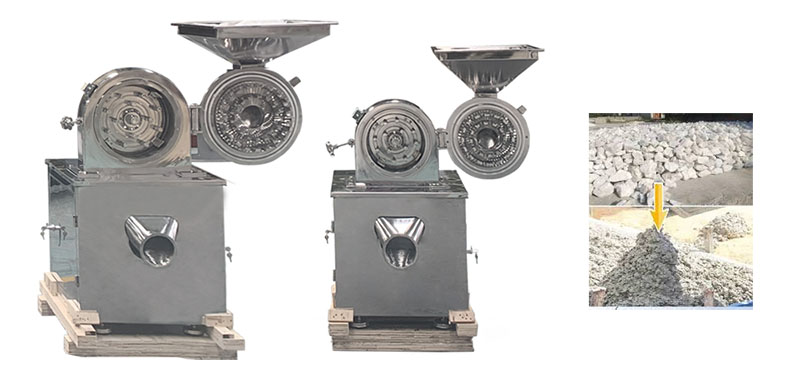

A complete calcium carbonate pin mill production line typically consists of a jaw crusher for coarse crushing, an elevator, a raw material silo, an electromagnetic feeder, a pin mill, a cyclone collector, a pulse dust collector, and a finished product silo/packaging machine. A customer in Southeast Asia used an MCM-800 Pin Grinding Crusher to process calcite, requiring a D97 ≤ 20μm and a capacity of 1.8t/h. We configured a ceramic pin disc and a dual-grading system for them, maintaining a finished product whiteness of 96% and a 20μm sieve residue of less than 0.5%, fully meeting the raw material standards for high-grade water-based coatings.

Customized Pin Grinding Crusher for Calcium Carbonate

To meet the diverse fineness and application requirements of calcium carbonate processing, Machrise offers a deeply customized Pin Grinding Crusher for Calcium Carbonate. For iron and contamination prevention, it utilizes zirconia or high-alumina ceramic pin discs and liners, coupled with food-grade silicone seals, achieving pollution-free, all-ceramic grinding and ensuring high whiteness and purity of the product. This is suitable for pharmaceutical-grade calcium carbonate and high-end fillers. The grading system can be flexibly configured with a single classifier or dual classifiers in series to achieve an ultra-narrow particle size distribution. An airflow classification module can also be added to improve the cutting accuracy of micron-level fine powders to 1–2μm, meeting fine grading requirements. For temperature-sensitive materials, the grinding chamber is equipped with a water-cooled jacket or air-cooled system to effectively suppress temperature rise, suitable for heat-modified calcium carbonate or low-melting-point polymer premixes. Explosion-proof and anti-condensation designs are also provided, including explosion-proof motors, anti-static grounding, and dry air purging, to cope with high-humidity environments or co-grinding conditions with special additives.

Pin Grinding Crusher for Calcium Carbonate FAQ

Q: Can the Pin Grinding Crusher process light calcium carbonate?

A: Yes, light calcium carbonate has a low density and is prone to agglomeration. The pin mill provides excellent impact dispersion, directly dispersing it to obtain powder of the original particle size.

Q: How to ensure no iron contamination occurs?

A: Key wear parts have been replaced with ceramic materials, eliminating exposed iron parts inside the grinding chamber. Actual measurements show almost no change in whiteness.

Q: Can the Pin Grinding Crusher for Calcium Carbonate be integrated with a classifier?

A: Yes, Machrise's Pin Grinding Crusher is natively designed for integrated connection with a vertical classifier, operating in a closed loop.

Q: Is material change and cleaning convenient?

A: It adopts a quick-opening, door-type structure. Simply open the chamber door to thoroughly clean the pin plate and flow channels. Material change can be completed in approximately 15-30 minutes.
