Limestone High Efficiency Crusher

What is the Limestone High Efficiency Crusher?

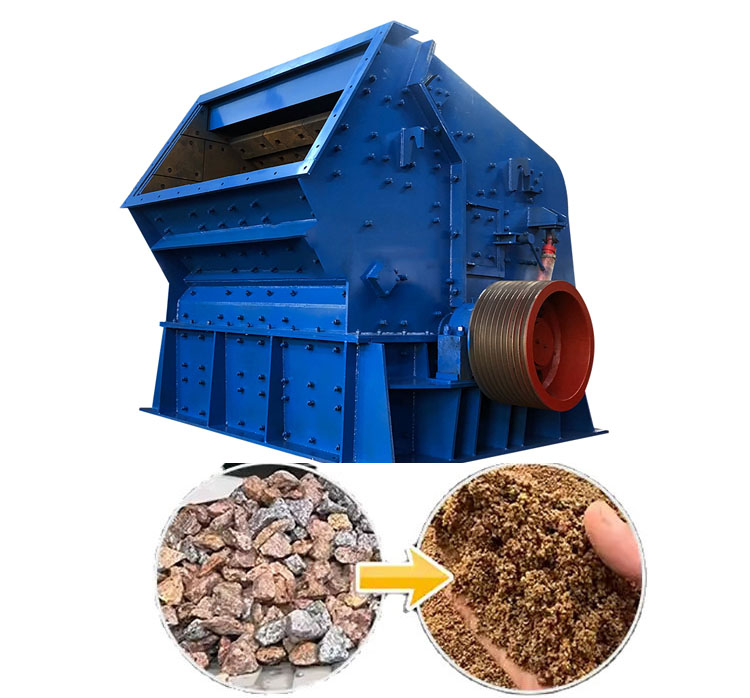

The Limestone High Efficiency Crusher is a high-capacity fine crusher designed for limestone materials, enabling continuous and efficient crushing of medium-hard limestone with a particle size ≤200mm. It combines high-speed rotor impact, hammer crushing, and multi-stage impact crushing to allow the material to undergo multiple crushing processes within a short path, resulting in a finished product with uniform fineness. The output particle size can be controlled in various specifications such as 0-5mm, 5-10mm, and 10-20mm, with uniform particle shape and high crushing efficiency, processing up to 500 tons per hour.

Why Choose the Limestone High Efficiency Crusher?

High crushing efficiency, increased production capacity: Utilizing a high-speed rotor and optimized crushing chamber structure, it can quickly and finely crush limestone, significantly increasing output per unit time and reducing secondary crushing processes compared to traditional equipment.

Uniform finished product particle size: Multiple impact crushing processes within the equipment effectively control the limestone particle size distribution, resulting in a more concentrated final product and improved efficiency for subsequent screening and packaging.

Long service life of wearing parts: The High Efficiency Crusher features highly wear-resistant hammers and reinforced liners, effectively reducing long-term maintenance costs and improving continuous production capacity.

Lower energy consumption: An optimized power transmission system reduces energy consumption per ton of material while maintaining output, helping companies reduce operating costs.

What types of Limestone High Efficiency Crusher are available?

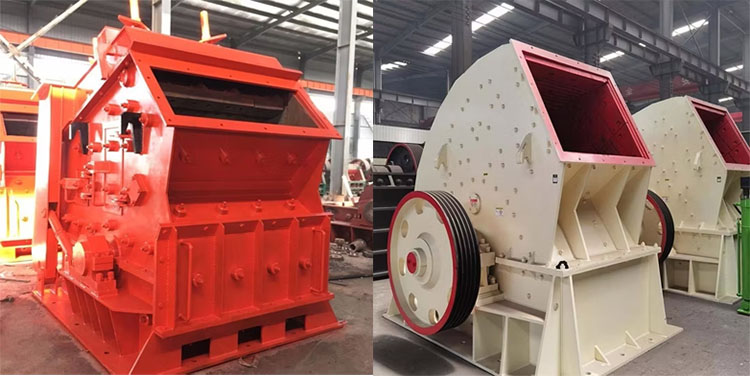

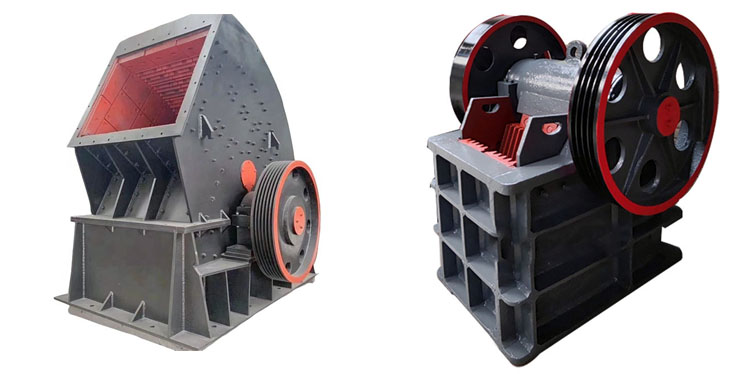

To meet the different stages of limestone crushing, from coarse to medium-fine crushing, we offer both impact and jaw crushers, selectable based on limestone hardness and crushing requirements.

The High-Efficiency Impact Crusher is the preferred choice for medium-fine aggregate crushing and is the core component of the limestone crushing line. It features a heavy-duty rotor design and a unique impact plate shape, making it particularly suitable for further processing coarsely crushed limestone into standard building aggregates of 0-5mm, 5-10mm, 10-20mm, and 20-31.5mm.

Heavy-Duty Jaw Crusher is an expert in coarse crushing of large materials. For limestone ore directly from the mine with a particle size greater than 500mm, we use a heavy-duty jaw crusher as the first process. Its extra-large feed opening and deep cavity design can quickly reduce the volume of large materials, preparing them for subsequent efficient fine crushing.

How does the Limestone High Efficiency Crusher work?

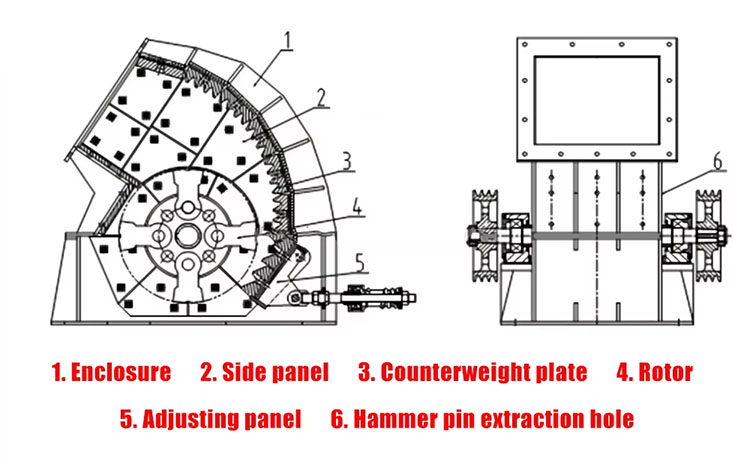

When the Limestone High Efficiency Crusher is running, the limestone enters the equipment through the feed opening and is first crushed by the impact of high-speed rotating hammers. The material is then thrown against the impact plate for secondary fine crushing. Material that does not meet the required particle size continues to be recycled and crushed until the set fineness is achieved, at which point it is automatically discharged from the discharge port. The entire process includes feeding, high-speed impact crushing, impact fine crushing, particle shaping, and uniform discharge. This design ensures both high output and improved product quality.

Limestone High Efficiency Crusher Parameters

In which limestone processing applications is the Limestone High Efficiency Crusher used?

The Limestone High Efficiency Crusher is not an isolated piece of equipment, but a core unit that can be deeply integrated into a complete process chain.

Quarries and Aggregate Production: Produced for high-quality aggregates needed for highways, railways, and concrete mixing plants. The finished product has rounded particles, low needle-like and flaky content, and continuous gradation. One high-efficiency crusher can replace coarse crushing plus some medium crushing operations, saving space and investment.

Cement Raw Material Preparation: Limestone is the largest raw material used in cement production. The High Efficiency Crusher can stably output mixed materials with suitable particle sizes, helping subsequent raw material grinding systems reduce energy consumption by more than 10%, directly reducing clinker calcination costs.

Desulfurized Limestone Powder and Industrial Ash: Fine or even ultrafine powder is often required for power plant desulfurization, steelmaking flux, and chemical ash production. By adjusting the impact frame and bottom screen plate, the crusher can directly produce large quantities of 0-2mm desulfurized limestone powder, reducing the energy consumption and equipment investment of secondary grinding.

Limestone High Efficiency Crusher Customer Case Study

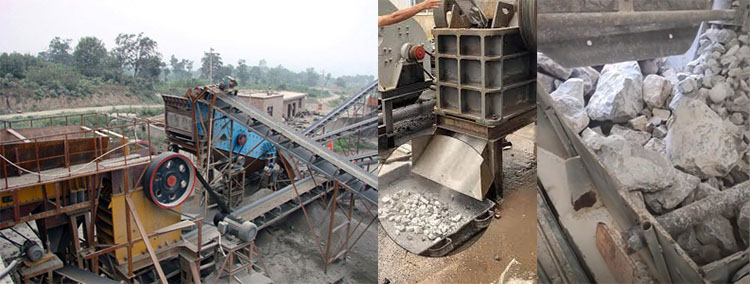

In a limestone fine crushing project in Southeast Asia, MACHRISE provided a complete production line solution centered on the Limestone High Efficiency Crusher, complemented by a vibrating screen and conveyor system. Addressing the stringent requirements of feed size ≤180mm and output size 0–5mm, the solution achieved stable and efficient production operation. Practical application shows that the production line increased output by approximately 35%, produced more uniform particle size distribution, and reduced energy consumption by approximately 15%. Furthermore, the optimized equipment design significantly reduced the frequency of manual maintenance, resulting in substantial reductions in operating costs for the customer. This fully validates the excellent adaptability and economic efficiency of this configuration in overseas hard material fine crushing scenarios.


Limestone High Efficiency Crusher FAQ

Q1: Which is better for processing limestone: an impact crusher or a hammer crusher?

A: It depends on your end product application. If your finished product is for high-specification building aggregates or asphalt concrete, an impact crusher is the preferred choice because of its excellent shaping effect and high cubic ratio. If your material is relatively dry and has low hardness, and you are simply pursuing low cost and simplified processes (e.g., one-step crushing in a cement plant), a hammer crusher is more cost-effective.

Q2: What is the approximate price of a high-efficiency limestone crusher?

A: The price of a crusher mainly depends on your required throughput per hour (TPH), maximum feed size, and whether you choose a stationary or mobile unit. As a direct manufacturer, Maikelu can save you the middleman's markup. Feel free to contact our engineering team anytime for free customized production line design drawings and a highly competitive and accurate quote.

Q3: How to extend the service life of wear-resistant parts such as the hammer plate of a limestone crusher?

A: First, ensure uniform feeding to avoid idling or instantaneous overload caused by intermittent feeding; second, strictly control non-crushable materials (such as iron blocks and loader teeth) from entering the crushing chamber; third, choose high-chromium/high-manganese alloy wear-resistant parts supplied by Maikelu, whose special formula perfectly matches the abrasive characteristics of limestone.
