Mobile Conveyor Price
Wednesday July-09 2025 17:48:10
The price of Mobile Conveyor shows significant differences, ranging from $300 to $7,000. This wide price range directly reflects the differences in structure, function and material selection of different models. Specifically, the type of equipment (screw or belt), load capacity, conveying distance, adjustable height range, type of materials used and whether auxiliary functions are included are all key to determining its final quotation.
What are the types of Mobile Conveyor?
Due to its movable characteristics, Mobile Conveyor is widely used in a variety of material handling scenarios. They are mainly divided into two categories: mobile screw conveyors and mobile belt conveyors, both of which have their own emphasis on structure, conveying capacity and price.

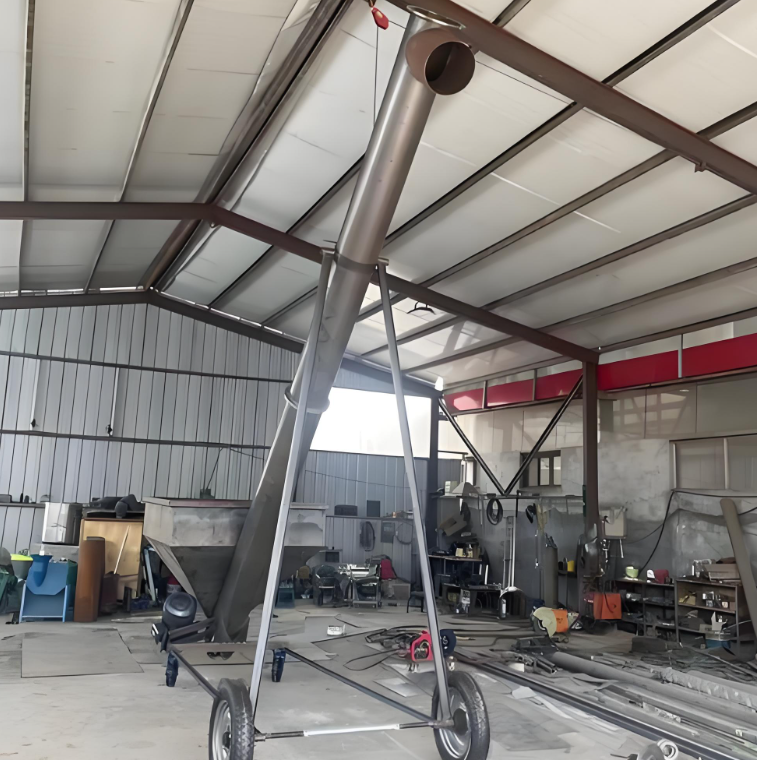

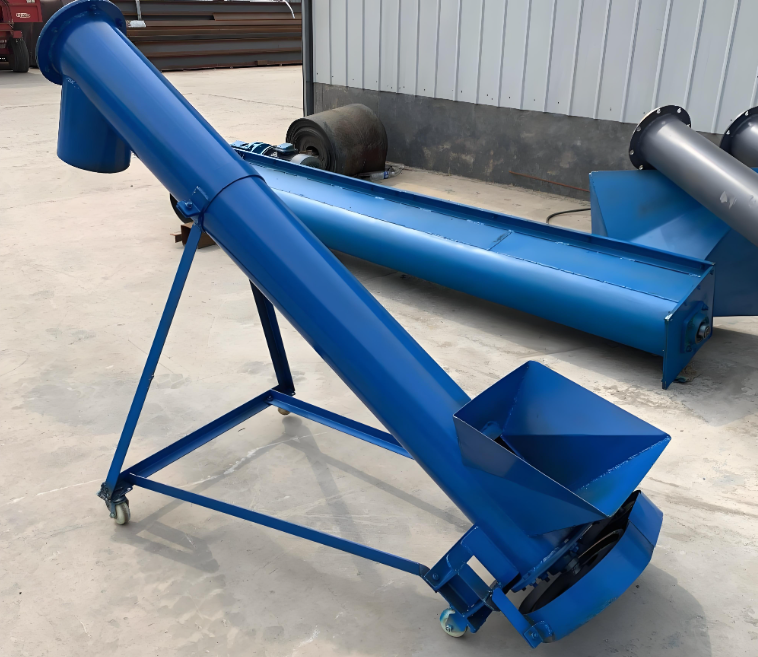

Mobile Screw Conveyor
Price Range: Mobile screw conveyors are usually relatively low in price. This is mainly due to its relatively simple structure and fewer components.
Structural Features: Mobile screw conveyors are mainly composed of a tubular or U-shaped trough with spiral blades, a drive device, a support frame and a movable wheel or base at the bottom. The spiral blades push the material axially when rotating to achieve transportation. Its design is usually compact and closed, which helps to reduce dust and material loss.
Conveying capacity: Compared with belt conveyors, mobile screw conveyors usually have a smaller conveying capacity, generally ranging from a few tons to tens of tons per hour. The conveying capacity is affected by factors such as screw diameter, rotation speed and inclination angle.
Conveying distance: Mobile screw conveyors are mainly suitable for short-distance conveying, usually between a few meters and more than ten meters. It can achieve inclined conveying at a certain angle, but the conveying efficiency will be reduced at a large inclination angle.

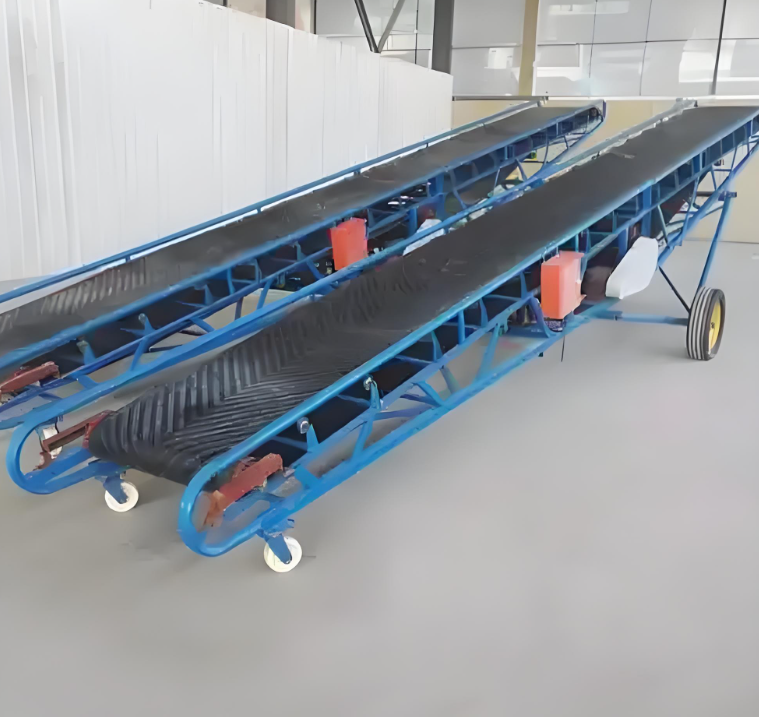

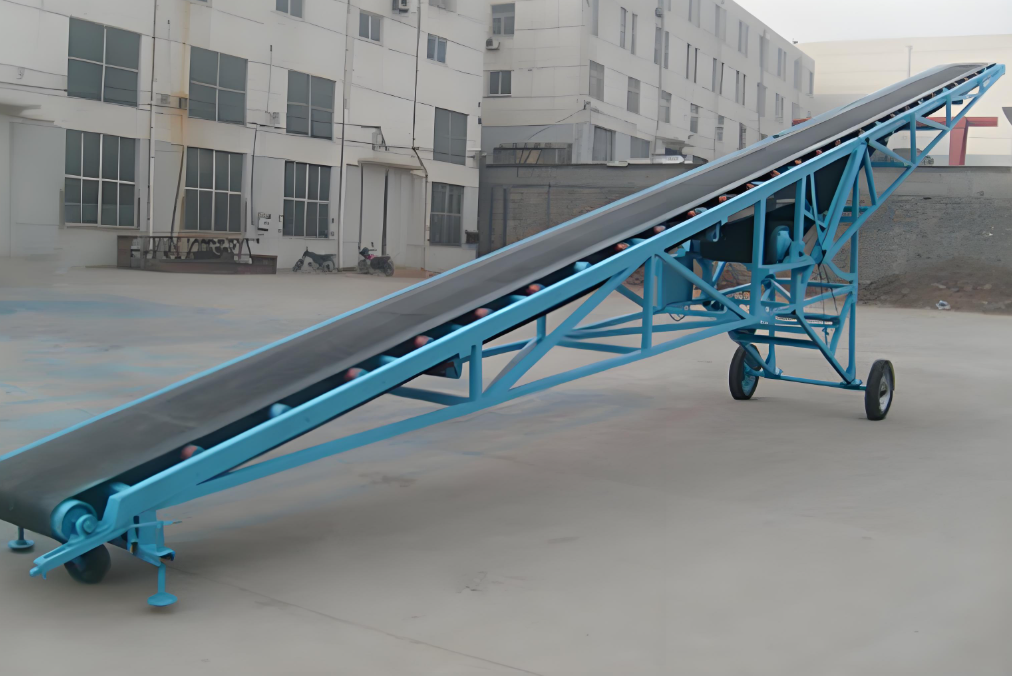

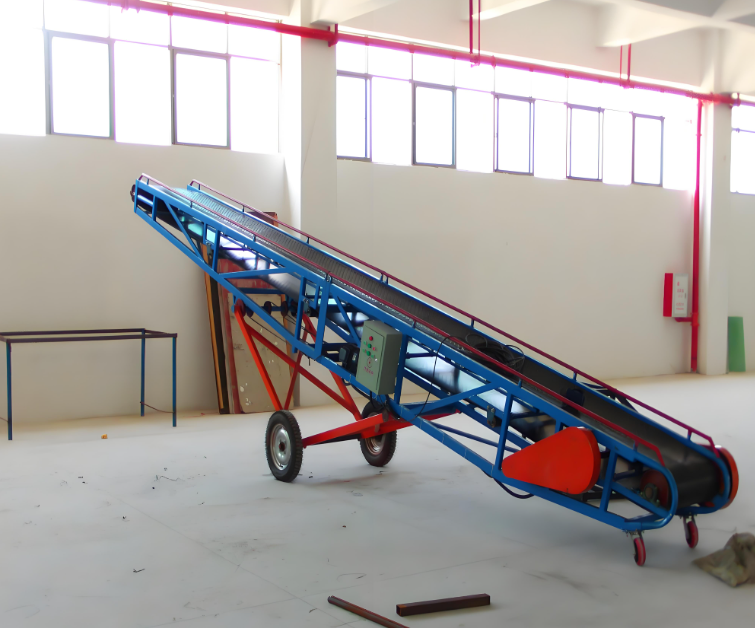

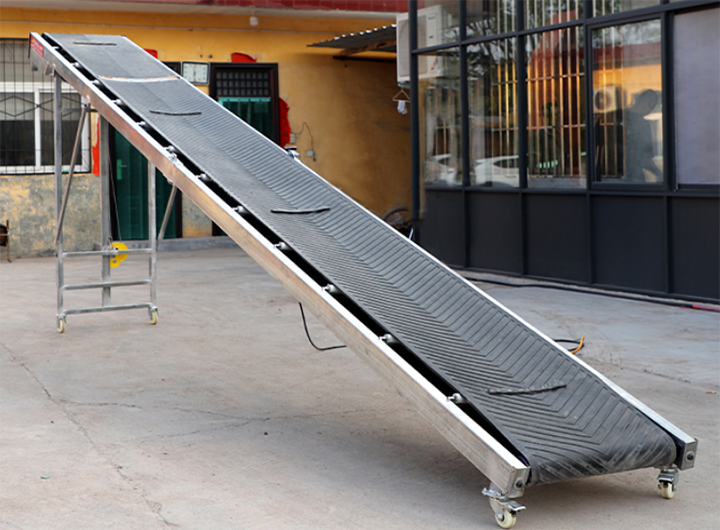

Mobile belt conveyor
Price range: The price of mobile belt conveyors is generally higher than that of mobile screw conveyors. Its complex design, greater conveying capacity and various additional functions are the main reasons for the price difference.
Structural features: Mobile belt conveyors are mainly composed of an endless conveyor belt, a drive roller, a redirecting roller, a roller, a frame, a lifting device and a mobile base with wheels. The conveyor belt carries the material and realizes continuous movement through the drive of the roller. This type of conveyor is usually equipped with a hydraulic or electric lifting mechanism, which can flexibly adjust the conveying height and inclination angle.
Conveying capacity: Mobile belt conveyors have a large conveying capacity and high efficiency, which can reach tens to hundreds of tons per hour. Its conveying capacity is affected by factors such as belt width, running speed and material characteristics.
Conveying distance: Mobile belt conveyors are suitable for longer distances, from a few meters to tens of meters, and can even be connected to longer fixed conveying systems. Its flexibility enables it to adapt to the material transfer needs between different operating points.
What are the factors affecting the price of Mobile Conveyor?
Mobile Conveyor has a wide price range, ranging from US$300 to US$7,000, mainly affected by factors such as its type, specifications, materials, additional functions and brand.
Conveyor type: This is the basic factor affecting the price. Mobile screw conveyors are usually cheaper due to their relatively simple structure. They are more focused on the conveying of powdered or granular materials. Mobile belt conveyors are usually more expensive due to their large conveying capacity, wide range of applicable materials and more complex structures (such as lifting systems).
Specifications and performance parameters: conveying length and width/diameter. The longer the conveyor, the wider the belt or the larger the spiral diameter, the more materials are required, the more complex the manufacturing process is, and therefore the higher the cost.
Conveying volume: The larger the amount of material to be processed, the higher the power, structural strength and component durability requirements of the conveyor, and the price will naturally rise accordingly.
Lifting height: If the material needs to be lifted to a higher height, the requirements for the lifting mechanism and drive system will increase, thereby increasing the cost.
Drive power: The greater the power of the drive motor, the heavier the load or the higher the conveying speed, which will also be reflected in the price.
Material selection: Carbon steel is a common structural material with relatively low cost. For industries such as food and chemical industries that have strict requirements for hygiene and corrosion protection, stainless steel or other special alloys are required, which will significantly increase the cost of the equipment. Special materials for conveyor belts or spiral blades (such as wear-resistant, high-temperature resistant, oil-resistant, food-grade) will also increase the price due to their performance requirements and the complexity of the manufacturing process.
The final cost of Mobile Conveyor is the result of the superposition of many factors. When considering purchasing this type of equipment, users need to understand their specific needs, including the nature of the materials to be transported, the expected material throughput, the distance and space restrictions at the work site, and the requirements for the stability and durability of the equipment. These practical details will directly lead to the choice of equipment type, specifications, manufacturing materials, and whether additional configuration functions are required, and affect the final quotation.
