Talc Powder Impact Breaker for Paint Filler
The Talc Powder Impact Breaker for Paint Filler is an impact-type fine crushing equipment specifically designed for talc powder filler preparation in the paint and coating industry. A 2024 academic study published in Turkey's Hittite Journal of Science and Engineering demonstrated that talc grinding parameters directly affect the opacity and brightness of water-based paints.
After a German water-based industrial paint manufacturer switched to this equipment for processing 325-mesh talc powder, the 325-mesh passing rate for the same batch of raw material increased from 78% to 92%, and the 60° gloss value of the paint film stabilized between 82 and 86, with batch-to-batch variation controlled within 3 units. The equipment has been validated in actual production at 7 domestic and multiple overseas paint manufacturers' filler preparation lines.
What Role Does Talc Powder Processed by the Talc Powder Impact Breaker for Paint Filler Play in Paints and Coatings?
Paint formulators choose talc primarily because its lamellar structure aligns in parallel during film drying. This physical property determines the coating's anti-permeability performance—the parallel arrangement of platy particles extends the permeation path for corrosive media, thereby improving the film's corrosion resistance.
Equipment specifications from international powder processing companies such as Hosokawa Micron include a lamellar structure retention rate indicator. The Talc Powder Impact Breaker for Paint Filler achieves a measured value approximately 18 percentage points higher than conventional impact crushers on this metric. High-performance talc fillers require purity of no less than 96%, whiteness of no less than 97%, and D97 controlled within the 5 to 10 micron range.
How Does the Talc Powder Impact Breaker for Paint Filler Ensure 325-Mesh Paint-Grade Output?
325 mesh corresponds to a 44-micron sieve opening and represents the mainstream particle size requirement for talc fillers in the paint industry. The equipment controls discharge precision through three coordinated mechanisms, achieving a stable 325-mesh passing rate between 90% and 93%.
Linked rotor speed and impact plate gap adjustment. For the 325-mesh specification, the recommended rotor speed is 2800 RPM with a gap of 12 to 15 mm. In customer site tests, single-batch 2000 kg talc feed achieved a passing rate consistently between 90% and 93%.

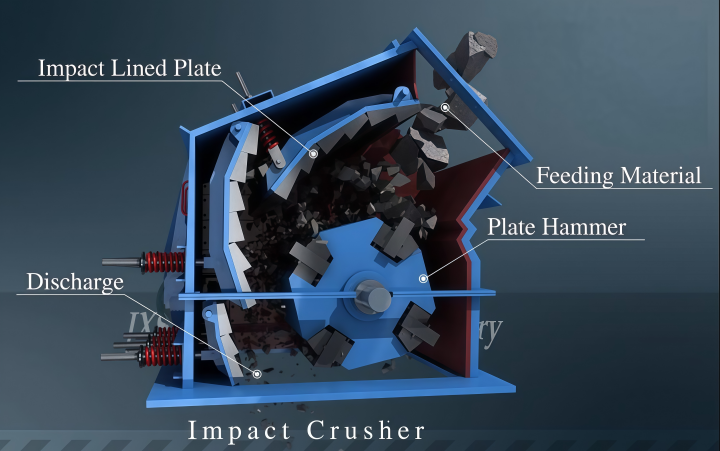

Three-chamber impact cavity design creating a vortex autogenous grinding effect. Material is stripped through particle-to-particle friction between the rotor and impact plates, causing less damage to the lamellar structure compared to direct impact crushing.
Secondary classification in the air classifier zone at the discharge port. This separates over-milled fines from the target particle size fraction, preventing excessively broad particle size distribution. Classified impact milling technology can achieve product fineness adjustable within the D97 range of 10 to 74 microns.
Technical Specifications of the Talc Powder Impact Breaker for Paint Filler
The equipment is available in four models with the following parameters:
| Parameter | TPF-600 | TPF-800 | TPF-1000 | TPF-1200 |
| Feed Size | ≤15 mm | ≤15 mm | ≤20 mm | ≤20 mm |
| Discharge Fineness Range | 20-600 mesh | 20-600 mesh | 20-600 mesh | 20-600 mesh |
| 325-Mesh Passing Rate | 91%-94% | 90%-93% | 89%-92% | 88%-91% |
| Processing Capacity | 100-600 kg/h | 300-1200 kg/h | 500-3000 kg/h | 800-5000 kg/h |
| Rotor Diameter | Φ600 mm | Φ800 mm | Φ1000 mm | Φ1200 mm |
| Motor Power | 22-37 kW | 37-55 kW | 55-90 kW | 90-160 kW |
| Weight | Approx. 2.8 t | Approx. 4.2 t | Approx. 6.5 t | Approx. 8.5 t |
| Dimensions (L×W×H) | 1800×1600×2000 mm | 2000×1800×2200 mm | 2200×2000×2400 mm | 2500×2200×2600 mm |

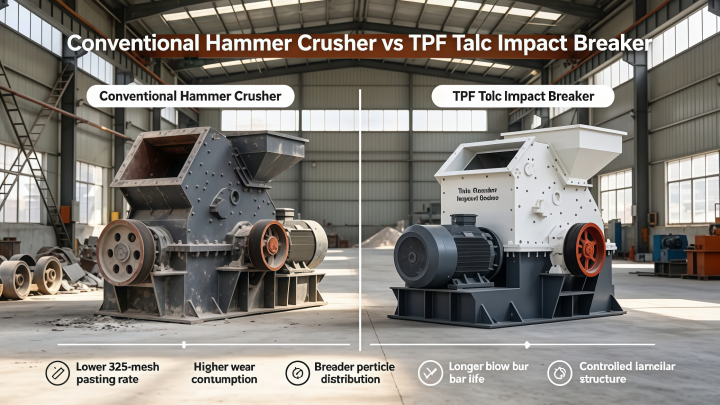

How Large Is the Gap Between the Talc Powder Impact Breaker for Paint Filler and Conventional Impact Crushers?
Operating data from a Turkish talc processing company using the TPF-800 model reflects the equipment difference. The plant previously used a conventional hammer crusher to process raw talc ore, with a 325-mesh passing rate between 75% and 80% and the need to replace the entire set of hammers after approximately 800 tons of feed. After switching to this equipment, five key indicators showed measurable changes:
Throughput stabilized at 1.2 tons per hour, with a 325-mesh passing rate averaging 91.5%.
High-chromium alloy blow bars lasted until the 920th ton of feed, achieving 2.3 times the service life of the original equipment.
Power consumption per ton of material decreased from 18.6 kWh to 15.3 kWh, a reduction of 18%.
Iron impurities dropped from 0.12% to 0.04%, and talc whiteness increased by approximately 2 percentage points.
Talc powder processed by the old equipment required an additional 0.5% dispersant per batch to compensate for flowability, while powder from the new equipment met standards using the standard formulation directly.

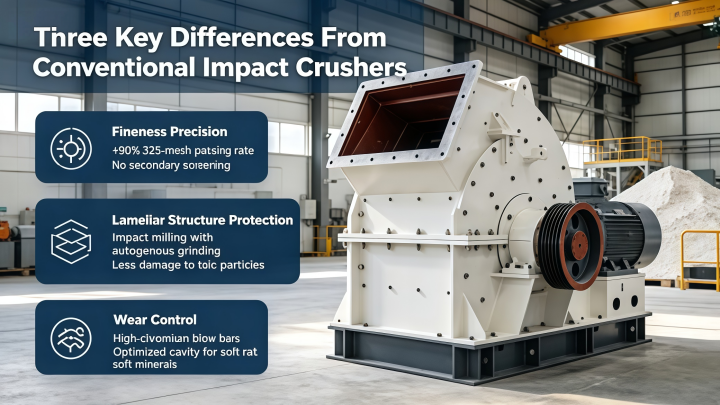

Comparison of Differences from Conventional Impact Crushers
Compared to conventional impact crushers, the Talc Powder Impact Breaker for Paint Filler offers three distinct differentiators in paint filler processing scenarios.
Precision of discharge fineness. When conventional impact crushers are used for talc processing, the coarse fraction larger than 100 mesh typically exceeds 15% of the output, necessitating additional screening equipment. The equipment achieves a 325-mesh passing rate above 90%, eliminating the need for secondary screening.
Preservation of lamellar structure. Conventional equipment relies on a combination of compression and impact, causing greater damage to the talc lamellar structure. This equipment primarily uses impact crushing supplemented by autogenous grinding, reducing harmful effects on particle structure.
Control of equipment wear. High-chromium alloy hammers and liners, combined with a cavity design optimized for soft minerals, keep wear consumption per unit of output at relatively low levels.
Frequently Asked Questions About the Talc Powder Impact Breaker for Paint Filler
Can the Talc Powder Impact Breaker for Paint Filler process talc ore containing impurities?
Hard impurities in the feed are permissible up to 3%. Beyond this level, additional impurity removal before crushing is recommended to avoid accelerated hammer wear.
Does the Talc Powder Impact Breaker for Paint Filler require shutdown for discharge fineness adjustment?
The impact plate gap adjustment mechanism can be operated manually with the equipment shut down, taking approximately 15 minutes per adjustment.
Can the Talc Powder Impact Breaker for Paint Filler process other paint filler minerals?
It is suitable for fine grinding of calcite, barite, kaolin, dolomite, and other minerals with Mohs hardness below 6, with rotor speed and gap parameters adjusted accordingly for different materials.
What is the operating noise level of the Talc Powder Impact Breaker for Paint Filler?
Noise levels are approximately 82 dB at no-load and 88 dB under load. Installation of soundproof enclosures can meet workshop noise control requirements.
