Cassava Starch Vacuum Feeding Machine

What is a Cassava Starch Vacuum Feeding Machine?

Cassava Starch Vacuum Feeding Machine is a food-grade negative pressure conveying device for transporting powdery and granular materials such as cassava starch. It relies on a vacuum pump to generate negative pressure airflow and uses a closed pipeline to automatically transfer starch. Traditional manual pouring and open conveying of cassava starch easily causes fine powder to disperse over a large area, resulting in raw material loss, pollution of the workshop environment, and dust inhalation that harms worker health. Furthermore, external impurities can easily mix into the starch, making it difficult to meet food clean production standards. The vacuum feeder is made of stainless steel and equipped with a special membrane-coated backflushing filter and an anti-clogging pipeline structure. It optimizes the airflow ratio to address the problem of lightweight and easily agglomerated cassava starch, ensuring a completely closed negative pressure conveying process, preventing dust leakage, and effectively locking in fine starch powder.

The Cassava Starch Vacuum Feeding Machine can directly connect to ton bags and silos, automatically conveying cassava starch to mixers, mixing tanks, and packaging machines. No manual contact with materials is required; automated feeding and unloading cycles significantly reduce labor costs, minimize starch loss, and ensure raw material purity, meeting the hygiene and continuous production requirements of the food industry.

What are the advantages of the Cassava Starch Vacuum Feeding Machine?

The Cassava Starch Vacuum Feeding Machine successfully solves three major industry problems in traditional powder conveying: dust pollution, low efficiency, and high pollution risk. It achieves negative pressure conveying through a fully enclosed pipeline system, eliminating powder spillage at the source and eliminating dust in the workshop.

Dust-free environment: The fully enclosed pipeline conveying system eliminates cassava starch powder spillage at the source, effectively solving the problem of dust in the workshop and protecting worker health.

Increased efficiency: Replacing manual handling and feeding, it can operate continuously and stably 24 hours a day, with high conveying efficiency and can be linked with a PLC control system to achieve automated production.

Ensuring Purity: The closed-loop conveying system effectively isolates external contaminants, preventing materials from becoming damp or contaminated with impurities, which is especially important for the production of food-grade cassava starch.

Flexible Layout: The cassava Starch Vacuum Feeding Machine can be flexibly arranged through pipelines, unrestricted by terrain or space, easily achieving horizontal, vertical, or long-distance conveying.

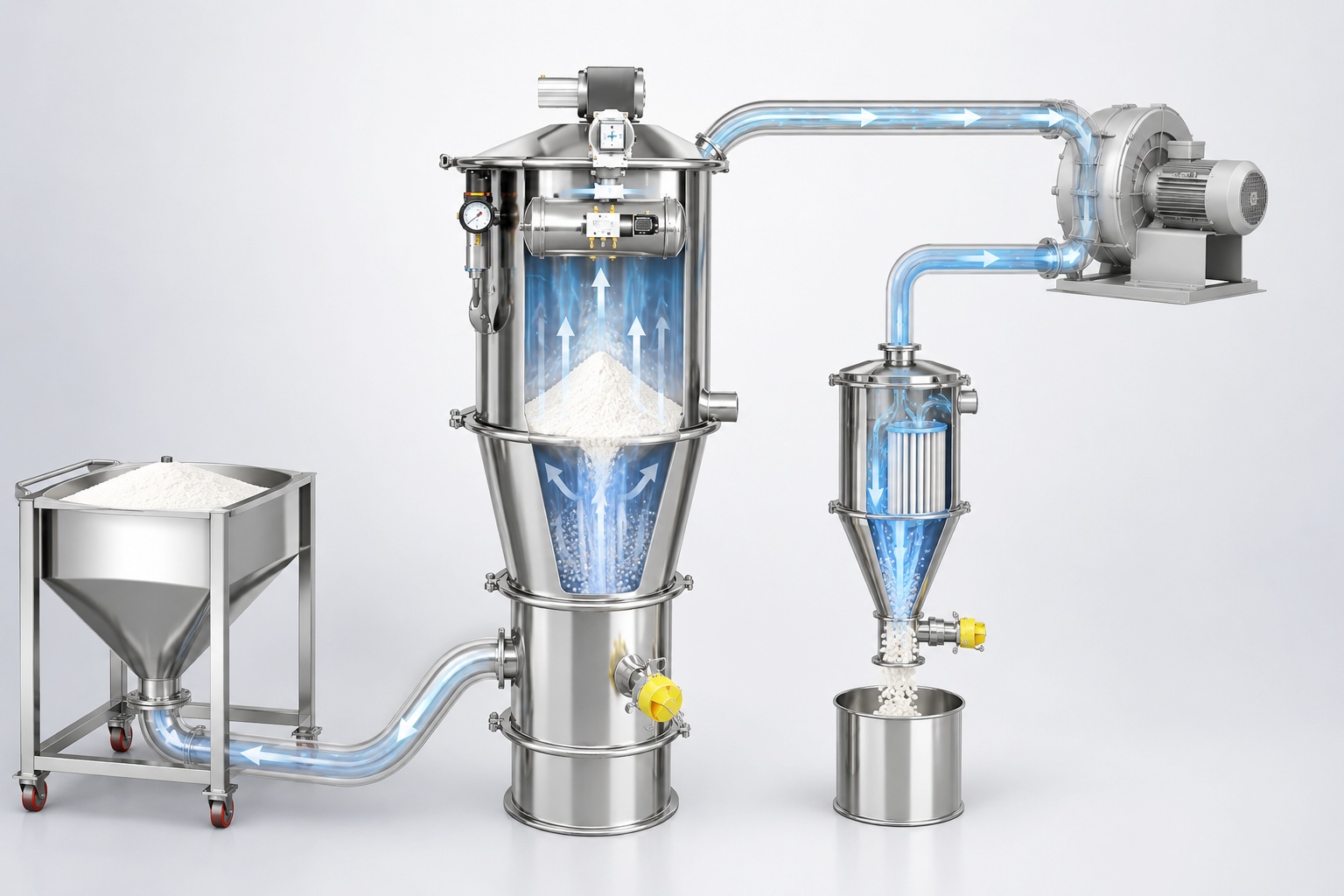

How Does the Cassava Starch Vacuum Feeding Machine Work?

The Cassava Starch Vacuum Feeding Machine operates primarily based on negative pressure suction generated by air pressure difference. First, a vacuum pump, acting as a power source, creates a negative pressure environment within the closed conveying pipeline. Under this negative pressure, the cassava starch raw material is carried into the pipeline by airflow from the suction port and drawn into the vacuum hopper. Once the material enters the hopper, the conveying process enters the solid-gas separation stage. A high-precision filter inside the hopper separates air from the cassava starch powder. Clean air is extracted by the vacuum pump, while the material falls into the collection bin at the bottom of the hopper due to gravity. When the material reaches the preset level, the vacuum pump stops operating, the discharge valve opens, and the material falls into downstream equipment.

Why is vacuum feeding recommended for cassava starch?

Cassava starch is lightweight, has a fine particle size, and is easily dispersed. Traditional manual or mechanical feeding methods generate large amounts of dust, severely polluting the workshop environment, threatening the respiratory health of workers, and posing a dust explosion hazard. Vacuum feeding technology, through a completely sealed pipeline system using negative pressure transport, fundamentally solves these problems. Firstly, it achieves dust-free production, significantly improving the workshop environment. Secondly, the sealed system prevents the material from becoming damp or cross-contaminated with the outside environment, ensuring the hygienic and safety standards of cassava starch—a mandatory requirement for GMP certification in the food and pharmaceutical industries.

Cassava Starch Vacuum Feeding Machine Model Parameters

Cassava Starch Vacuum Feeding Machine Application Industries

The Cassava Starch Vacuum Feeding Machine, with its dust-free, sealed, and highly automated features, is widely used in food factories for adding starch additives in production lines for tapioca pearls, pastries, and seasonings. In starch processing plants, it plays a crucial role in transporting refined tapioca starch from the drying workshop to packaging machines or storage silos, effectively improving workshop cleanliness and production efficiency. As a core logistics device in the entire tapioca flour production line, it enables fully automated powder conveying from dust-free feeding to mixing, granulation, and packaging.

How to Choose a Cassava Starch Vacuum Feeding Machine?

When selecting a suitable vacuum feeder, consider key parameters such as conveying capacity, conveying distance, material characteristics (fineness, flowability), material requirements, and the intelligence level of the control system. Only a tailored solution can maximize the equipment's efficiency.

Define Conveying Capacity:Determine the hourly conveying capacity based on production scale and calculate horizontal and vertical conveying distances. This serves as the basis for model selection, as different models of feeders have significantly different conveying capacities.

Match Material Characteristics:Cassava starch is a lightweight powder, requiring close attention to the equipment's filtration accuracy and anti-bridging design.

Select Material and Configuration:For the food and pharmaceutical industries, 304 or 316L food-grade stainless steel should be prioritized, and it should be confirmed that the filtration system material meets hygiene standards.

Inspect the Control System:Select manual or PLC intelligent control based on workshop automation requirements. If the workshop has explosion-proof or cleanroom requirements, consult the supplier to see if they can provide explosion-proof motors or configuration solutions that meet cleanroom standards.

What is the Price of a Cassava Starch Vacuum Feeding Machine?

The price of a Cassava Starch Vacuum Feeding Machine is mainly affected by factors such as conveying capacity, conveying distance, lifting height, equipment material, vacuum pump brand, and automation configuration. Therefore, there are certain differences in price between different models. Our factory produces machines priced between $1500 and $20000. You can provide us with your cassava starch conveying capacity, conveying height, horizontal distance, installation environment, and production process requirements, and we will provide you with a tailored selection solution and quotation.

Why choose our Cassava Starch Vacuum Feeding Machine?

With over ten years of experience in powder conveying, we provide you with professional and reliable vacuum feeding solutions for cassava starch. The equipment is made of food-grade stainless steel, supports non-standard customization, and can flexibly match different workshop layouts and production capacity needs. Multiple models cover applications from laboratory-level to large-scale production lines, and each machine undergoes rigorous factory testing before leaving the factory. We provide professional installation guidance and promise fast delivery, saving you time, effort, and worry, helping you quickly achieve a clean, automated, and dust-free production upgrade.

FAQ

Can it convey wet cassava starch?

Yes, but special configuration is required. Wet cassava starch has a certain stickiness and easily adheres to the inner wall of pipes and clogs filters, affecting normal conveying. Generally, a vibrator is required to assist in feeding, an arch-breaking device, and a pulse backflushing system, along with anti-stick coated pipes or a fluidizing device for stable operation.

What is the maximum conveying height?

Standard equipment typically has a vertical lifting height of 5-10 meters. Larger equipment, aided by a high-power vacuum pump, can reach approximately 15 meters.

How many kilograms can be conveyed per hour?

The conveying capacity varies considerably between different models, typically ranging from 50 to 6,000 kg/hour. Specific selection guidelines: small equipment approximately 200-900 kg/h, medium equipment approximately 1,000-3,200 kg/h, and large equipment up to 5,000-6,000 kg/h. The actual conveying capacity is affected by pipe length, material density, and flowability, and may fluctuate.
