Ultrasonic vibrating screen price

Friday May-15 2026  17:05:00

Ultrasonic vibrating sieves can be categorized into small-batch laboratory screening and large-scale screening series based on their applicable output. Ultrasonic test sieves for laboratory screening range in price from approximately 3,000 to 10,000 yuan, while those for large-scale screening range from approximately 4,000 to 40,000 yuan. The price of an ultrasonic vibrating sieve is related to its material, model, and configuration.

How to choose the price of an ultrasonic vibrating sieve?

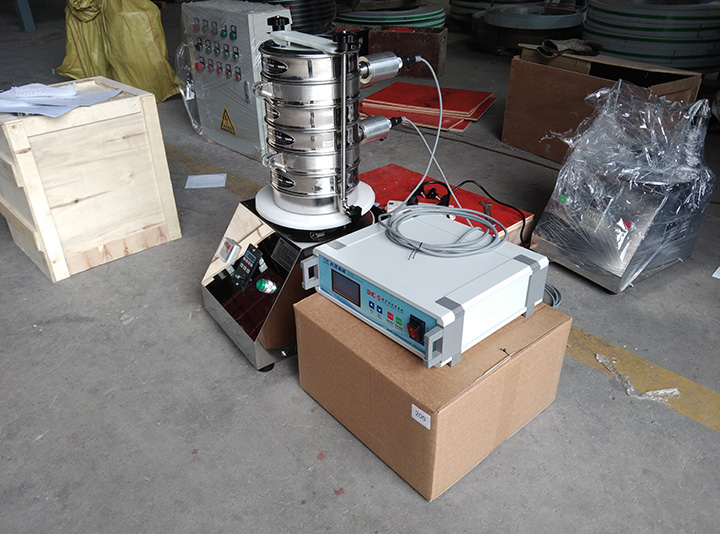

Let's first discuss ultrasonic test sieves used in laboratories. The sieve frame is made of 304 stainless steel, with a stretched and polished finish, and the base is also made of stainless steel. The main factors affecting the price of an ultrasonic test sieve are the number of sieve frames and the model. Ultrasonic test sieve frames are available in five models ranging from 75mm to 400mm. The 75mm model costs around 3,000 yuan, the 100mm model around 4,000 yuan, the 200mm model around 6,000 yuan, the 300mm model around 8,000 yuan, and the 400mm model around 10,000 yuan. Ultrasonic test sieves can be configured with 1-8 layers of standard sieve frames, which can separate materials into 2-9 particle sizes in one pass. The sieve apertures decrease in size from top to bottom. The more sieve frames there are, the finer the grading, and the higher the price.

Secondly, there are ultrasonic vibrating sieves used for large-scale industrial screening. Common types include ultrasonic rotary vibrating sieves and ultrasonic linear sieves. The main influencing factors are the material and model.

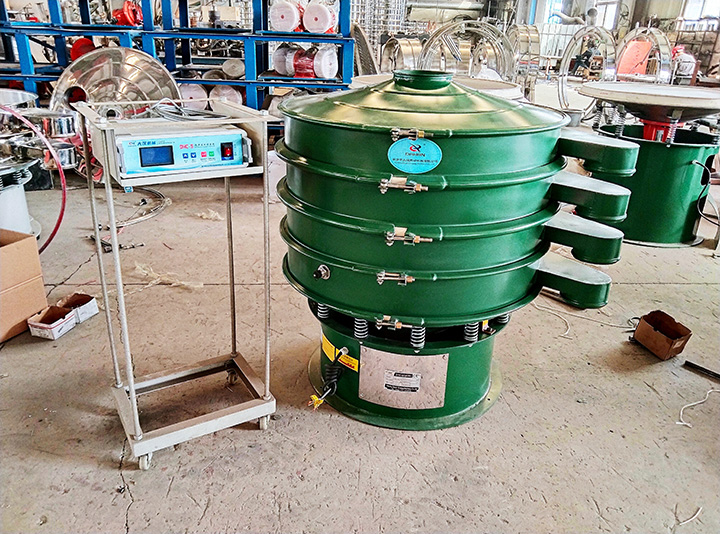

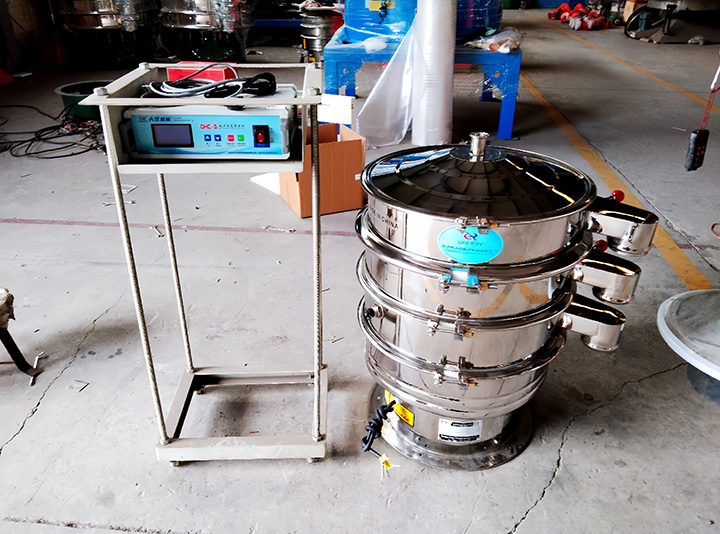

Let's first talk about ultrasonic vibrating screens. The price of ultrasonic vibrating screens ranges from approximately 4,000 to 35,000 yuan. There are eight models with diameters ranging from 400mm to 2000mm. The 400mm model costs around 5,000 yuan, the 600mm around 8,000 yuan, the 800mm around 10,000 yuan, the 1000mm around 15,000 yuan, the 1200mm around 20,000 yuan, the 1500mm around 25,000 yuan, the 1800mm around 30,000 yuan, and the largest, the 2000mm, costs around 35,000 yuan. These prices are for carbon steel; stainless steel models are more expensive. Ultrasonic vibrating screens can be stacked in multiple layers to separate materials into 2-7 grades at once. For the same model and material, more layers will result in a higher price.

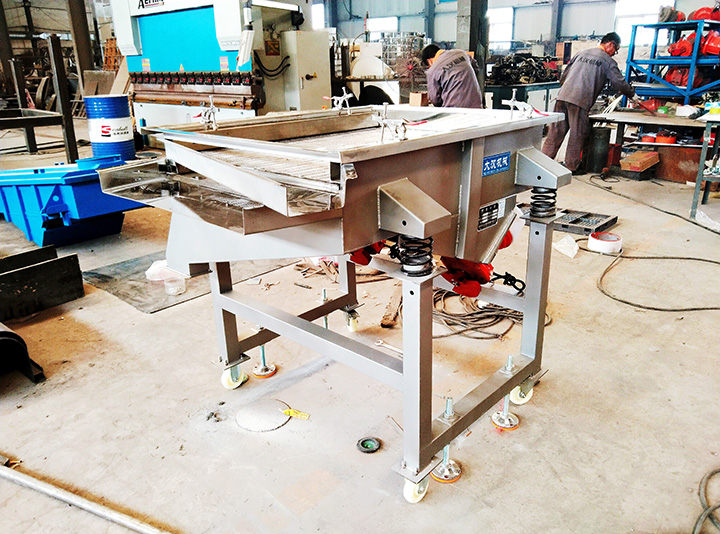

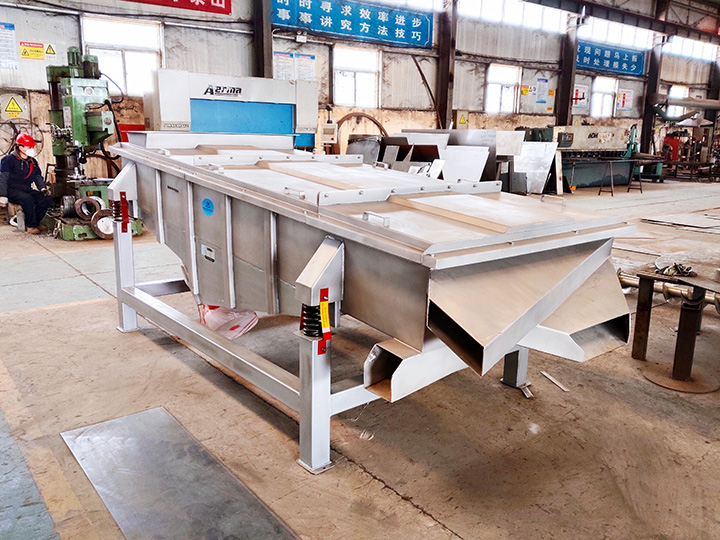

Next is the ultrasonic linear screen. The price of an ultrasonic linear screen ranges from approximately 5,000 to 40,000 yuan. There are eight common models, from DZSF515 to DZSF1540. DZSF indicates that the vibration source is a vibrating motor, and the material moves in a straight line on the screen surface. The "515" after DZSF indicates that the screen width is 500mm and the screen length is 1500mm. The price is as follows: 515 model around 5,000 yuan; 525 model around 10,000 yuan; 530 model around 15,000 yuan; 1025 model around 20,000 yuan; 1030 model around 25,000 yuan; 1240 model around 30,000 yuan; 1530 model around 35,000 yuan; and 1540 model around 40,000 yuan. The above prices are for a single-layer carbon steel ultrasonic linear screen. Stainless steel models will be more expensive. Linear screens can be equipped with 1-5 layers of screens; each additional layer increases the price.

What factors influence the price of an ultrasonic vibrating screen?

The price of a standard ultrasonic vibrating screen is as follows. However, if the product requires customized functions, the price will vary depending on the customized design. For example, when screening fine powder materials, where dust is significant and ventilation is poor, an explosion-proof motor and wiring are necessary. In short, the price of an ultrasonic vibrating screen is also related to customized design; a detailed price will be calculated by an engineer.
