Industrial Drum Mixer for Pigment Powder
Industrial Drum Mixer for Pigment Powder Product Overview
Industrial Drum Mixer for Pigment Powder is an industrial equipment that achieves uniform mixing of pigment powders through drum rotation. The equipment consists of a drive motor, gear reducer, drive rollers, driven rollers, drum hoop, and machine frame. The hoop fits standard industrial drums of various diameters. Stainless steel prevents metal ion release, avoiding gray cast in light-colored pigments. Anti-vibration pads absorb operational vibration.
According to QYResearch, the global industrial drum mixer market was valued at USD 4.1 billion in 2025 and is projected to reach USD 6.1 billion by 2032. This equipment is suitable for dry pigment blending, pigment-to-additive mixing, and homogenization of different color powders. In powder coating lines, it is positioned after batching and before extrusion, allowing pigments and resins to disperse evenly before entering the extruder. Plastic coloring plants use it to pre-mix color powders with pellets before feeding into injection molding machines. In ink manufacturing, it serves as a pre-dispersion step before pigments meet binding agents.
How Does Industrial Drum Mixer for Pigment Powder Work?
The equipment operates on drum rotation. After pigment powders are loaded, the motor drives the rollers, rotating the drum in both forward and reverse directions. As the drum turns, the wall carries materials upward, where the material layer undergoes shear slip and tumbling under gravity, creating three-dimensional material exchange.
Operational details matter. Mixing efficiency peaks at 40%–70% fill level—below that tumbling is poor, above that drop space is insufficient. Alternating forward/reverse rotation can cut mixing time by about 20%. Optional internal baffles enhance mixing intensity, speeding up uniformity. This physical method generates no heat and does not alter pigment properties.
Industrial Drum Mixer for Pigment Powder Technical Specifications and Models
Industrial Drum Mixer for Pigment Powder is available in multiple standard models. Select based on batch output and material characteristics. Main parameters are in the table below.
| Model | Drum Capacity | Batch Weight | Motor Power | Spindle Speed | Power Supply | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| GSH-50 | 120 L | 50 kg | 1.1 kW | 19 rpm | 380V 50Hz | 1600×950×1300 mm | 200 kg |
| GSH-100 | 250 L | 100 kg | 1.5 kW | 22 rpm | 380V 50Hz | 1700×1300×1700 mm | 250 kg |
| GSH-200 | 560 L | 200 kg | 2.2 kW | 24 rpm | 380V 50Hz | 1900×1300×1800 mm | 300 kg |
| GSH-500 | 1430 L | 500 kg | 5.5 kW | 19.5 rpm | 380V 50Hz | 2200×1500×3150 mm | 800 kg |
| GSH-850 | 1650 L | 850 kg | 7.5 kW | 10 rpm | 380V 50Hz | 2400×1600×3400 mm | 1000 kg |
| GSH-1000 | 2400 L | 1000 kg | 11 kW | 14.7 rpm | 380V 50Hz | 2650×2900×4500 mm | 1200 kg |
Custom configurations from 50L to 2000L are available. Drum materials: carbon steel, SUS304, or SUS316L. Lead time: 15–20 working days, with full commissioning and no-load testing before shipment.
Industrial Drum Mixer for Pigment Powder Commissioning and Operation Tips
Commissioning quality of the product directly affects long-term performance.
Roller levelness must be within 0.5 mm per meter. In one case, a Southeast Asian customer introduced a GSH-500 in 2025 without leveling. After one week, uneven hoop wear caused metal debris to contaminate the first pigment batch. The team re-leveled and replaced the hoop, resolving the issue. The unit has since run over 2,000 hours fault-free. This shows baseline precision during commissioning is essential.
Before the first formal pigment run, do a trial with a substitute powder similar in particle size. Observe drum rotation smoothness, hoop slippage, and motor current stability, then proceed. Different pigments vary in density and flowability—increase speed gradually from low to high, starting at the lowest speed under no load to avoid motor overload from excessive starting torque.

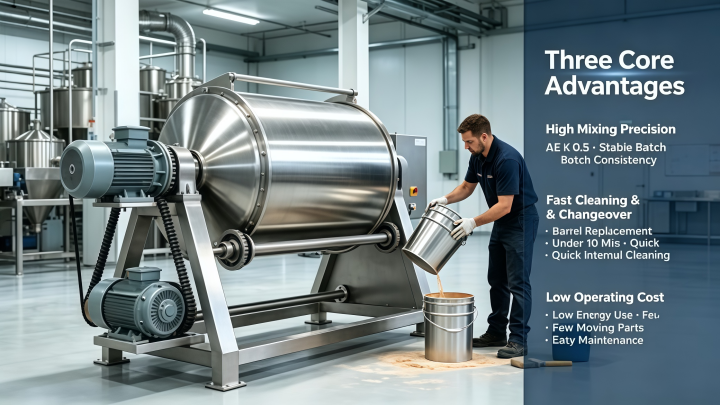

What Are the Core Advantages of Industrial Drum Mixer for Pigment Powder?
The product offers three core advantages: mixing accuracy, cleaning efficiency, and operating cost.
Mixing accuracy meets industry standards. Batch-to-batch color difference ΔE values can be controlled within 0.5, satisfying demanding applications like automotive coatings. Based on records from a GSH-500 unit delivered to a German powder coating plant in 2025, the equipment ran 8 months and processed over 1,000 batches with color difference never exceeding that range.
Cleaning and changeover are fast. Replace the drum directly for the next batch—downtime under 10 minutes. When cleaning is needed, the smooth inner wall allows one person to complete it within 15 minutes.
Operating cost is low. Rotary drum mixers typically consume less than 1 kW/m³ per batch, with energy around 2.5–3.5 kWh per batch and maintenance every 200 running hours. The machine has only three moving parts—motor, reducer, and rollers—so few failure points. Capacity covers pilot to production scales.
What Materials Are Suitable for Industrial Drum Mixer for Pigment Powder?
The equipment can handle pigment powders, additives, fillers, and color blends, each with different process requirements.
Blending pigment with carrier powder is common—whether for powder coatings or plastic coloring, the product achieves uniform dispersion quickly. For plastic coloring, simply load color powder and pellets together.
Mixing different color powders is also typical. Density differences can cause stratification, but the drum's multi-directional tumbling prevents dead zones.
Mixing pigment with micro-additives (flow agents, defoamers, dispersants) under 5% of total volume—the equipment ensures even distribution.
Homogenizing multiple batches of the same color pigment eliminates batch-to-batch color variation, ensuring final product consistency.
Industrial Drum Mixer for Pigment Powder FAQ
What causes color streaks after mixing with Industrial Drum Mixer for Pigment Powder?
Usually insufficient fill or short mixing time. Keep fill above 40% and extend time.
What if the equipment becomes noisy during operation of Industrial Drum Mixer for Pigment Powder?
Check hoop tightness and bearing lubrication. Regular tightening and lubrication reduce noise.
How to switch between different color batches quickly with Industrial Drum Mixer for Pigment Powder?
Blow out the drum with compressed air after each batch, or run a cleaning mix with base material, then introduce the next color.
Can Industrial Drum Mixer for Pigment Powder handle metallic pigment powders?
Yes, but use low speed and ground the equipment. Keep away from ignition sources and static.
Does the mixing drum of Industrial Drum Mixer for Pigment Powder need to be fully sealed?
No. The drum stays open during mixing; materials rely on lifting and tumbling. Add a sealing cover if volatiles or moisture are a concern.
How to check mixing uniformity with Industrial Drum Mixer for Pigment Powder?
Take samples from top, middle, and bottom positions after mixing, and measure Lab* values with a spectrophotometer. Standard deviation below 3% indicates uniform dispersion.
