Tumble Mixer for Dry Herb Blending

What is a Tumble Mixer for Dry Herb Blending?

Tumble Mixer for Dry Herb Blending is a batch mixing device specifically designed for the uniform blending of dry herbal powders and granular materials. The equipment rotates the container to tumble, fold, and shear materials inside the drum, achieving thorough mixing of different components.

Unlike equipment that relies on internal mixing paddles for forced blending, this tumbler mixer uses gravity and container geometry to complete the mixing process, belonging to the low-shear, gentle mixing category. According to a 2025 report by Global Info Research, the global Tumbling Mixers market was valued at USD 277 million in 2024. Processing Magazine reported that U.S.-based Systemic Formulas reduced batch mixing time from 20 minutes to 4 to 6 minutes using this equipment, with a coefficient of variation controlled within 3%.

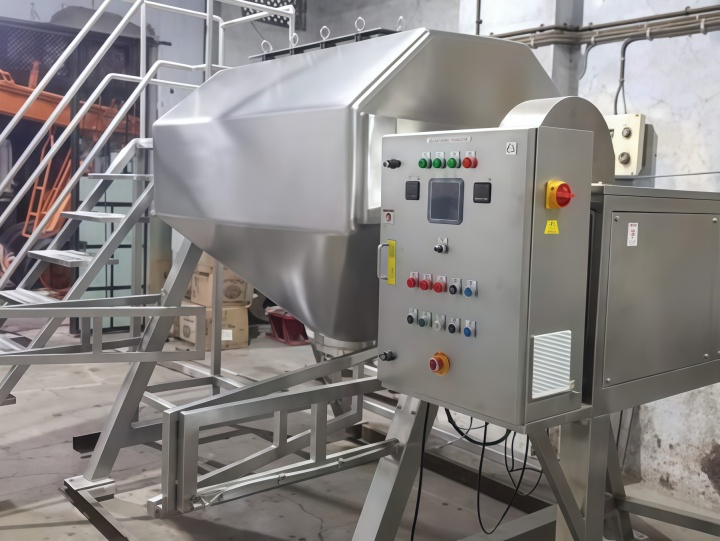

In actual equipment selection, many users underestimate material friability and choose the wrong equipment. One client initially inquired about high-speed mixing equipment for processing traditional Chinese medicine compound powders, but after material testing switched to Tumble Mixer for Dry Herb Blending, reducing breakage rate from 15% to below 2%. The PLC-controlled Tumble Mixer for Dry Herb Blending supports automatic forward-reverse rotation switching, improving mixing results without changing the equipment structure.

How Does a Tumble Mixer for Dry Herb Blending Achieve Uniform Mixing?

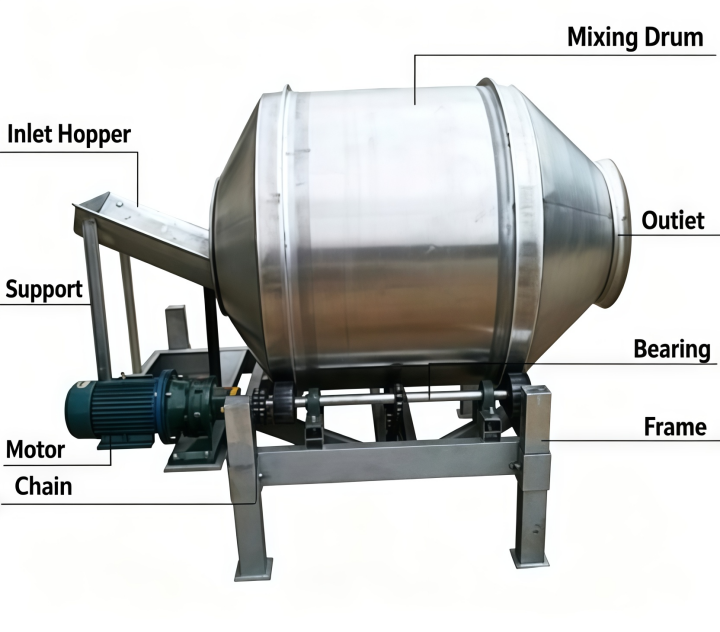

The operating principle is based on gravity-driven tumbling mechanism. The motor rotates the container slowly around a horizontal axis, lifting materials to a certain height before they fall, tumble, and redistribute naturally. Each rotation rearranges the particles, allowing components of different densities and particle sizes to gradually become uniform. Internal baffles can be installed on the container wall to further enhance cross-mixing. The entire mixing process requires no internal mixing components contacting materials, fundamentally eliminating contamination risks from metal wear.

Rotational speed is typically controlled between 5 and 25 rpm. At a filling level of fifty percent of total volume, the coefficient of variation drops below 3% after 4 minutes of operation. When fine powders smaller than 75 microns account for over 30% of the material, speed should be reduced to 12 rpm and mixing time extended to 6 minutes; otherwise, fine particles may adhere to the drum wall due to static electricity, creating dead zones. Material flowability varies significantly between suppliers, so mixing parameters should be re-validated when new supplier materials arrive. A study published in PubMed shows that surface-modified tumbling mixing equipment can reduce electrostatic charge on pharmaceutical powders by more than 50%.

The Specific Models and Technical Parameters of Tumble Mixer for Dry Herb Blending

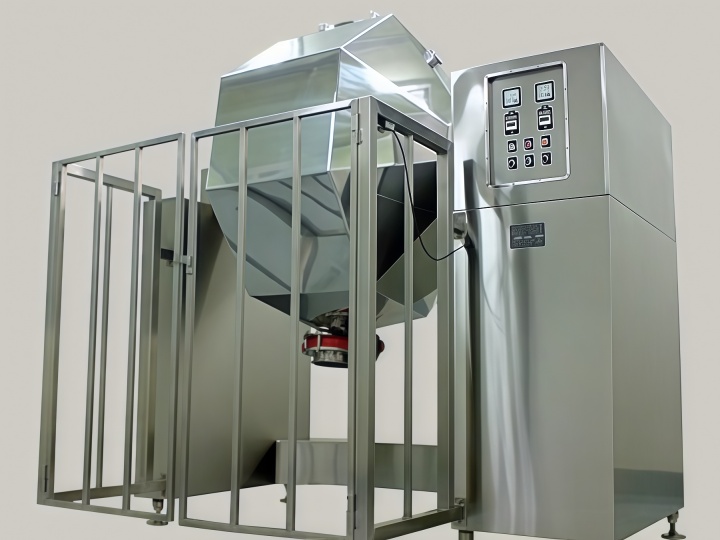

The following table lists complete technical parameters for each model. The octagonal drum design with internal baffles achieves a mixing uniformity ratio of up to 1:10000. Optimal loading capacity is fifty to sixty percent of total volume. All models feature stainless steel contact parts with mirror-polished internal surfaces, meeting pharmaceutical and food hygiene requirements.

Speed decreases as specifications increase; larger drum diameters mean that directly scaling up speed causes segregation rather than mixing. Pay special attention to discharge height compatibility with existing production lines. One client failed to measure workshop installation access width, and the equipment could not enter the workshop upon delivery, requiring door frame disassembly and return for outlet modification.

What Advantages Does a Tumble Mixer for Dry Herb Blending Offer Compared to a Ribbon Blender?

The core difference between Tumble Mixer for Dry Herb Blending and a ribbon blender lies in the mixing mechanism. The former achieves material tumbling through overall container rotation, belonging to the gravity-driven category; the latter relies on internal spiral paddles for forced agitation, belonging to the mechanical-driven category. Comparative testing shows: after 3 minutes of ribbon blender operation, mint breakage rate reached 18%, while this equipment achieved only 2.3% breakage after 5 minutes. For materials containing friable plant tissue or volatile oils, this equipment is the more appropriate choice.

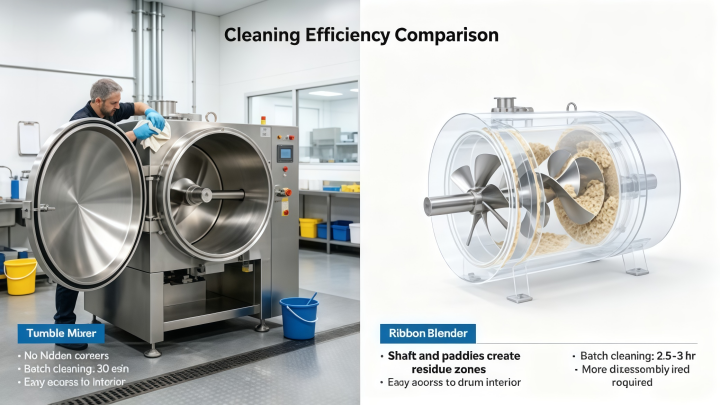

In terms of cleaning, this equipment has no internal mixing shaft or paddles, eliminating hidden corners where material can accumulate. Batch-to-batch cleaning takes only 30 minutes, compared to 2.5 to 3 hours for equipment with internal mixing components. After switching, workshop airborne particulate concentration dropped from 4.8 mg/m³ to 1.2 mg/m³. In addition, the enclosed container design effectively controls dust escape, improving the operator's working environment.

Which Industries and Materials Is Tumble Mixer for Dry Herb Blending Suitable For?

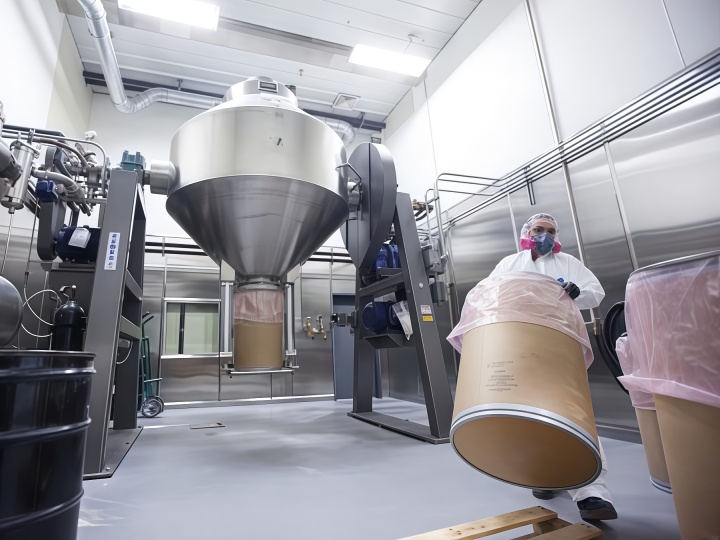

This equipment primarily serves four major industries: pharmaceutical, food, nutraceutical, and chemical. In pharmaceuticals, it is used for blending traditional Chinese medicine powders, plant extracts, active pharmaceutical ingredients with excipients. In food processing, it is used for spice powder blending, tea leaf blending, coffee powder homogenization, and solid beverage premix preparation. In nutraceuticals, it is used for vitamin-mineral premixes, protein powders, and dietary supplement formulations. In chemicals, it is used for fine chemicals, pigments, ceramic powders, and other dry materials.

When processing volatile oil-containing materials such as mint or angelica root, single-batch mixing should not exceed 8 minutes; beyond that, internal drum temperature rises 3 to 5 degrees Celsius due to friction, potentially causing minor losses. Coffee powder mixing time should be controlled within 3 minutes, as excessive time causes oil exudation and caking. When processing metal powders, explosion-proof motors and grounding devices must be equipped to prevent static accumulation safety hazards.

Select the Right Tumble Mixer for Dry Herb Blending

Equipment selection directly impacts whether the equipment achieves expected mixing results, requiring comprehensive consideration of three dimensions: output volume, material characteristics, and installation space. Laboratory R&D applications require 20 to 100-liter specifications for small-batch formulation development. Pilot production recommends 100 to 300-liter specifications. Large-scale industrial production requires 1000 liters and above. For batch outputs in the 180 to 220 kg range, the 500-liter model is more suitable than the 300-liter model, as the latter would exceed seventy percent of total volume, preventing adequate material tumbling.

Regarding speed settings, materials with significant particle size differences should use lower speeds with extended mixing time to avoid centrifugal force-induced segregation. Recommended speed range is sixty to seventy percent of the critical speed, approximately 30 rpm. When loading falls below 15% of total volume, materials cannot form an effective tumbling layer, and mixing uniformity noticeably decreases. If workshop door width is less than the equipment's external dimensions, this equipment requires on-site assembly, so installation access must be confirmed in advance.

Tumble Mixer for Dry Herb Blending Installation and Maintenance Essentials

Installation levelness error must not exceed 0.5 mm per meter; otherwise, materials will accumulate toward the lower side during operation, causing unbalanced loading. For initial trial operation, run empty for 5 minutes to check for unusual noises from rotating components, then run with thirty percent loading to confirm normal operation before full-load production.

Routine maintenance primarily includes: regularly checking drive belt or chain tension, bearing lubrication condition, and seal integrity. Bearings should be lubricated every 500 operating hours. Production records from a Chinese TCM processing plant show that regularly maintained equipment operated continuously for 5 years with only one bearing replacement and no other failure records. Thorough cleaning is required after each use; for different material varieties, wipe with a damp cloth followed by compressed air blow-off to remove residual powder.

Frequently Asked Questions About Tumble Mixer for Dry Herb Blending

Can Tumble Mixer for Dry Herb Blending handle materials with high moisture content?

No. When material moisture content exceeds 5%, fine powders agglomerate into lumps, and the gentle tumbling action cannot effectively break these lumps. It is recommended to dry materials to below 5% moisture content before use. Test data shows: when moisture content dropped from 5% to 3%, the coefficient of variation decreased from 7% to 2.8%.

How is the mixing uniformity of Tumble Mixer for Dry Herb Blending verified?

The FDA's 1999 guidance "ANDAs: Blend Uniformity Analysis" outlines sampling and acceptance criteria. After operation, collect at least 5 samples from different positions in the container, test key component content, and calculate the coefficient of variation. A coefficient of variation below 5% indicates uniform mixing.

Can Tumble Mixer for Dry Herb Blending mix materials with large density differences?

Yes. Speed should be reduced to below 12 rpm with total rotations reaching 200 or more. Materials with large density differences may segregate rapidly after rotation stops, so sampling should be performed immediately after mixing and packaging completed promptly.

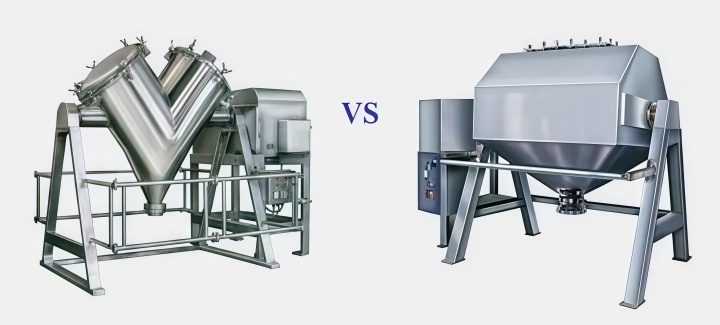

What is the difference between Tumble Mixer for Dry Herb Blending and a V-type mixer?

Both belong to gravity-driven mixing equipment. The V-type mixer features a V-shaped container where materials continuously divide and rejoin during rotation. The octagonal drum provides a longer drop path and stronger cross-mixing effect, typically achieving a coefficient of variation 1 to 2 percentage points lower than V-type mixers.
