Stationary Crusher Plant
What is a Stationary Crusher Plant?

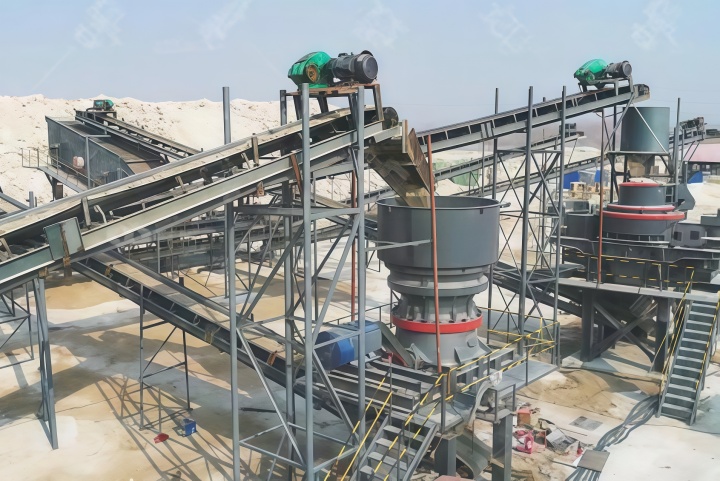

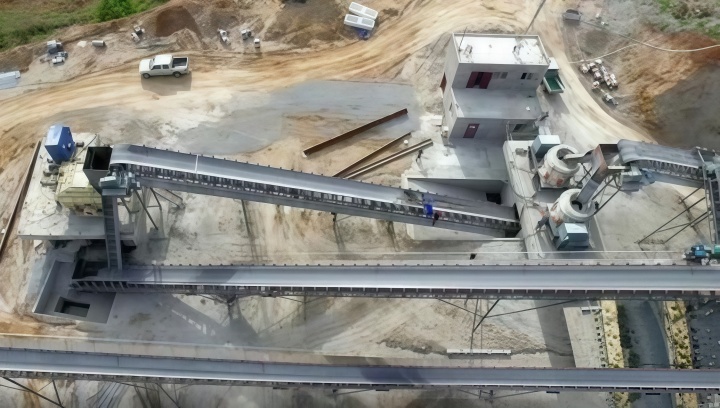

A Stationary Crusher Plant is a fixed crushing and screening system installed at mining sites, quarries, or construction waste treatment facilities. It consists of vibrating feeders, jaw crushers, cone or impact crushers, vibrating screens, and belt conveyors. Unlike mobile stations, the plant is permanently fixed, making it suitable for high-throughput, long-duration operations with stable material sources.

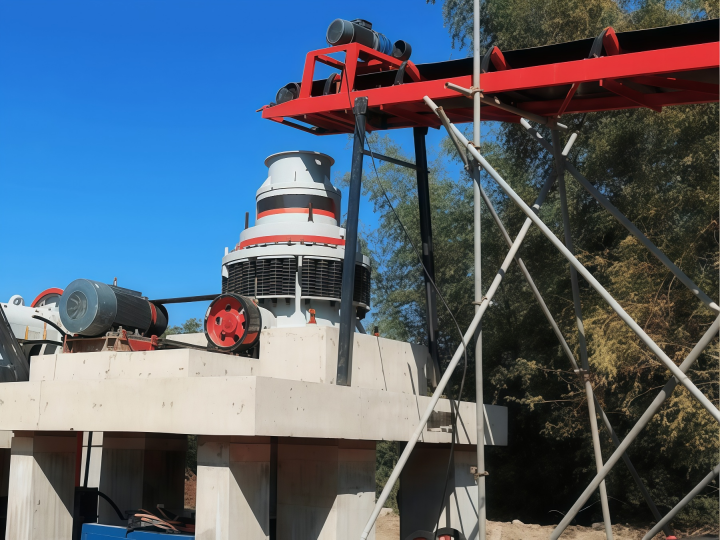

This equipment integrates crushing, screening, and conveying into one fixed production system, mounted on concrete foundations. Configurations are flexible based on raw material type and product requirements. A complete plant handles the entire process from feed to finished products of multiple specifications.
How Does a Stationary Crusher Plant Work?
The overall workflow of a Stationary Crusher Plant includes feeding, primary crushing, secondary crushing, screening, and material recirculation.
In a Tanzania hard rock project targeting 80 t/h, we initially designed a three-stage circuit. Site conditions revealed the actual width was 3 meters less than drawings, leaving under 0.8 m for maintenance access. Forcing the three-stage layout meant breaking walls for each wear part change, adding at least 3 days of downtime. We switched to two stages despite higher flakiness risk. After one week of tuning, we reduced the cone crusher closed-side setting from 22 mm to 16 mm and increased screen amplitude from 5 mm to 7 mm, achieving design capacity without expanding footprint.
Technical Parameters of a Stationary Crusher Plant
The configuration varies with capacity and material properties. The table below lists parameters for a Stationary Crusher Plant across three common capacity levels.
| Parameter | Small 80-120 t/h | Medium 200-300 t/h | Large 400-600 t/h |
|---|---|---|---|
| Max feed size | 500 mm | 700 mm | 900 mm |
| Product size | 0-50 mm | 0-60 mm | 0-80 mm |
| Total power | 280 kW | 520 kW | 980 kW |
| Jaw feed opening | 600×900 mm | 900×1200 mm | 1200×1500 mm |
| Jaw motor | 75 kW | 110 kW | 200 kW |
| Cone max feed | 160 mm | 300 mm | 450 mm |
| Cone motor | 90 kW | 220 kW | 450 kW |
| Screen decks | 2 | 3 | 3 |
| Screen area | 4.5 ㎡ | 8.1 ㎡ | 16.2 ㎡ |
Actual selection depends on material hardness, moisture, and target output.
Three Main Advantages of a Stationary Crusher Plant
The equipment offers clear benefits in processing capacity, operating costs, and environmental integration.
Processing capacity. Throughput reaches hundreds or thousands of tons per hour. Boral Australia's 2025 Queensland plant delivers 250 t/h. Mobile units range 80-450 t/h. For projects above 1 Mt/year, a Stationary Crusher Plant is the preferred choice.
Operating costs.Indian quarry data shows the stationary system costs ₹18.25/t versus ₹21/t for mobile units, a saving of ₹2.75/t. Electric drive reduces energy consumption, and fixed installation simplifies maintenance.
Environmental integration. Fixed layout accommodates dust collectors and sound enclosures, achieving dust under 5 mg/m³ and noise at 75 dB.

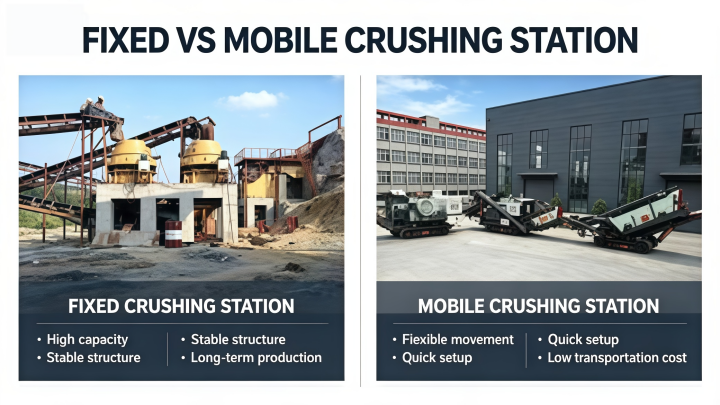

Stationary Crusher Plant vs. Mobile Station
| Aspect | Stationary | Mobile |
|---|---|---|
| Capacity | 80-1000 t/h | 80-450 t/h |
| Energy use | Lower | Higher |
| Installation | 3-6 months | 2-5 days |
| Mobility | None | Flexible |
| Initial cost | ₹250-370 lakhs | ₹365-505 lakhs |
| Long-term cost | ~₹18.25/t | ~₹21/t |
When choosing between these options, the decision depends on project duration, site conditions, and production targets. A Stationary Crusher Plant is better suited for operations expected to run beyond five years.
Material Applications
The system processes limestone, granite, basalt, iron ore, construction waste, and river pebbles. Limestone uses jaw and impact crusher combination, with blow bar life around 600 hours. Granite and basalt use jaw and cone crusher combination; Paraguay's 2022 150 t/h plant processes basalt. Mining operations use multi-stage crushing for iron and non-ferrous ores. Construction waste is crushed into recycled aggregates. Sand-making adds a VSI crusher. Energia operates two 250 t/h four-stage systems in the Middle East; NEOM and Red Sea projects use this equipment for large aggregate supply.
Selection Guide
Choose the right system across four dimensions.
Capacity. Reserve 15-20% margin. Small units suit 300-500 kt/year, medium 800-1200 kt/year, large above 2 Mt/year. Salonit Anhovo expanded from 500 to 1000 t/h, showing forward planning is valuable.
Material analysis. A client used an impact crusher for 180 MPa river pebbles. Blow bar life dropped from 600 to 120 hours within three weeks. After seven sets in three months at triple the cost of a cone solution, they rebuilt the line. We now require Bond Work Index testing before selection. For granite above 200 MPa, a cone crusher is necessary. This testing requirement has become standard practice for every Stationary Crusher Plant project we undertake.
Site conditions. Salonit Anhovo used 3D scanning to retrofit a cramped existing building, avoiding new construction costs.
Long-term cost. Compare total ownership over 5-10 years. The stationary option offers cost savings over mobile units.

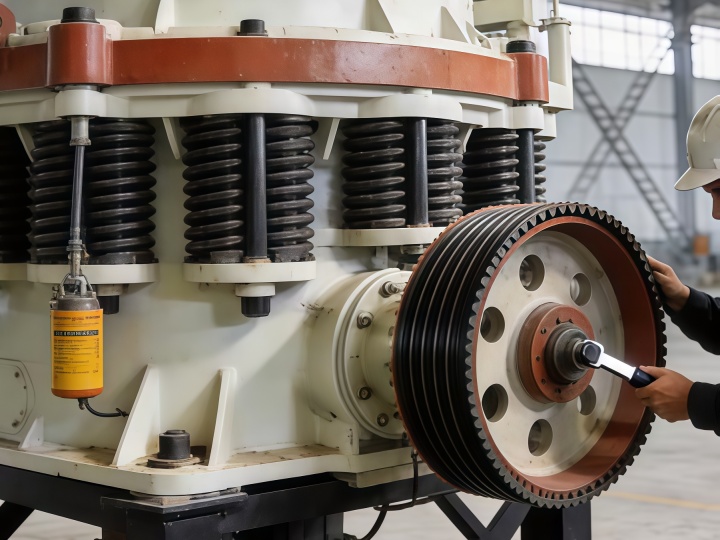

Maintenance Essentials
Daily, weekly, and monthly inspections are recommended. Daily checks focus on operation status. Weekly checks cover wear parts and lubrication. Monthly checks address alignment and electrical systems. Lubrication intervals must adjust to dust levels and load; insufficient lubrication is a primary cause of premature failure. Replace jaw plates when wear reaches 70% of the discharge setting. Check belts weekly for tension and joints; correct misalignment promptly. Proper upkeep of a Stationary Crusher Plant extends component life and reduces unexpected downtime.
FAQ About Stationary Crusher Plant
How to estimate the 10-year total cost of ownership for a Stationary Crusher Plant?
Include equipment, civil works, power, wear parts, labor, and downtime. At 200 t/h running 5,000 hours/year processing 700,000 tons, operating cost is ~₹18.25/t, totaling ~₹12.8 crore over 10 years.
How does high moisture affect Stationary Crusher Plant selection?
Moisture above 8% reduces screening efficiency. Add pre-screening or adjust screen inclination. Salonit Anhovo solved hard, abrasive, sticky material with a twin-rotor hammer crusher.
How long is Stationary Crusher Plant installation?
Installation takes 3-6 months, commissioning 2-4 weeks. Owners must complete civil works and power connection in advance.
How to manage spare parts inventory for a Stationary Crusher Plant?
Partner with suppliers. Keep 1-2 sets of critical wear parts in stock. Bulk purchasing reduces unit cost and minimizes unplanned downtime.
A Stationary Crusher Plant delivers 80-1000 t/h capacity and has been used across Australia, South Africa, Tanzania, Slovenia, Paraguay, Saudi Arabia, and Southeast Asia. Prioritize Bond Work Index testing, evaluate capacity, site, and long-term costs. Planned maintenance supports consistent operation.
