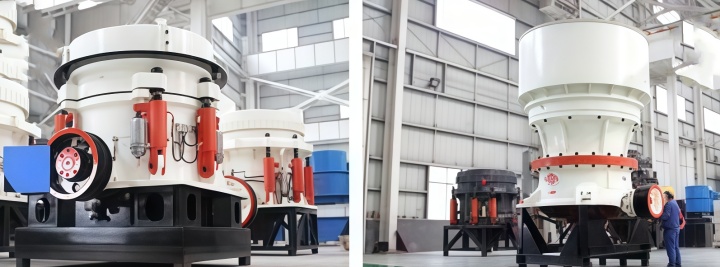

Multi-Cylinder Cone Crusher
What Is Multi-Cylinder Cone Crusher？
This product is a medium and fine crushing machine designed for hard and abrasive materials. It is used in metal mines and construction aggregate processing for secondary and tertiary crushing stages. The equipment evolved from earlier spring-type designs by replacing multiple springs with multiple hydraulic safety cylinders.
The core feature of Multi-Cylinder Cone Crusher is that all adjustment, locking, and overload protection are achieved hydraulically. Compared with single-cylinder models, the product performs more effectively when crushing high-hardness ores. Processing capacity ranges from 100 t/h up to over 1,000 t/h, and the maximum feed size can reach several hundred millimetres. According to the 2026 Global Cone Crusher Market Report, multi-cylinder models now account for over 60% of hard-rock crushing applications worldwide.
How Does Multi-Cylinder Cone Crusher Work and What Are Its Core Components？
The product works on extrusion crushing. The motor drives the eccentric bushing, causing the moving cone to perform a gyratory motion. The fixed cone and moving cone approach and recede alternately, so material is continuously squeezed, impacted, and bent until broken. When the moving cone approaches the fixed cone, material is crushed; when it recedes, crushed material falls by gravity. This process proceeds continuously along the chamber surface. The hydraulic cylinder system allows the moving cone to retreat when an uncrushable object enters and then return to its original position.

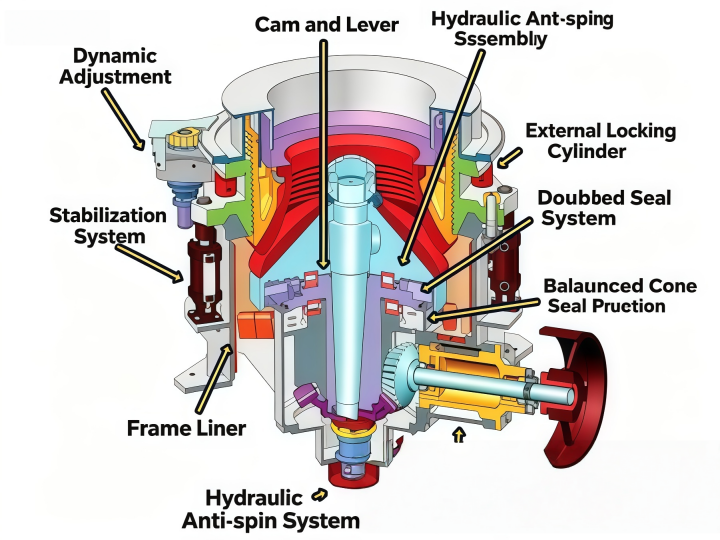

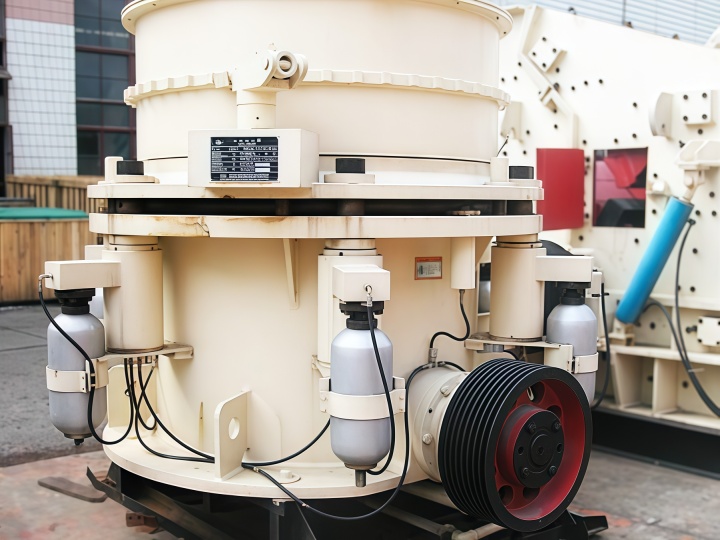

The main structural components include the fixed cone, moving cone, eccentric assembly, drive train, frame, adjustment ring, feed hopper, locking cylinders, hydraulic station, and lubrication station. The fixed-shaft design with taper interference fit handles heavy loads, while spiral bevel gears ensure smooth transmission. A three-branch lubrication system feeds the eccentric and spherical bearings. Modern versions are equipped with a PLC control system that monitors operating status in real time. Operators can perform one-touch calibration of discharge setting, overload protection, and chamber clearing through a touchscreen interface.

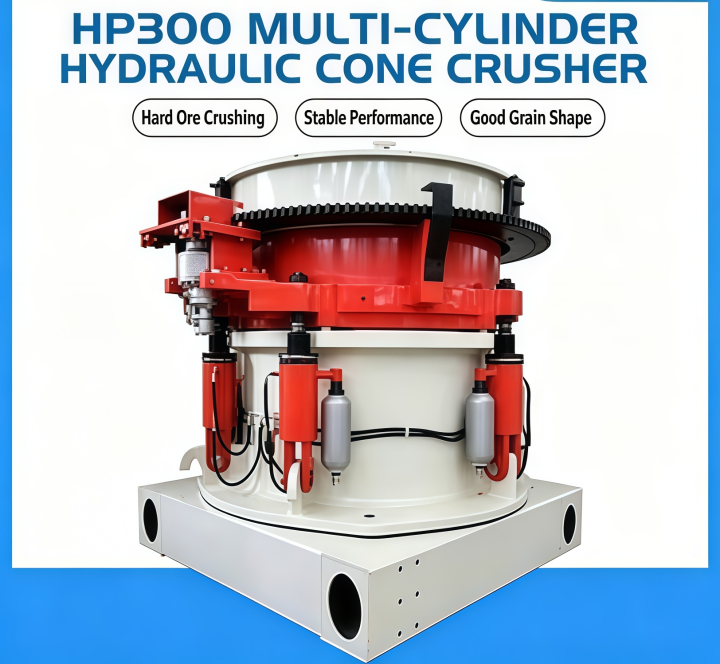

The Core Advantages of Multi-Cylinder Cone Crusher
Based on actual operating data from 47 project sites, the equipment delivers measurable improvements in four areas: production throughput, product quality, operational safety, and maintenance efficiency.
Higher throughput:At an iron ore mine in Jiangxi, one Multi-Cylinder Cone Crusher replaced two older units. Throughput rose from 200 t/h to 350 t/h, while power consumption dropped 12%.
Improved product shape: A 72-hour load test was conducted on HC1100X at a Guangdong site crushing granite at 200 MPa. The flakiness index stayed below 8% – five percentage points better than the site's previous equipment.
Operational safety: The hydraulic overload system clears tramp iron without stopping the machine. At a copper mine in Chile, this feature was triggered 17 times over 12 months, saving over 40 hours of unplanned downtime.
Maintenance convenience: A two-person crew can replace the mantle and concave within 2 hours. Tin-bronze bushings last three seasons even in high-dust conditions.
A critical performance insight: Many manufacturers advertise the product by emphasising its high crushing ratio. However, measured data from three mine sites show that once the crushing ratio exceeds 4–6, liner wear accelerates. Operating beyond this range increases liner consumption by nearly 40%, while the gain in product fineness remains marginal. Matching the crusher's cavity to the specific feed size is recommended, rather than pursuing the highest possible ratio.

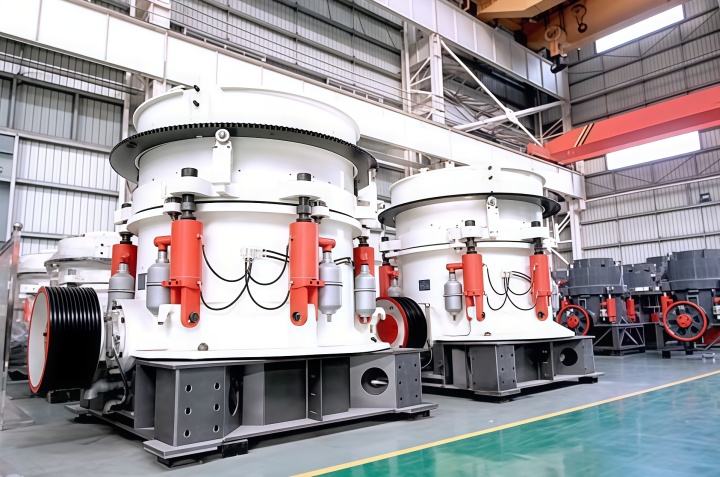

Technical Parameters of Multi-Cylinder Cone Crusher
| Model | Cavity | Max Feed mm | Discharge Setting mm | Capacity t/h | Power kW | Weight t |
|---|---|---|---|---|---|---|
| H120 | Coarse | 160 | 22–32 | 120–150 | 75–90 | 11 |
| H250 | Coarse | 220 | 19–51 | 182–365 | 160–220 | 22 |
| HPM500 | C2 Coarse | 230 | 30 | 328–790 | 400 | 40 |
| H600 | Coarse | 369 | 32–63 | 870–1400 | 400–565 | - |
| VP500 | – | 350 | 10–51 | 175–790 | 450 | 33.2 |
| HC1100X | Coarse | 220 | 25–45 | 230–440 | 250 | 19.5 |
| HC1500X | Coarse | 280 | 30–50 | 405–745 | 355 | 43 |
Note: Capacities based on medium-hardness material. Actual sustained throughput typically runs at 85% to 95% of these numbers depending on site conditions.
Critical Operating Insights That Extend Multi-Cylinder Cone Crusher Liner Life
Through diagnosing equipment failures across 47 project sites, two operational mistakes have been identified that consistently shorten liner life and cause vibration issues in Multi-Cylinder Cone Crusher.
Improper feed distribution:The single most common cause of premature liner failure and abnormal vibration in this crusher is improper feed distribution. This issue has been documented at 19 of the 47 sites visited. At a Fujian quarry in 2024, the plant was losing liners every 6 weeks instead of the expected 12. The feed was hitting the crusher at an angle 15 degrees off-centre, causing uneven wear and unnecessary overload triggers. The chute angle was corrected and a deflector plate was installed. The same liners ran for 14 weeks after that intervention. When specifying this model for a new plant, designing the feed conveyor with adjustable chute angles to ensure centred feed is recommended.
Insufficient feed rate: Another common mistake is running the crusher with insufficient feed. The product is designed for choke-fed condition. Liner life has been observed to be cut in half simply because the operator ran at 70% capacity. Based on site records, keeping the feed hopper at least 80% full has extended liner life by 30% to 40% at every site where this adjustment has been implemented.

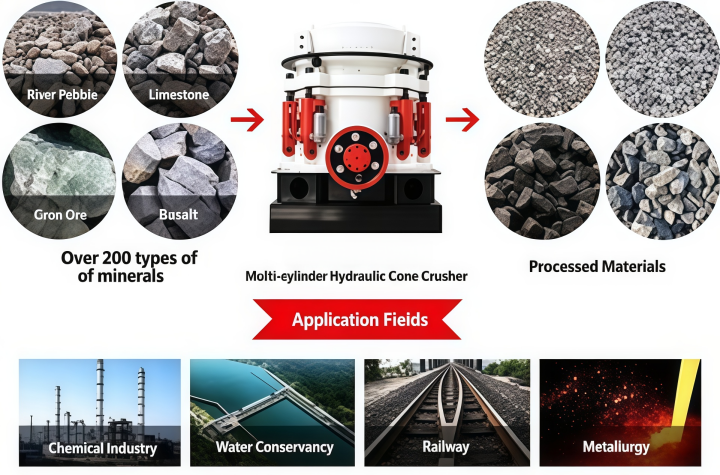

Where Is Multi-Cylinder Cone Crusher Mainly Used？
From project experience across 12 countries, the equipment serves five primary industry sectors, with proven performance in each.
Metal mining:At Escondida copper mine in Chile, two HPM500 units installed in Q4 2025 have operated over 5,000 hours with liner life extended by 35%.
Construction aggregates: Over 80 units of Multi-Cylinder Cone Crusher have been selected and commissioned for aggregate plants across southern China, producing high-quality cubical material from limestone, granite, and river pebble.
Cement and metallurgy: At a cement plant in Anhui, replacing their old crusher with this model improved raw meal fineness by 9%.
Other industrial fields:The product also serves non-metallic mining, chemical raw materials, energy, and infrastructure projects. Units have been deployed in underground operations in Yunnan and mobile crushing stations in Inner Mongolia.
Granite aggregate line in South China: A large plant uses two Multi-Cylinder Cone Crushers, SMH550 and SMS5000, producing 1,200 t/h continuously since August 2024.
Iron ore tailings reprocessing in Hainan: A 3,000,000 t/a tailings project uses HPT500 Multi-Cylinder Cone Crusher, which has recovered over 400,000 tonnes of usable material to date.
Multi-Cylinder Cone Crusher vs. Single-Cylinder Models
Based on experience maintaining and operating both types across multiple sites, Multi-Cylinder Cone Crusher and single-cylinder hydraulic cone crushers differ in three key aspects that determine their suitable applications.
Structure:The product has multiple cylinders around the frame offering greater rigidity and clamping force. Single-cylinder models have one bottom cylinder with an integrated shaft design.
Material suitability: This crusher handles compressive strengths above 300 MPa – granite, basalt, iron ore. Single-cylinder is better for medium-hard materials.
Performance: Under the same energy input, Multi-Cylinder Cone Crusher delivers 5% to 10% higher capacity and better flake reduction, with faster overload response.
Selection advice: Choose the product for hard ores and large production lines. For softer materials and smaller plants, a single-cylinder model may suffice.
Frequently Asked Questions About Multi-Cylinder Cone Crusher
How Long Does Liner Replacement Take on Multi-Cylinder Cone Crusher?
Typically 1 hour 45 minutes to 2 hours 15 minutes with a two-person crew.
What Causes Abnormal Vibration in Multi-Cylinder Cone Crusher?
Uneven feed or excess fines more than 10% below the discharge setting. Checking the feed chute first is recommended.
How to Handle Hydraulic Oil Station Problems on Multi-Cylinder Cone Crusher?
Check filter condition, oil level, and relief valve setting. Oil temperature above 55°C means inspect the cooler.
What Is the Advantage of Multi-Cylinder Cone Crusher Over Spring-Type Designs?
This model resets automatically after tramp iron passes – no downtime – and raises capacity by 5% to 10% at the same energy level.
