Heavy Duty Jaw Crusher

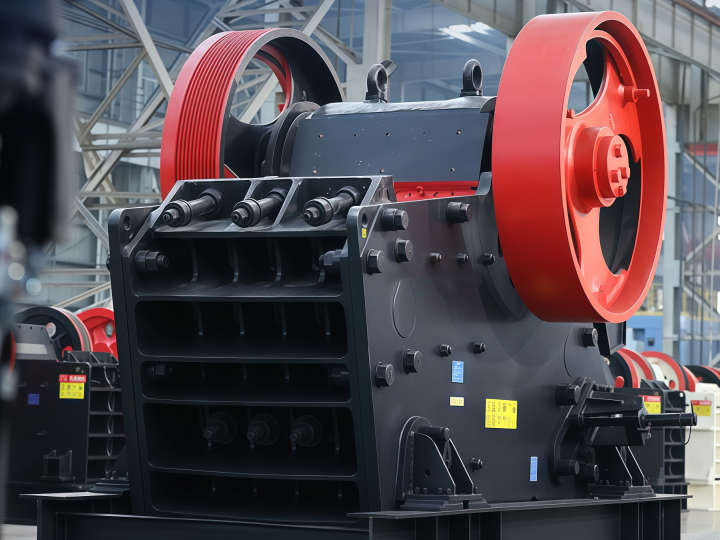

What is a Heavy Duty Jaw Crusher?
As primary crushing equipment, the heavy-duty jaw crusher crushes large rocks or ores by the squeezing action of its fixed and moving jaw plates, producing smaller-sized material.It handles materials with compressive strength up to three hundred twenty megapascals and achieves throughput of hundreds to thousands of tons per hour.

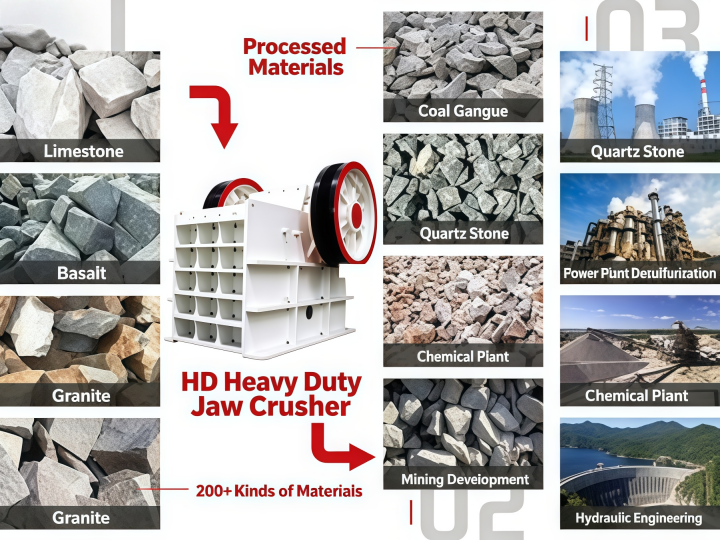

Since the nineteenth century, this equipment has served mining, quarrying, metallurgical, and building material industries. The Heavy Duty Jaw Crusher accepts feed exceeding one meter in size and tolerates relatively high material moisture, making it irreplaceable for processing blasted rock.
How Does a Heavy Duty Jaw Crusher Work?
The Heavy Duty Jaw Crusher uses compression crushing. An electric motor drives an eccentric shaft through belts, moving a connecting rod up and down. When the rod rises, toggle plates push the moving jaw toward the fixed jaw, fracturing material in the crushing chamber. When the rod falls, the jaw retracts and crushed material discharges from the opening.

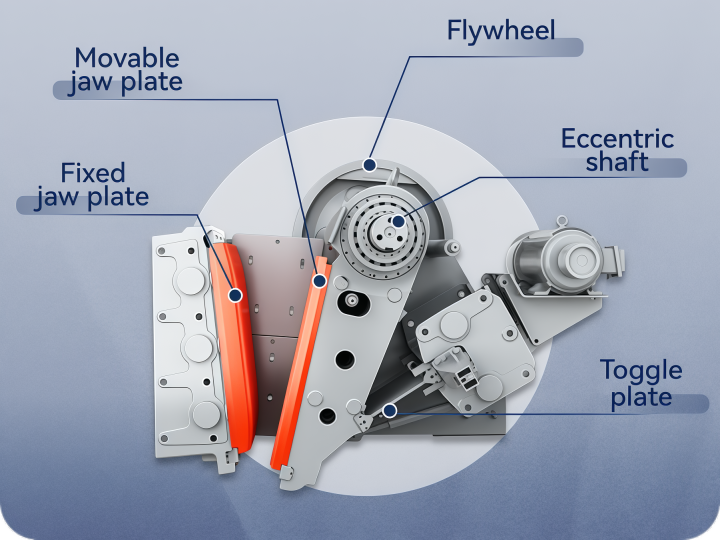

A practical tip for hard rock: when material hardness exceeds two hundred megapascals, flywheel energy storage drops . Running at normal feed rate may trigger overload shutdown. Experienced operators reduce feed to about eighty percent of rated capacity, then gradually increase it once the machine runs steadily. This "reduce first, then increase" technique never appears in manuals but significantly cuts unplanned downtime. Core components include the frame, eccentric shaft, flywheels, jaw plates, toggle plates, adjusting wedges, and return springs. Jaw plate motion and crushing chamber geometry can affect crushing efficiency.
The Key Technical Parameters of Heavy Duty Jaw Crusher
Parameters vary by model. Below are specifications for mainstream models, based on bulk density of one point six tons per cubic meter under uniform feeding:
For materials under two hundred megapascals, use table values directly. Above that, apply a correction factor of zero point eight to avoid overloading. Actual capacity also varies with moisture and feed size distribution.

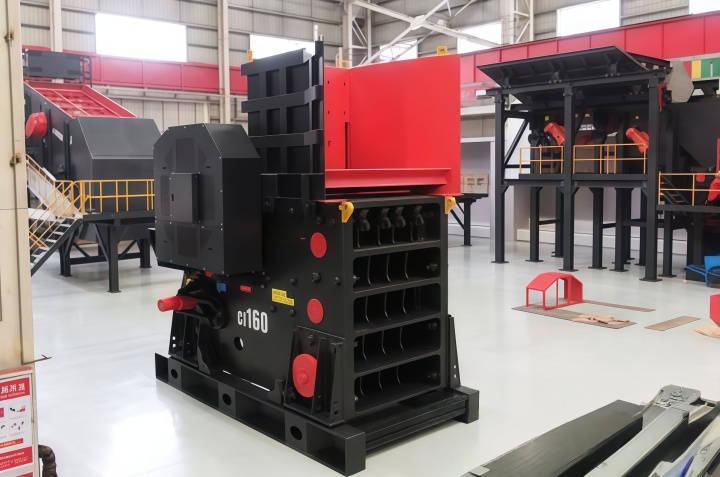

How to Select the Right Heavy Duty Jaw Crusher Model?
Selecting the right Heavy Duty Jaw Crusher model is critical. For granite at two hundred megapascals, the SJ-900 costs about sixty percent of the SJ-1200 but delivers only forty to fifty percent of its capacity. At eight hours per day, the SJ-900 handles under five hundred tons daily. Above sixteen hours, jaw plate wear accelerates, pushing cost per ton above the SJ-1200. Tracking seventeen quarries from 2021 to 2023, eight users ran the SJ-900 over twelve hours daily; five exceeded cost budgets after eight months, and three switched to the SJ-1200 the following year.
Infrastructure matters too. The SJ-1800 weighs one hundred twenty-eight tons, with foundation costs over three times those of the SJ-750. For feed under four hundred millimeters and target throughput within two hundred tons per hour, choosing the SJ-750 saves about four hundred thousand yuan in civil work. Always test material samples for compressive strength and abrasiveness, then adjust capacity with correction factors.

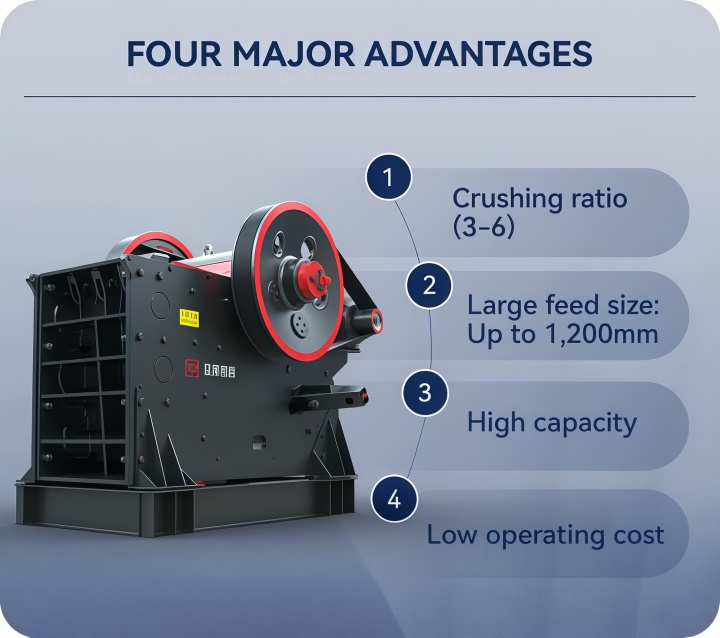

What are the advantages of Heavy Duty Jaw Crusher?
Efficiency.A limestone mine in western Yunnan increased monthly production by forty percent after fixing feed-end blockages on its SJ-900. This shows that with proper auxiliary systems, it Crusher delivers strong capacity.
Reliability.Fewer components make jaw plate and toggle plate replacement straightforward. The welded frame, oversized bearings, and heat-treated shafts handle high impact loads. In the same Yunnan mine, screening out fines at the feed end extended jaw plate life by about fifty days—proof that feed quality directly affects reliability.
Economy. Energy consumption and wear part costs stay manageable. Adjustable discharge opening allows flexible particle size control. But don't just compare purchase prices—include two years of operating costs. The SJ-900 vs. SJ-1200 case shows that under extended hours, a smaller model can cost more overall.
Typical Operational Issues about Heavy Duty Jaw Crusher
A western Yunnan limestone mine commissioned an SJ-900 in June 2019. When the rainy season started that October, the discharge opening clogged frequently—cleaning intervals dropped from four hours to two, each taking forty minutes, cutting effective operating time from sixteen to under twelve hours. A supervisor with over twenty years of experience checked jaw plate wear and discharge settings—both normal. Then he inspected the feed material: surface weathered rock had over eight percent moisture, forming mud that stuck at the discharge. The fix: install a double-deck vibrating screen upstream to remove wet fines, costing about one hundred ten thousand yuan. After modification, cleaning intervals extended to eight hours, operating time returned to sixteen hours, and monthly production rose forty percent. At least four other western Yunnan mines adopted similar solutions. One in Dali reported jaw plate life extended by about fifty days.
A key lesson emerged later: pre-installing a water flush pipe at the discharge during installation could have cut modification costs by about thirty percent. The screen only fixed the feed end; manual cleaning was still needed at the discharge. This detail appears in no manual—only learned after two years of operation.
Other cases: a granite quarry installed a metal detector after an excavator tooth caused repeated shutdowns, and the problem stopped. An iron ore mine adjusted the feed chute angle after lower jaw plate wear outpaced the upper portion; distributing material evenly across the crushing chamber extended jaw plate life about twenty-five percent. These examples show that feed management and operational practices affect Heavy Duty Jaw Crusher performance.
FAQ about Heavy Duty Jaw Crusher
Heavy Duty Jaw Crusher vs. gyratory crusher: which to choose?
For under five hundred tons per hour, it offers better cost-performance at about sixty to seventy percent of a gyratory's price. The gyratory's capacity advantage shows above eight hundred tons per hour. The Heavy Duty Jaw Crusher tolerates higher moisture content.
Heavy Duty Jaw Crusher vs. Gyratory Crusher: Which One Should You Pick?
For output below 500 tons per hour, the Heavy Duty Jaw Crusher delivers superior cost performance, costing roughly 60% to 70% of a gyratory crusher. The gyratory crusher only gains an edge in processing capacity when throughput exceeds 800 tons per hour. Besides, the Heavy Duty Jaw Crusher can handle materials with higher moisture levels.
Heavy Duty Jaw Crusher Jaw Plates: High Manganese Steel or Alloy Steel?
When crushing hard rock such as granite, high manganese steel jaw plates have a service life around 40% longer than alloy steel alternatives, despite a 15% higher purchase price, resulting in lower comprehensive unit consumption costs. Alloy steel jaw plates are more cost-effective for limestone crushing operations. As material hardness rises, high manganese steel becomes the more practical option.
Heavy Duty Jaw Crusher Diagonal Jaw Plate Wear: Solutions & Troubleshooting
Diagonal abrasion on jaw plates is caused by off-center feeding, which stems from incorrect operating methods. You need to modify the feed chute right away to ensure raw materials fall into the center of the crushing cavity. Long-term eccentric feeding will cut jaw plate service life by more than 30% and generate uneven finished particle sizes. Keep observing the wear condition for 1 to 2 weeks post-adjustment to verify even, normal abrasion.
Heavy Duty Jaw Crusher Discharge Adjustment: Hydraulic vs Shim-Type Structure
Hydraulic discharge adjustment features rapid regulation and remote control capability, perfect for production lines requiring frequent finished size switching. Shim-type adjustment boasts a simpler structure and stronger operational stability, suited for production with fixed discharge sizes, yet each size modification takes approximately 30 minutes. Select shim-type adjustment for steady, unchanged production demands; opt for hydraulic adjustment if flexible size regulation is a priority.
