Cone Crusher Machine

What is Cone Crusher Machine?

Cone Crusher Machine is medium and fine crushing equipment based on the laminated crushing principle. It reduces medium-hard and above ores through compression between a moving cone and a fixed cone. The main structural components include the moving cone, fixed cone, main shaft, eccentric sleeve, hydraulic system, and lubrication circuit.

According to Research and Markets, the global Cone Crushers market grew from $1.82 billion in 2025 to $1.91 billion in 2026 and is projected to reach $2.65 billion by 2032. A properly configured unit typically operates with power consumption between 1.8 and 2.5 kWh per ton, depending on material hardness and feed size distribution.

The Laminated Crushing Principle of Cone Crusher Machine

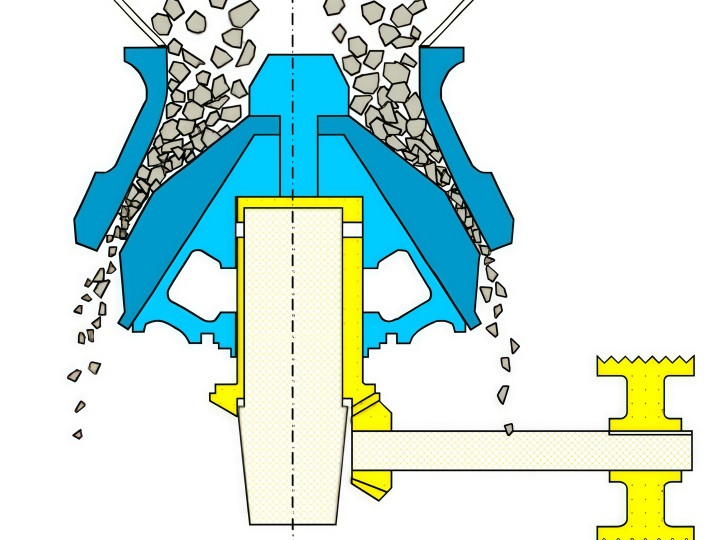

The working principle of Cone Crusher Machine is based on eccentric gyratory motion. The motor drives the eccentric sleeve, which rotates and causes the moving cone to gyrate. When the moving cone approaches the fixed cone, the material in the crushing chamber is compressed and fractured. When the moving cone moves away, the crushed material is discharged through the bottom opening. This cycle repeats continuously, enabling high-throughput production.

The laminated crushing effect occurs because material is compressed against other material particles rather than being crushed individually. This inter-particle crushing approach delivers a uniform product shape and good energy efficiency.

Measured Capacity Factors of Cone Crusher Machine

Based on operational data from multiple mining sites, there is a stable coefficient relationship between the actual and designed capacity of the product. This coefficient is influenced by material hardness, feed size distribution, and moisture content. The reference ranges under different conditions are as follows.

For granite applications, actual capacity is approximately 85% to 90% of the designed value. For iron ore applications, it is approximately 90% to 95%. For limestone applications, it is approximately 95% to 105%. When selecting the machine, multiply designed capacity by the lower-limit coefficient to avoid undersizing.

Technical Specifications of Cone Crusher Machine

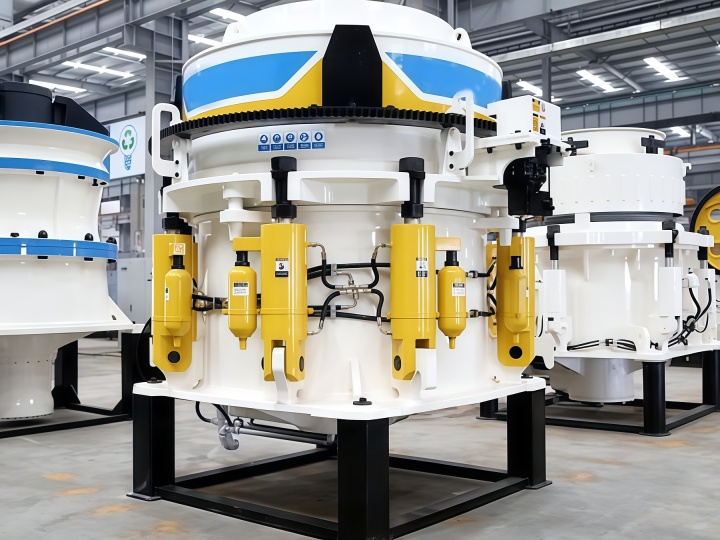

HC series multi-cylinder hydraulic cone crusher specifications published by NFLG.

HC1000 suits small to medium lines. HC1100 and HC1300 both have 250 kW power; the former has higher capacity, the latter handles hard materials. HC1500X reaches 745 t/h for large-scale mining.

Four Core Advantages of Cone Crusher Machine

The core advantages of the product are reflected in four aspects, with data sourced from industry publications and real project records. These advantages make it a preferred choice for medium to hard material processing.

Low Energy Consumption. The equipment consumes 1.8 to 2.5 kWh per ton, lower than impact crushers.

High Capacity. The machine has a wide capacity range. Derui MPZ800 produces 1,750 to 2,190 t/h. Metso HP6 achieved 1,000 to 1,200 t/h in Hubei.

Longer Wear Parts Life. The mantle and concave are made of high manganese steel. After optimization, alloy liners achieved 5.17 times longer life than conventional liners.

Stable Operation. It operates with low failure rates and suits multiple materials.

Four Application Scenarios of Cone Crusher Machine

The product suits a wide range of materials, with different requirements for crushing chamber type and discharge opening. Below are four typical application scenarios with corresponding configuration recommendations.

Iron Ore Crushing. A fine chamber is recommended with the discharge opening set between 10 and 14 mm.

Hard Rock Aggregate. A standard chamber is recommended with the discharge opening between 28 and 32 mm.

Tailings Recycling. Using waste rock from mining to produce construction aggregates.

Limestone Production. A standard or coarse chamber with the discharge opening enlarged to 35 to 40 mm.

Note: Ores with clay over 15% or moisture over 8% require pre-screening.

Global Project Cases of Cone Crusher Machine

Case 1: Mexico La Caridad Copper Mine 2025. Grupo Mexico ordered multiple Nordberg® MP800 units from Metso in Q3 2025, with an order exceeding EUR 20 million. The MP800 delivers up to 15% higher capacity than previous models with optimized chamber design and automation-ready features.

Case 2: Ghana Gold Mine 2025. A gold mine replaced a Sandvik CH660 with a CH865i model. The CH865i achieves up to 400 t/h, approximately double the original capacity. The mine signed a service agreement with Sandvik for ongoing maintenance.

Maintenance Points for Cone Crusher Machine

Routine maintenance of the equipment focuses on four areas: lubrication, liners, hydraulics, and special handling for sticky materials. Below are specific maintenance standards with field data for reference.

Lubrication. Change oil every 500 hours, shorten to 300 hours in high-dust environments. Stop when oil temperature exceeds 60°C.

Liners. Replace when worn to one-third of original thickness. For granite, liner life is 900 to 1,100 hours; for limestone, 2,000 to 2,500 hours.

Hydraulics. Pressure-test annually. Repair iron pass protection if non-functional.

Sticky Materials. Pre-screen to control fines below 8%, adjust discharge to the upper limit, reduce feed rate to 70% to 80%.

Cone Crusher Machine FAQ

Below are the four frequently asked questions about the product. FAQPage Schema markup is recommended to help Google's AI systems understand the content.

How often should the lubricating oil of Cone Crusher Machine be changed?

Every 500 hours under normal conditions, 300 hours in high-dust environments.

How to choose between Cone Crusher Machine and impact crusher?

Cone Crusher Machine offers lower energy consumption and stable production for medium to hard materials. Impact crushers have better shapes but shorter wear life, suiting softer materials.

What materials is Cone Crusher Machine suitable for?

Iron ore, copper ore, gold ore, manganese ore, and hard rocks like granite and basalt.

How to resolve high oil temperature issues in Cone Crusher Machine?

High oil temperature is often caused by clogged tubing, insufficient oil, or a malfunctioning safety valve. Stop the machine immediately, inspect and clear any blockages, check oil levels, and replace the safety valve if faulty.
