Coal gangue double-roll crusher for soil blending

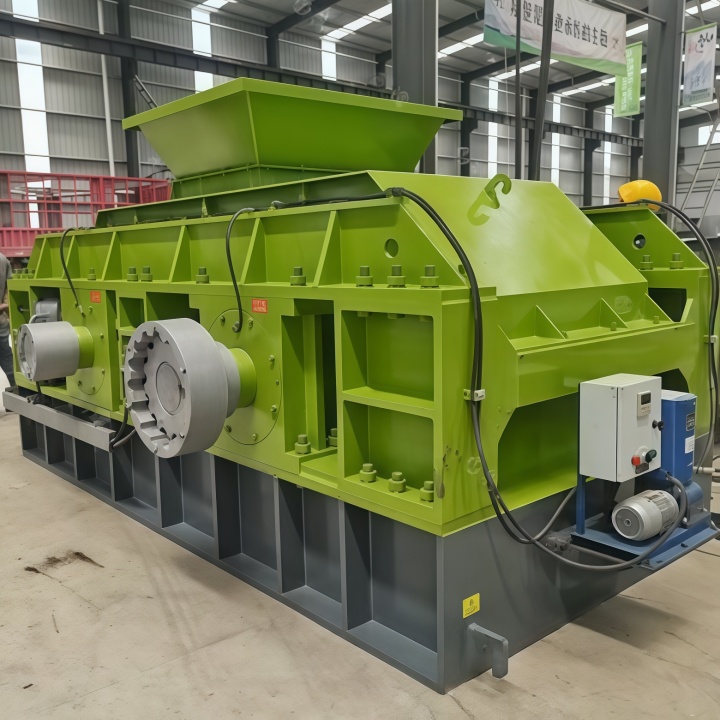

What Is the Coal Gangue Double-Roll Crusher for Soil Blending?

The Coal Gangue Double-Roll Crusher for Soil Blending is a double-roll crushing machine designed for breaking coal gangue and preparing it for soil blending. Global coal gangue emissions exceed 1 billion tonnes annually, with cumulative stockpiles reaching tens of billions of tonnes. This equipment uses compressive and shearing forces from two counter-rotating rolls to reduce coal gangue to uniform 3–10 mm particles, providing aggregate for soil improvement. The Coal Gangue Double-Roll Crusher for Soil Blending processes materials with compressive strength up to 160 MPa, as well as other medium-hardness materials, with single-unit capacity ranging from 2 to 110 tonnes per hour.

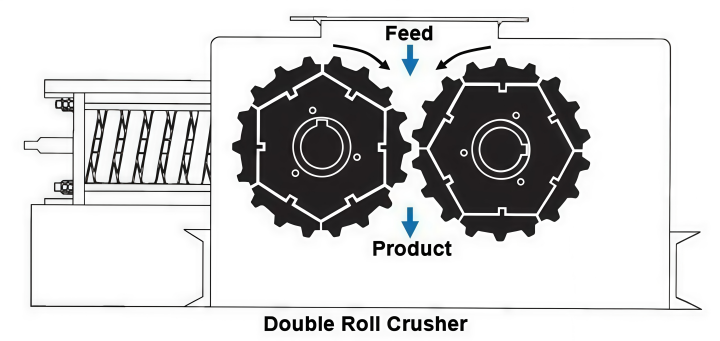

How the Coal Gangue Double-Roll Crusher for Soil Blending Works?

The core of this equipment consists of two parallel rolls with toothed surfaces that rotate toward each other. Material enters the V-shaped crushing chamber between the rolls, where compression, shear, and tearing forces are applied. The specially designed tooth profiles grip large gangue lumps and fracture them along natural cleavage planes. This technology follows a low-speed, high-pressure static pressing principle, breaking material along natural crystalline cleavage planes rather than by impact. Product size adjusts between 2 mm and 25 mm via hydraulic or mechanical gap-setting devices. Dual independent motors ensure stable roll operation.

Key Advantages of the Coal Gangue Double-Roll Crusher for Soil Blending

The Coal Gangue Double-Roll Crusher for Soil Blending offers advantages in product size control, resistance to clogging with high-moisture materials, lower energy and maintenance costs, and reliable overload protection.

Uniform product size – With fixed roll centre distance, material receives a single compression pass with minimal recrushing, reducing over-crushing and producing consistent particle size.

Strong anti-clogging– The self-cleaning tooth design removes adhering material during operation, allowing continuous running at moisture contents up to 30%.

Lower energy and maintenance– Power consumption is 0.5–0.8 kWh per tonne, 30–40% less than a jaw crusher of similar capacity. Segmented tooth design allows worn segments to be replaced on site without dismantling the entire roll, cutting maintenance time by about 70%. High-chromium alloy roll surfaces typically last over 8,000 hours under normal conditions.

Reliable overload protection– When tramp iron enters the chamber, the hydraulic system retracts to let it pass and then resets, protecting the main shaft and motors.

Real-World Performance of the Coal Gangue Double-Roll Crusher for Soil Blending

Performance data from a typical project illustrates the capabilities of this equipment.

In a large-scale coal gangue utilisation project, the equipment processed aged gangue stockpiled for over five years. Feed moisture ranged from 22% to 26%, and compressive strength measured 85–120 MPa. A model 2PGC-750×500 set to 6 mm product size ran continuously for 480 hours. Results showed: average throughput of 22.5 t/h, reaching 75% of rated capacity; 82% of product in the 4–8 mm range, with less than 6% over 8 mm; and roll wear of 1.8 mm, projecting a replacement cycle of approximately 8,500 hours. Three tramp iron events triggered the hydraulic overload protection, and each time the system reset without damage.

These data come from actual operating conditions and serve as a selection reference. Actual results vary with material hardness, moisture, feeding method, and other factors, so users should evaluate their own material characteristics before final selection.

Technical Specifications of the Coal Gangue Double-Roll Crusher for Soil Blending

Common models and specifications are listed below:

The equipment handles materials with compressive strength up to 160 MPa. Product size adjusts by altering the roll gap. Final selection should consider hardness, throughput, and product size.

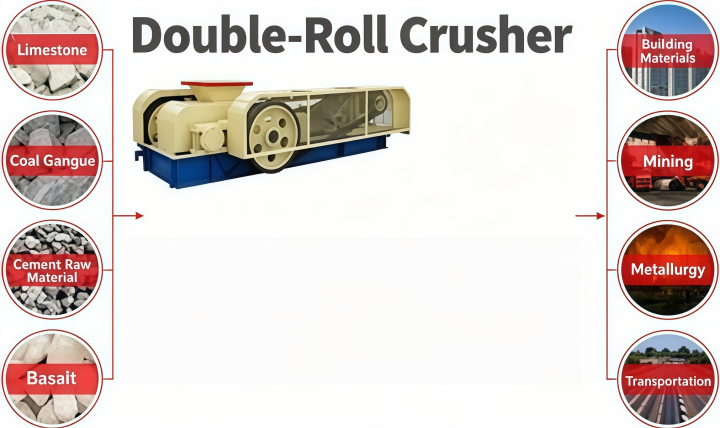

Application Scenarios for the Coal Gangue Double-Roll Crusher for Soil Blending

This equipment is used in soil amendment production, building material preparation, and processing of other medium-hardness materials.

Soil amendment and land reclamation – Crushed gangue mixes with soil, organic fertiliser, and microbial agents to produce eco-soil or soil conditioners. Studies show gangue addition improves soil aggregate structure and water stability. This equipment reduces material to the preferred 3–10 mm range.

Building material feed – Crushed product serves as concrete aggregate, brick-making material, or cement admixture. By adjusting discharge size, the same machine produces different gradings for sub-base filling, brick manufacture, or fine concrete filler. Research indicates gangue can replace 50–75% of cementitious material in mine backfilling.

Other medium-hardness materials – The crusher also suits limestone, shale, coke, clay, and similar brittle materials.

How to Choose the Right Model of the Coal Gangue Double-Roll Crusher for Soil Blending？

Selecting the appropriate model requires evaluating three key factors: capacity, feed size, and product specification.

Capacity needs – For under 5 t/h, choose the 400×250 or 610×400; for 10–30 t/h, the 750×500; for above 30 t/h, the 900×900 or 900×1200.

Feed size– Maximum feed ranges from 32 mm to 90 mm. If no pre-crushing is available, opt for a model with a larger feed opening.

Product size – Soil blending usually needs 3–10 mm; building applications may need coarser or finer material. Finer settings reduce actual capacity, so selection should be based on the finest required size.

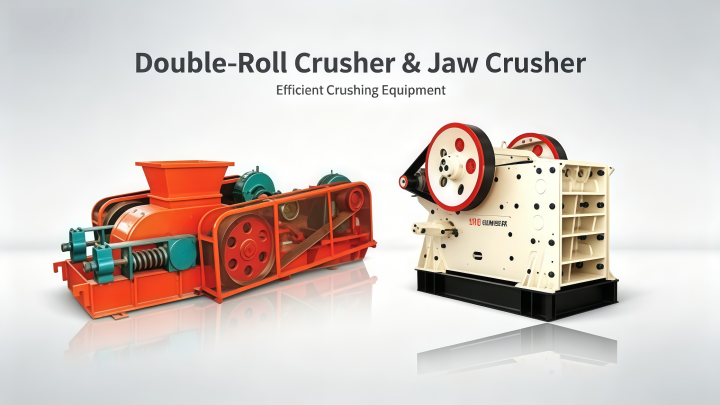

How the Coal Gangue Double-Roll Crusher for Soil Blending Compares with Other Solutions？

For coal gangue soil-blending pre-treatment, this equipment differs from jaw crusher plus screening and hammer crusher alternatives.

A jaw crusher with screening requires additional vibrating screens and return conveyors, occupying about three times the floor space and costing 40–60% more in total investment. Screening produces significant over-crushing, with usable particle recovery typically only 60–70%. A hammer crusher, while efficient for medium-hard materials, has hammers needing replacement every 800 hours or less under abrasive gangue conditions, and performance drops noticeably when feed moisture exceeds 15%, often leading to grate clogging.

This equipment strikes a good balance: it performs single-pass crushing without auxiliary screening; the roll design handles moist feeds more effectively; and replacing segmented teeth costs less than overhauling a full hammer rotor. For projects requiring tight product size control, tolerating fluctuating moisture, and preferring a simple process flow, this equipment offers a cost-effective solution.

Frequently Asked Questions About the Coal Gangue Double-Roll Crusher for Soil Blending

How long do the rolls of the Coal Gangue Double-Roll Crusher for Soil Blending last?

With high-chromium alloy rolls processing ordinary gangue, service life is typically 2,000–4,000 hours, and can exceed 8,000 hours under normal conditions.

What moisture level can the Coal Gangue Double-Roll Crusher for Soil Blending handle?

It runs continuously at moisture contents up to 30%, and the self-cleaning tooth design prevents material build-up.

How does power consumption compare with a jaw crusher?

It consumes 0.5–0.8 kWh per tonne, which is 30–40% less than a jaw crusher of equivalent capacity.

How much does capacity drop when product size is made finer?

When reducing from 8 mm to 2 mm, the same model typically loses 30–50% of throughput, so selection should be based on the finest required product size.
