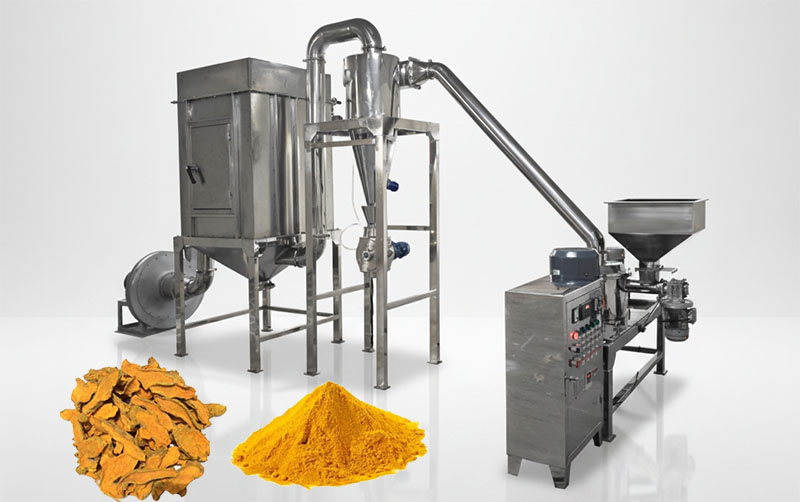

Turmeric Crusher Machine

Grinding mesh: 80-450 mesh

Processing capacity: 50-2000 kg/hour

Power: 7.5-11kW

What is a Turmeric Crusher Machine?

A Turmeric Crusher Machine can be used to pulverize dried flaky or granular turmeric into powder of 60-450 mesh, producing uniform particle size. The fineness of the powder can be adjusted according to needs, and it can process 50 kg to 2000 kg per hour. Turmeric roots and stems are characterized by high fiber, high toughness, and oil content. The machine uses rotating blades to shear and break down the cellulose structure, and a temperature control system effectively preserves curcumin content, natural color, and volatile oils. High-precision grading ensures uniform particle size distribution.

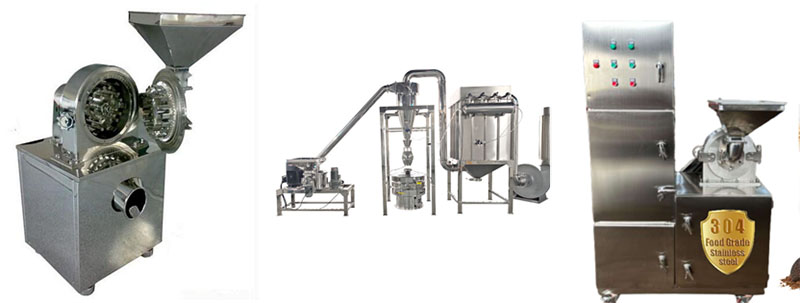

What types of Turmeric Crusher Machines are there?

Turmeric Crusher Machines mainly come in three types: turbine-type, ultra-micro, and cryogenic liquid nitrogen/air-cooled. They can meet different needs and fineness requirements for turmeric grinding. The appropriate model can be selected based on specific requirements.

Turbine-type Turmeric Crusher Machines offer high cost-effectiveness. They generate a powerful airflow through high-speed turbine rotation, instantly refining turmeric particles to a fineness of 60-120 mesh. With a capacity of up to 2000 kg, they are suitable for users with less stringent fineness requirements.

Ultra-micro Turmeric Crusher Machines offer ultra-fine grinding up to 400 mesh. They feature a built-in classifying wheel, ensuring that only powder of the required fineness is discharged. Larger particles are continuously separated to the specified mesh size. They have a high breaking ratio, resulting in powder with good flowability. They are commonly used in high-end turmeric health products, turmeric capsules, water-soluble curcumin, and as an additive in pasta.

The cryogenic liquid nitrogen/air-cooled Turmeric Crusher Machine uses air cooling or liquid nitrogen to keep the grinding chamber at a low temperature for an extended period, preventing the volatilization of turmeric essential oil and browning, preserving the activity of turmeric, reducing component loss, and achieving a particle size of 80-300 mesh.

What are the advantages of the Turmeric Crusher Machine?

The Turmeric Crusher Machine uses SUS304 or 316L stainless steel with a mirror-polished finish, ensuring material cleanliness. The grinding chamber uses a water-cooled jacket and strong air cooling to control the operating temperature below 40℃, preserving the golden color of the turmeric powder and achieving a curcumin retention rate of over 95%. By changing the mesh size of the sieve, it can produce 80, 100, 200, 300, and even 325 mesh turmeric ultrafine powder, with uniform particle size, no impurities, and a processing capacity of up to 2000 kg/hour.

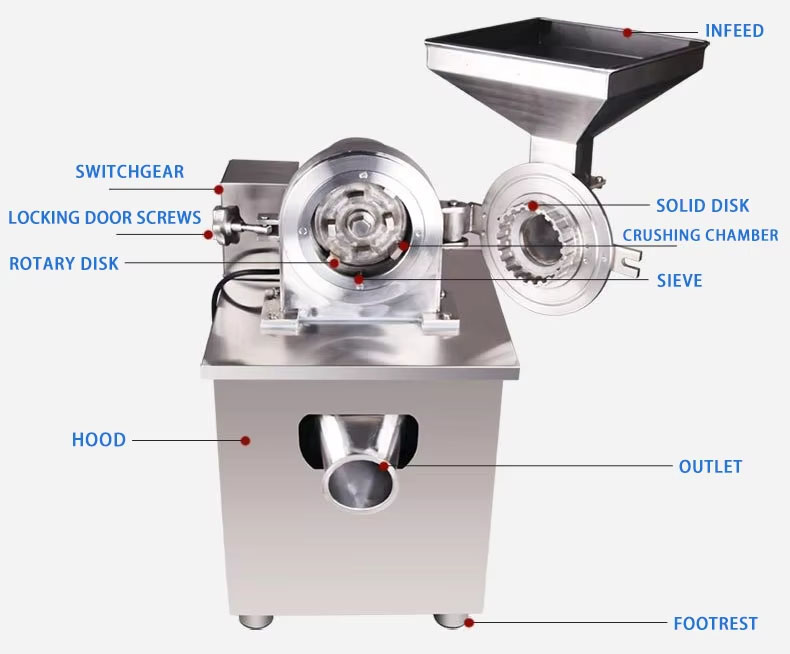

How does the Turmeric Crusher Machine work?

After the Turmeric Crusher Machine is started, turmeric powder is fed into the grinding chamber through the inlet. Driven by the high-speed rotating rotor, the turmeric undergoes intense impact, shearing, and friction between the stator and rotor, instantly being shredded into fine powder. The shredded powder rises with the airflow to the grading zone. The grading wheel rigorously screens the powder; coarse powder that does not meet the target mesh size is thrown back to the grinding zone for further grinding. Only fine powder that meets the fineness requirements can pass through.
