Z-type conveyor combined weighing and packaging machine
Friday May-30 2025 17:52:23

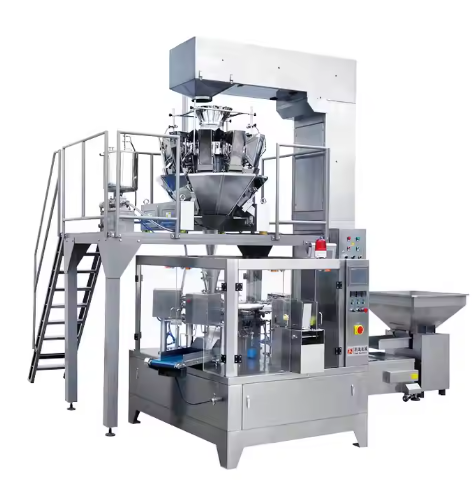

Z-type conveyor combined weighing and packaging machine perfectly combines material lifting, precise weighing and automatic packaging. The vertical conveying of materials is achieved through the Z-type bucket conveyor, and the multi-head combination scale ensures fast and accurate metering, and then the packaging operation is automatically completed. This equipment is widely used in the fully automatic packaging of granular materials.
The Z-type conveyor is used as the feeding part, using food-grade PP bucket or stainless steel bucket, the conveying height can be customized, and the conventional lifting capacity is 3-6 cubic meters/hour. The equipment runs smoothly, the bucket structure is easy to disassemble and wash, and it has automatic stop and start control to effectively prevent material blockage or waste.
The combination scale part is often equipped with 10-head or 14-head high-precision weighing units, with a weighing range of 10g to 1000g, a speed of up to 60 times/minute, and a weighing error generally controlled within ±0.3g. Its core algorithm can realize intelligent weight distribution, improve packaging accuracy and reduce material waste.

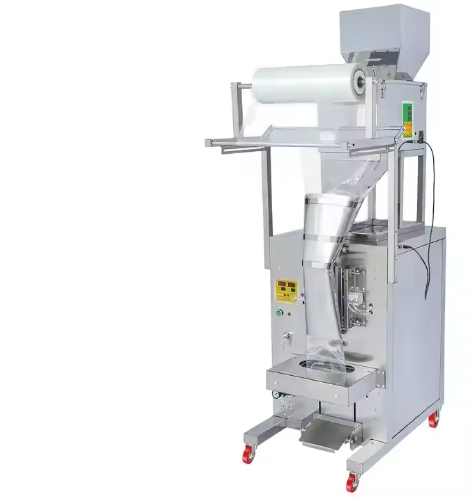

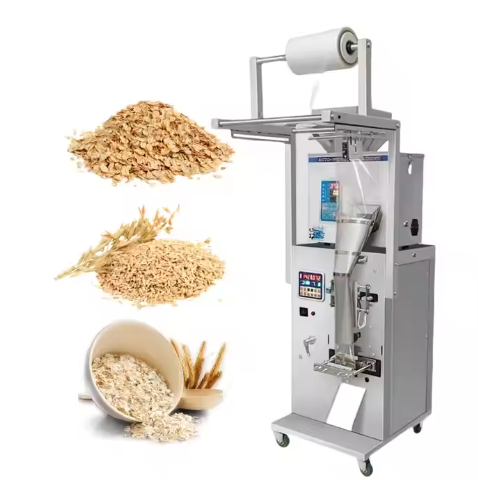

The packaging machine adopts a vertical bag making method, supports a variety of bag types such as pillow bags and gusset bags, and has a firm and beautiful seal. The packaging speed is 30-60 bags/minute, and the bag width is adjustable from 80-300mm. The whole machine is equipped with a PLC control system, touch screen operation, intuitive and easy parameter setting, and supports Chinese and English interface switching and historical data recording.
The whole system can be equipped with supporting equipment, such as finished product conveyor, metal detector, coder, etc., to form a complete automatic packaging line to meet the needs of high-efficiency production.
In addition to the standard Z-type conveyor combination packaging system, the multi-functional combination weighing and packaging machine can realize multi-material mixed weighing, automatic rejection, online weighing verification, automatic labeling and other functions through module integration, which is suitable for products with higher requirements for packaging technology. For example, snack foods, seasoning combination packages, pet foods, etc. have high requirements for the accuracy of multi-material ratios, and multi-channel and multi-scale combination designs are required to improve the flexibility of the production line.
The Z-type bucket conveyor can also be used as a separate device in food transportation scenarios. Its structural characteristics are that it can achieve large-angle lifting, stable material transportation process in the bucket, and low breakage rate. It is suitable for industries with high integrity requirements such as crisps, candies, and frozen foods. The conveying speed is adjustable, and it supports linkage with a variety of upstream/downstream equipment, with strong adaptability.
As an important part of the modern automated packaging system, the Z-type conveyor combined weighing and packaging machine has high integration, stable operation, and outstanding precision, which significantly improves the packaging production efficiency. Whether it is quantitative packaging of a single material or intelligent weight-balanced packaging of multiple materials, this equipment can provide efficient, accurate, and reliable solutions, and is an ideal choice for modern packaging workshops to achieve automation upgrades.
