Two-Stage Crusher Machine

What is a Two-Stage Crusher Machine？

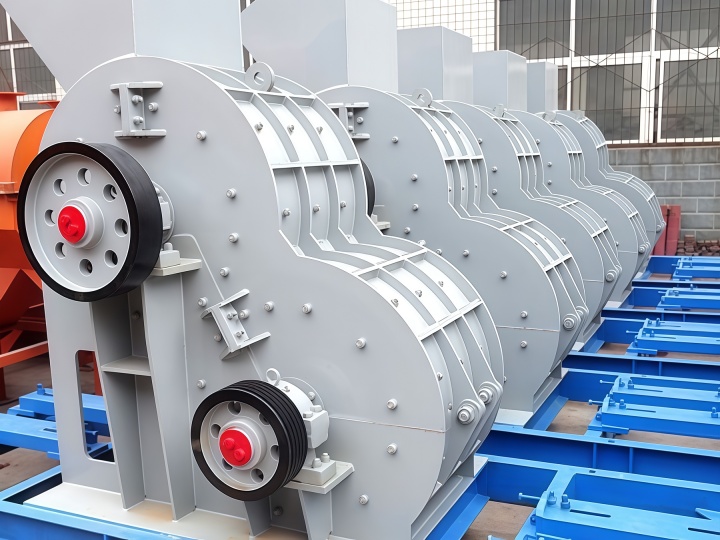

Two-Stage Crusher Machine integrates two sets of hammer crushing rotors in series into a complete industrial crushing unit. The equipment uses dual motors to drive upper and lower rotors simultaneously, performing coarse and fine crushing in two continuous stages, with output particle size controlled below 3mm. Compared with traditional single-stage crushers, it offers a larger crushing ratio and higher output, while addressing material blockage in high-moisture applications. The related technology has been granted Chinese utility model patent CN211865232U.

How does Two-Stage Crusher Machine achieve two-stage crushing?

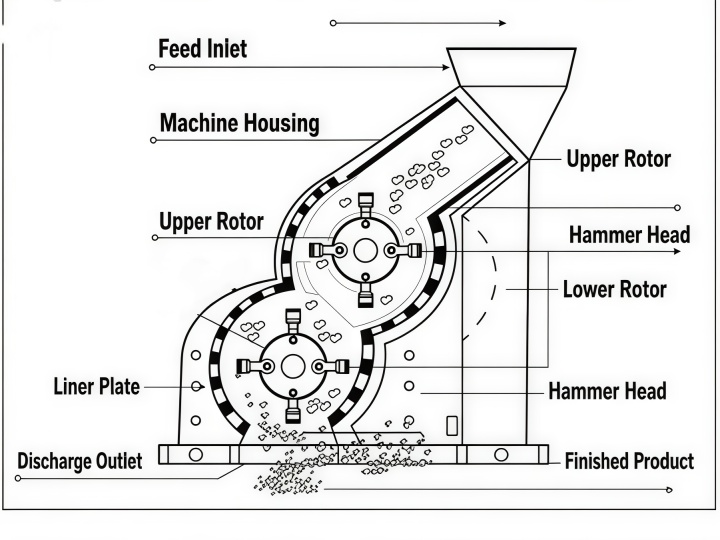

The unit uses a dual-rotor series structure based on energy cascade utilization. Material enters and the upper rotor hammer impacts it at a linear velocity exceeding 45 m/s, breaking large pieces into medium particles. These fall by gravity into the lower rotor zone, where the lower rotor operates at 65 to 75 m/s, delivering a secondary impact. The speed differential subjects the material to two crushing actions with different force directions, producing uniform particles below 3mm. Since the equipment has no screen grate, crushed material discharges directly by gravity.

The linear velocity ratio between the upper and lower rotors directly affects output particle size distribution. A DEM simulation study from the University of the Witwatersrand indicates the dual-rotor design achieves improved grinding performance at lower rotational speeds compared with single-rotor designs. Adjusting the ratio from 1:1.3 to 1:1.5 increases the proportion of particles below 2mm from 85% to over 92%.

What are the technical specifications of Two-Stage Crusher Machine?

The equipment is available in multiple models, with feed size not exceeding 200mm and output controllable below 3mm, with particles under 2mm accounting for 85% to over 92%. Specifications for common models are shown below:

The key technical parameters of Two-Stage Crusher Machine are comparable with products from international brands such as Metso and Sandvik, and the equipment complies with ISO 9001 standards. Different models vary in feed/output size and motor power, requiring selection based on material characteristics and capacity needs.

How to select the right Two-Stage Crusher Machine model based on production requirements?

Selection requires consideration of material hardness, target capacity, and on-site power supply. For brick production: processing 300 tons of coal gangue per day over a 10-hour day requires 30 t/h capacity. The 2PC 800×600 model handles 18 to 55 t/h, meeting this requirement, with combined installed power of 100kW requiring transformer capacity no less than 150kVA. For harder materials or feed size exceeding 150mm, moving up to the 2PC 1000×800 model is recommended. The unit processes materials with moisture content up to 20% to 30%; moisture does not affect selection.

What are the core advantages of Two-Stage Crusher Machine?

Two-Stage Crusher Machine delivers three core advantages over traditional crushing equipment: blockage-free operation even with high-moisture feed, higher crushing efficiency with lower energy consumption, and reduced overall costs across procurement, floor space, and maintenance.

Blockage-free operation. Traditional crushers handling coal gangue or shale with moisture exceeding 10% experience screen plate blockage within minutes, leading to shutdowns. The equipment removes the screen grate and processes wet coal slime and rainy-season materials with moisture up to 20% to 30%, resolving the clogging problem.

Higher efficiency and longer service life. The dual-rotor series structure completes both coarse and fine crushing in a single feed, with energy consumption approximately 20% lower than traditional multi-stage lines. The unit uses high-chromium alloy hammers with service life approximately 2 to 3 times that of ordinary cast steel parts. Worn hammers can be adjusted to alternate positions and reused, with maintenance costs roughly 40% lower. The hydraulic-opening housing enables one-touch hammer replacement, reducing downtime by approximately 60%.

Lower total cost. Compared with a single-stage hammer crusher plus vibrating screen combination, the unit reduces procurement costs by approximately 30%, floor space by about 40%, and overall operating costs by roughly 18%. These figures have been recorded across multiple projects.

Field performance data of Two-Stage Crusher Machine

Data from actual application cases reported in public sources:

A project in Yulin, Shaanxi, used an SCF1000×1000 model of the equipment to process coal gangue with 18% moisture. It operated without blockage throughout the rainy season, maintaining stable capacity of 80 t/h. A shale brick plant in Meishan, Sichuan, switched to the 2PC 800×600 model and saw rainy-season output exceed dry-season output. In global brick production lines, the 2PC800×800 model supports stable operation at 12% to 18% moisture, with output ≤3mm and particles under 2mm exceeding 85%. The unit has been deployed in tunnel kiln brick projects across Africa, Central Asia, and the Middle East.

What materials can Two-Stage Crusher Machine process?

Brick production uses the equipment to process coal gangue, shale, coal slag, and furnace slag. In construction waste recycling, concrete blocks and waste bricks are crushed into uniform particles below 3mm for recycled building materials. In mining and mineral processing, calcite, limestone, and iron ore are processed with high crushing ratio and uniform output. The metallurgical sector uses it to process slag, steel slag, and furnace slag, including high-moisture materials. Ceramic and refractory industries also use the unit for raw material grinding.

User feedback on Two-Stage Crusher Machine

Yulin, Shaanxi project manager: Used the equipment to process 18% moisture coal gangue and did not experience a single blockage throughout the rainy season.

Meishan, Sichuan shale brick plant supervisor: After switching to the unit, rainy season output surpassed dry season output.

Overseas brick plant client: The 2PC800×800 model runs stably at 12% to 18% moisture with no sticky blockages or motor overload shutdowns.

Frequently Asked Questions about Two-Stage Crusher Machine

What moisture content can Two-Stage Crusher Machine handle?

Core answer: Up to 20% to 30%.

The equipment uses a screenless grate-free design and handles wet coal slime and rainy-season materials without clogging.

What final fineness can Two-Stage Crusher Machine achieve?

Core answer: Below 3mm, with particles under 2mm accounting for 85% to over 92%.

Fineness depends on material hardness and linear velocity ratio settings.

How long do the hammers of Two-Stage Crusher Machine last?

Core answer: Approximately 2 to 3 times that of ordinary cast steel parts.

The unit uses high-chromium alloy hammers; worn hammers can be adjusted to alternate positions for continued use.

Is Two-Stage Crusher Machine easy to maintain?

Core answer: Hydraulic-opening housing reduces downtime by approximately 60%.

One-touch opening enables hammer replacement; a single person can complete maintenance.

Two-Stage Crusher Machine combines a dual-rotor series structure, screenless grate-free design, and high-alloy wear-resistant hammers for fine crushing of high-moisture and medium-hardness materials. The equipment has been validated in coal gangue and shale projects in Shaanxi and Sichuan, and exported to brick production lines across Africa, Central Asia, and the Middle East.
