Fine Crusher Machine

What Is Fine Crusher Machine?

Fine Crusher Machine is tertiary crushing equipment that uses high-speed rotor impact to process brittle materials with compressive strength up to 100MPa, including granite, iron ore, and coal gangue, into 0-10mm finished products. The global crushing equipment market was valued at USD 6.03 billion in 2025 and is projected to reach USD 6.56 billion in 2026, with a CAGR of 8.94%.

Fine Crusher Machine, as a core component of this growing market, delivers consistent performance for sand making and mineral processing applications worldwide. The equipment is available in hammer, impact, roller, and coarse grinding configurations. The machine reduces medium-hard bulk materials into uniformly graded fine sand or powder, with 85% to 90% of output particles below 3mm. Feed size ranges from 60mm to 200mm, with adjustable discharge size to meet varied production requirements.

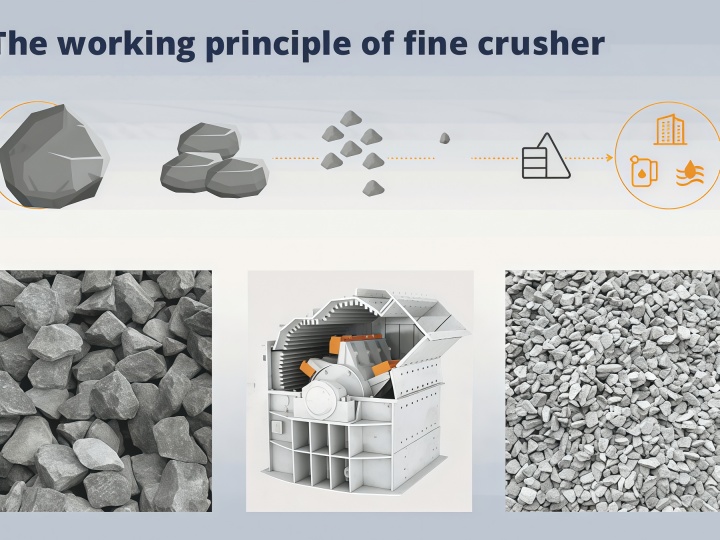

How Fine Crusher Machine Works?

Material entering the equipment is struck repeatedly by high-speed rotating hammers, completing the comminution process through high-frequency impact. Material enters the crushing chamber and is first fractured by the rotor-mounted hammer heads. The accelerated material then impacts the breaker plates at high velocity for secondary crushing. Subsequently, the material settles on the screen plate where it undergoes further reduction through cutting, compression, and grinding actions before discharging through screen openings. Oversized material recirculates within the crushing chamber until reaching the target size.

The rotor operates at 800 to 1200 RPM. In granite crushing applications, the crusher produces flat and elongated particle content of 6.3% to 7.8%, meeting the ≤10% requirement for Class II sand per GB/T 14684.

Technical Specifications of Fine Crusher Machine

The unit is available in multiple models with specifications as follows:

Capacity ranges from 20 to 270 metric tons per hour, with specific energy consumption of 1.8 to 2.5 kWh per ton under rated conditions. All models are manufactured under ISO 9001 quality management systems and meet CE requirements for European market access.

Key Advantages of Fine Crusher Machine

Fine Crusher Machine delivers measurable advantages in three areas: operating cost, durability, and product quality.

Operating Cost: Under identical feed conditions, the equipment shows specific energy consumption of 2.1 kWh/t compared to 3.5 kWh/t for conventional hammer crushers. For a 500,000-ton-per-annum operation, this translates to approximately USD 20,000 in annual electricity savings and 120 fewer maintenance hours.

Durability: The machine contains 87 components — 34 fewer than comparable units. Hammer life in medium-hardness applications reaches 2.5 to 3 times that of conventional cast steel hammers, with replacement intervals extending from 300 to 650 operating hours.

Product Quality: Flat and elongated particle content measures 6.3% to 7.8% in granite crushing applications, below the ≤10% Class II sand requirement per GB/T 14684. Discharge size adjusts from 0 to 10mm via the adjustment mechanism, completed within 15 minutes during shutdown.

Proven Performance in Real-World Production

In a limestone sand making operation in Henan, China, the unit operated continuously for 876 hours, processing approximately 38,000 metric tons of material with average specific energy consumption of 2.1 kWh/t, and 87% to 92% of output below 3mm. At a 120 t/h limestone project in Shandong, the machine integrated with vibrating screens and belt conveyors in a closed-loop circuit.

Over three months of continuous operation, daily throughput averaged 115 to 128 metric tons, with finished sand fineness modulus ranging from 2.5 to 2.8, meeting C30 concrete sand specifications. The device accumulated 2,150 operating hours with one hammer change, and a single maintenance shutdown lasting 3.5 hours. The operator reported normal operation when material moisture content reached 12%, with no plugging or unplanned downtime.

Solving Critical Production Challenges

The crusher addresses critical pain points in material reduction across multiple applications.

Poor Aggregate Shape in Manufactured Sand: The machine controls flat and elongated particle content at 6.3% to 7.8% in granite crushing, producing Class II manufactured sand per GB/T 14684 in a single pass — addressing the poor particle shape typical of conventional crushers.

High Energy Consumption in Cement Clinker Grinding: At a cement plant retrofit project in Fujian, China, the unit operated for six months before inspection revealed hammer face wear of 12mm and bearing clearance increase of 0.08mm, with uptime 7 percentage points higher than a concurrently installed imported unit. The equipment reduces feed size from 25mm to below 5mm, increasing downstream ball mill throughput by 15% to 20%.

Wet Season Plugging and Downtime: At the 120 t/h limestone project in Shandong, the machine operated continuously for 2,150 hours with one hammer change despite material moisture content reaching 12%, reducing wet-season production losses.

Fine Crusher Machine processes brittle and medium-hard materials with compressive strength up to 320MPa. Material moisture content should remain below 15% for optimal performance.

Customer Feedback on Fine Crusher Machine

During project acceptance in April 2026, the Shandong limestone sand making operator reported stable operation with average daily throughput of 115 to 128 metric tons, exceeding design capacity by 6%. Operators noted that the machine requires minimal adjustment after start-up, with two routine inspections per 8-hour shift — lower than comparable equipment.

The project manager compared the unit against two previously used conventional crushers, noting that a single Fine Crusher Machine replaced the output of two older units, reducing staffing from 3 operators to 1, a 66% reduction in labor costs.

Frequently Asked Questions About Fine Crusher Machine

How long do the hammers last on Fine Crusher Machine?

Hammers typically last 400 to 800 hours when processing medium-hardness materials like limestone. Efficiency declines when wear reaches 30% to 40% of original weight. In the Shandong project, the unit operated 2,150 hours with one hammer change — exceeding theoretical estimates.

What are the noise and dust levels during operation of Fine Crusher Machine?

Operating noise is typically below 75 decibels. With dust collection systems installed, particulate emissions can be controlled below 30 mg/m³. On-site monitoring at the Fujian cement plant recorded boundary noise of 68 decibels, meeting local environmental requirements.

What should I check during initial installation of Fine Crusher Machine?

Foundation levelness must not exceed 0.5mm per meter. Anchor bolt torque must comply with specification sheet values. A minimum 2-hour no-load test run is required before commissioning, with all bearing temperature rises kept below 35°C.

What is the recommended maintenance schedule for Fine Crusher Machine?

Inspect hammer wear and oil level every 8 operating hours. Replenish or replace lubricant every 200 hours. Perform comprehensive inspection every 800 hours, including hammer rotation or replacement, screen plate inspection, and bearing clearance measurement.

What Makes Fine Crusher Machine the Right Choice?

Fine Crusher Machine delivers consistent performance in energy efficiency, product quality, and operational stability for sand making and mineral processing applications worldwide. Model selection should be based on material characteristics and production capacity requirements using the specifications table above. For detailed technical documentation, customized drawings, or to discuss your specific application requirements, please contact our technical sales team. We provide free preliminary assessments .
