Bauxite Roll Crusher for Refractory Castable
What Is Bauxite Roll Crusher for Refractory Castable？

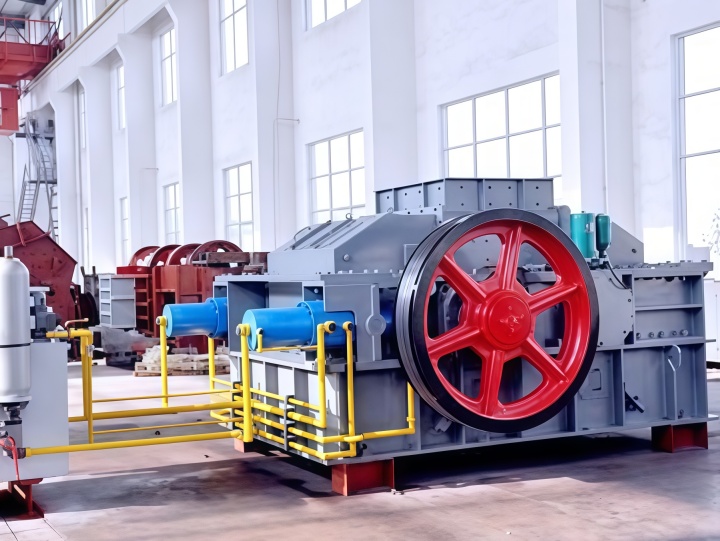

In refractory castable production, the particle size distribution and shape of aggregates directly influence the final product performance. Bauxite roll crusher for refractory castable is designed specifically to address these two core requirements in the medium and fine crushing stage of calcined bauxite.
The equipment reduces feed material ranging from 35 to 120mm down to 2 to 40mm aggregate particles, utilizing a double-roller contra-rotating compression crushing method, and can process bauxite with compressive strength up to 160MPa. The processed aggregates are used in refractory castables for high-temperature applications such as ladle linings, tundish working layers, and cement rotary kiln burning zones.
How Does Bauxite Roll Crusher for Refractory Castable Work？

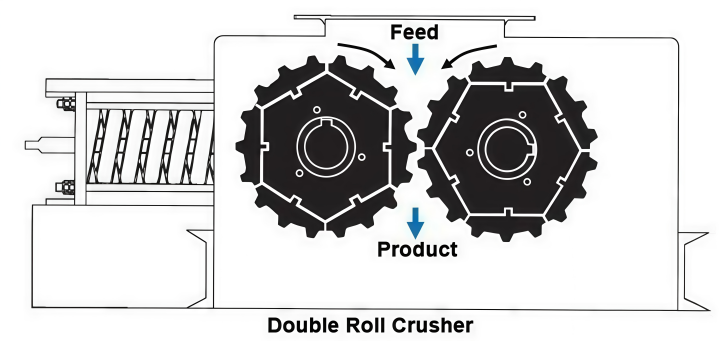

The crushing principle differs fundamentally from that of hammer crushers. Hammer crushers rely on high-speed impact, whereas bauxite roll crusher for refractory castable applies continuously increasing static pressure through two rollers rotating in opposite directions, a method known as compression crushing. Impact crushing generates numerous micro-cracks within particles, which can become structural weak points during high-temperature service in refractories.
Compression crushing, in contrast, enables material to separate along natural grain boundaries, resulting in less internal damage. Bauxite roll crusher for refractory castable produces cubic-shaped aggregates with favorable particle shape while effectively reducing fines generation, which contributes to improved cold and hot strength in refractory castables.
The Technical Specifications of Bauxite Roll Crusher for Refractory Castable
The equipment is available in multiple models to accommodate varying capacity requirements:
| Model | Feed Size mm | Output Size mm | Capacity t/h | Motor Power kw | Weight t |
|---|---|---|---|---|---|
| 2PG400×250 | ≤35 | 2-8 | 2-10 | 2×5.5 | 1.3 |
| 2PG610×400 | ≤65 | 2-20 | 5-20 | 2×15 | 3.9 |
| 2PG750×500 | ≤75 | 2-25 | 10-40 | 2×18.5 | 9.5 |
| 2PG800×600 | ≤80 | 2-25 | 12-45 | 2×22 | 10.8 |
| 2PG1000×800 | ≤100 | 3-30 | 40-65 | 2×45 | 14.9 |
| 2PG1200×800 | ≤120 | 3-35 | 45-100 | 2×75 | 25.5 |
Output particle size can be adjusted by adding or removing shims or by adjusting the wedge device. The rollers of bauxite roll crusher for refractory castable undergo case hardening treatment, and each unit passes no-load and load testing prior to delivery, with inspections covering roller temperature, bearing vibration, product particle size distribution, and overall energy consumption.
What Are the Key Advantages of Bauxite Roll Crusher for Refractory Castable？
The core advantages of this equipment are reflected in maintenance convenience, low fines generation, and flexible discharge adjustment.
Practical maintenance experience. Data collected from three 20,000-ton-per-year bauxite processing lines over a 12-month period shows that maintenance for bauxite roll crusher for refractory castable focuses on roller wear inspection and bearing lubrication. When grooving wear on the roller surface exceeds 4mm in depth, discharge particle size begins to deviate, requiring build-up welding repair. For processing bauxite with 75% Al₂O₃ content, roller surface inspection is recommended every 400 to 600 operating hours, with bearing temperature rise not exceeding 40°C.
Lower fines generation compared to impact crushing. Bauxite roll crusher for refractory castable employs compression crushing, producing fewer fines than hammer crushers. Calcined bauxite accounts for over 60% of total raw material costs in castable production, so reducing fines output translates directly to material savings.
Flexible discharge adjustment. Particle size can be changed by adjusting shims or the wedge device without replacing components, reducing downtime when switching between castable formulations.

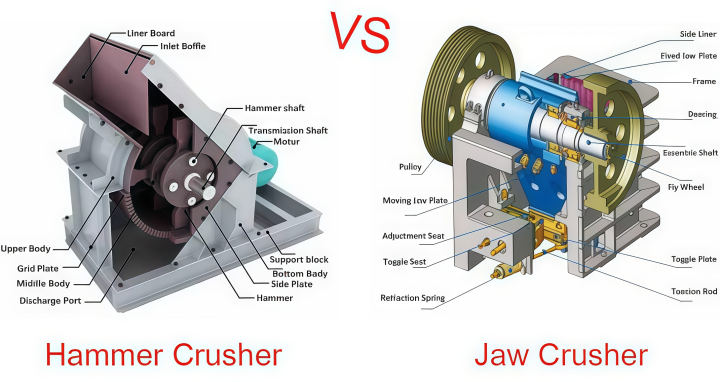

Bauxite Roll Crusher vs Jaw Crusher vs Hammer Crusher
In refractory castable production, the key consideration when selecting crushing equipment is which type best suits your raw material and product requirements. The three types serve distinct roles in primary crushing, medium-fine crushing, and precise particle control.
Jaw crushers are used for primary crushing, accepting feed up to 500mm or more, but produce relatively coarse output, typically no finer than 40mm, and mainly serve as the front-end equipment for this roller crusher.
Hammer crushers are used for medium-fine crushing with high throughput capacity, but impact crushing generates a higher proportion of fines, more micro-cracks, and flatter particle shapes, with screens and hammers requiring frequent replacement.
Bauxite roll crusher for refractory castable is designed specifically for medium-fine crushing and precise particle control, with discharge adjustable from 2 to 40mm and lower fines generation than hammer crushers. Its limitation is restricted feed size, requiring a jaw crusher upstream.
Selection logic: feed material larger than 120mm requires jaw crusher primary crushing; when particle shape and fines content are important considerations, bauxite roll crusher for refractory castable is the appropriate choice; when only size reduction is needed without shape requirements, a hammer crusher can serve as an alternative.
What Materials Can Bauxite Roll Crusher for Refractory Castable Process？
The equipment processes three main material categories: calcined bauxite clinker, high-alumina refractories, and auxiliary raw materials.
Calcined bauxite clinker is the primary application material, with Al₂O₃ content typically ranging from 60% to 88%. According to Grand View Research data, the global refractory materials market was valued at approximately $32.9 to $39.1 billion in 2024. Bauxite roll crusher for refractory castable reduces lump calcined bauxite to 0 to 40mm particles, providing the required grading for castables.
High-alumina refractory materials such as fused alumina and mullite can also be processed for use in steel, cement, and glass industry kiln linings. Auxiliary materials including clay clinker and silica are equally applicable, with finished aggregates used in ladle linings, tundish working layers, cement kiln refractory linings, and other high-temperature applications.

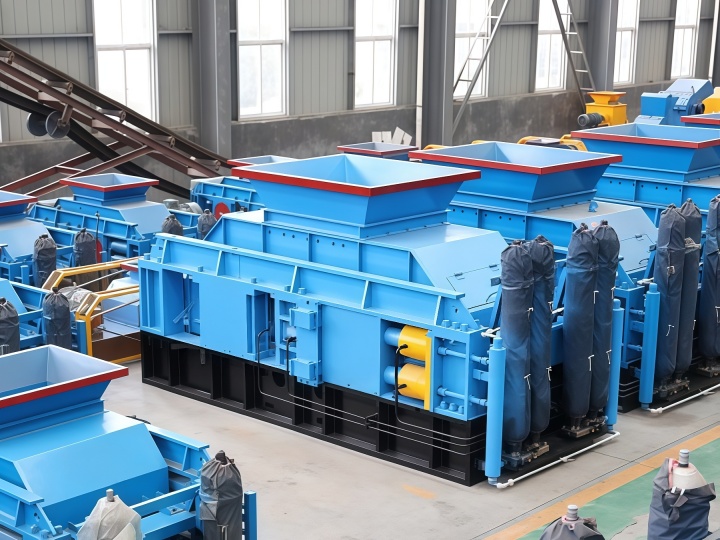

Choose the Right Bauxite Roll Crusher for Refractory Castable Model
The diversity of refractory castable formulations means equipment selection must account for specific operating conditions. Bauxite with different Al₂O₃ content affects roller wear rates differently, and particle size distribution requirements directly influence the required discharge adjustment range. Selection of bauxite roll crusher for refractory castable should be evaluated across three dimensions: capacity, feed size, and product size.
Capacity-based selection. Processing capacity ranges from 2 to 100 t/h. For annual output below 5,000 tons, models 2PG610×400 or 2PG750×500 are recommended; for output above 10,000 tons per year, 2PG1000×800 or 2PG1200×800 should be considered.
Feed size-based selection. Feed size limits vary by model, from 35mm to 120mm, and the jaw crusher discharge upstream should not exceed the equipment limit.
Product size-based selection. Discharge can be adjusted from 2mm to 40mm and should cover the grading requirements of your specific castable formulation.
Frequently Asked Questions About Bauxite Roll Crusher for Refractory Castable
Does bauxite roll crusher for refractory castable clog when processing sticky materials?
The low-speed compression method is not prone to clogging. Controlling feed uniformity and periodic cleaning prevent issues when moisture is high.
When does the roller of bauxite roll crusher for refractory castable require repair?
Grooving wear exceeding 4mm in depth requires build-up welding, with discharge size deviation as the key indicator. Inspection every 400 to 600 hours is recommended.
How to choose between bauxite roll crusher for refractory castable and hammer crusher?
Bauxite roll crusher for refractory castable offers lower fines and more regular particle shapes for quality-demanding applications, while hammer crushers provide higher throughput for less demanding scenarios.
How to evaluate the return on investment for bauxite roll crusher for refractory castable?
ROI comes from raw material savings and maintenance cost reductions. Lower fines generation saves material costs directly, and annual maintenance time is roughly one-third that of impact crushers.
