River Pebble Multi-Cylinder Cone Crusher for Mortar

What Is River Pebble Multi-Cylinder Cone Crusher for Mortar？

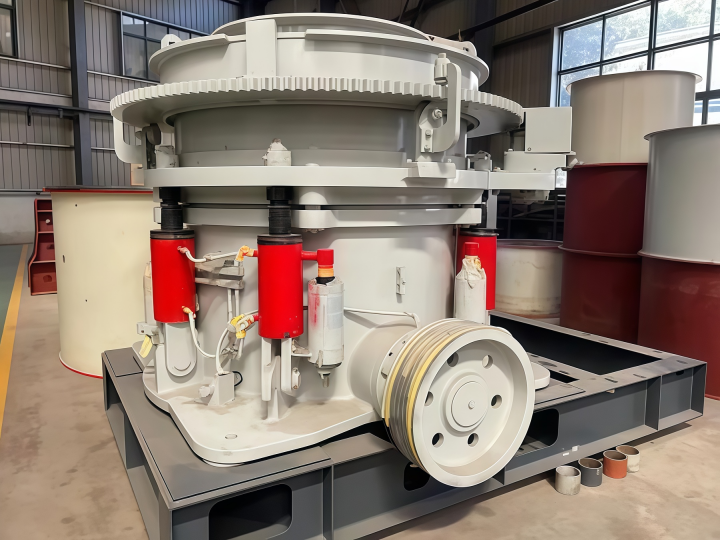

River pebble multi-cylinder cone crusher for mortar is a multi-cylinder hydraulic cone crushing equipment developed specifically for medium and fine crushing of river pebbles, serving the aggregate preparation process in dry-mix mortar, concrete batching plants, and manufactured sand production lines. This equipment adopts laminated crushing principle and full hydraulic control system, capable of efficiently breaking natural river pebbles into cubic aggregates that meet mortar gradation requirements. Compared with single-cylinder hydraulic cone crushers, the multi-cylinder locking structure provides greater crushing force and more stable operation performance, making it particularly suitable for secondary and tertiary crushing of high-hardness river pebbles.

How River Pebble Multi-Cylinder Cone Crusher for Mortar Works？

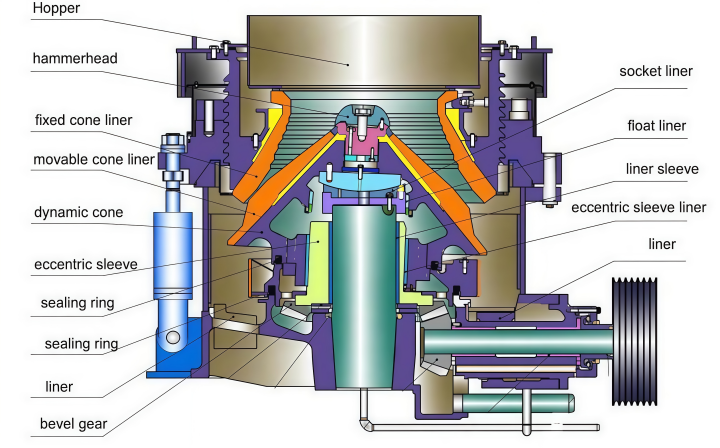

The crushing action of river pebble multi-cylinder cone crusher for mortar is driven by the eccentric sleeve which drives the moving cone assembly. The motor rotates the eccentric sleeve through the belt pulley and transmission shaft, causing the moving cone to gyrate around the fixed main shaft. When the moving cone approaches the fixed cone, river pebbles in the crushing chamber are compressed and fractured; when it moves away, crushed materials meeting the size requirement are discharged by gravity from the bottom. The multi-cylinder hydraulic system provides continuous locking force for crushing stability, automatically releases to pass uncrushable materials like iron pieces and resets, and adjusts the discharge setting via hydraulic motor without stopping the machine. Materials in the crushing chamber receive multi-directional compression and shearing, achieving selective crushing based on the laminated crushing principle and producing finished aggregates with excellent particle shape.

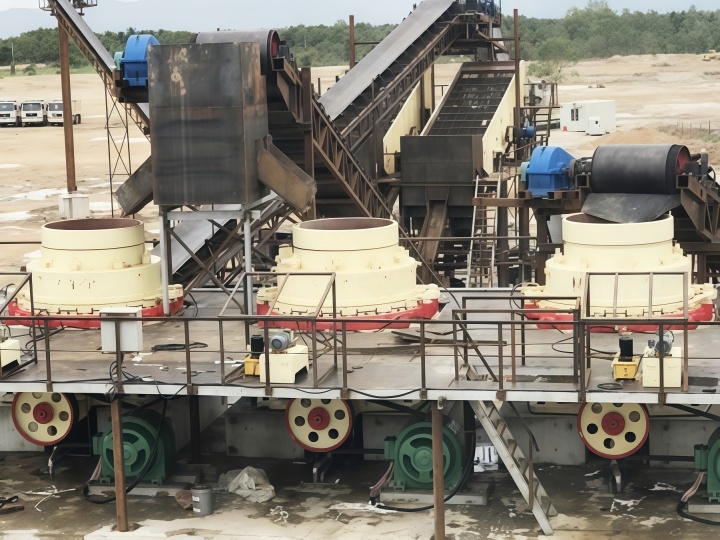

River pebbles typically contain over 80% silicon dioxide with Mohs hardness reaching 7 to 8. Traditional spring cone crushers frequently experience stalling when processing such high-hardness materials. The multi-cylinder hydraulic system, serving as the secondary crushing core equipment in a large aggregate project in Xinjiang Hami, achieved continuous and stable output of 450 tons per hour.

Technical Parameters of River Pebble Multi-Cylinder Cone Crusher for Mortar

The following models cover a power range from 90kW to 400kW, with processing capacity from 45 tons per hour to 790 tons per hour. Mortar production lines can select corresponding configurations among coarse, medium, and fine crushing chambers based on their own capacity requirements and the discharge particle size of upstream primary crushing equipment.

Actual capacity depends on material properties. The above data is calculated based on medium hardness conditions of river pebbles and bulk density of 1.6t/m³.

What Are the Advantages of River Pebble Multi-Cylinder Cone Crusher for Mortar？

River pebble multi-cylinder cone crusher for mortar has passed CE and ISO9001 conformity assessment. Its core advantages are concentrated in four aspects: finished particle shape, production capacity efficiency, operating costs, and process adaptability.

In terms of finished particle shape, the laminated crushing principle produces finished products with mostly cubic structure and low flakiness content. In a building materials project in Vietnam, the manufactured sand cubic particle shape reached 98%.

In terms of production capacity efficiency, under the same specifications, the output is 35% to 60% higher than traditional spring cone crushers. The Xinjiang Hami project achieved continuous and stable output of 450 tons per hour.

In terms of operating costs, the hydraulic cavity cleaning system clears blockages within minutes, with monthly downtime for wear parts replacement of approximately 8 hours. The Vietnam project achieved a payback period of 14 months.

In terms of process adaptability, replacing a small number of components allows conversion between different chamber types to meet different process requirements of medium and fine crushing.

What Materials Is River Pebble Multi-Cylinder Cone Crusher for Mortar Suitable For？

River pebble multi-cylinder cone crusher for mortar covers multiple material categories including high-hardness rocks, medium-hardness ores, and construction waste, with core applications concentrated in medium and fine crushing of highly abrasive materials.

River pebbles are the core processing material for this equipment. With silica content exceeding 80% and Mohs hardness of 7 to 8, it has been validated in multiple projects including Vietnam at 150 to 250 tons per hour, Egypt at 300 tons per hour, and Xinjiang Hami at 450 tons per hour.

Granite and basalt are also high-hardness materials. Basalt compressive strength typically ranges from 200 to 350 MPa. In a mobile crushing station project in Panama, the equipment simultaneously processed river pebbles and basalt, achieving capacity of 200 to 250 tons per hour.

Limestone and dolomite are medium-hardness materials widely used in the cement industry and limestone sand-making fields. Diabase and iron ore are suitable for secondary and tertiary crushing in the mining industry. Construction waste can be processed for resource recovery to produce recycled aggregates.

River Pebble Multi-Cylinder Cone Crusher for Mortar vs. Similar Equipment Comparative Test Data

Comparative test data for river pebble multi-cylinder cone crusher for mortar versus spring cone crushers comes from actual operation records of three river pebble processing projects in Xinjiang Hami, Egypt, and Vietnam, with test methods referenced to GB/T 14684-2022 standard for construction sand. The core differences between multi-cylinder hydraulic cone crushers and spring cone crushers in river pebble crushing are reflected in five aspects: processing capacity, power consumption, particle shape, wear, and operational stability. The higher the material hardness, the more obvious the gap becomes.

In the Xinjiang Hami project, the multi-cylinder hydraulic cone crusher maintained 450 tons per hour output during continuous operation. In the Egypt project, with automation control system and wear-resistant components, it achieved actual capacity of 320 tons per hour. In the Vietnam project, it achieved stable output of 230 tons per hour, with peak reaching 250 tons per hour.

The above global project data demonstrates that when processing high-hardness river pebbles, the locking force advantage of the multi-cylinder hydraulic structure and the particle shape advantage of laminated crushing are fully reflected in continuous operation.

Frequently Asked Questions About River Pebble Multi-Cylinder Cone Crusher for Mortar

Does high mud content in river pebbles affect the performance of river pebble multi-cylinder cone crusher for mortar?
For river pebble multi-cylinder cone crusher for mortar, high mud content affects crushing efficiency and accelerates liner wear. It is recommended to add pre-screening and mud washing processes before the material enters the crusher.

How does river pebble multi-cylinder cone crusher for mortar ensure the discharge port returns to its original position after tramp iron release?
The hydraulic system is equipped with displacement sensors and closed-loop control. After tramp iron release, the discharge port is automatically pushed back to the preset position.

How to select the appropriate model of river pebble multi-cylinder cone crusher for mortar based on capacity requirements?

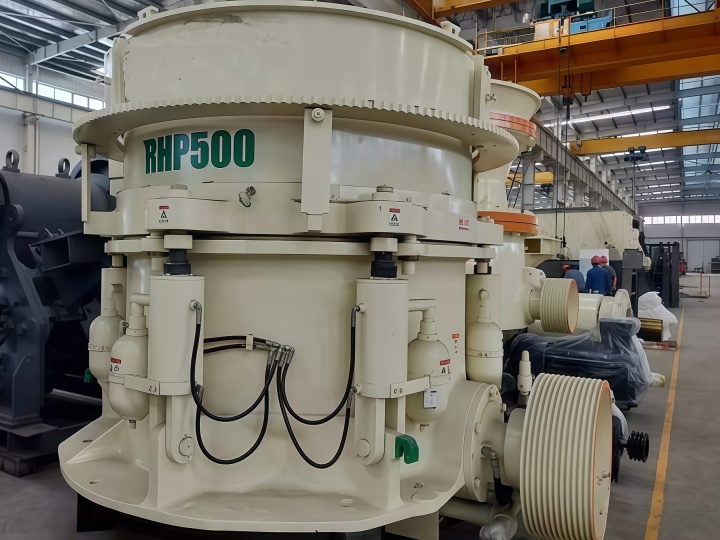

Determine the power range based on the target capacity. HPG100 is suitable for production lines below 100 tons per hour, HPG200 below 250 tons per hour, HPG300 below 440 tons per hour, HPG400 below 625 tons per hour, and HPG500 can reach 790 tons per hour. The discharge particle size of upstream primary crushing equipment should also be confirmed to match the selected chamber type.

Does the lubrication station of river pebble multi-cylinder cone crusher for mortar require cooling water?
Yes. The high hardness of river pebbles generates significant heat during the crushing process. It is recommended to configure a circulating cooling system to keep the oil temperature within the proper range.

Position of River Pebble Multi-Cylinder Cone Crusher for Mortar in a River Pebble Sand-Making Production Line

In a typical river pebble sand-making production line, river pebble multi-cylinder cone crusher for mortar typically serves as the core equipment for secondary or tertiary crushing. Raw materials are coarsely crushed by a jaw crusher and then classified by a vibrating screen. Materials meeting the requirements enter this equipment for medium and fine crushing. After crushing, materials are screened again by a vibrating screen. Those meeting particle size requirements enter a sand-making machine for shaping and manufactured sand production, while those not meeting requirements are returned to this equipment for re-crushing, forming a closed-loop circuit. This equipment plays the key role of controlling the final aggregate particle shape and gradation.

Supporting Equipment Used with River Pebble Multi-Cylinder Cone Crusher for Mortar

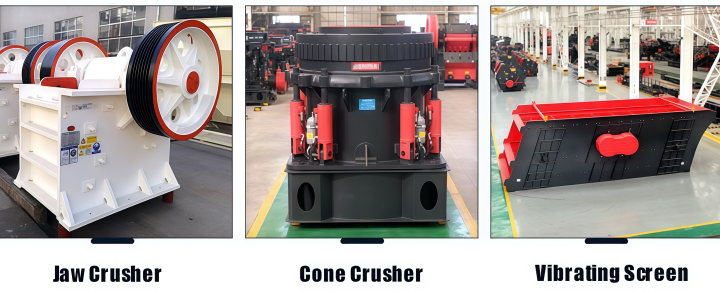

In a mortar aggregate production system, river pebble multi-cylinder cone crusher for mortar is typically used in conjunction with the following equipment: a jaw crusher for primary coarse crushing of raw materials, vibrating feeders and vibrating screens for uniform feeding and precise classification, a vertical shaft impact crusher for further aggregate shaping and manufactured sand production, and sand washers and fine sand recovery systems for finished sand cleaning and fine sand recovery. A reasonable combination of equipment can fully leverage the crushing efficiency of this equipment.
