Cashew Nut Packaging Machine

The Cashew Nut Packaging Machine transforms bulk cashews into neatly sealed, retail-ready packaged goods. Roasted cashews are crisp and irregularly shaped, and their high oil content makes them highly susceptible to oxidation and spoilage upon contact with oxygen. To address these characteristics, the machine is designed with a wide filling range, typically covering 10-gram snack bags to 1500-gram family-sized portions. It maintains a stable operating speed, filling and sealing 30 to 120 bags per minute depending on the specific machine model and bag configuration. Installing this system in a production line allows materials to be conveyed directly from the roasting or seasoning area to the packing area, maintaining a clean and organized floor space.

Why choose a cashew nut packaging machine?

Cashew Nut Packaging Machine Application Scenarios

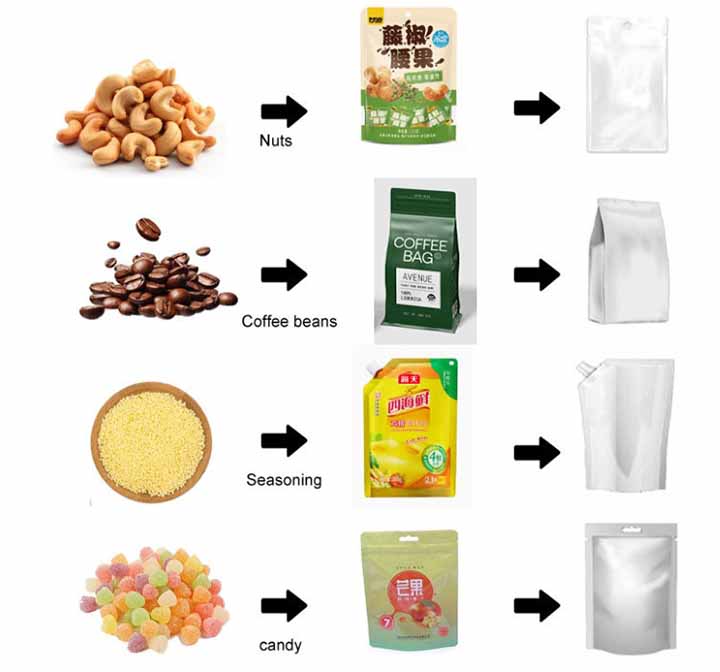

The system can be adjusted to accommodate various retail packaging bag shapes and different types of dry goods.

Compatible Packaging Styles

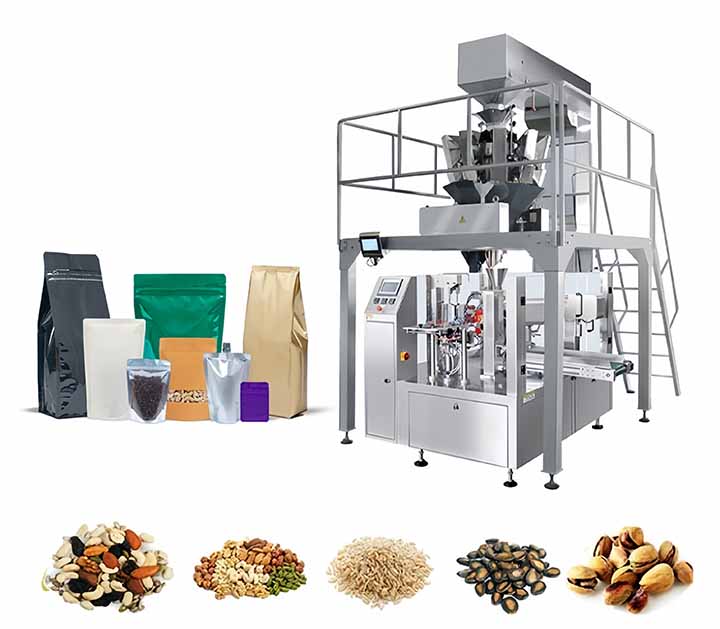

It is compatible with prefabricated stand-up zipper bags with repeating opening and closing tracks, as well as four-corner formed, four-side-sealed pillar bags for easy graphic printing; it can also utilize single-roll film for on-site forming, directly producing classic pillow-shaped bags with back seals and top and bottom closures.

Suitable for Packaging Dried Fruits

While the machine primarily considers the physical properties of cashews, it is also compatible with other high-value nuts. These include raw almonds, shelled almonds, roasted pistachios, whole hazelnuts, macadamia nuts, half walnuts, fish-skin peanuts, breaded peanuts, and mixed nuts.

Cashew Nut Packaging Machine Components

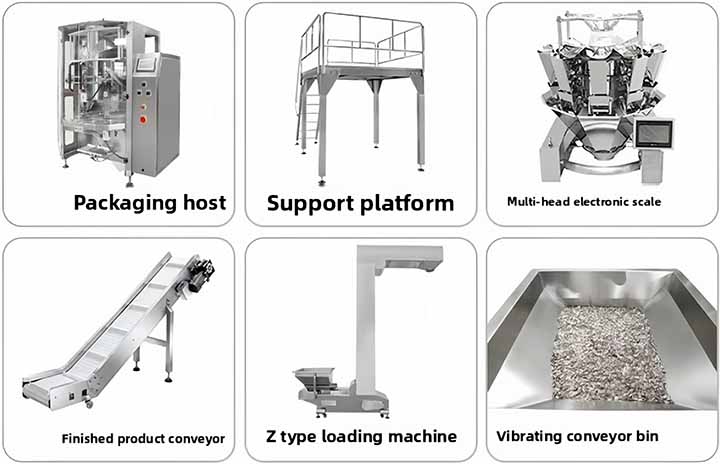

The cashew nut packaging machine consists of multiple mechanical units operating in tandem. A Z-type elevator, using a food-grade plastic hopper, moves smoothly vertically and horizontally, delivering bulk cashews to the top feed inlet without compression. A multi-head combined scale above disperses the cashews into the weighing hopper via a vibrating plate, and a microcomputer quickly calculates the optimal weighing combination. The packaging machine utilizes a roll film forming device or robotic gripper to precisely form and open bags. A heated sealing strip uses a temperature-controlled element to firmly fuse the inner layer of the film, creating an airtight seal. A digital touchscreen on the rocker arm displays speed, counts, and stores various configuration parameters in real time, allowing for easy manual adjustment with a single button.

How much does a cashew nut packaging machine cost?

The investment range for a cashew nut packaging machine is wide, with standard industrial configurations typically ranging from $7,300 to $21,000. The final price is determined by three main technical requirements: First, the type of packaging bag. Machines that use flat roll film to form bags on-site differ from systems that use robotic arms to grasp pre-made bags; the latter's complex gripper design results in a higher initial investment. Second, weighing speed. A 10-head combination scale meets medium production capacity, while a 14- or 24-head configuration significantly increases calculation speed, which also changes the machine's manufacturing cost. Third, additional units. Adding a nitrogen generator, date coding machine, or weight sorting scale will increase the overall cost of the production line.

Application Case

A medium-sized cashew factory in Vietnam upgraded its packaging workshop from manual scales to an automated production line. Before the upgrade, the factory employed 20 workers operating manual sealing machines, producing only 12 bags per minute for 250g bags, with weight deviations as high as 4 to 7 grams, and manual scooping resulting in a 3% breakage rate. To address this, the company introduced a 10-head combination scale and integrated a rotary bag-feeding machine. After operation, the speed stabilized at 42 bags per minute, with excess bag feed reduced to below 0.8 grams, and the physical breakage rate reduced to 0.2%. Furthermore, the simultaneously installed gas injection system extended the shelf life of finished products from 3 months to 10 months.

Frequently Asked Questions

Q: How long does it take to switch the machine from 100g bags to 500g bags?

A: For the pre-made bag feeder, the mechanical gripper spacing is adjusted via a motor button or manual handwheel, which takes approximately 10 to 15 minutes. For roll-to-roll bag making machines, changing the forming die kit to match the new bag width takes approximately 20 to 30 minutes.

Q: Can the machine handle salt or seasoning powder adhering to the surface of cashews?

A: Yes. The surfaces of the parts in contact with the material are made of stainless steel. This textured design prevents nuts with seasoning sauce from sticking to the metal channels and allows fine salt grains to fall through the gaps, preventing accumulation in the weighing hopper.

Q: What types of packaging film materials are compatible?

A: The heat-sealing strip can seal various composite structures, including PET/AL/PE, PET/PE, and BOPP/PE. The packaging material must contain a heat-sealable plastic inner layer.

Investing in a cashew nut packaging machine transforms agricultural processing operations from manual packing to a standardized industrial process. By addressing practical problems such as product breakage, weight deviation, and shortened shelf life, the equipment stabilizes daily output. Choosing the right model depends on matching your production goals with the appropriate bag style, weighing speed, and workshop space dimensions.
