What is a Stainless Steel U Trough Screw Conveyor?
Our Stainless Steel U-Trough Screw Conveyors are engineered to deliver highly efficient, reliable, and hygienic bulk material handling solutions. Designed with a modular U-shaped trough and fully removable bolted or quick-clamping covers, these conveyors offer unparalleled accessibility for thorough cleaning and routine maintenance.
Fabricated from premium-grade SUS304 or SUS316L stainless steel, they feature smooth, high-polish finishes that prevent material build-up and cross-contamination. This makes them the industry-standard choice for strict sanitary environments, including food processing, pharmaceuticals, cosmetics, and corrosive chemical industries. Whether you are conveying sticky powders, granular food ingredients, or aggressive chemicals, our U-trough design ensures dust-tight, safe, and continuous operation.
What are advantages of Stainless Steel U-Trough Screw Conveyors？
This premium product series features high-grade stainless steel construction with a finely polished finish that eliminates material accumulation and complies with strict sanitary standards. Equipped with quick-release removable covers, the equipment ensures effortless sanitation and streamlined maintenance. Its superior resistance to corrosion and abrasion guarantees an extended service life when handling aggressive or high-moisture materials. Furthermore, the integration of high-performance sealing gaskets achieves completely enclosed, dust-free performance, preventing environmental contamination and leakage entirely.
Premium Sanitary Grades:Constructed with optional SS304 or SS316L stainless steel featuring a fine polished finish. The smooth surface eliminates material accumulation and dead corners, fully meeting FDA and GMP sanitary compliance standards.
Removable Covers for Effortless Sanitation:Sealed lids fitted with quick-release clamps are installed on top of the U-trough, streamlining routine washdown and maintenance procedures significantly.
Superior Corrosion & Abrasion Resistance:Engineered to handle highly acidic, alkaline, high-moisture materials and juicy food products. Its service life is several times longer than carbon steel alternatives.
Zero Dust Leakage Performance:High-quality silicone and EPDM sealing gaskets are equipped to achieve fully enclosed conveying, avoiding material contamination and dust escape entirely.
Customizable Structural Configurations
As a leading conveyor manufacturer, Dahan Machine offers high-end customized structural options to integrate seamlessly into your bulk material production line:
| Model | Trough Width (mm) | Max. Screw Speed (RPM) | Conveying Capacity (m³/h) |
|---|---|---|---|
| DLS-200 | 200 | 60-90 | 2-8 |
| DLS-250 | 250 | 50-80 | 5-15 |
| DLS-315 | 315 | 45-70 | 10-28 |
| DLS-400 | 400 | 40-60 | 20-50 |
Standard Parameters of Stainless Steel U Trough Screw Conveyor
| Category | Detailed Specifications & Descriptions |
|---|---|
| Screw Flight Options |
1. Sectional continuous flights 2. Shaftless screw: suitable for viscous sticky materials 3. Paddle screw: for integrated conveying and mixing |
| Drive Assembly | Top-tier brand reducers and motors (SEW, Nord or equivalent premium brands), with direct-coupled, belt or chain drive options available |
| Inlet & Outlet Options | Round ports, square ports and multiple inlet layouts; pneumatic or electric slide gates can be installed as required |

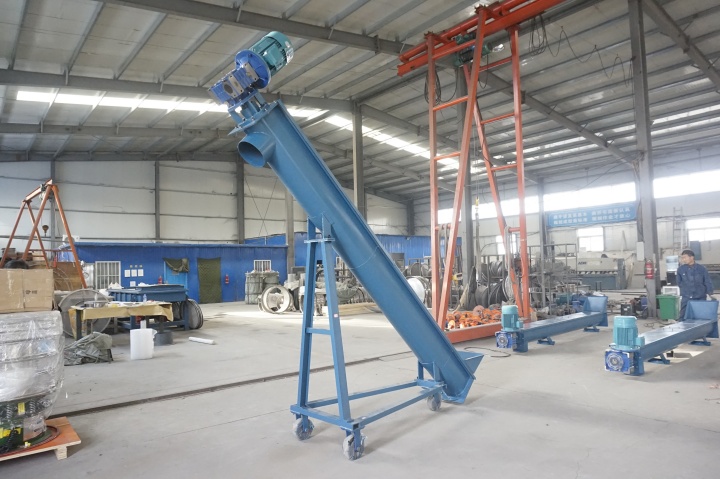

PS：The length, inclination angle (0-90°), and capacity can be 100% customized according to your specific bulk materials.
Wide Applications Across High-Sanitary Industries
Food processing applications include sugar, spices, milk powder, salt, flour, coffee grounds, and pet food. For pharmaceuticals, the system handles chemical powders, granules, and active pharmaceutical ingredients. In corrosive chemical environments, it reliably conveys fertilizer, industrial salts, wastewater sludge, and bleaching agents.
Why should you choose us?
This premium stainless steel conveyor combines exceptional hygienic design with rugged durability. Featuring a finely polished, accumulation-free surface and quick-release covers, the equipment ensures effortless cleaning and streamlined maintenance. Its superior resistance to corrosion and abrasion guarantees an extended service life even when handling aggressive or high-moisture materials. Furthermore, the high-performance sealing system provides a completely enclosed, dust-free operation, eliminating material leakage and environmental contamination entirely.
Factory-Direct Pricing:Eliminate middlemen markups and trade companies. As a genuine source manufacturer, Dahan Machine provides high-quality stainless steel U-trough screw conveyors directly from our factory floor, ensuring the most competitive pricing and maximum cost-efficiency for your project.
Free Engineering Support & CAD Drawings:Our professional engineering team can provide customized 24-hour engineering support. Simply share your factory layout and material characteristics, and we will deliver complimentary CAD and 3D technical drawings tailored perfectly to your existing production line.
Advanced Surface Treatment & Precision Welding:For high-sanitary applications, we employ advanced TIG welding and rigorous pickling and passivation (or mirror polishing) treatments. This ensures all stainless steel surfaces are seamless, free of burrs, and dead-zone-free, preventing material contamination and residue buildup.
Rigorous Quality Inspection Before Shipping:Quality is our lifeline. Every single conveyor undergoes a mandatory 2-hour no-load trial run, dynamic balance testing, and noise checks before leaving our factory. All equipment is fully certified with CE and ISO9001 quality management standards to guarantee flawless on-site performance.
Frequently Asked Questions About U-Trough Screw Conveyors
Q1: What is the difference between a U-trough and a tubular screw conveyor?
A1: A U-trough conveyor has a removable top cover, making it extremely easy to open, clean, and inspect. A tubular conveyor is completely sealed by nature and better suited for steep inclinations or higher pressure operations.
Q2: Which stainless steel grade should I choose, SS304 or SS316L?
A2: SS304 is excellent for standard food applications and mild chemicals. If you are handling highly corrosive materials (like sea salt or strong acids) or require strict pharmaceutical standards, SS316L is recommended.
Q3: Can these conveyors handle sticky or wet materials?

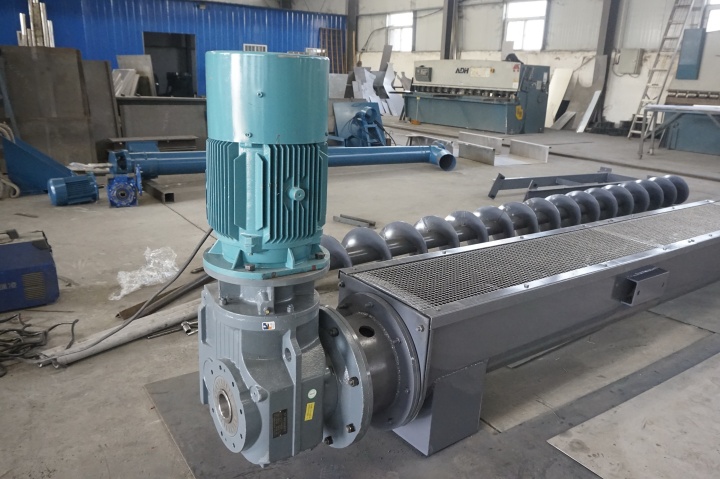

A3: Yes, but for sticky materials, we recommend using a Shaftless U-trough screw conveyor to prevent material build-up and clogging on the central shaft.
Conclusion
Stainless Steel U-Trough Screw Conveyors represent the pinnacle of efficient, hygienic, and reliable bulk material handling. Meticulously engineered from high-grade SS304 or SS316L stainless steel, these conveyors are specifically designed to meet the rigorous FDA and GMP sanitary standards demanded by the food, pharmaceutical, and chemical industries.
By combining a precision-polished, accumulation-free U-shaped design with quick-release removable covers, they offer unparalleled ease of maintenance and sanitation. Furthermore, their advanced dust-free sealing system ensures an environmentally safe, zero-leakage operation. Backed by extensive customization options—ranging from shaftless screws for sticky materials to tailored inlet/outlet configurations—and supported by factory-direct pricing, free engineering CAD support, and rigorous quality testing, Dahan Machine delivers a high-performance, long-lasting material transfer solution optimized for your specific production line.
