Sintered Clay Hammermill for Lightweight Aggregate Price: Cost Guide
Thursday September-10 2026 11:54:48
The sintered clay hammermill handles final particle size control before the kiln in a lightweight aggregate line. The global lightweight aggregate market was about USD 2.577 billion in 2025 and is expected to reach USD 3.757 billion by 2033, a CAGR of 4.83%.
When buyers evaluate Sintered clay hammermill for lightweight aggregate Price, they need to move from a single quotation to total cost of ownership covering energy, wear parts and capacity match. Data in this article comes from our factory commissioning records at a sintered clay project in Henan. Our factory has long been engaged in the production of crushing equipment and has accumulated considerable experience in on-site commissioning.The following sections cover price structure, operating cost, capacity match and measured data.
Sintered Clay Hammermill for Lightweight Aggregate Price Core Components
On a PC800×600 quotation, the main machine accounts for about 70%, while auxiliary systems take 15% to 25%. Capacity ranges from 3 to 80 t/h, with screen openings adjustable from 3 mm to 50 mm.
PC900 tested at about 42 t/h on shale at 12% moisture, and dual-rotor PC1600 reached 140 to 160 t/h under the same condition, with 250 plus 280 kW. Price differences mainly come from rotor structure and motor power. The jaw crusher must match the hammermill capacity. Feed and conveying depend on viscosity and moisture, and dust collection air volume affects compliance cost. Installation and commissioning should be listed separately.
How Operating Cost Affects Sintered Clay Hammermill for Lightweight Aggregate Price

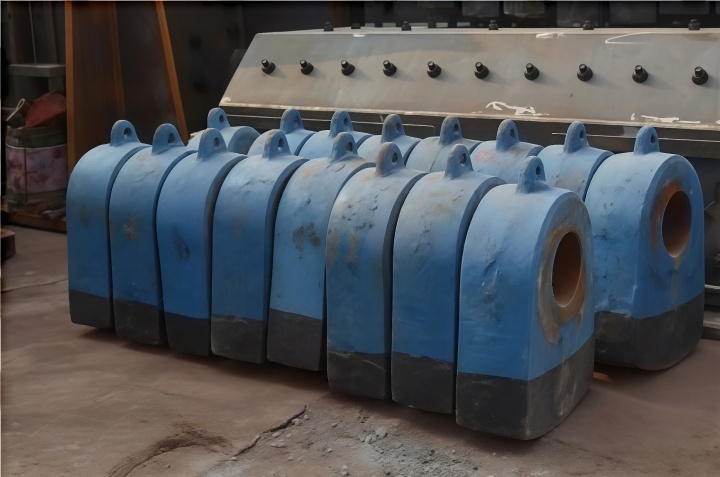

Hammers running 600 hours before output coarsens is a sign of underestimated operating cost. In one project, high manganese steel hammers raised the oversize ratio from 11% to 23% after 600 hours. After switching to high chrome alloy, wear after 800 hours was 32% of original thickness. Based on our factory tracking of three similar projects, the industry average wear is 41%. Hammer life is 500 to 2000 hours, screen plate wear after 400 hours is about 18%, and replacement cycle exceeds 2000 hours.
Hammer wear comparison:
- High manganese steel: oversize ratio from 11% to 23% after 600 hours
- High chrome alloy: wear at 32% of original thickness after 800 hours
- Industry average wear: 41%
PC800×600 under 12% moisture standard clay uses 1.8 kWh per ton. A 200 t/day line consumes about 130,000 kWh per year, with electricity cost around USD 13,000. When comparing Sintered Clay Hammermill for Lightweight Aggregate Price from different suppliers, energy use separates total spend over a two-year operating cycle more than the quotation itself.
How Capacity Match Affects Sintered Clay Hammermill for Lightweight Aggregate Price Value
The same PC800×600 can differ by 14 t/h between 12% and 18% moisture. The decline is not linear:
- 12% moisture → 32 t/h, baseline
- 14% moisture → 28 t/h, about 12.5% drop
-16% moisture → 22 t/h, drop widens to 21.4%
- 18% moisture → 18 t/h, accelerated decline zone
Above 14%, clay sticking in the crushing chamber rises and decline accelerates. A 3 t/h machine and an 80 t/h machine have different cost structures per ton.
Large machines have lower amortization and suit scale production; small and medium machines have lower entry threshold and flexible switching. Adjustable screen openings from 3 mm to 50 mm handle multiple specs and reduce equipment replacement spending. In the evaluation framework of Sintered Clay Hammermill for Lightweight Aggregate Price, including feed moisture control brings you closer to actual spending than comparing machine quotes alone.
Sintered Clay Hammermill for Lightweight Aggregate Price Measured Data Reference
PC800×600 factory load test ran 4 hours continuously at 12% moisture and 28°C ambient. Average throughput was 32 t/h, 89% of product under 8 mm, bearing temperature 62 to 68°C, no blockage or abnormal vibration.
For every 2 percentage point rise in moisture, actual throughput drops about 8% to 12%. Projects with large feed fluctuation should list a primary drying pre-treatment item in the budget, rather than adjusting hammermill parameters to absorb moisture fluctuation.
FAQ
Q: Why can Sintered Clay Hammermill for Lightweight Aggregate Price from different suppliers differ by more than 30% for the same capacity?
A: Differences usually come from rotor material, motor brand and auxiliary system depth. Ask for itemized quotations and compare hammer material and screen plate thickness.
Q: What to check first when the machine trips on motor overload?
A: Check whether feed suddenly became wet and sticky, then check if discharge is blocked. If both are normal, measure running current against 110% of rated value.
Q: Besides the machine quote, what hidden costs should be in the budget?
A: Auxiliary systems take 15% to 25%, and installation plus annual wear parts should be listed separately. Ask for itemized quotations instead of comparing main machine price only.
Q: What to do when clay freezes in winter and feeding becomes difficult?
A: Turn the pile in the raw material shed to thaw, or pre-crush large frozen blocks to below the feed limit. Forcing feed will increase hammer impact wear.
A reasonable judgment on Sintered Clay Hammermill for Lightweight Aggregate Price needs to put equipment purchase, energy use, wear part life and feed conditions into one table. For projects with moisture above 14%, hammermill selection is no longer an independent decision but a system issue tied to drying pre-treatment. Budget planning should put both into the same framework.
