The most common and core classification method for impact crushers in the industry is based on the number of rotors. MACHRISE has built a standardized full-series model matrix based on this, covering all categories of single-rotor and dual-rotor crushers, while also subdividing into cavity types and special series to adapt to different production capacities and working conditions.
What products do impact crusher manufacturers offer?
Single rotor impact crusher.This is the brand's core mass-produced model, with a mature structure and wide applicability, making it the preferred choice for global customers. Internally, it is further subdivided by chamber and structure:
PF Series.A classic basic model with a single rotor operating at high speed. The upper hammer plate on the rotor impacts the feed material. After gaining kinetic energy, the material impacts the primary and secondary impact plates at high speed, completing the rebound crushing. The material repeatedly impacts and collides with each other within the chamber, achieving staged crushing. The qualified material is discharged from the bottom outlet. The equipment adopts a dual-chamber multi-stage impact crushing structure, ensuring a stable closed-loop crushing process and a simple and universal structure. Includes standard models such as PF1010, PF1210, PF1214, and PF1315, with rotor specifications of Φ1000×1000mm-Φ1300×1500mm, a capacity range of 50-220t/h, and a finished product particle size ≤50mm, fully meeting the basic crushing and fine crushing needs of small and medium-sized production lines.
The PFW series European-style heavy-duty impact crusher continues the core principle of single-rotor multi-stage impact crushing, employing a deep cavity and wide crushing stroke design. This results in greater rotor rotational inertia and stronger impact energy. After entering, the material is powerfully struck by heavy-duty hammers, combined with multi-layer rebound crushing by curved, thickened impact plates, enhancing the crushing penetration of hard rock materials and resisting repeated impact and wear from high-hardness materials. The rotor is thickened and reinforced overall, with a capacity range of 150-550 t/h and a crushing particle size ≤45mm. The equipment boasts excellent impact resistance and wear resistance, making it suitable for high-load continuous operation in large-scale sand and gravel production lines.

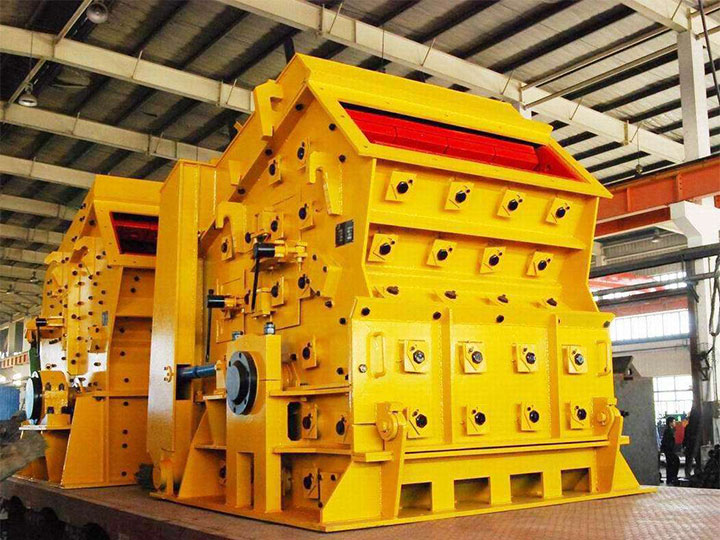

The dual-rotor impact crusher adopts a dual-rotor reverse-linked series crushing structure. The upper and lower rotors are arranged in opposite directions. The first rotor performs coarse crushing impact on large pieces of material, which is then thrown at high speed into the secondary rotor crushing chamber. The second rotor performs secondary high-intensity fine crushing impact, resulting in continuous double-chamber reciprocating crushing and one-time finished product formation. The single-machine crushing ratio far exceeds that of single-rotor models, with a capacity of 300-750t/h and a crushing particle size adjustment range of 20-80mm. It is mainly supplied to large mines and large building material aggregate production bases.
What are the advantages of being a manufacturer of impact crushers?
A more complete model matrix: Most manufacturers only produce single-rotor series, lacking large dual-rotor models and dedicated hard rock models; MACHRISE fully covers the entire range of single-rotor and dual-rotor models, with a complete range of specialized models including subdivided chamber types and ultra-high capacity models, providing one-stop coverage for small workshops, medium-sized production lines, and large mines, eliminating the need for customers to purchase equipment from multiple manufacturers.
Self-developed reinforced structure: Ordinary manufacturers' PFW European-style models only have exterior modifications, without substantial thickening of the rotor and frame. Our PFW series uses a one-piece forged thickened rotor and a fully reinforced load-bearing frame, with specialized structural optimizations for high-hardness materials such as granite and basalt.
Stronger material durability: Wear parts such as hammers, impact plates, and liners are made of high-chromium wear-resistant alloy, increasing wear life by more than 30%. Combined with a fully hydraulic, maintenance-free structure, it significantly reduces customers' overall costs for maintenance time, parts procurement, and downtime.
High degree of customization: Most manufacturers only sell standardized single machines, but MACHRISE can customize machine models, cavity shapes, and complete production line solutions according to customers' material hardness, site size, production capacity requirements, and output standards. At the same time, it provides one-stop service from equipment selection, installation and commissioning, operation training, after-sales maintenance, and direct supply of original parts, adapting to the personalized production needs of different countries and working conditions around the world.
MACHRISE Machinery Manufacturer leverages its comprehensive advantages—high crushing ratio, superior particle shape, durability, ease of maintenance, and adaptability to various scenarios—to fully meet the crushing production needs of diverse customers worldwide. Moving forward, the brand will continue to optimize equipment structure and energy-saving technologies, perfecting one-stop crushing production line solutions. It will continue to maximize the value of its equipment in infrastructure development, aggregate upgrading, and solid waste recycling, providing domestic and international customers with cost-effective mining crushing equipment and integrated solutions.
