Feldspar toothed crusher for ceramic body preparation plays a bridging role in the production line, processing run-of-mine feldspar into the particle size that the ball mill requires. However, the standard for this particle size varies significantly across different production lines and ore types. Behind the differences in Feldspar Toothed Crusher for Ceramic Body Preparation Price lie five easily overlooked cost pitfalls.
This article is written based on our factory's over a decade of manufacturing and on-site technical support experience in the ceramic raw material crushing field. We have provided equipment solutions for dozens of domestic and international ceramic enterprises, and all data and cases come from first-hand project tracking records.

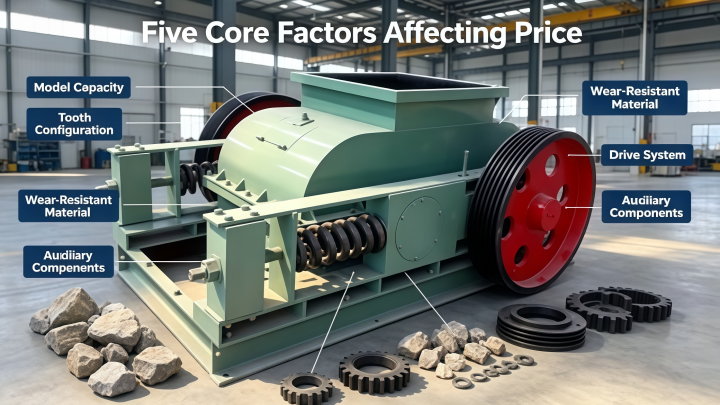

Five Core Factors Affecting Feldspar Toothed Crusher for Ceramic Body Preparation Price
The equipment price is determined by a combination of variables across five dimensions: model capacity, tooth configuration, wear-resistant material, drive system, and auxiliary components.
Model and capacity specifications set the baseline price range. Small units handle 8 to 15 tons per hour, while large models can process 30 to 300 tons. Higher capacity requires greater structural strength and motor power, which directly drives up the Feldspar Toothed Crusher for Ceramic Body Preparation Price.

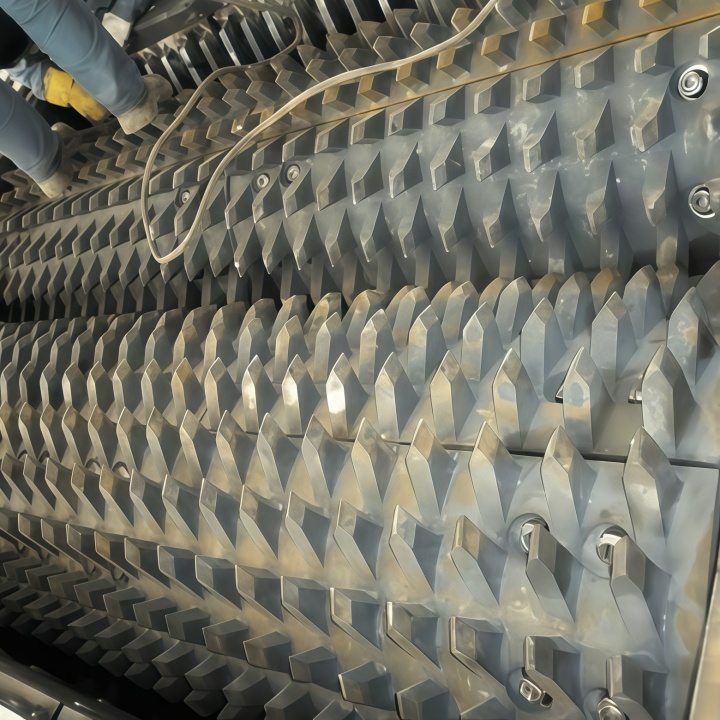

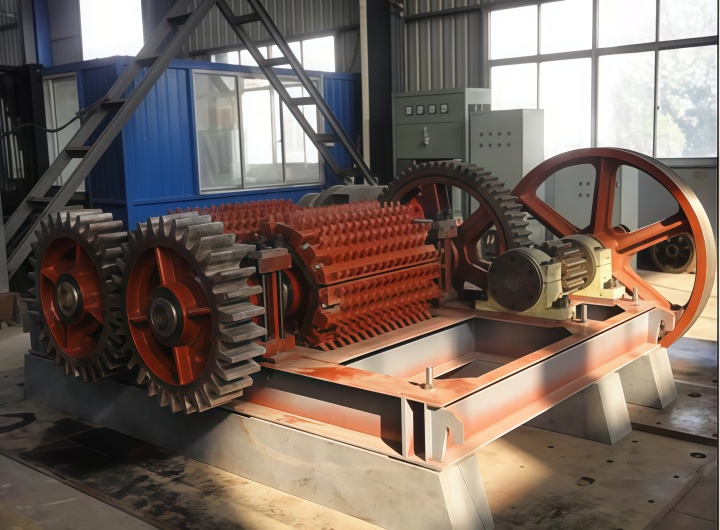

Roll surface tooth configuration affects equipment cost. The equipment offers four tooth types, and the choice is not about which is "better" but which is "more suitable." Wolf teeth provide strong penetration and perform well on high-hardness run-of-mine ore; long strip teeth suit medium-hardness materials; square wave teeth handle larger feed sizes; sharp wave teeth are used for fine crushing.
The same tooth shape from different manufacturers can have a lifespan difference of over 100% due to variations in alloy formulations, a gap that does not appear on the quotation but will show up on repair bills two years later as a hidden cost beyond the equipment's listed price.
Wear-resistant material and heat treatment processes create price variations. High-quality alloy roll shells with proper heat treatment can extend service life by 2 to 3 times, but the increased cost is reflected in the equipment price.

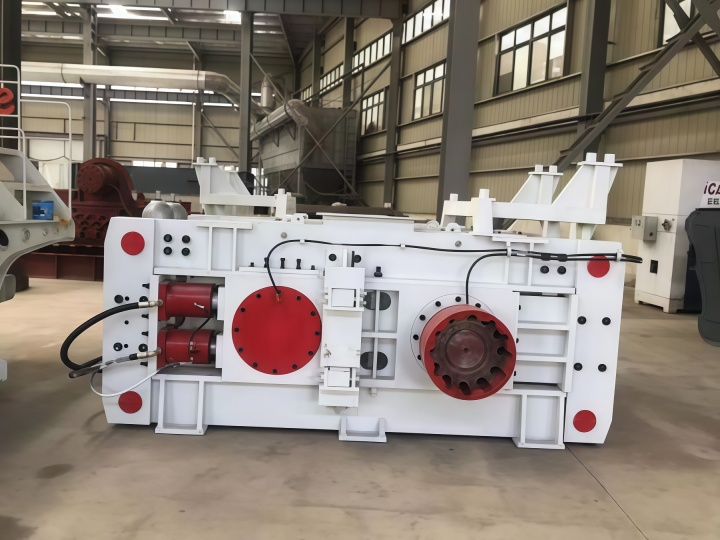

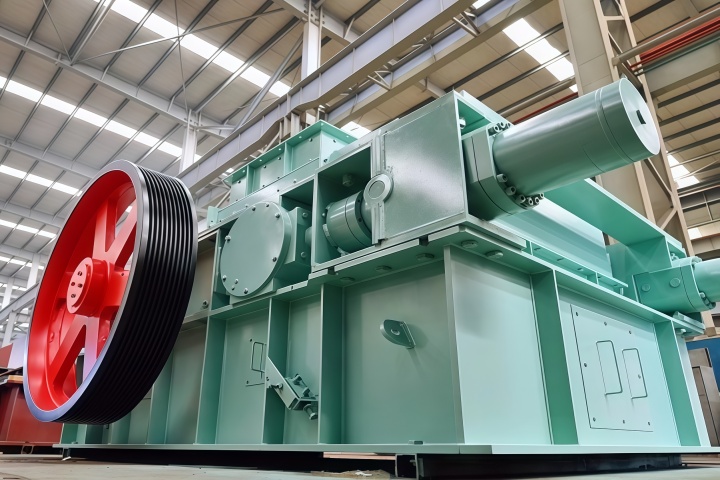

Drive system and control configuration add cost variables.Two options are available: V-belt drive and coupling hard connection. Models equipped with hydraulic adjustment systems and intelligent monitoring modules command a higher price.
Auxiliary components and logistics/installation costs cannot be overlooked.The difference between using a premium-efficiency motor versus a standard-efficiency motor may seem minor, but the electricity cost difference over two years can equal the price of the equipment itself. Therefore, when evaluating Feldspar Toothed Crusher for Ceramic Body Preparation Price, these long-term factors must be taken into account.
Market Reference Range for This Equipment Price
2026 B2B platform data shows that double-toothed roll crushers for feldspar processing are quoted between 5,000 and 8,000 USD. In the domestic market, reference prices range from 10,000 to 100,000 RMB.
The actual quote varies considerably depending on configuration, material grade, and customization level. Rather than asking "how much per unit," it is more useful to provide ore hardness and daily output figures when requesting a quote.
Beyond the Purchase Price: Full Lifecycle Cost Considerations
Comparing only the equipment's selling price does not reflect the true cost picture; long-term operational expenses including energy consumption, maintenance, and wear parts replacement are the critical factors.

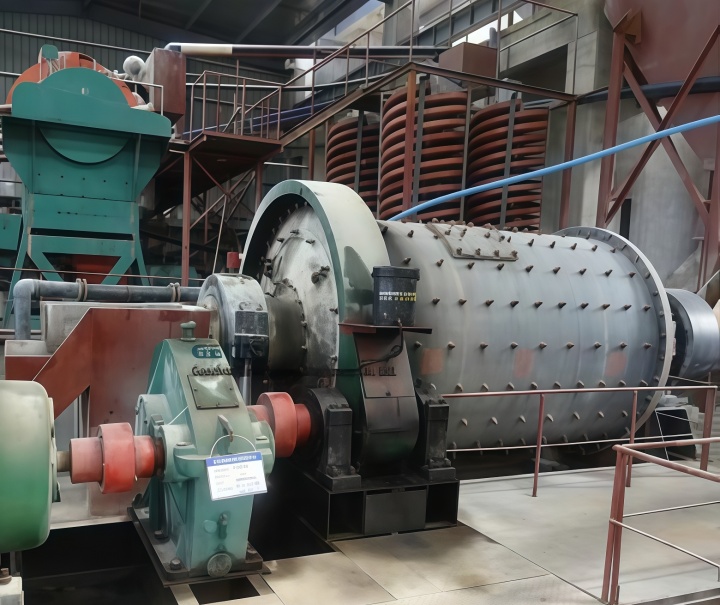

Double-toothed roll crushers consume 20% to 30% less energy than traditional impact-type equipment, produce less over-crushing and more uniform finished particles, and reduce the burden on downstream ball milling operations. The extra electricity cost from choosing the wrong model can buy a new unit within about two years, which is precisely why Feldspar Toothed Crusher for Ceramic Body Preparation Price must be evaluated from a full lifecycle perspective.

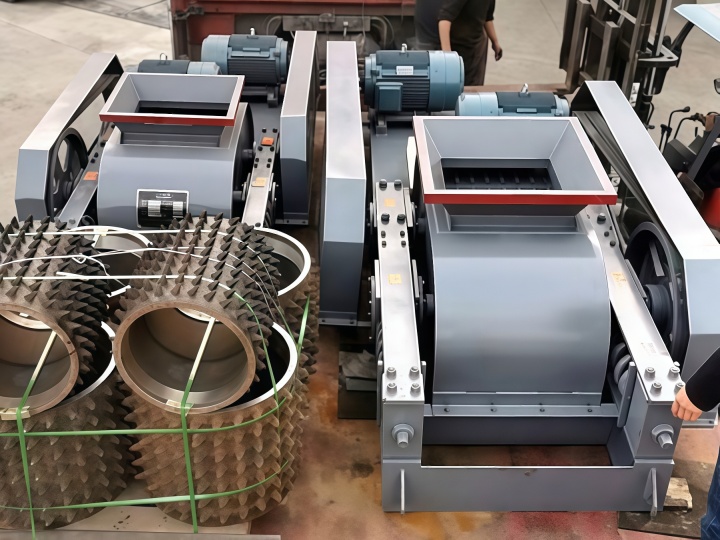

How Mainstream Model Specifications Affect Equipment Quotes
Different models vary significantly in feed size, processing capacity, and motor power. These parameters directly determine the equipment's baseline cost and application suitability, thereby influencing the price range of this equipment.
| Model | Max Feed Size mm | Output Size mm | Capacity t/h | Motor Power |
|---|---|---|---|---|
| 2PG-10CT | 120 | 10-50 | 2-20 | 3×2 |
| 2PG-30CT | 120 | 10-50 | 6-40 | 5.5×2 |
| 2PG-50CT | 200 | 10-60 | 10-80 | 15×2 |
| 2PG-60CT | 300 | 10-80 | 20-150 | 18.5×2 |
| 2PG-80CT | 400 | 10-100 | 30-200 | 30×2 |
As the model specifications increase, the Feldspar Toothed Crusher for Ceramic Body Preparation Price extends from tens of thousands to hundreds of thousands of RMB.
Real-World Cost Savings Case: The Long-Term Value Behind the Equipment Price
A potassium feldspar processing plant in Gujarat, India, with an annual output of approximately 400,000 tons, requested anonymity. In a 2025 production line upgrade project, the plant replaced its original impact hammer mill in the fine crushing stage with a Feldspar Toothed Crusher for Ceramic Body Preparation. The results were: iron contamination rate dropped from over 0.35% to below 0.02%; over-crushed fines reduced from 28.5% to 8.2%; ball mill throughput increased from 85 tons/hour to 115 tons/hour, a 35% improvement; wear parts service life extended from 15–20 days to 8–10 months; and the post-crushing magnetic separation step was eliminated.
This case has been reported by mining machinery industry media as a typical application example, further validating the value return associated with this equipment price.
Three Common Selection Mistakes: Hidden Costs Behind the Price
When procuring equipment, ceramic plants are most prone to judgment errors in three areas: comparing only the base equipment price, selecting tooth configuration based on experience rather than actual testing, and overlooking the convenience of roll gap adjustment. These errors often amplify the actual expenditure of Feldspar Toothed Crusher for Ceramic Body Preparation Price during operation.
Mistake 1: Comparing only the base price while ignoring auxiliary costs. A unit quoted 15% lower but equipped with a standard-efficiency motor rather than a premium-efficiency motor can result in electricity cost differences over two years that exceed the purchase price gap.
Mistake 2: Selecting tooth configuration based on experience rather than actual testing.Hardness can vary significantly across different veins of the same feldspar ore. It is recommended to send 5 to 10 kilograms of ore samples for actual crushing tests before finalizing the tooth configuration.
Mistake 3: Overlooking the convenience of roll gap adjustment. As feldspar sources change with mining progress and material hardness fluctuates, roll gaps need frequent adjustment. Models equipped with hydraulic adjustment systems should be prioritized, as manual adjustment is time-consuming and precision is difficult to maintain.
Frequently Asked Questions About the Equipment Price
Q1: How do I evaluate Feldspar Toothed Crusher for Ceramic Body Preparation Price when selecting the right tooth configuration?
The selection should consider the feldspar ore's Protodyakonov hardness coefficient and the target output size. For raw ore with a coefficient above 12, wolf teeth are recommended; for fine crushing, sharp wave teeth are suitable. The most reliable approach is to conduct actual crushing tests with ore samples, a service we can provide.
Q2: Does the equipment quote include the adjustment function?
The roll gap can be adjusted via hydraulic or mechanical devices, with hydraulic systems completing adjustments within seconds. This function is typically listed separately in the equipment quotation as a standard configuration option.
Q3: Does iron contamination risk affect equipment selection?
The low-speed compression mechanism substantially reduces metal abrasive debris, keeping iron contamination rates below 0.02%. Excessive iron content can cause the fired body to turn yellow or black, so material grade must be included in the evaluation of this equipment price.
Q4: How does wear parts replacement cycle relate to the equipment price?
High-quality alloy roll shells have an average service life of 8 to 10 months, significantly longer than the 15 to 20 days of impact-type hammers. Longer parts life means lower amortized costs associated with the equipment over time.
Q5: Does the quote include installation and commissioning?
Most manufacturers' quotations include only the main unit and standard motors. Installation, commissioning, and transportation are typically quoted separately. When requesting a quote, confirm the scope included in Feldspar Toothed Crusher for Ceramic Body Preparation Price to avoid budget overruns.
Closing Remarks
Feldspar Toothed Crusher for Ceramic Body Preparation Price is influenced by model, tooth configuration, material, drive system, control system, and auxiliary components, ranging from several thousand to tens of thousands of USD.
Procurement decisions should consider capacity requirements, raw material characteristics, and long-term operational costs together. The energy savings payoff far outweighs the initial price difference. Providing ore hardness and daily output figures when requesting a quote is far more useful than simply asking "how much does it cost."
