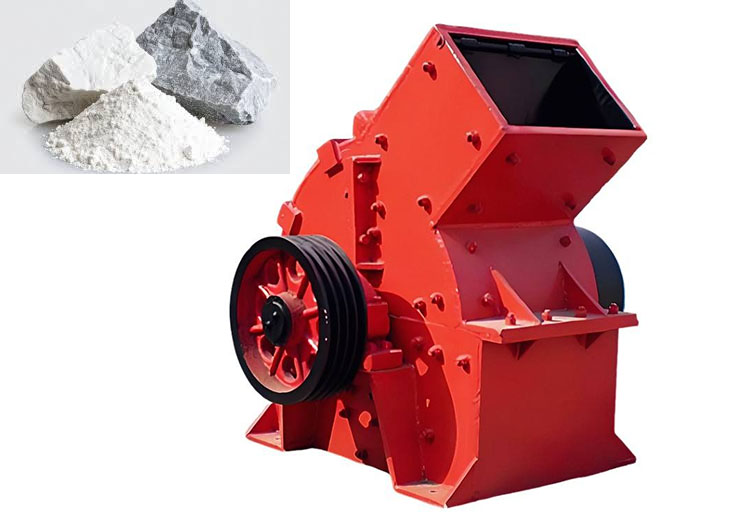

Hammer Mill for Limestone Powder

What is a Hammer Mill for Limestone Powder?

A Hammer Mill for Limestone Powder processes large chunks of limestone into fine powder through high-speed impact. Limestone is a medium-to-low hardness non-metallic mineral, typically with a Mohs hardness of 3-4. It is brittle, easily broken, and has a low moisture content. Utilizing the impact crushing principle, it can efficiently process limestone raw materials into uniform and fine powder products. The output particle size is typically 0-10mm, with a processing capacity of 5-70 tons per hour. Compared to traditional crushing methods, the Hammer Mill has advantages such as simple structure, low investment cost, convenient maintenance, and uniform finished product particle size, making it particularly suitable for small and medium-sized limestone powder production lines.

What Particle Size Can a Hammer Mill for Limestone Powder Produce?

The Hammer Mill for Limestone Powder can adjust the discharge range according to the screen size and rotation speed to produce limestone powder of different particle sizes. The standard model is suitable for producing 0–10mm or coarse powder. For limestone powder of 200 mesh or higher, it is recommended to use a matching air classifier, grading system, or subsequent grinding system.

What are the advantages of the Hammer Mill for Limestone Powder?

The Hammer Mill for Limestone Powder utilizes high-speed hammer crushing for rapid and efficient pulverization, significantly increasing output per unit time. By changing the sieve plates with different aperture sizes, the fineness of the finished product can be flexibly controlled to meet various particle size requirements, such as 0–10 mm. The equipment has a compact structure and few parts, resulting in low operating and maintenance costs and a small footprint, making it suitable for both new production lines and the upgrading of existing ones. It can also be equipped with conveyors, dust removal systems, and automatic control cabinets to achieve highly automated continuous production. Furthermore, it can process dry or low-moisture limestone raw materials, demonstrating broad adaptability.

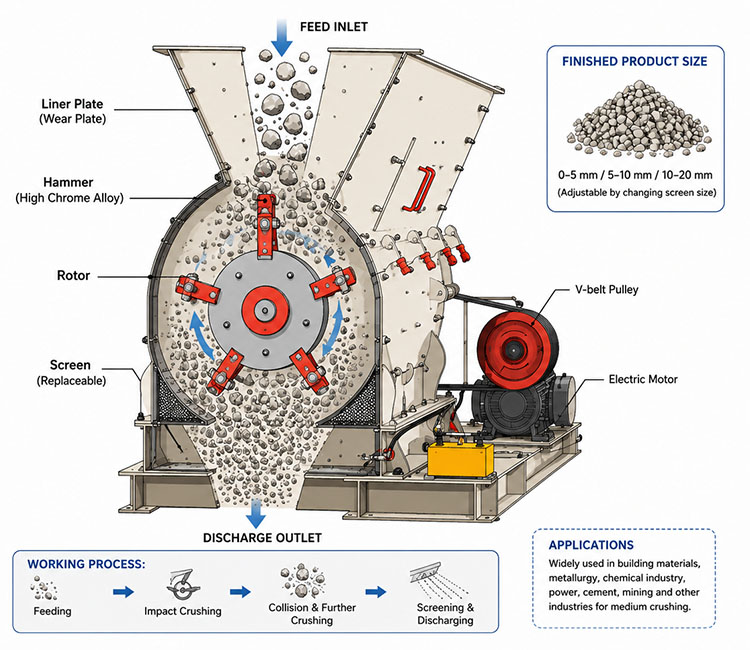

What is the working principle of the Hammer Mill for Limestone Powder?

When crushing limestone, the Hammer Mill for Limestone Powder uses a motor to drive a rotor at high speed, generating a powerful impact force on the hammers. After the raw material enters the crushing chamber through the feeding system, it undergoes multiple high-speed impacts and repeated crushing between the hammers, liners, and screen until the particle size is small enough to pass through the screen and be discharged as finished powder. By adjusting the number of hammers, rotor speed, screen aperture, and feed rate, the fineness and output of the finished product can be flexibly controlled to meet different production needs.

Hammer Mill for Limestone Powder Parameters

What are the applications of Hammer Mill for Limestone Powder?

Hammer Mill for Limestone Powder is widely used in building materials, mining, chemical, environmental desulfurization, cement, and metallurgical industries. It can rapidly pulverize different types of limestone to the target particle size. Applicable materials include ordinary limestone, high-calcium limestone, dolomitic limestone, desulfurized limestone, building limestone, calcite limestone, and low-moisture ore raw materials. The pulverized limestone powder can be used in cement production, flue gas desulfurization, mortar additives, chemical fillers, artificial sand, and industrial powder processing, achieving continuous, efficient, and stable production.

Limestone Powder Application by Different Sizes

Hammer Mill for Limestone Powder Customer Case

A Southeast Asian building materials company selected the HM-800 Hammer Mill for Limestone Powder as the main unit for its limestone powder processing project, along with a conveying system, dust removal device, and automatic control cabinet, to achieve continuous production throughout the entire process. The raw material particle size is ≤80mm, the finished product requires 0-3mm fine powder, the required output is 20t/h, and it operates on a 24/7 continuous operation system. After the equipment was put into operation, the machine's impact crushing and sieve grading work together efficiently, resulting in uniform and stable output particle size, fully meeting the customer's requirements for powder fineness and production capacity. Simultaneously, the dust removal system effectively controls dust emission, and the automatic control cabinet ensures real-time adjustment of operating parameters, making the entire production line reliable.

Hammer Mill for Limestone Powder FAQ

Q: What is the maximum fineness of the finished product produced by the Hammer Mill for Limestone Powder?

A: Depending on the model, the output particle size is generally in the range of 0-10mm. When paired with a grading system, precise control over the upper limit of the finished product particle size can be achieved, ranging from 50μm to 2000μm.

Q: Does the hardness of limestone significantly affect equipment wear?

A: Limestone has a Mohs hardness of 3-4, classifying it as a medium-soft material. Wear on the hammers and liners is relatively low, resulting in lower equipment operating and maintenance costs.

Q: How many tons of limestone can be processed per hour?

A: Processing capacities vary depending on the model, ranging from 0.1 tons/hour for small units to 100 tons/hour for large units. Specific capacity depends on material characteristics, feed particle size, and finished product fineness requirements. Consulting for model selection based on actual needs is recommended.

Q: Can the Hammer Mill for Limestone Powder handle materials with high moisture content?

A: Yes. For materials with high moisture content, a model equipped with a hot air system can be selected to achieve simultaneous crushing and drying. It can generally handle materials with a maximum moisture content of 35%.
