What is Liquid Filter Separator?

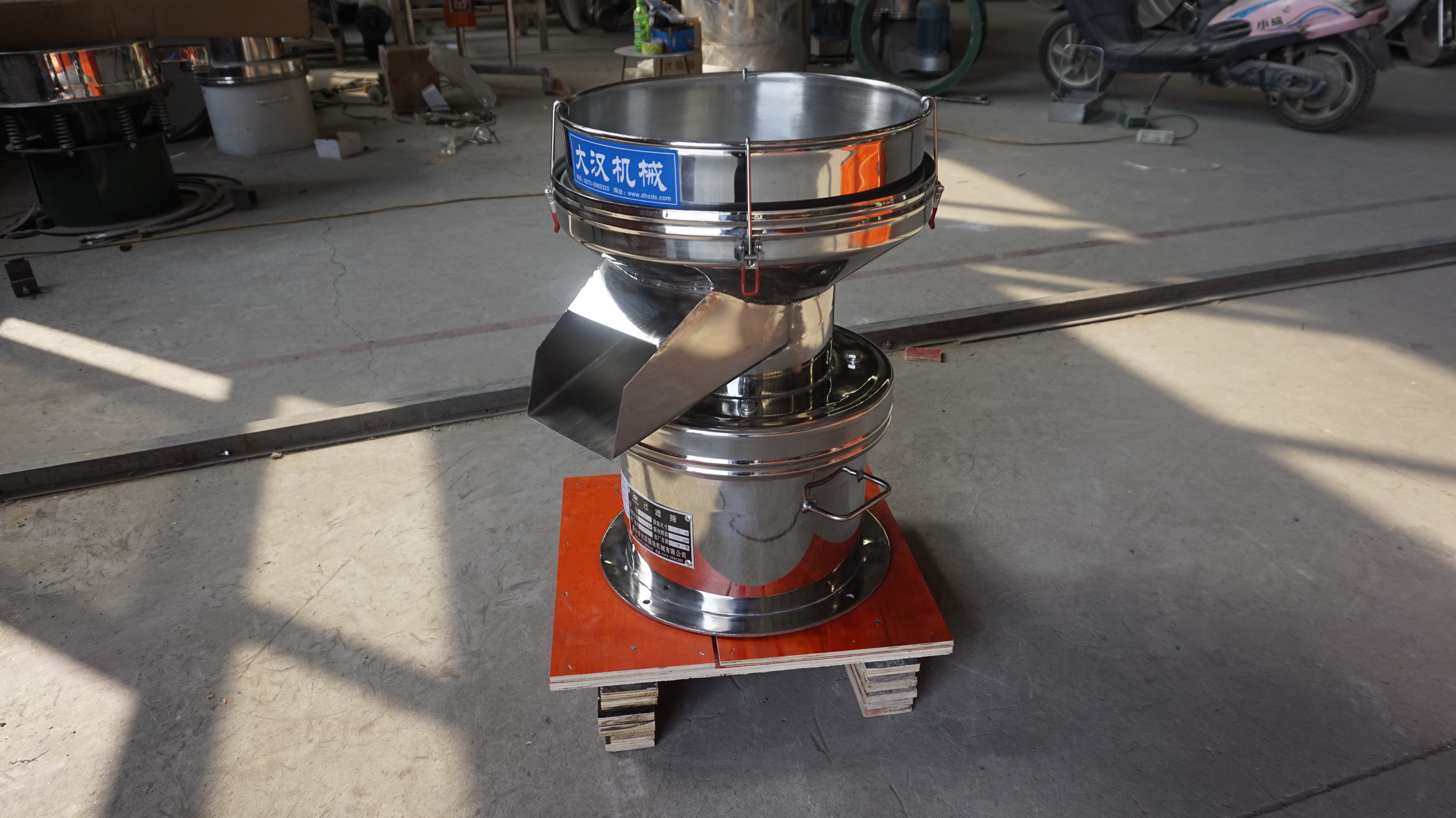

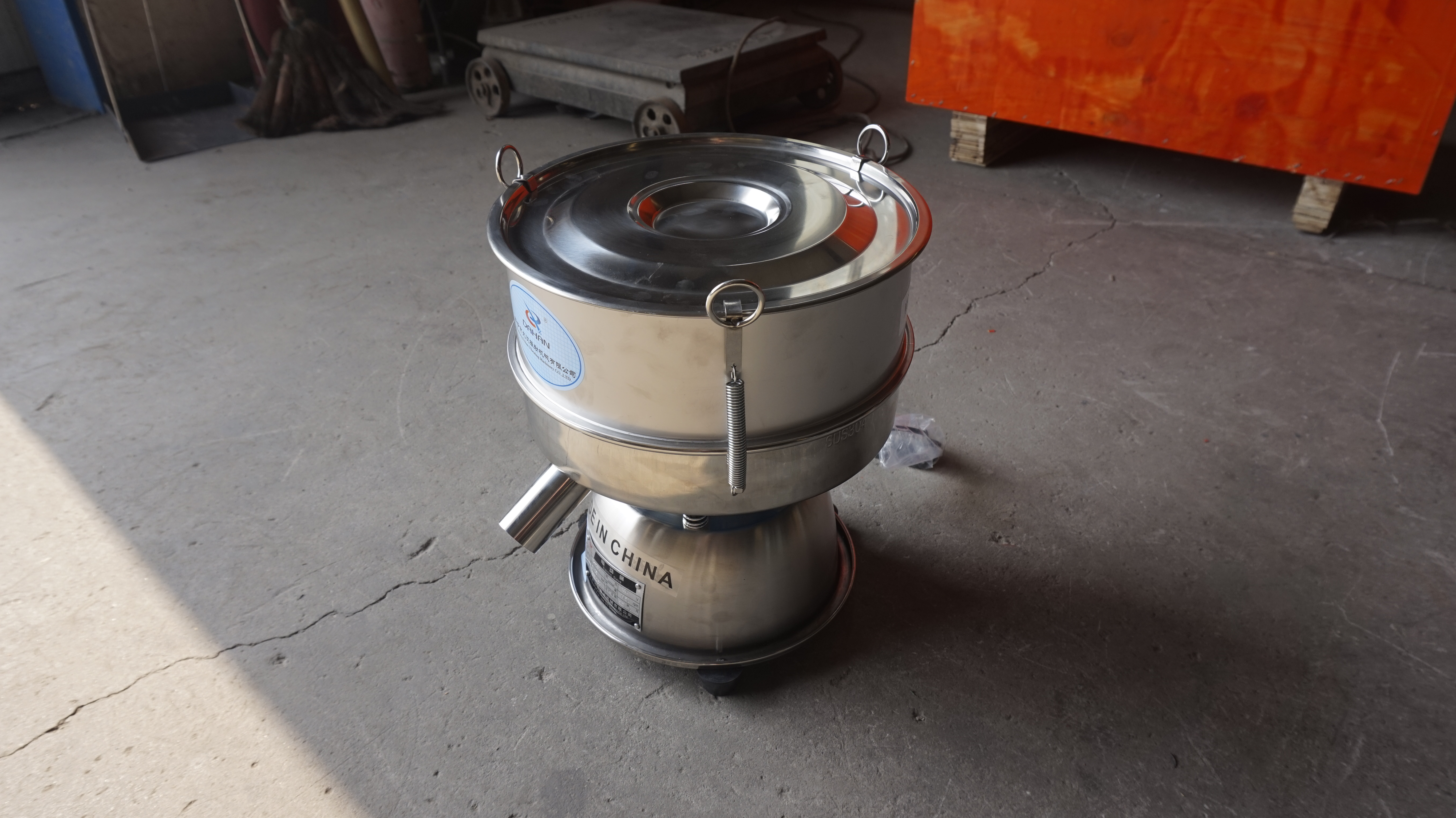

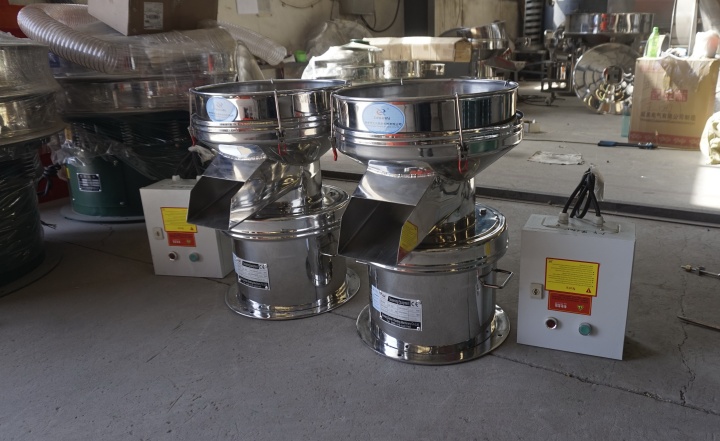

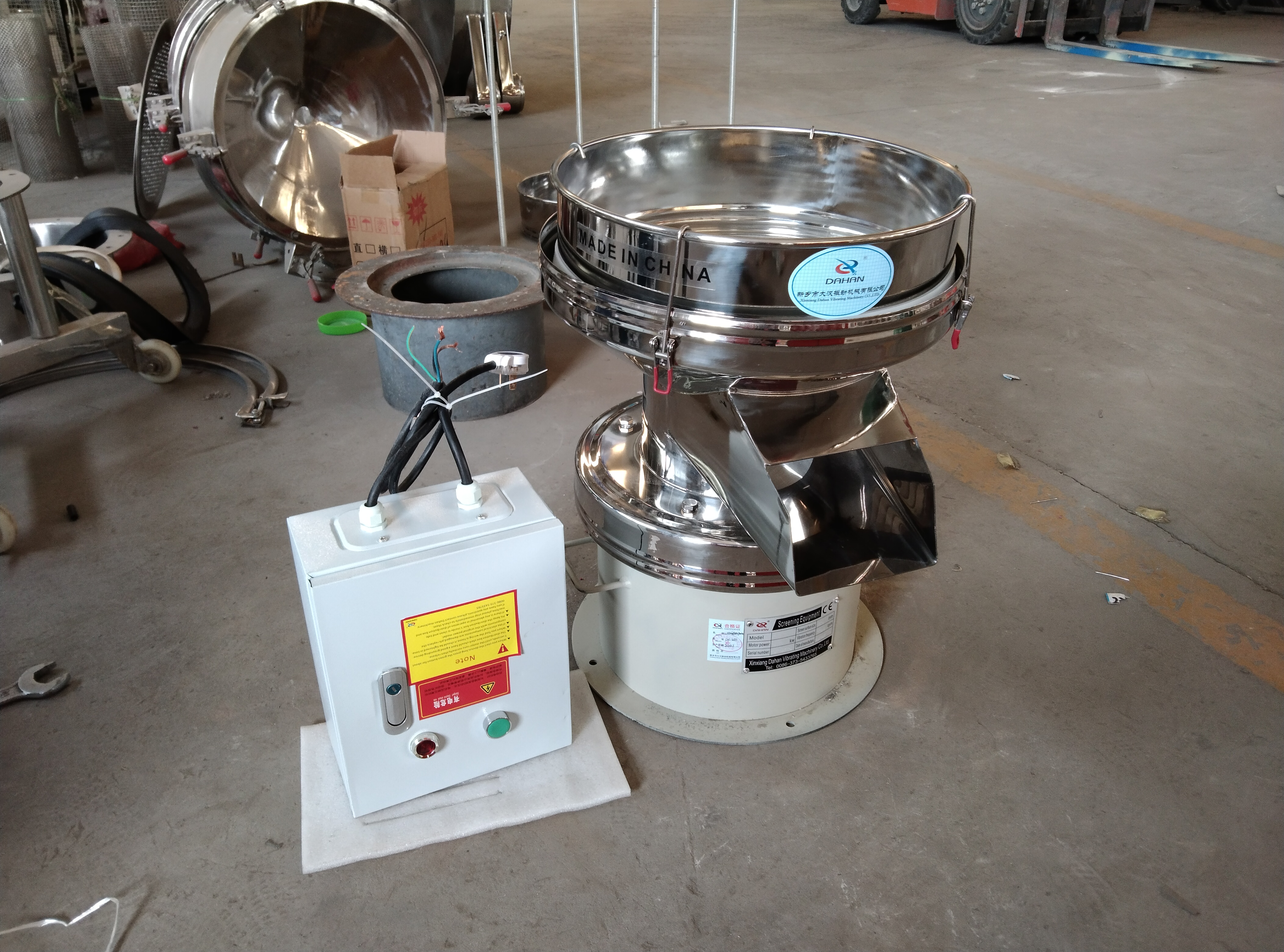

The Liquid filter separator is specially designed to achieve continuous, high-volume liquid-solid separation while completely eliminating screen blinding and liquid splashing. This high-efficiency slurry filtration solution maximizes your throughput by up to 70% with zero downtime for mesh cleaning.This professional filtration machine utilizes advanced 3D vibratory motion to effectively separate solids from highly viscous, fibrous, and impurity-rich liquids.
The motor drives upper and lower eccentric weights to convert rotational motion into three-dimensional movement (horizontal, vertical, and inclined). Under this motion, the liquid rapidly passes through screen and exits via the bottom outlet, while coarse materials/solid impurities move outward in a vortex motion pattern, discharging automatically and continuously through the top outlet.
Why Choose our Liquid Filter Separator?
When it comes to industrial-grade liquid-solid separation, the Liquid Filter Separator stands out as the ultimate solution for efficiency, hygiene, and reliability. Engineered to meet the demanding needs of modern processing industries, it combines advanced technology with robust construction to deliver seamless filtration performance.
Here is why industry leaders trust us for their filtration needs:
High Capacity & Continuous Operation: Optimized cascading or edge-heightened design to handle up to 100,000 L/hour.
No Clogging / Self-Cleaning Mechanism: Equipped with bouncing balls or ultrasonic deblinding systems to ensure seamless filtration for sticky or viscous fluids.
Sanitary & Food Grade Standards: Manufactured from high-quality Stainless Steel 304/316L, fully mirror-polished, meeting FDA and cGMP requirements.
Waterproof Motor & Enclosed Design: Fully enclosed structure (IP65 protection) to prevent liquid splashing, ensuring a safe and low-noise (below 69 dBA) environment.
Quick-Change Mesh: Tool-free clamp ring design allows screen replacement within 5 minutes.
Technical Specifications of Liquid Filter Separator
Our standard models are designed to fit a wide range of production scales, ensuring reliable flow rates and high-durability performance:
Model DH-450: 400 mm Screen Diameter, 1 Layer, Mesh Size Range of 12 - 400 mesh, Capacity of 400 - 1,200 kg/h, built with SS304 / SS316L.
Model DH-800: 800 mm Screen Diameter, 1-3 Layers, Mesh Size Range of 12 - 400 mesh, Capacity of 2 - 5 t/h, built with SS304 / SS316L.
Model DH-1200: 1200 mm Screen Diameter, 1-3 Layers, Mesh Size Range of 12 - 400 mesh, Capacity of 5 - 15 t/h, built with SS304 / SS316L.
Versatile Applications for Liquid Separation
Designed to adapt to diverse production environments, the Liquid Filter Separator delivers exceptional precision and efficiency across a wide spectrum of industries. Whether you need to refine delicate food products, handle abrasive chemicals, or process high-volume industrial waste, this system ensures consistent purity and optimal material recovery.Discover how our advanced separation technology powers various sectors:
Food & Beverage: Juice filtration, soybean milk, starch slurry, chocolate, syrup, wine, and dairy processing.
Chemical & Paint: Latex paint, ink, color paste, coatings, ceramic glaze, and aluminum powder paste.
Pharmaceutical: Traditional Chinese medicine liquid, western medicine slurry, and biological serums.
Wastewater Treatment & Recycling: Industrial effluent filtration, pulp & paper wastewater processing, and solids recovery.
Custom Engineering Solutions for Your Filtration Needs
We understand that every slurry and production line is unique. To seamlessly integrate into your existing workflow and meet your specific processing goals, we offer fully customizable engineering options for our Liquid Filter Separators:
Heightened Edge/Splash-Guard Frame: For ultra-high-volume slurry inputs, we customize edge-heightened frames or extended inlets to completely eliminate any risk of overflowing or splashing.
Tailored Discharge Outlets: Outlets can be designed with custom diameters, angles (e.g., sloped, tangential, or straight-drop), and valve configurations to match your downstream piping and material handling systems.
Advanced Deblinding Systems: Choose between high-rebound bouncing balls, silicone sliders, or cutting-edge ultrasonic deblinding systems to ensure zero mesh clogging when filtering extremely sticky, oily, or ultra-fine viscous fluids.
Mobility & Height Adjustments: Need flexibility? We can equip your separator with heavy-duty caster wheels with brakes, or design height-adjustable mobile cart stands for easy movement across different processing bays.
Material & Surface Treatment Upgrades: While we offer premium Stainless Steel 304/316L as standard, we can customize surface finishes with interior Teflon (PTFE) non-stick coatings, sandblasting, or full mirror-polishing (up to Ra < 0.4 µm) to meet strict sanitary, acid-resistant, or anti-corrosion demands.
Get a Free Technical Consultation
| Model | Screen Diameter | Layer | Mesh Size Range | Capacity | Material |
|---|---|---|---|---|---|
| DH-450 | 400 mm | 1 Layer | 12 - 400 mesh | 400 - 1,200 kg/h | SS304 / SS316L |
| DH-800 | 800 mm | 1-3 Layers | 12 - 400 mesh | 2 - 5 t/h | SS304 / SS316L |
| DH-1200 | 1200 mm | 1-3 Layers | 12 - 400 mesh | 5 - 15 t/h | SS304 / SS316L |
Contact our engineering team anytime with your slurry characteristics (viscosity, flow rate, and solid content), and we will customize the perfect, turnkey filtration solution for your facility!
Global Support & Professional Manufacturing
As a trusted leader in vibratory screening technology, Our factory is committed to delivering not just high-performance equipment, but long-term reliability and comprehensive support. Every machine undergoes rigorous load testing and quality control inspections before leaving our state-of-the-art manufacturing facility, ensuring trouble-free installation and immediate ROI.
Complimentary Material Testing: Unsure how your specific slurry will perform? Send us a sample! Our laboratory offers free material testing and screening analysis to help you determine the precise mesh size, frequency, and model configuration required for your target yield.
Global After-Sales Network: We provide global shipping and rapid-response technical support. Our engineers are available for online video consultation to guide your team through installation, commissioning, and daily maintenance.
Genuine Spare Parts & Quick Shipping: We maintain a massive inventory of standard replacement parts—including food-grade silicone gaskets, screen mesh, bouncing balls, and clamp rings. This guarantees that replacement parts are shipped quickly to keep your production lines running smoothly with minimal disruption.
Empower your production with our expert liquid filtration technology—where engineering precision meets industrial-grade durability. Contact us today to request a quote!
Frequently Asked Questions (FAQ)
Q1: How do I choose the right mesh size for my slurry filtration?
A: It depends on your solid particle size and viscosity. For example, 12 mesh is ideal for removing coarse particles to prevent nozzle clogging, while finer juices may require up to 400 mesh. Contact our team for material testing!
Q2: Can this vibro sieve handle highly viscous or sticky liquids?
A: Yes, our high-frequency vibrating screen and optional ultrasonic cleaning system are specifically designed to reduce surface tension and prevent sticky materials from blinding the mesh.
Q3: Is the motor safe from water and liquid splashes?
A: Absolutely. Our separators use fully enclosed, waterproof vertical vibration motors with IP65/IP66 protection rating to ensure 100% operational safety.
